My something different HTPC

Posted:
January 31st 2009
Updated:
Viewed:
18,297 times
Rating:
Superb (8.3)
Voting Graph 55 votes total
Submit vote:
Please register on the forums & login to vote.
Key Features:
High Rated AMD CPU AMD Graphics Scratch Build Custom Paint Job Small Form Factor
System Specs:
  • Case Fully Selfmade Maße: H 39cm x B 24cm x T 35cm
  • Mainboard Gigabyte GA-MA69GM-S2H
  • CPU AMD 4000+ X2 EE
  • Ram 2GB 667 Made in China ;-)
  • Graphic Card 690/x1250 onboard, later 8800GT Silent
  • TV-Card 2x Hauppauge HVR-1300
  • HDD Maxtor 160GB
  • DVD- Burner LG H66N later Bluray
  • Remote Funk Remote X10
  • Wlan/Lan C54Ri / 100Mbit
  • OS MCE 2005
  • NT Xilence 420W

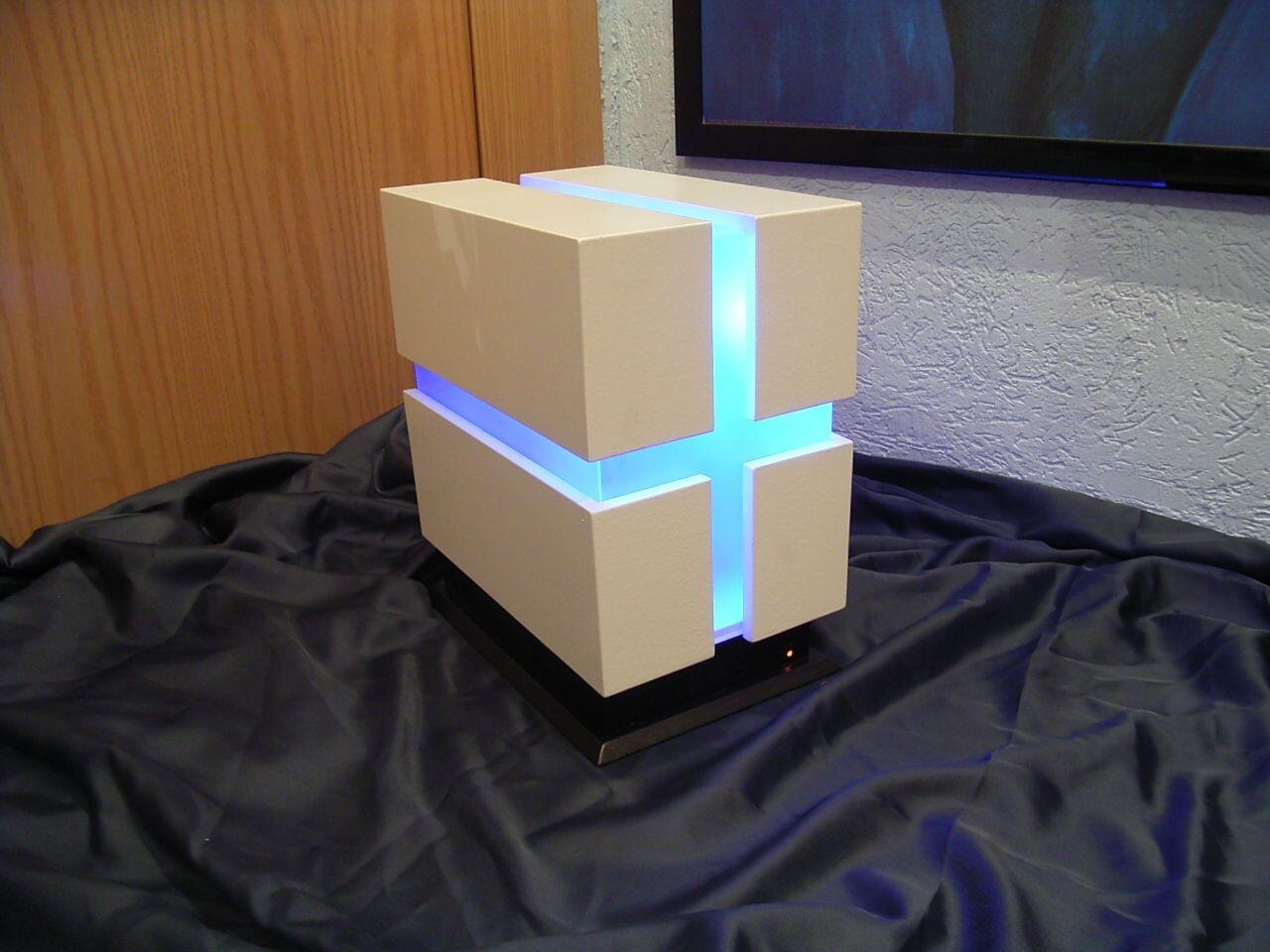

Hello, the goal was it to build a HTPC, which can be set up independently and under the television is not pushed or in the HiFi rack disappears. Further should not it too strongly after " PC" look. Since I already possess enough housings in the HiFi format (home cinema) and I did not find suitable, I decided the housing complete to building. The DVD Burner is Stealth in the front of the Base. The Case has no Buttons, the Operation is completely Remote controlled. Morai
Add your own comment

25 Comments on My something different HTPC

#1
erocker
*
Make them in black and white and sell them to the masses! Awesome and brilliant design.

10/10
Posted on Reply
#2
steelkane
Looks nice,, I would like it better with perforated holes in the lighted plexiglass, but that could always be done, nice mod
Posted on Reply
#3
NeoCrisis
wow very nice
I demand a work log!!!
Posted on Reply
#5
jinu
wow self made. osm htpc box
Posted on Reply
#6
zithe
Dude, get patents on it and present it to a big case company! I'd sure as hell buy that.
Posted on Reply
#9
prodigy223
10/10

So simple and sleek and contemporary, looks amazing! reminds me of that companion cube mod for some reason lol i dont know why
Posted on Reply
#10
farlex85
Crazy good. Who are you guys w/ these awesome case designs and where else can I find your work? 10/10
Posted on Reply
#11
King Wookie
Really awesome!

Just wondering if there is sufficient ventilation, as I don't see an airflow path.

10/10
Posted on Reply
#12
freaksavior
To infinity ... and beyond!
I give you props man looks nice, but i like this better

Posted on Reply
#13
to6ko91
10/10 SO so great !!!
For the muppets complaining about cooling ....
Posted on Reply
#14
tzitzibp
this is surely a unique build..... just for the idea 9/10 and the effort put into this 8/10
you would get my 10 if the case cover would include a some sort of side panel for ease of access...

as for the temps I would like to see a screeny with cpu, gpu, NB, SB, mobo and HDD temps while on full load...and real operating conditions i.e. movie playback and maybe a game....


anyway well worth the 8/10...well done
Posted on Reply
#15
shoktongxxx
nice build..10/10 vote.
For the muppets complaining about cooling ....
lolz..hahahaha

may i suggest could you change your ccfl to green..^^
it will look nicer..^^
nice build anyway 10/10 vote..^^

Posted on Reply
#16
polo360x
7/10

One problem tho!!! I am not trying to be smart, but it does make a difference, trust me !!

do you know that Hot AIR RISE ?

1st - the cool air that you are getting into your computer at the top is actually warm air that is exhausted from the bottom of your computer.

2nd- that warm air getting into your case from the top gets hotter then it accumulates at the top inside your case, you may be getting about 50% of the hot air out using that one fan at the bottom.

I suggest you add two intake 80mm fans on the side ! then have the top and bottom fans blow out the hot air created by your CPU.

Good luck, I hope that helps.. if you are overclocking or running Quad you should see 5C-10 difference ..
Posted on Reply
#17
to6ko91
polo360x7/10

One problem tho!!! I am not trying to be smart, but it does make a difference, trust me !!

do you know that Hot AIR RISE ?

1st - the cool air that you are getting into your computer at the top is actually warm air that is exhausted from the bottom of your computer.

2nd- that warm air getting into your case from the top gets hotter then it accumulates at the top inside your case, you may be getting about 50% of the hot air out using that one fan at the bottom.

I suggest you add two intake 80mm fans on the side ! then have the top and bottom fans blow out the hot air created by your CPU.

Good luck, I hope that helps.. if you are overclocking or running Quad you should see 5C-10 difference ..
I think (99.9%) this is a htpc thous it is not intended for gaming and extreme CPU usage and it is probably using some AMD that doesnt produce a hole lot of heat so he might not need a HAF ;)

Edit: maxx temp of the cpu is 65°C AMD reference

Edit2 : "the goal was it to build a HTPC, which can be set up independently and under the television" Morai (the creator)
Posted on Reply
#18
steelkane
As I said before, perforated holes in the plexi glass like in mesh, & making the rear fan exhaust, would help the temps greatly. Also if done right, it would add to the overall appearance.
Posted on Reply
#19
crtecha
definate 10\10 original and looks like a great build. Do you have a work log?
Posted on Reply
#20
j_d3
This is an AMAZING mod. Good job and keep em coming. Hope you don't mind if I take idea from this spectacular mod.
Posted on Reply
#22
Castiel
Because it is just a freakin awesome case/mod!!!!!!!! 100000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000/10
Posted on Reply
#23
crtecha
This case is sick plain and simple 10/10 for creativity alone
Posted on Reply
#25
reverze
Creative. 10/10

Maße.. German? :)
Posted on Reply
