Introduction
Last month, AMD, which pioneered DirectX 11 compliant PC consumer graphics, released its second-generation Radeon HD 6800 DirectX 11 architecture, codenamed Northern Islands. The company has enjoyed a 6 month head-start into the race for DirectX 11 graphics hardware market dominance, which also reflected in both growth of market-share, and domination in sales. The time passed by also allowed AMD to refine and fine-tune its architecture to better suit the existing 40 nm silicon fabrication process, by promising to churn out higher performance per Watt and performance per mm² of die-area (plays an important role in product pricing), compared to the previous-generation Evergreen architecture.
PowerColor's HD 6850 PCS+ is a fully custom HD 6850 design. It uses a different PCB, different voltage regulator and different thermal solution than the AMD reference version. The most important points for the HD 6850 PCS+ are a clock speed of 820 MHz core and 1100 MHz memory, which is 6% more on core and 10% more on memory.
| Radeon HD 5770 | GeForce GTX 460 | GeForce GTX 460 | Radeon HD 6850 | PowerColor HD 6850 PCS+ | Radeon HD 5850 | GeForce GTX 470 | Radeon HD 6870 | Radeon HD 5870 | GeForce GTX 480 | Radeon HD 5970 |
---|
Shader units | 800 | 336 | 336 | 960 | 960 | 1440 | 448 | 1120 | 1600 | 480 | 2x 1600 |
---|
ROPs | 16 | 24 | 32 | 32 | 32 | 32 | 40 | 32 | 32 | 48 | 2x 32 |
---|
GPU | Juniper | GF104 | GF104 | Barts | Barts | Cypress | GF100 | Barts | Cypress | GF100 | 2x Cypress |
---|
Transistors | 1040M | 1950M | 1950M | 1700M | 1700M | 2154M | 3200M | 1700M | 2154M | 3200M | 2x 2154M |
---|
Memory Size | 1024 MB | 768 MB | 1024 MB | 1024 MB | 1024 MB | 1024 MB | 1280 MB | 1024 MB | 1024 MB | 1536 MB | 2x 1024 MB |
---|
Memory Bus Width | 128 bit | 192 bit | 256 bit | 256 bit | 256 bit | 256 bit | 320 bit | 256 bit | 256 bit | 384 bit | 2x 256 bit |
---|
Core Clock | 850 MHz | 675 MHz | 675 MHz | 775 MHz | 820 MHz | 725 MHz | 607 MHz | 900 MHz | 850 MHz | 700 MHz | 725 MHz |
---|
Memory Clock | 1200 MHz | 900 MHz | 900 MHz | 1000 MHz | 1100 MHz | 1000 MHz | 837 MHz | 1050 MHz | 1200 MHz | 924 MHz | 1000 MHz |
---|
Price | $140 | $160 | $200 | $180 | $190 | $260 | $260 | $240 | $360 | $450 | $580 |
---|
Packaging
There is not much to say about PowerColor's package, it is easily recognizable as such and communicates the most basic product highlights.
Contents

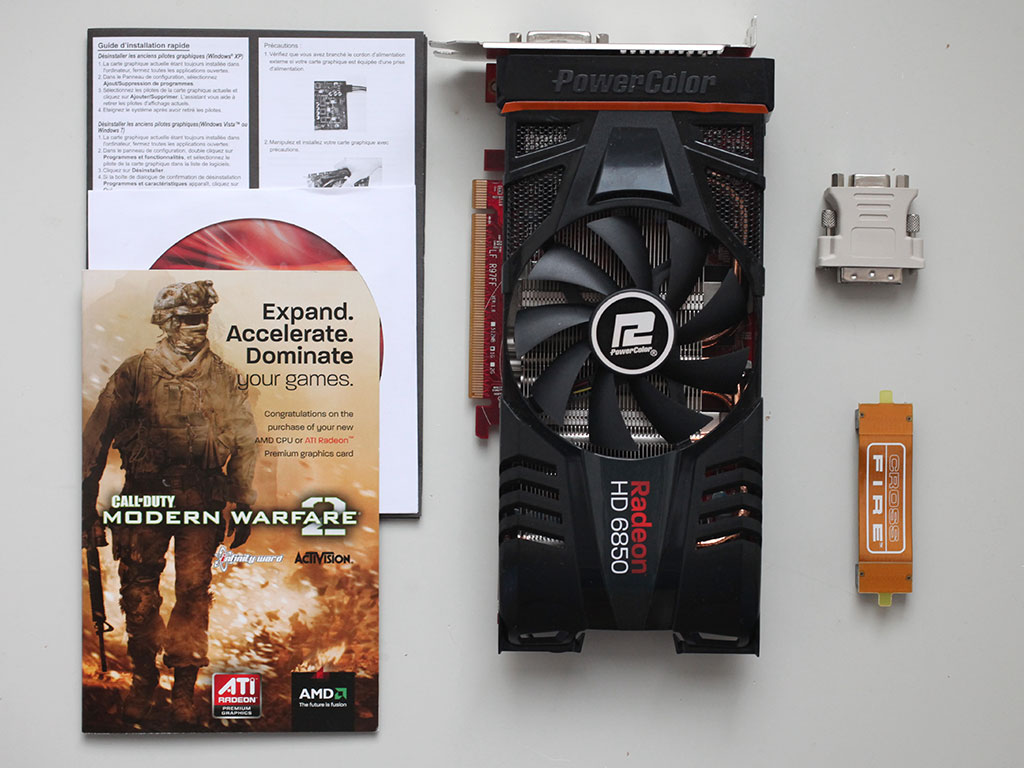

You will receive:
- Graphics card
- Driver CD + Documentation
- DVI adapter
- CrossFire Bridge
- Call of Duty Modern Warfare 2 Steam Coupon
The Card
PowerColor's HD 6850 PCS+ uses a cooler that resembles a racecar chassis.
Like all othe HD 6850 cards available today the HD 6850 PCS+ requires two slots in your system.
The card has two DVI ports, one DisplayPort and one HDMI port. AMD's display output logic is clearly superior to what NVIDIA has to offer at this time. Vendors are free to combine six TMDS links into any output configuration they want (dual-link DVI consuming two links) - and use them all at the same time. AMD has also introduced DisplayPort 1.2 support with their new cards which allows the use of a DisplayPort hub to connect multiple monitors, or daisy chain them together.
An HDMI sound device is also included in the GPU. The HDMI interface is HDMI 1.4a compatible which includes Dolby TrueHD, DTS-HD, AC-3, DTS and up to 7.1 channel audio with 192 kHz / 24-bit output. The new revision also brings support for Blu-ray 3D movies which will become important later this year when we will see first Blu-ray 3D titles shipping.
You may combine up to two HD 6850 and HD 6870 cards in CrossFire for higher performance or improved image quality settings.
Here are the front and the back of the card, high-res versions are also available (
front,
back). If you choose to use these images for voltmods etc, please include a link back to this site or let us post your article.
