BIOS for "Rx580 JieShuo" chip 215-0876406

[SrKtwll]

I want to be able to find a vbios for a graphics card that was given to me "JieShuo Rx580 8gb"
Being a Chinese brand I assumed that it could possibly be a scam graphics card and so it was, it doesn't give an image, even so I would like to be able to bring it to life.

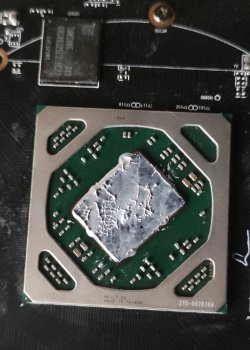

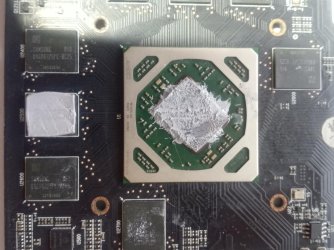

Chip 215-0876406

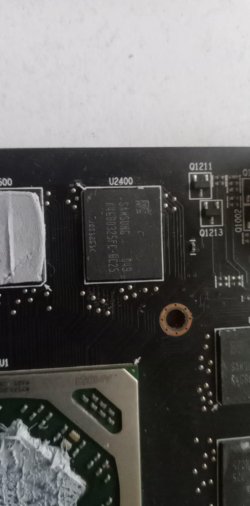

Vram Samsung K4G80325FC

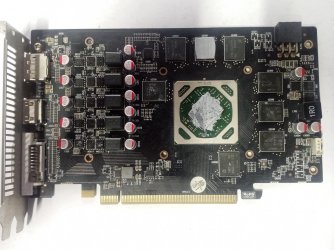

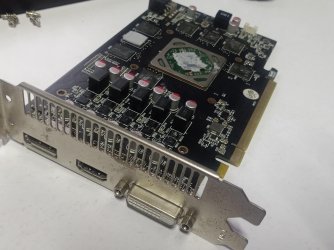

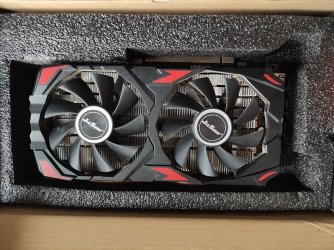

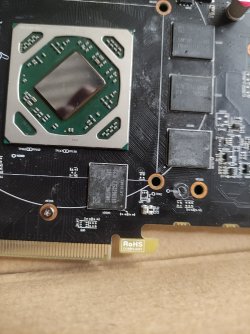

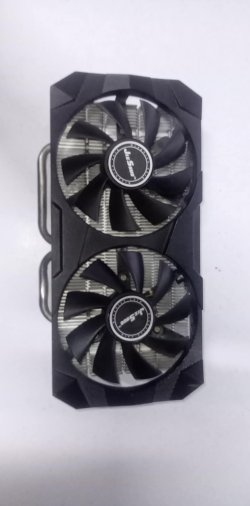

PS: The strange thing about this graphics card is that it only has one 6-pin voltage source input, I've attached photos for further help.



[eidairaman1]

I want to be able to find a vbios for a graphics card that was given to me "JieShuo Rx580 8gb"
Being a Chinese brand I assumed that it could possibly be a scam graphics card and so it was, it doesn't give an image, even so I would like to be able to bring it to life.
Chip 215-0876406
Vram Samsung K4G80325FC

PS: The strange thing about this graphics card is that it only has one 6-pin voltage source input, I've attached photos for further help.

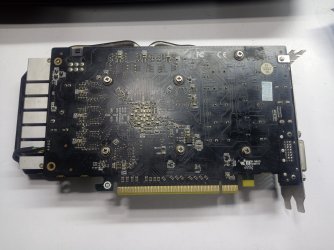

Can you flip the card over and get a picture of the back please



[SrKtwll]

Can you flip the card over and get a picture of the back please

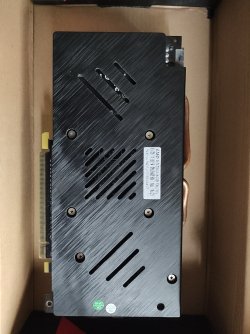

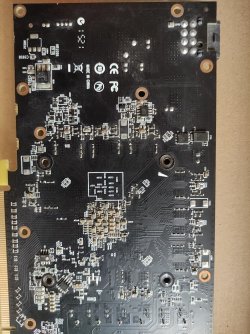

Sure! Here it is



[eidairaman1]

Sure! Here it is

Ok I see a code but no other pcb reference, so the card can be either a 1002 6FDF 1002 0B31 or a 1002 6FDF 1002 0000. Give me time to research.



[SrKtwll]

Ok, veo un código pero ninguna otra referencia de PCB, por lo que la tarjeta puede ser una 1002 6FDF 1002 0B31 o una 1002 6FDF 1002 0000. Dame tiempo para investigar.

Thanks



[eidairaman1]

Thanks

Ok with your card having 1 pcie connector

Id be careful of the current draw on it

0B31 Bios

jieshuo rx 580 VBIOS

8 GB GDDR5, 1244 MHz GPU, 1750 MHz Memory

www.techpowerup.com

jieshuo RX 580 VBIOS

8 GB GDDR5, 1286 MHz GPU, 1750 MHz Memory

www.techpowerup.com

0000 bios

AMD RX 580 VBIOS

8 GB GDDR5, 1180 MHz GPU, 1750 MHz Memory

www.techpowerup.com

AMD RX 580 VBIOS

8 GB GDDR5, 1180 MHz GPU, 1750 MHz Memory

www.techpowerup.com

AMD RX 580 VBIOS

8 GB GDDR5, 1180 MHz GPU, 1750 MHz Memory

www.techpowerup.com

Here are a bunch of 0B31 files.

TechPowerUp

Extensive repository of graphics card BIOS image files. Our database covers submissions categorized by GPU vendor, type, and board partner variant.

www.techpowerup.com

@VuurVOS maybe you can peek through them
