[Case Gallery] Blue Lantern

D

DREAMKILLER323

Guest
To view this case mod, go here.



Specs:
Gigabyte GA-P35-DS3L
Thermalright HR-05 IFX
Intel E6750
ThermalRight Ultra-120 Extreme
Wintec AmpX PC6400
eVGA 8800GTS 640 SC
Zalman Vf-1000+RHS88
Western Digital 2500KS
Creative Soundblaster Audigy2 ZS
Corsair HX620
Lian Li PC-65B II
80mm Nexus Exhaust
120mm Noctua intake

Mods:
Biggest mod I did on this computer is the video card. I swapped out the old stock cooler to a Zalman VF1000+RHS88. I was still unhappy with the noise and performance so I took off the (horrible) Zalman fan and strapped on 2 80mm Nexus fans.

Overclocked CPU to 3.2GHz @ stock voltage. Video card is running at 675/1700/1000Mhz (core/shader/ram). View the Flickr site for more pics. Sorry for the dust and finger prints, too lazy to clean out the case.

Last edited by a moderator:
Joined
Sep 26, 2006
Messages
6,959 (1.05/day)
Location
Australia, Sydney
............................................ damn you T___________T (HR-05 IFX + Ultra 120....)

8/10

EDIT: Wait a minute, how did you get your CPU cooler to fit with the NB cooler? Is the HR-05 IFX thinner?


SMACK900

New Member
Joined
Sep 27, 2007
Messages
62 (0.01/day)
Location
Melbourne, Australia
Processor Intel C2D E4300 @ 1.8Ghz, OC to 3.0Ghz
Motherboard Gigabyte 965P-DS3P
Cooling Thermaltake Big Typhoon VX, 6 x 120mm & 1 x 200mm Fans
Memory 4 x 512MB Corsair Twin2X 5400C4
Video Card(s) Gigabyte HD4850
Storage Seagate Barracuda 320GB 7,200
Display(s) Samsung 226BW & Optima DLP Projector
Case Antec900
Audio Device(s) onboard
Power Supply Hyper Type-R 580W
Software Windows XP SP2
Very clean rig 8/10 from me

D

DREAMKILLER323

Guest
It fits with no clearance. To get the fan clips on where the Ultra-120 and the HR-05 meet, I had to use long-nose pliers to pull the clip out from between and clamp the damn thing on. I also had to off-center the HR-05 a bit to the "south". That was the reason for all the electrical tape under the HR-05, it acts as a shim to prevent my NB from shorting out.

Joined
Sep 26, 2006
Messages
6,959 (1.05/day)
Location
Australia, Sydney
It fits with no clearance. To get the fan clips on where the Ultra-120 and the HR-05 meet, I had to use long-nose pliers to pull the clip out from between and clamp the damn thing on. I also had to off-center the HR-05 a bit to the "south". That was the reason for all the electrical tape under the HR-05, it acts as a shim to prevent my NB from shorting out.

Oh, so the HR-05 is off centre? I don't think thats very safe... in my opinion, mount it the way that i mounted it because:

1. The nb will be on centre, your nb will run far cooler thanks to the better mounting pressure
2. The nb will be cooled by the fan on the Ultra 120... see, my HR-05 doesnt even feel warm!
3. Much more clearance... far safer in comparison

D

DREAMKILLER323

Guest
Oh, so the HR-05 is off centre? I don't think thats very safe... in my opinion, mount it the way that i mounted it because:

1. The nb will be on centre, your nb will run far cooler thanks to the better mounting pressure
2. The nb will be cooled by the fan on the Ultra 120... see, my HR-05 doesnt even feel warm!
3. Much more clearance... far safer in comparison

Very slighly off center. I can't center it anyway since the Ultra-120 is so large so #3 doesn't apply and I already know about #2. I just hate the mounting system of the HR-05 - It gives the mounting bolts a lot of room to play which makes it a pain. This is the reason I've been wanting to upgrade to an X38 because they come with an IHS so after-market NB coolers should be a cinch to install. I could always add the old 80mm fan that was there before, I still have the room.

BTW, I've had this system running outside the case before. When overclocked, the back of the motherboard where the NB is located didn't even feel remotely warm under Orthos.

Joined
Sep 26, 2006
Messages
6,959 (1.05/day)
Location
Australia, Sydney
Very slighly off center. I can't center it anyway since the Ultra-120 is so large so #3 doesn't apply and I already know about #2. I just hate the mounting system of the HR-05 - It gives the mounting bolts a lot of room to play which makes it a pain. This is the reason I've been wanting to upgrade to an X38 because they come with an IHS so after-market NB coolers should be a cinch to install. I could always add the old 80mm fan that was there before, I still have the room.

BTW, I've had this system running outside the case before. When overclocked, the back of the motherboard where the NB is located didn't even feel remotely warm under Orthos.

Yeah, I know P31/P35s run cool :p. The IHS makes aftermarket cooling easy to install, but its been proven that bare die > IHS. Have a look at my setup, doesn't it seem like the original HR-05 is thicker? (signature)

Anyway, I'll change your vote to a 10 cause... that looks damn risky!

Joined
Sep 26, 2006
Messages
6,959 (1.05/day)
Location
Australia, Sydney
I voted 10/10 because:

Damn risky but awesome setup that I wish to do (HR-05 + Ultra 120 on a P3x DS3 board... whoa.

Joined
Nov 17, 2007
Messages
2,228 (0.36/day)
Location
Larisa, Greece
System Name StarCruiser Dark Knight v.2
Processor Intel® Core™ i5-3570K
Motherboard P8Z77-V LX
Cooling 1x custom W/C loop/ inflow:6x120 /outflow:4x120, 2x200
Memory Viper 3 Black Mamba (4x4GB)
Video Card(s) Powercolor LCS 5870
Storage 1X 128GB OCZ, 2 x 1.500 Gb Seagate
Display(s) Samsung 24" LC24F396
Case custom MDF case (I BUILT IT) check sig.....NOW
Audio Device(s) Onboard
Power Supply Tagan 900 watt
Software Win 7 RC / Open office / Games
D

DREAMKILLER323

Guest
Yeah, I know P31/P35s run cool :p. The IHS makes aftermarket cooling easy to install, but its been proven that bare die > IHS. Have a look at my setup, doesn't it seem like the original HR-05 is thicker? (signature)

Anyway, I'll change your vote to a 10 cause... that looks damn risky!

Thanks, To tell you the truth, this is my second board (free RMA) since my first install fried the first one.

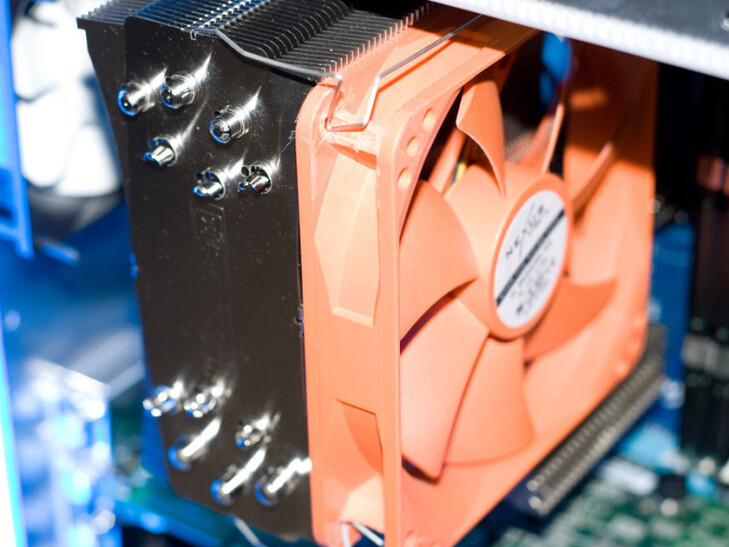

The normal HR-05 should be the same width, but the ridges on the IFX gives the Ultra-120's clips some room. Take a look at the pic I took for clarification.

Joined
Apr 3, 2008
Messages
3,051 (0.50/day)
Location
Pontaic Michigan
System Name The Netbook
Processor Intel Atom n270
Memory 1GB DDR2 533mhz
Video Card(s) Intel G945
Storage 250GB
Display(s) 10.1" LCD
Software Microsoft Windows 7 Starter x86

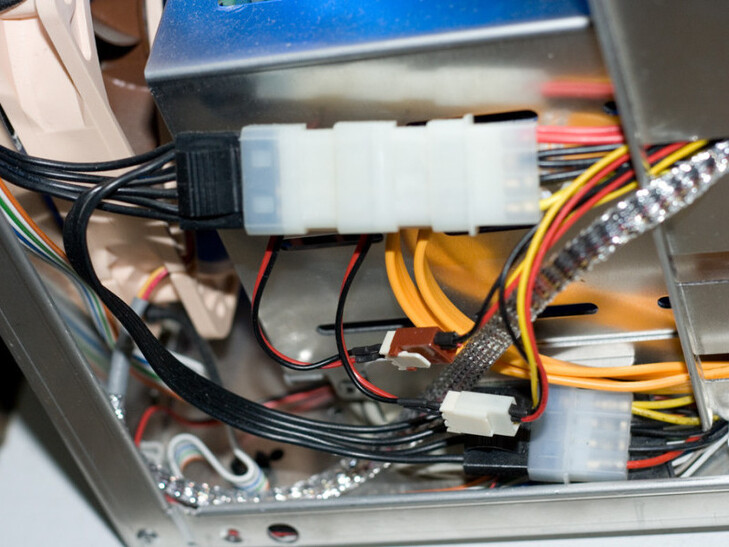

Great job with wire management. Color looks great.
8/10
