Does this mean my memory is running in Dual Channel?

georgelappies

New Member
Joined
Nov 17, 2023
Messages
3 (0.01/day)
I have 2 Kingston Fury Beast 16GB 5600MHz DDR5 CL40 DIMM Single Module 16Gb sticks installed and this is what CPU-Z and task manager shows:





Does this mean my memory is running in Dual Channel?

My motherboard is a:


Last edited:

3x0

Joined
Oct 6, 2022
Messages
961 (1.19/day)
Processor AMD Ryzen 7 5800X3D
Motherboard MSI MPG B550I Gaming Edge Wi-Fi ITX
Cooling Scythe Fuma 2 rev. B Noctua NF-A12x25 Edition
Memory 2x16GiB G.Skill TridentZ DDR4 3200Mb/s CL14 F4-3200C14D-32GTZKW
Video Card(s) PowerColor Radeon RX7800 XT Hellhound 16GiB
Storage Western Digital Black SN850 WDS100T1X0E-00AFY0 1TiB, Western Digital Blue 3D WDS200T2B0A 2TiB
Display(s) Dell G2724D 27" IPS 1440P 165Hz, ASUS VG259QM 25” IPS 1080P 240Hz
Case Cooler Master NR200P ITX
Audio Device(s) Altec Lansing 220, HyperX Cloud II
Power Supply Corsair SF750 Platinum 750W SFX
Mouse Lamzu Atlantis Mini Wireless
Keyboard HyperX Alloy Origins Aqua
Yes, it's dual channel.


3x0

Joined
Oct 6, 2022
Messages
961 (1.19/day)
Processor AMD Ryzen 7 5800X3D
Motherboard MSI MPG B550I Gaming Edge Wi-Fi ITX
Cooling Scythe Fuma 2 rev. B Noctua NF-A12x25 Edition
Memory 2x16GiB G.Skill TridentZ DDR4 3200Mb/s CL14 F4-3200C14D-32GTZKW
Video Card(s) PowerColor Radeon RX7800 XT Hellhound 16GiB
Storage Western Digital Black SN850 WDS100T1X0E-00AFY0 1TiB, Western Digital Blue 3D WDS200T2B0A 2TiB
Display(s) Dell G2724D 27" IPS 1440P 165Hz, ASUS VG259QM 25” IPS 1080P 240Hz
Case Cooler Master NR200P ITX
Audio Device(s) Altec Lansing 220, HyperX Cloud II
Power Supply Corsair SF750 Platinum 750W SFX
Mouse Lamzu Atlantis Mini Wireless
Keyboard HyperX Alloy Origins Aqua

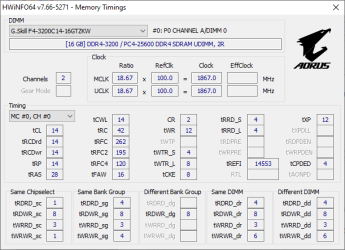

Can you verify with an older version of CPU-z? Or download HWInfo and open "Memory Timings" option via right clicking its tray icon.

CPUz has shown dual channel DDR5 as Quad channel/4x32bit for a long time, I'm not 100% sure if they changed something again.

Screenshot 2023-11-17 122303.png

Joined
Feb 24, 2023
Messages
3,126 (4.68/day)
Location
Russian Wild West
System Name DLSS / YOLO-PC / FULLRETARD
Processor i5-12400F / 10600KF / C2D E6750
Motherboard Gigabyte B760M DS3H / Z490 Vision D / P5GC-MX/1333
Cooling Laminar RM1 / Gammaxx 400 / 775 Box cooler
Memory 32 GB DDR4-3200 / 16 GB DDR4-3333 / 3 GB DDR2-700
Video Card(s) RX 6700 XT / R9 380 2 GB / 9600 GT
Storage A couple SSDs, m.2 NVMe included / 240 GB CX1 / 500 GB HDD
Display(s) Compit HA2704 / MSi G2712 / non-existent
Case Matrexx 55 / Junkyard special / non-existent
Audio Device(s) Want loud, use headphones. Want quiet, use satellites.
Power Supply Thermaltake 1000 W / Corsair CX650M / non-existent
Mouse Don't disturb, cheese eating in progress...
Keyboard Makes some noise. Probably onto something.
VR HMD I live in real reality and don't need a virtual one.
Software Windows 11 / 10 / 8
No, it's not dual channel in traditional understanding. One channel is 64 bit, and you only have one 16 GB stick populating two sub-channels of 32 bit each. Still faster and more efficient than one DDR4 stick with single 64-bit channel, yet you're still having less bandwidth than you could've had. Install the second RAM stick as soon as you can afford it and you'll get your dual channel with all extra speed this mode provides with.

NB: OC potential of random sticks is worse than that of sticks in kits of two.


Disregard all the above, I had reading comprehension issues. Everything is fine. CPU-Z is bugging you.

  • Like
Reactions: 3x0

3x0

Joined
Oct 6, 2022
Messages
961 (1.19/day)
Processor AMD Ryzen 7 5800X3D
Motherboard MSI MPG B550I Gaming Edge Wi-Fi ITX
Cooling Scythe Fuma 2 rev. B Noctua NF-A12x25 Edition
Memory 2x16GiB G.Skill TridentZ DDR4 3200Mb/s CL14 F4-3200C14D-32GTZKW
Video Card(s) PowerColor Radeon RX7800 XT Hellhound 16GiB
Storage Western Digital Black SN850 WDS100T1X0E-00AFY0 1TiB, Western Digital Blue 3D WDS200T2B0A 2TiB
Display(s) Dell G2724D 27" IPS 1440P 165Hz, ASUS VG259QM 25” IPS 1080P 240Hz
Case Cooler Master NR200P ITX
Audio Device(s) Altec Lansing 220, HyperX Cloud II
Power Supply Corsair SF750 Platinum 750W SFX
Mouse Lamzu Atlantis Mini Wireless
Keyboard HyperX Alloy Origins Aqua
No, it's not dual channel in traditional understanding. One channel is 64 bit, and you only have one 16 GB stick populating two sub-channels of 32 bit each. Still faster and more efficient than one DDR4 stick with single 64-bit channel, yet you're still having less bandwidth than you could've had. Install the second RAM stick as soon as you can afford it and you'll get your dual channel with all extra speed this mode provides with.

NB: OC potential of random sticks is worse than that of sticks in kits of two.
He said
I have 2 Kingston Fury Beast 16GB 5600MHz DDR5
He has two 16GB sticks, on a motherboard with two RAM slots. Should be dual channel by all accounts.


georgelappies

New Member
Joined
Nov 17, 2023
Messages
3 (0.01/day)
Thanks, HWInfo shows this:



And this:



And:



So it is Dual Channel then. I only have 2 RAM slots on my motherboard.

Last edited:
  • Like
Reactions: 3x0
Joined
Jan 5, 2006
Messages
18,584 (2.68/day)
System Name AlderLake
Processor Intel i7 12700K P-Cores @ 5Ghz
Motherboard Gigabyte Z690 Aorus Master
Cooling Noctua NH-U12A 2 fans + Thermal Grizzly Kryonaut Extreme + 5 case fans
Memory 32GB DDR5 Corsair Dominator Platinum RGB 6000MT/s CL36
Video Card(s) MSI RTX 2070 Super Gaming X Trio
Storage Samsung 980 Pro 1TB + 970 Evo 500GB + 850 Pro 512GB + 860 Evo 1TB x2
Display(s) 23.8" Dell S2417DG 165Hz G-Sync 1440p
Case Be quiet! Silent Base 600 - Window
Audio Device(s) Panasonic SA-PMX94 / Realtek onboard + B&O speaker system / Harman Kardon Go + Play / Logitech G533
Power Supply Seasonic Focus Plus Gold 750W
Mouse Logitech MX Anywhere 2 Laser wireless
Keyboard RAPOO E9270P Black 5GHz wireless
Software Windows 11
Benchmark Scores Cinebench R23 (Single Core) 1936 @ stock Cinebench R23 (Multi Core) 23006 @ stock
I see this in AIDA

Screenshot 2023-11-17 123434.png


3x0

Joined
Oct 6, 2022
Messages
961 (1.19/day)
Processor AMD Ryzen 7 5800X3D
Motherboard MSI MPG B550I Gaming Edge Wi-Fi ITX
Cooling Scythe Fuma 2 rev. B Noctua NF-A12x25 Edition
Memory 2x16GiB G.Skill TridentZ DDR4 3200Mb/s CL14 F4-3200C14D-32GTZKW
Video Card(s) PowerColor Radeon RX7800 XT Hellhound 16GiB
Storage Western Digital Black SN850 WDS100T1X0E-00AFY0 1TiB, Western Digital Blue 3D WDS200T2B0A 2TiB
Display(s) Dell G2724D 27" IPS 1440P 165Hz, ASUS VG259QM 25” IPS 1080P 240Hz
Case Cooler Master NR200P ITX
Audio Device(s) Altec Lansing 220, HyperX Cloud II
Power Supply Corsair SF750 Platinum 750W SFX
Mouse Lamzu Atlantis Mini Wireless
Keyboard HyperX Alloy Origins Aqua
So it is Dual Channel then? I only have 2 RAM slots on my motherboard.
Yup, it's showing as Dual channel. To be absolutely sure, download AIDA64 and do a RAM bandwidth test.
