Streacom Shows Off Upcoming NUC Case

btarunr · Mar 9, 2013

Streacom gave us a sneak-peek into its upcoming case for Intel's next unit of computing (NUC) form-factor. Made of aluminum and ABS, the case doubles up as heatsink for the NUC's hot components (such as CPU and PCH). It features a universal CPU block, so the case can adapt to future NUC boards with CPUs at different spots.

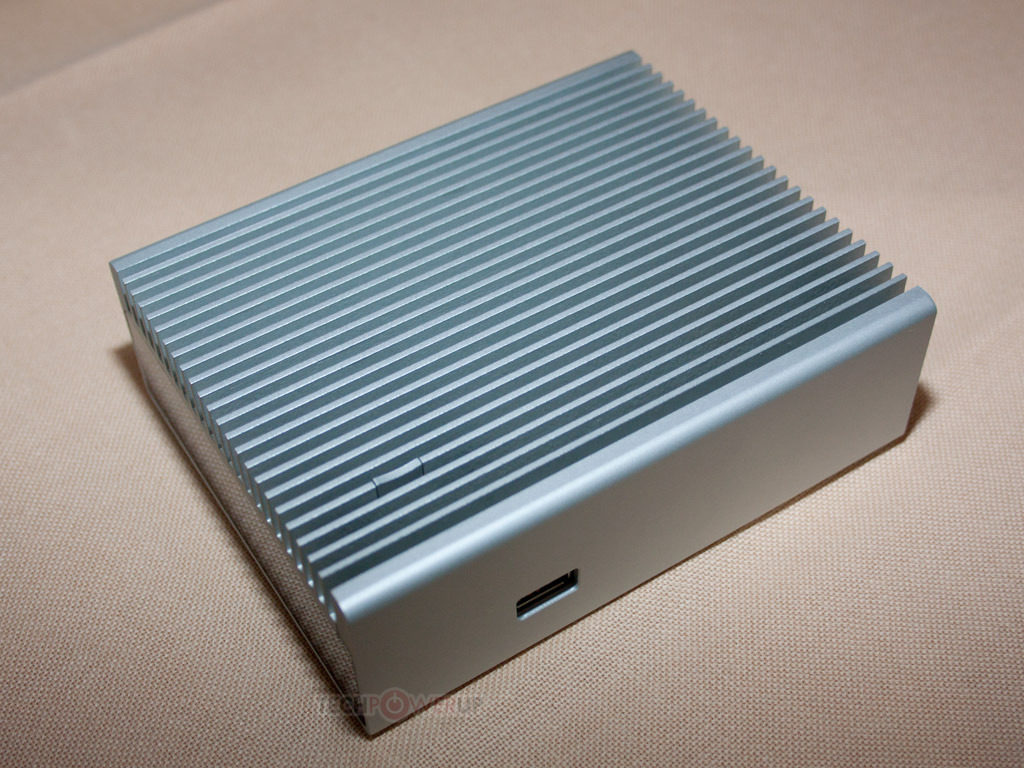

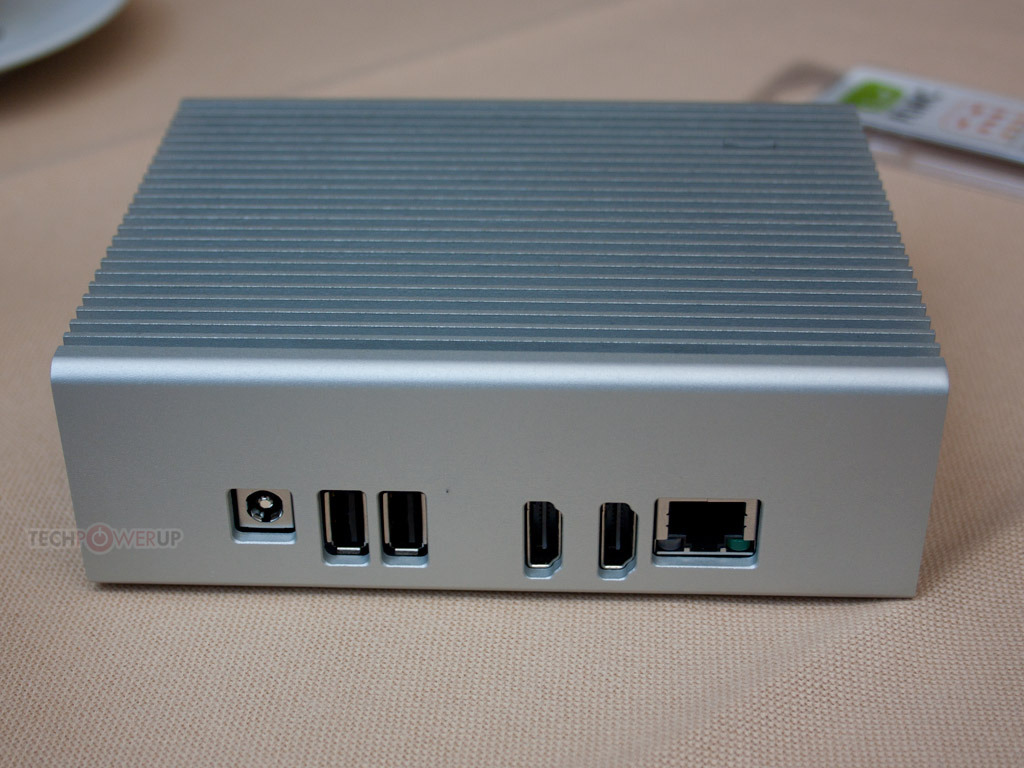

The sides of the case are not made of aluminum, this is where the NUC's WLAN/Bluetooth antennae attach, and so an ABS panel boosts signal strength. The case is designed specifically for Intel's D33217GKE motherboard, with ports mapped for its two HDMI connectors, three USB ports, power, and Ethernet. It will be available in two color options, silver (pictured below) and carbon-black. Availability is expected sometime in Q2 2013.

View at TechPowerUp Main Site

Fourstaff · Mar 9, 2013

I want one of these NUCs so badly, and this case is making me want it more :<

Liquid Cool · Mar 9, 2013

Nice how they incorporated the power button directly into the cooling fins. Not so sure about the sides of this unit...I'd like to see better pictures of them.

Best,

LC

chodaboy19 · Mar 9, 2013

Excellent, but not in black?

zomg · Mar 9, 2013

Looks like it doesn't have Kensington Lock ?

chodaboy19 said:
Excellent, but not in black?

???

btarunr said:
It will be available in two color options, silver (pictured below) and carbon-black. Availability is expected sometime in Q2 2013.

symmetrical · Mar 10, 2013

"the case doubles up as heatsink for the NUC's hot components"

Sounds cool, does that actually work?

EpicShweetness · Mar 10, 2013

symmetrical said:
"the case doubles up as heatsink for the NUC's hot components"

Sounds cool, does that actually work?

Yes the entire case absorbs the heat and transfers it to the area with greatest surface area (i.e the top). Although something as tiny as that I wouldn't trust with more then 45w TDP rated CPU's. Good thing the motherboard it uses (the only one it can) has a soldered 18w i3.

magibeg · Mar 10, 2013

All I care about is specs.

Frick · Mar 10, 2013

magibeg said:
All I care about is specs.

Intel® Core™ i3 3217-U (soldered down, 1.8 Ghz, HT, HD4000) with active heatsink

Two SO-DIMM slots for 1333/1600 MHz memory support

Intel® QS77 Express Chipset

Dual HDMI ports supporting HDMI 1.4a outputs for dual independent display

Integrated Intel® 10/100/1000 network connection

Five USB 2.0 ports (three external ports, two via internal header)

Full-size mini PCI Express* with mSATA support

Half-size mini PCI Express

http://www.intel.com/content/www/us...oards/desktop-boards-d33217gke-dc3217iye.html

Other than no USB 3.0 i really really like where they are going with this. Now ship us some boards!
