The Drive

The drive conforms to the dimensions set forth by the 2.5" form factor. It is made out of metal to improve its durability and is only 7 mm thick, which ensures it will fit into modern notebooks. These photos are of the MLC version drive.


The TLC version looks identical on the front, but has a completely different sticker on its backside.


Team Group's Vulcan SSD uses the SATA 6 Gbps interface. It is compatible with any older SATA standard, but will, in such a case, work at reduced performance.


On the rather compact PCB, you'll find two NAND flash chips, the controller, and a DRAM chip; the other side of the PCB is empty.


The TLC version uses a different PCB, but with similar components.


The Silicon Motion SM2258G SATA 6 Gb/s flash controller supports four flash-channels; on the TLC version, a SM2258H is used.

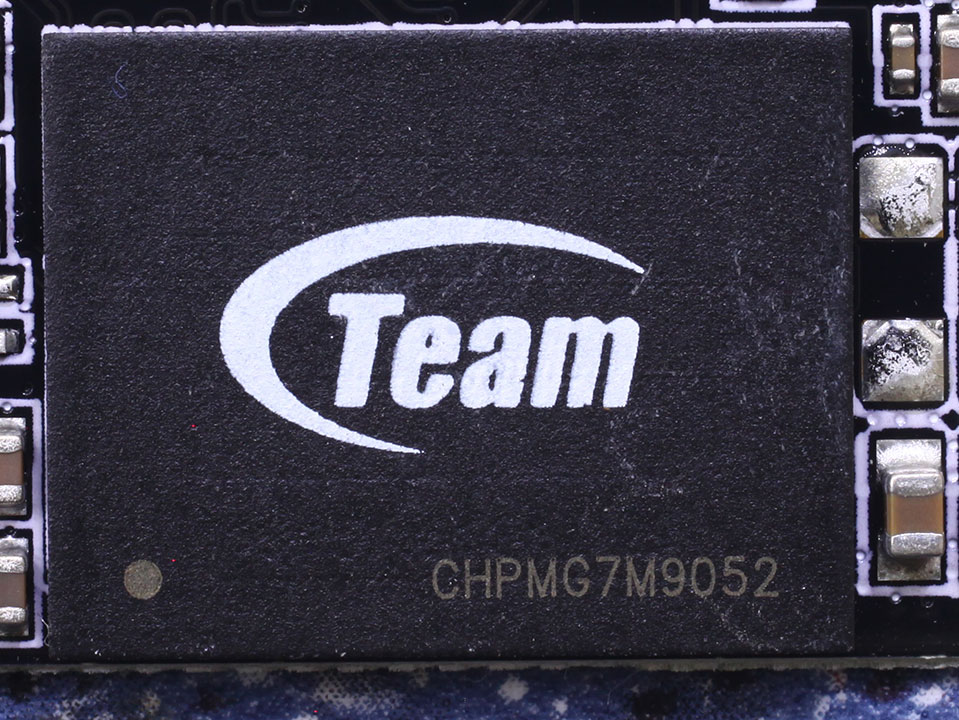

Both variants use flash chips that have been rebranded by Team Group, so the original manufacturer is not immediately visible. The first picture shows the Samsung 48-layer MLC chips, and the second picture shows the Samsung 64-layer TLC chips.


Depending on the version, you either get a Samsung DDR3-1866 DRAM chip (MLC model) or a Hynix DDR3-1600 DRAM chip (TLC model). Both DRAM chips are 512 MB in size to provide storage for the controller to store the mapping tables.
