High-resolution PCB Pictures

These pictures are for the convenience of volt modders and people who would like to see all the finer details on the PCB. Feel free to link back to us and use these in your articles, videos or forum posts.

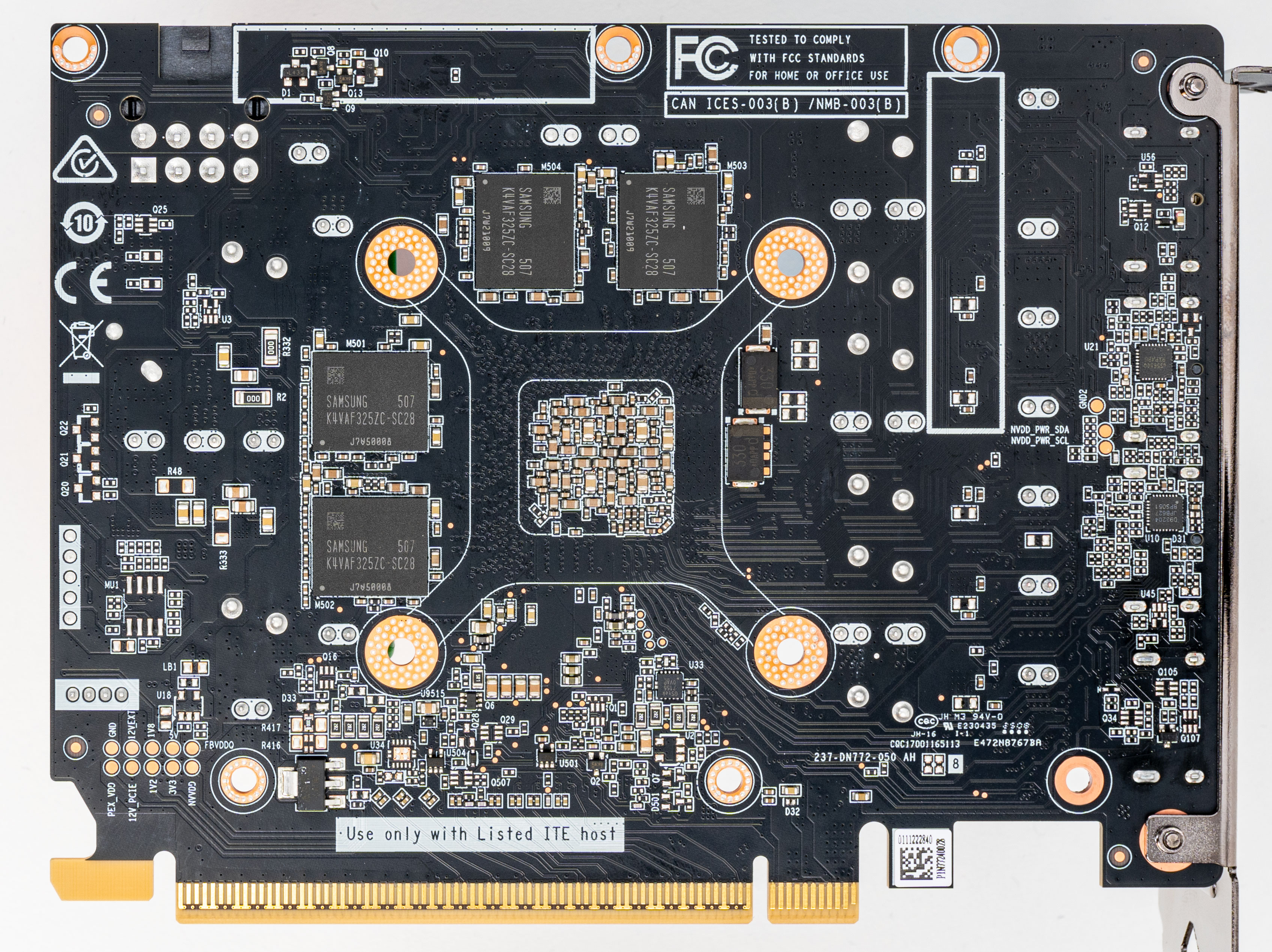

High-resolution versions are also available (front, back).

Circuit Board (PCB) Analysis

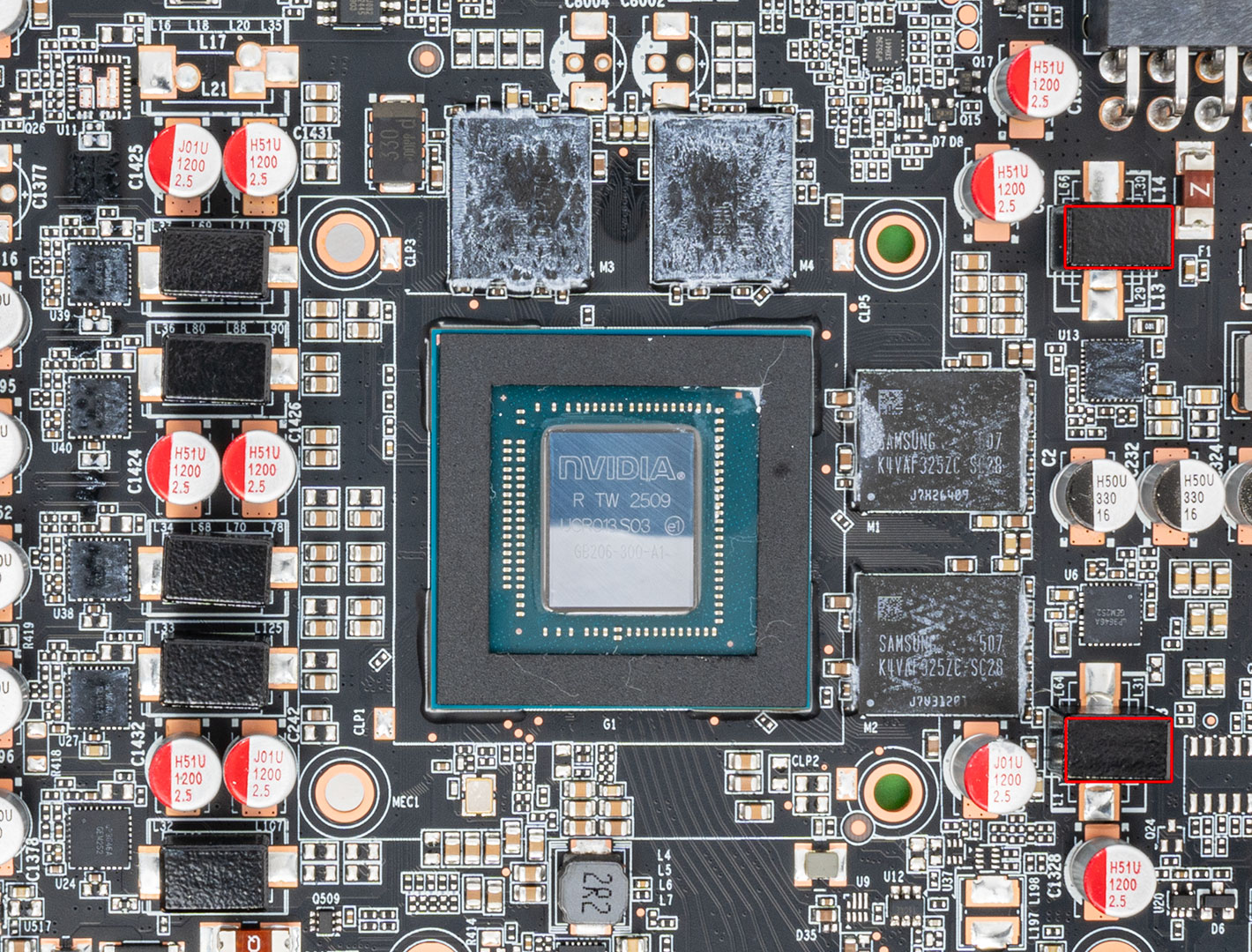

A 5-phase VRM powers the GPU, highlighted in the red rectangles above. These are controlled by an unknown voltage controller.

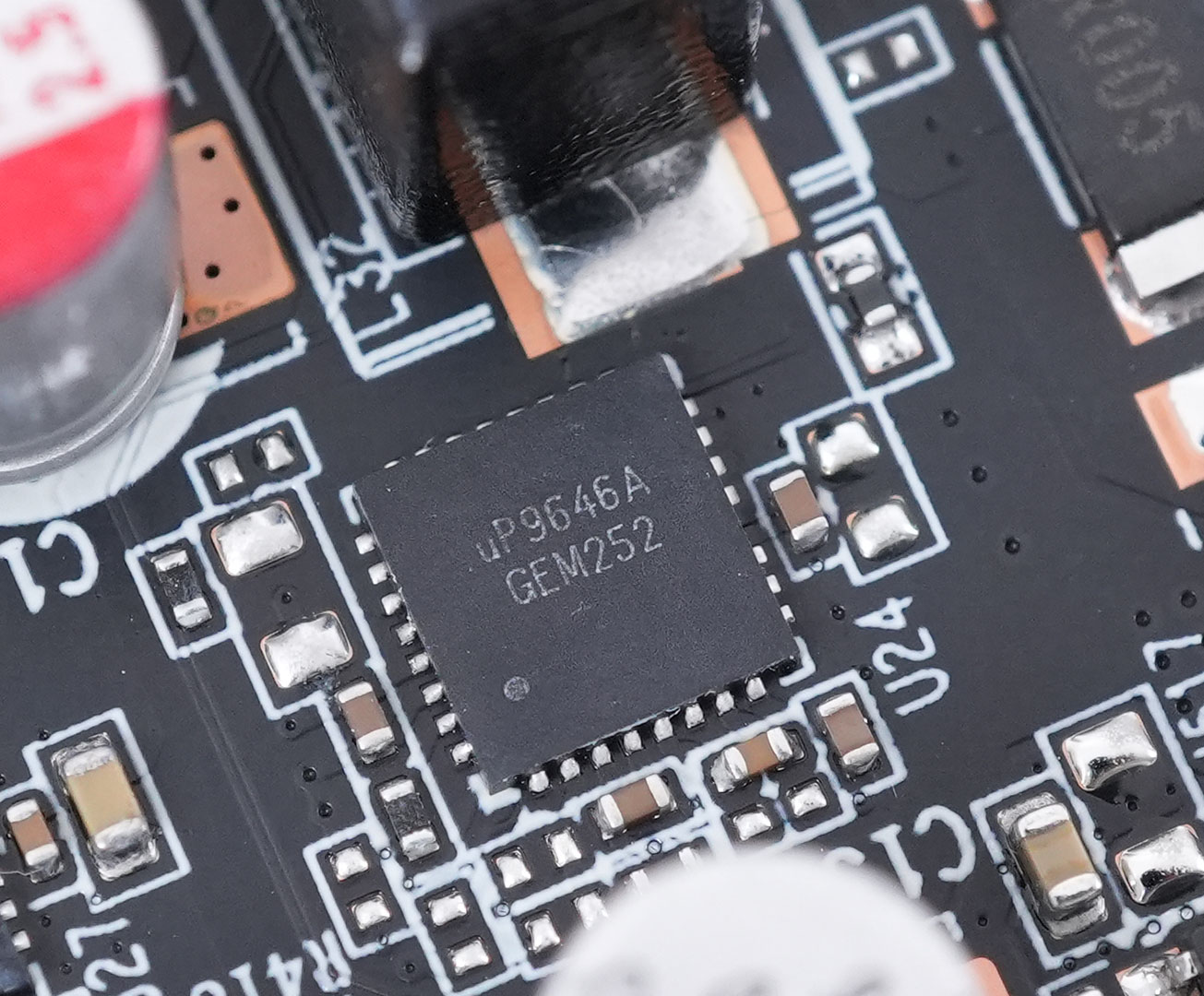

The GPU VRM uses uPI uP9646 DrMOS with a 50 A rating.

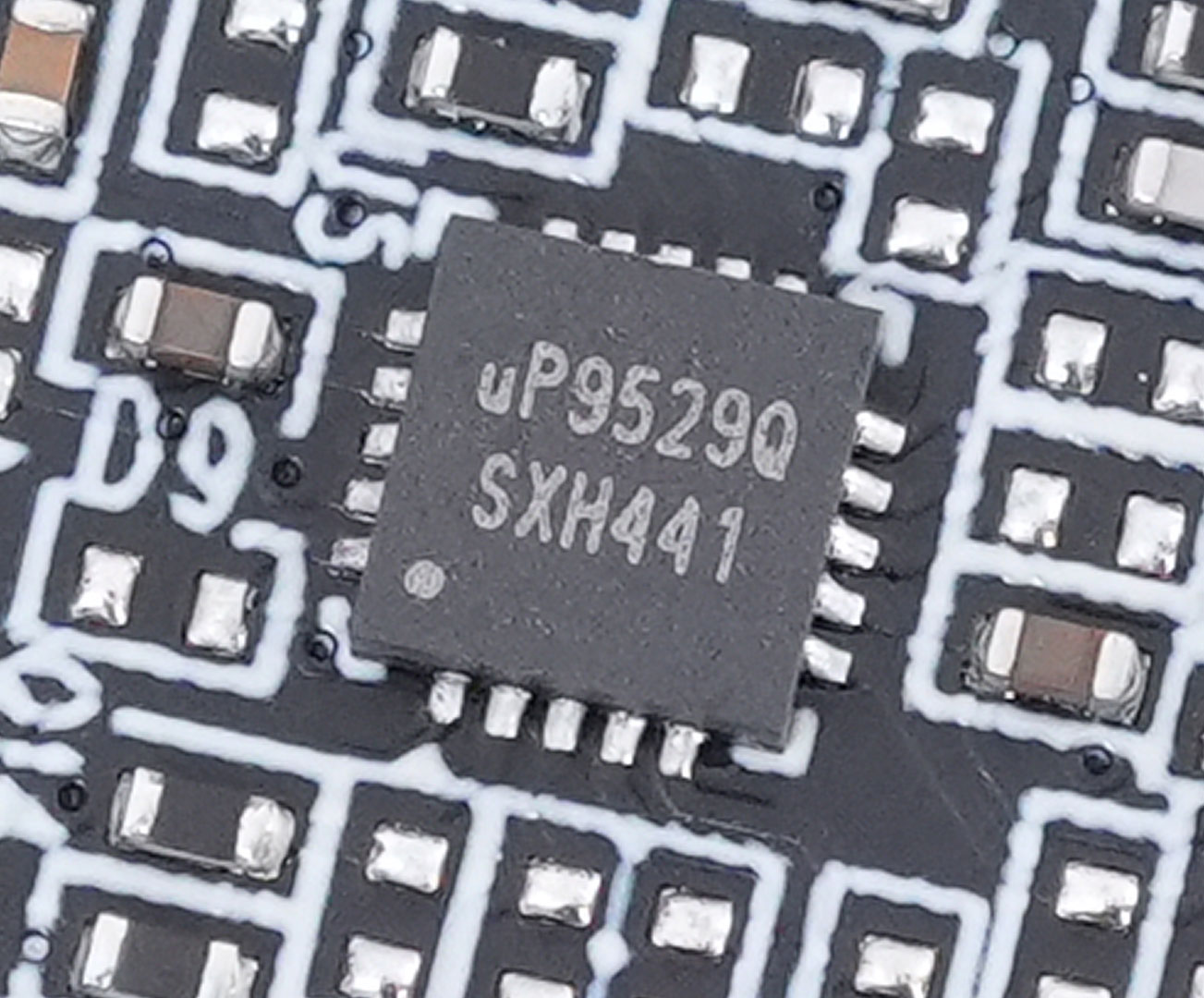

Memory voltage is a two-phase design, managed by a uPI uP9529Q controller.

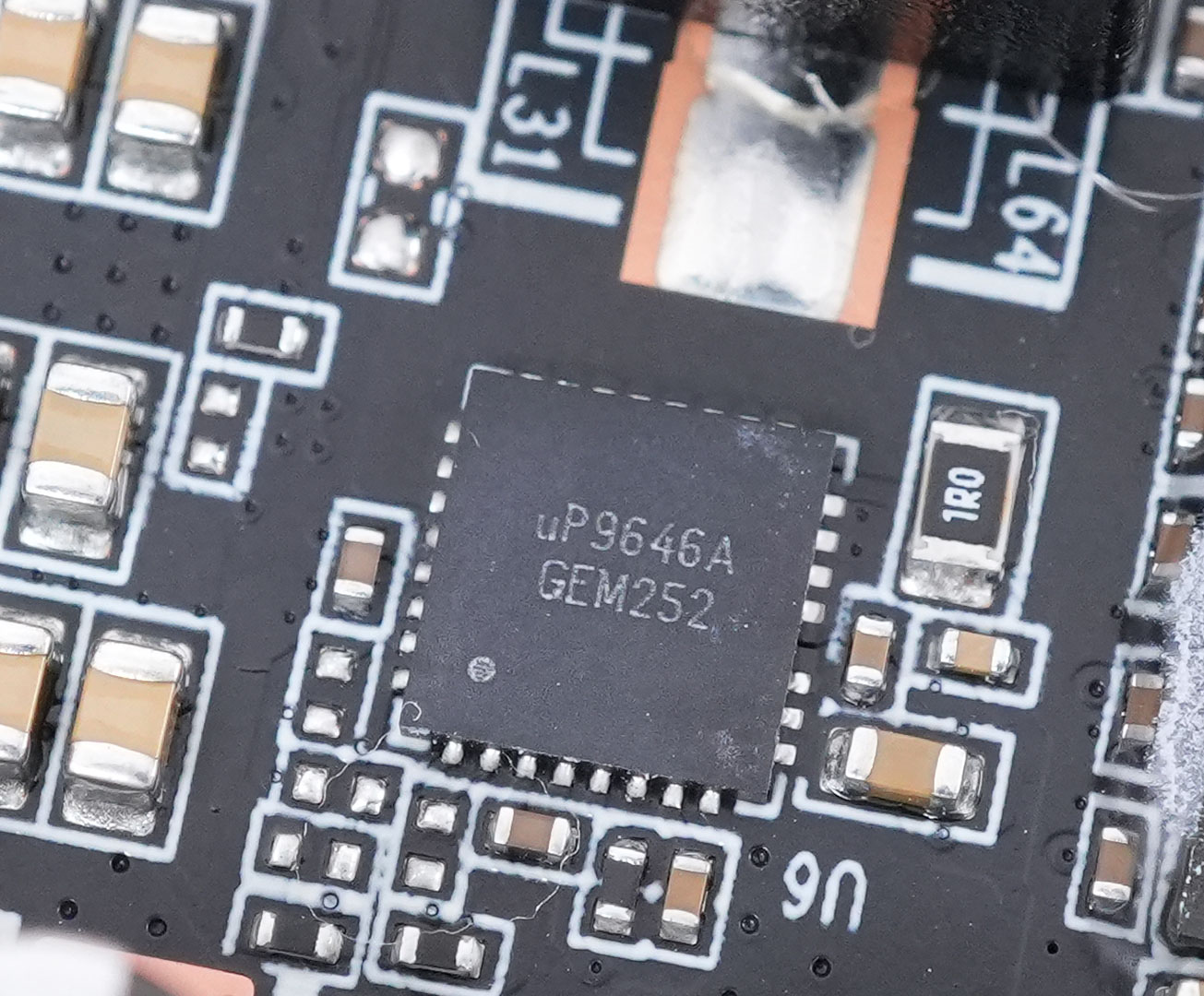

The memory is handled by a uPI uP9646 DrMOS with a 50 A rating, too.

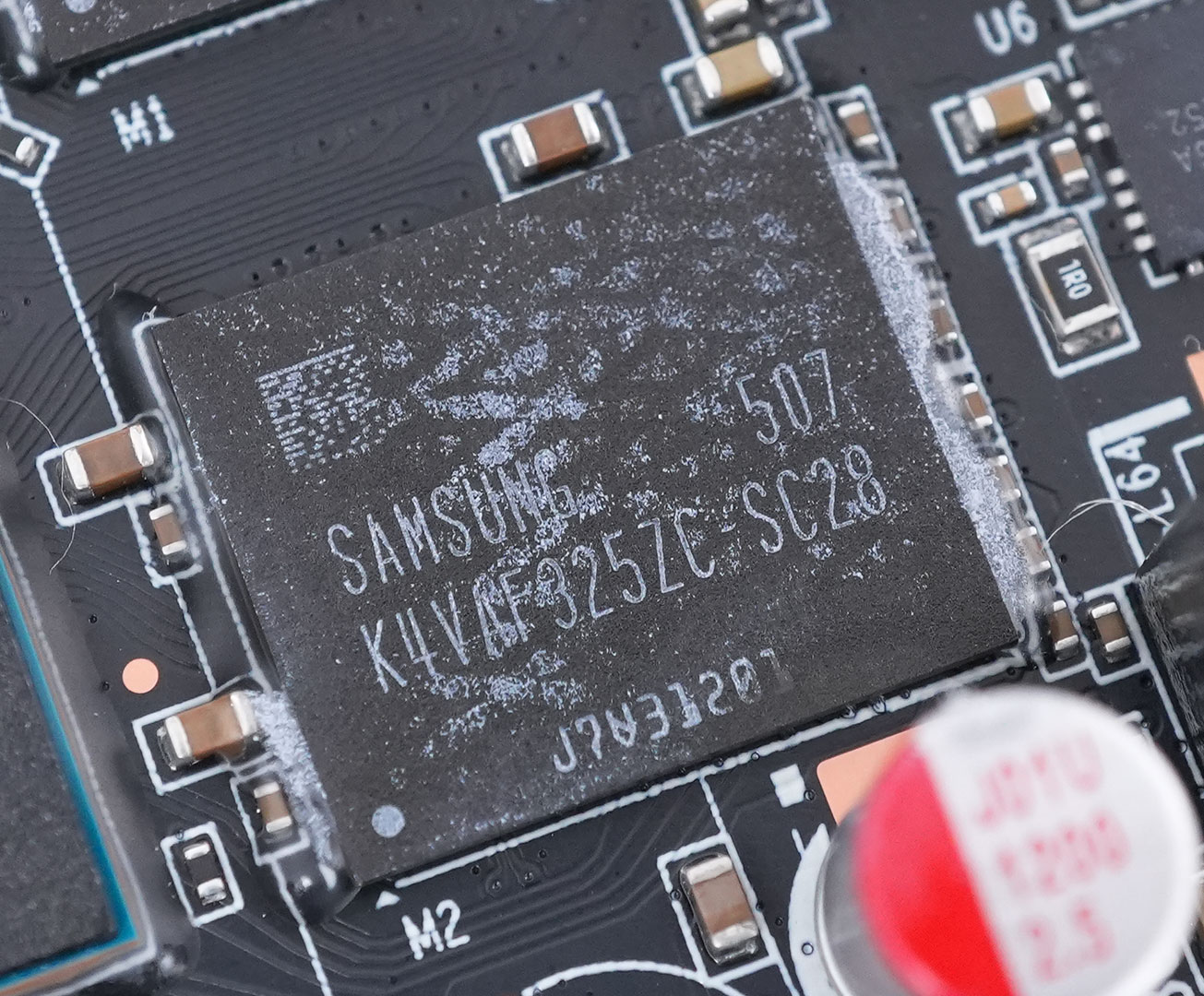

The GDDR7 memory chips are made by Samsung, and bear the model number K4VAF325ZC-SC28, they are rated for 28 Gbps.

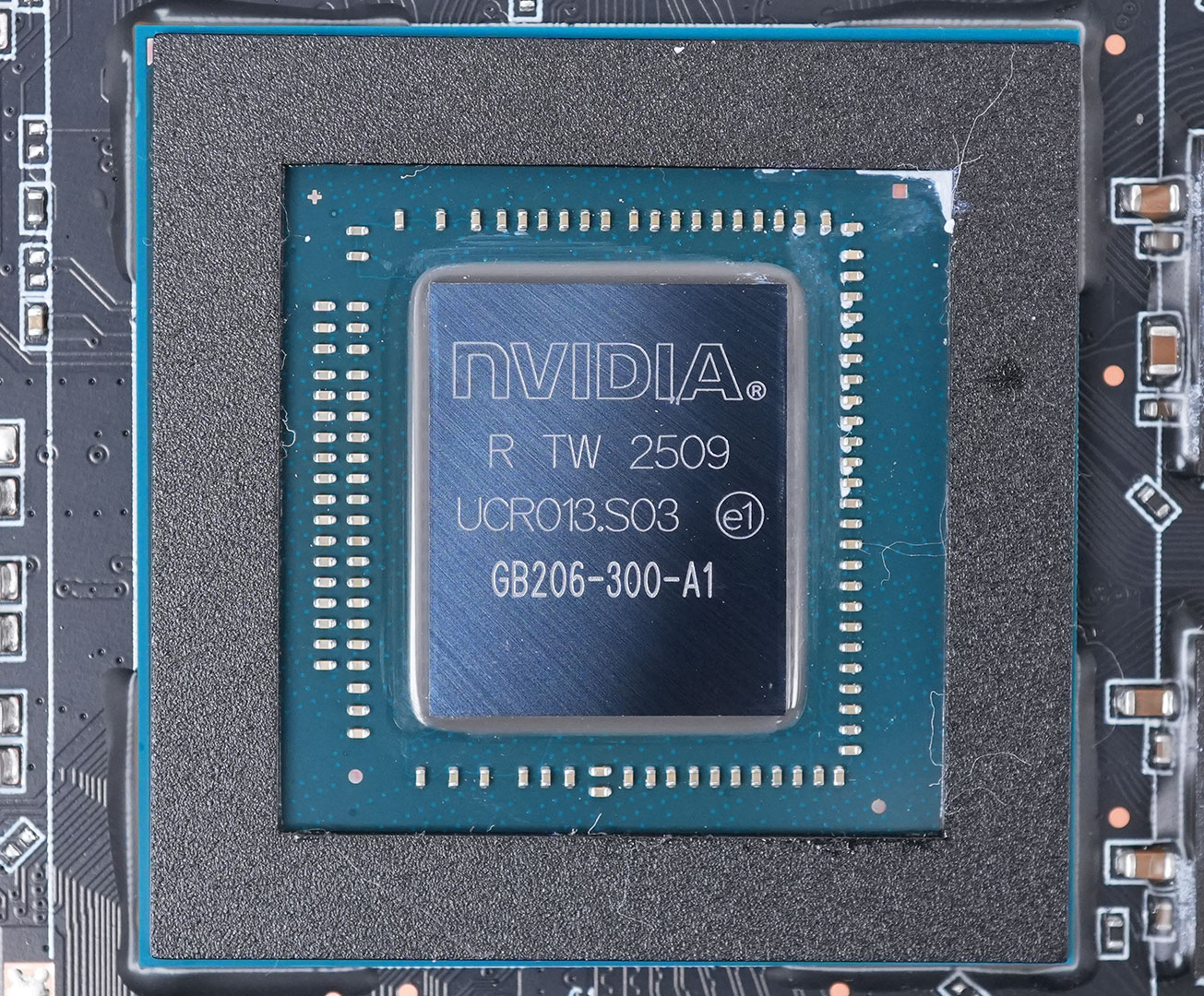

The NVIDIA GB206 GPU at the heart of the GeForce RTX 5060 and RTX 5060 Ti is the smallest Blackwell GPU so far. It is fabricated using a 5 nanometer "NVIDIA 4N" process at TSMC Taiwan (same process as Ada). The die measures 181 mm², and comes with a transistor count of 21.9 billion.
