NVIDIA AD103

Default
AD103
AD103-275-A1
AD103-275-A1
AD103-300-A1
AD103-300-A1
AD103-301-A1
AD103-301-A1
AD103-400-A1
AD103-400-A1

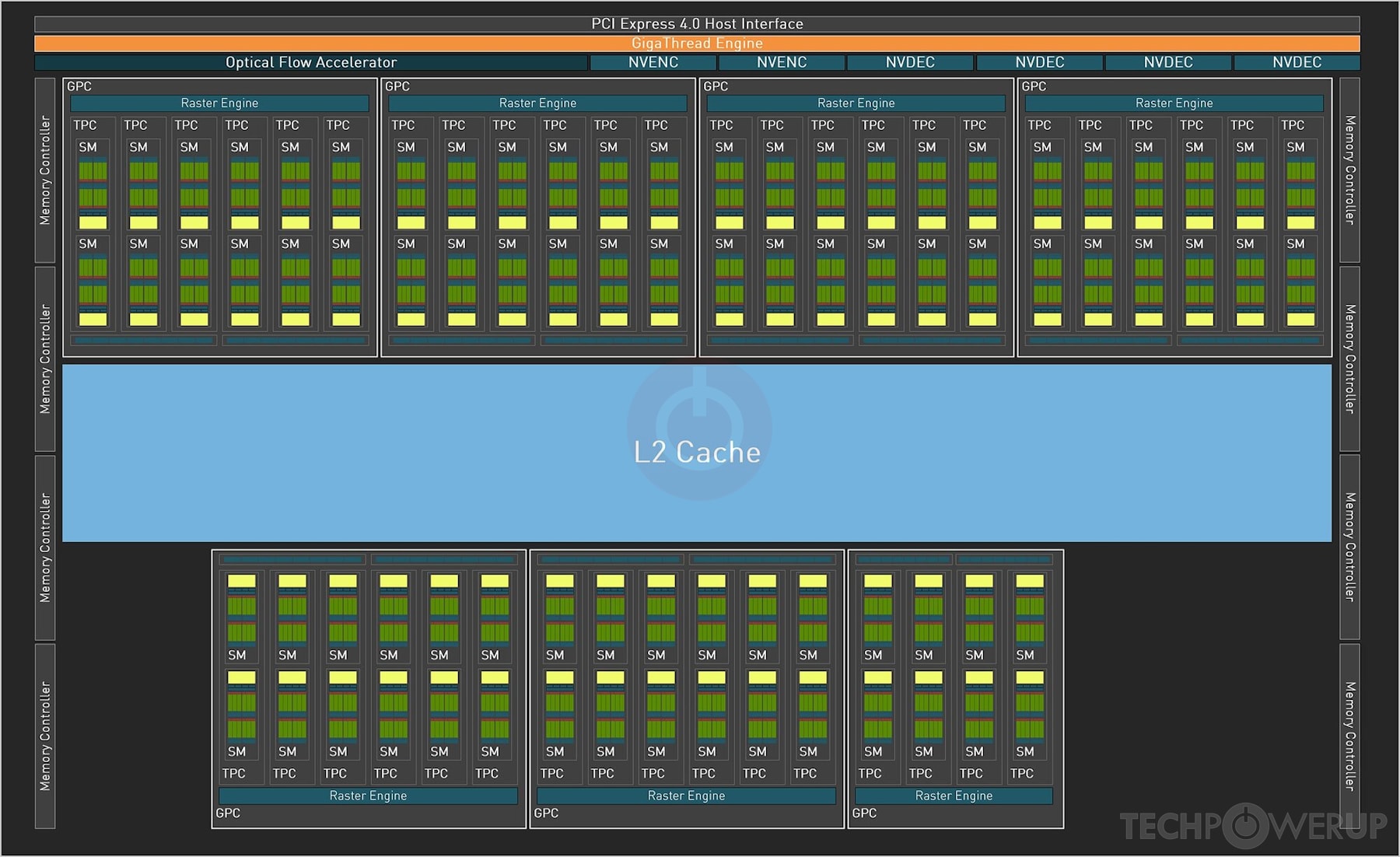

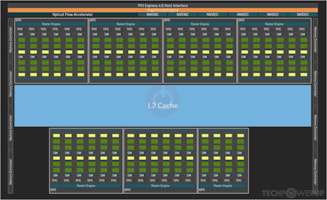

Block Diagram
Block Diagram

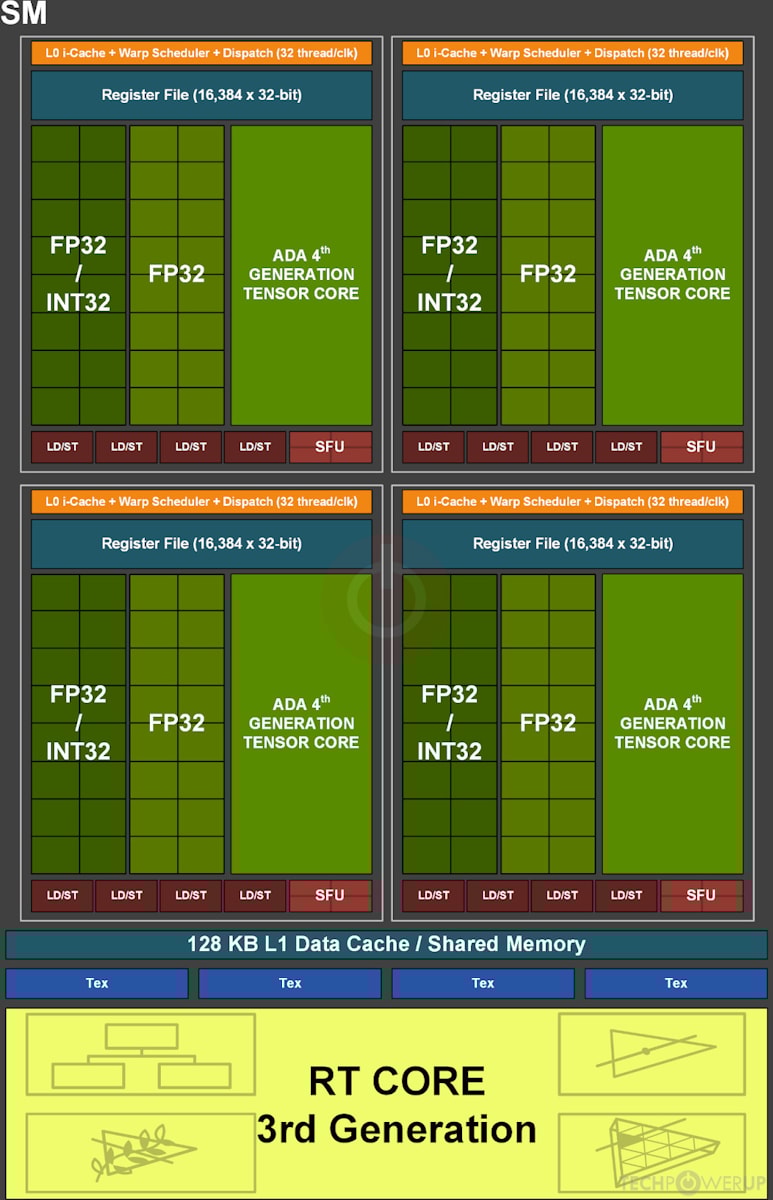

SM Diagram
SM Diagram
NVIDIA's AD103 GPU uses the Ada Lovelace architecture and is made using a 5 nm production process at TSMC. With a die size of 379 mm² and a transistor count of 45,900 million it is a large chip. AD103 supports DirectX 12 Ultimate (Feature Level 12_2). For GPU compute applications, OpenCL version 3.0 and CUDA 8.9 can be used. Additionally, the DirectX 12 Ultimate capability guarantees support for hardware-raytracing, variable-rate shading and more, in upcoming video games. It features 10240 shading units, 320 texture mapping units and 112 ROPs. Also included are 320 tensor cores which help improve the speed of machine learning applications. The GPU also contains 80 raytracing acceleration cores.
Further reading: Ada Architecture Whitepaper

Graphics Processor

Released
Sep 20th, 2022
GPU Name
AD103
Codename
NV183
Architecture
Ada Lovelace
Foundry
TSMC
Process Type
4N FinFET
Process Size
5 nm
Transistors
45,900 million
Density
121.1M / mm²
Die Size
379 mm²

Graphics Features

DirectX
12 Ultimate (12_2)
OpenGL
4.6
OpenCL
3.0
Vulkan
1.3
CUDA
8.9
Shader Model
6.7
WDDM
3.1
Tensor Cores
4th Gen
RT Cores
3rd Gen
NVENC
8th Gen
NVDEC
5th Gen
PureVideo HD
VP12
VDPAU
Feature Set L

Render Config

Shading Units
10240
TMUs
320
ROPs
112
SM Count
80
FP16 Units
10240
FP64 Units
160
INT32 Units
5120
Tensor Cores
320
RT Cores
80
SFUs
1280
TPCs
40
GPCs
7
Tex L1 Cache
64 KB per SM
L1 Cache
128 KB per SM
L2 Cache
65536 KB
Register File
21504 KB
Max. TDP
320 W

All Ada Lovelace GPUs

NVIDIA GPU Architecture History

Graphics cards using the NVIDIA AD103 GPU

Name Chip Memory Shaders TMUs ROPs Base Clock Boost Clock Memory Clock
AD103-300-A1 16 GB 9728 304 112 2205 MHz 2505 MHz 1400 MHz
GN21-X11 16 GB 9728 304 112 1335 MHz 1695 MHz 2250 MHz
GN21-X11 16 GB 9728 304 112 930 MHz 1455 MHz 2250 MHz
16 GB 9728 304 112 1425 MHz 2115 MHz 2250 MHz
16 GB 9728 304 112 930 MHz 1680 MHz 2250 MHz
24 GB 7680 240 80 2070 MHz 2580 MHz 2250 MHz
16 GB 9728 304 112 1425 MHz 2115 MHz 2250 MHz
AD103-400-A1 16 GB 10240 320 112 2295 MHz 2550 MHz 1438 MHz
AD103-275-A1 16 GB 8448 264 96 2340 MHz 2610 MHz 1313 MHz
AD103-175-K1-A1 12 GB 5888 184 64 1920 MHz 2475 MHz 1313 MHz

AD103 GPU Notes

Ray Tracing Cores: 3rd Gen
Tensor Cores: 4th Gen
NVENC: 8th Gen
NVDEC: 5th Gen
PureVideo HD: VP12
VDPAU: Feature Set L
