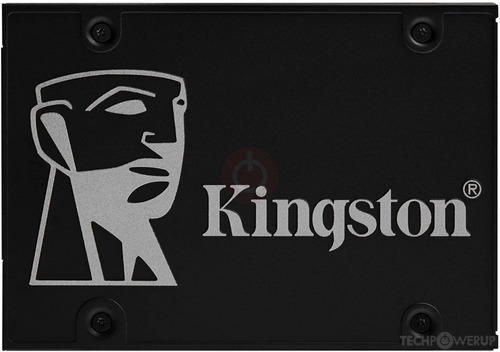

Kingston KC600 512 GB (SM2259 + Micron B16A)

512 GB
Capacity
SM2259H
Controller
TLC
Flash
SATA 6 Gbps
Interface
2.5"
Form Factor

Multiple hardware versions found.

Performance could vary due to unannounced flash/controller changes.

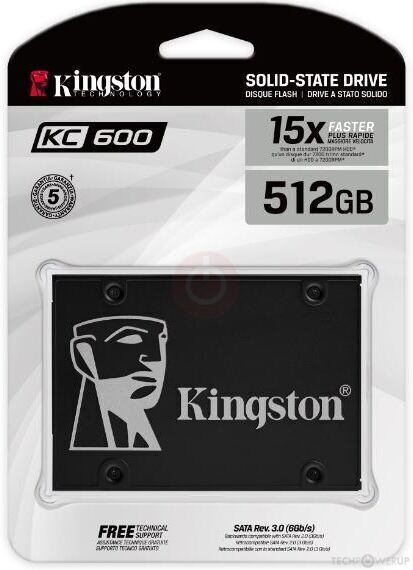

Package
Package
SSD Controller
Controller
NAND Die
NAND Die
The Kingston KC600 was a solid-state drive in the 2.5" form factor, launched in 2020, that is no longer in production. It is only available in the 512 GB capacity listed on this page. With the rest of the system, the Kingston KC600 interfaces using a SATA 6 Gbps connection. The SSD controller is the SM2259H from Silicon Motion. Kingston has installed 64-layer TLC NAND flash on the KC600, the flash chips are made by Micron. Please note that this SSD is sold in multiple variants with different NAND flash or controller, which could affect performance, the "Notes" section at the end of this page has more info. To improve write speeds, a pseudo-SLC cache is used, so bursts of incoming writes are absorbed more quickly. The KC600 is rated for sequential read speeds of up to 550 MB/s and 500 MB/s write; random IO reaches 90K IOPS for read and 80K for writes.
At its launch, the SSD was priced at 75 USD. The warranty length is set to five years, which is an excellent warranty period. Kingston guarantees an endurance rating of 300 TBW, a typical value for consumer SSDs.

Solid-State-Drive

Capacity: 512 GB
Hardware Versions:
Overprovisioning: 35.2 GB / 7.4 %
Production: End-of-life
Released: 2020
Price at Launch: 75 USD
Part Number: SKC600/512G
Market: Consumer

Physical

Form Factor: 2.5"
Interface: SATA 6 Gbps
Protocol: AHCI
Power Draw: Unknown

Controller

Manufacturer: Silicon Motion
Name: SM2259H
Architecture: ARC
Core Count: Single-Core
Frequency: 400 MHz
Foundry: TSMC
Process: 40 nm
Flash Channels: 4
Chip Enables: 8
Controller Features: DRAM

NAND Flash

Manufacturer: Micron
Name: B16A FortisFlash
Type: TLC
Technology: 64-layer
Speed: 50 MT/s .. 667 MT/s
Capacity: 4 chips @ 1 Tbit
ONFI: 4.0
Topology: Floating Gate
Process: 20 nm
Die Size: 58 mm²
(4.4 Gbit/mm²)
Dies per Chip: 4 dies @ 256 Gbit
Planes per Die: 2
Decks per Die: 2
Word Lines: 74 per NAND String
86.5% Vertical Efficiency
Read Time (tR): 76 µs
Program Time (tProg): 820 µs
Block Erase Time (tBERS): 15 ms
Die Read Speed: 842 MB/s
Die Write Speed: 39 MB/s
Endurance:
(up to)
1500 P/E Cycles
(40000 in SLC Mode)
Page Size: 16 KB
Block Size: 2304 Pages
Plane Size: 504 Blocks

DRAM Cache

Type: Unknown
Capacity: 512 MB

Performance

Sequential Read: 550 MB/s
Sequential Write: 500 MB/s
Random Read: 90,000 IOPS
Random Write: 80,000 IOPS
Endurance: 300 TBW
Warranty: 5 Years
MTBF: 1.0 Million Hours
Drive Writes Per Day (DWPD): 0.3
SLC Write Cache: Yes

Features

TRIM: Yes
SMART: Yes
Power Loss Protection: No
Encryption:
  • AES-256
  • TCG Opal
RGB Lighting: No
PS5 Compatible: No

Same Drive

This section lists other SSDs in our database using the exact same hardware components

Notes

Controller:

This controller may be clocked above 400 MHz.
