Announcing the TechPowerUp SSD Specs Database

Dwarden · Jan 17, 2023

please allow us to search in advanced filters via 'features'
e.g. like PLP

GabrielLP14 · Jan 17, 2023

Dwarden said:
please allow us to search in advanced filters via 'features'
e.g. like PLP

Thanks for the suggestion

Dwarden said:
please allow us to search in advanced filters via 'features'
e.g. like PLP

You can now search for PLP

Dwarden · Jan 18, 2023

thanks, that was fast
thus i can suggest also search for hardware encryption support from the features (for start yes / no / unknown )

Haldi · Jan 18, 2023

Hello,

I bought a Adata SX8200 Pro 2TB drive, knowing it was Hardware lottery. But other choice was a WD Blue SN570 so i was like "why not". And it was like 145chf. only 15.- more than the Blue and comes with DRAM cache.
Going by this reddit thread i tried to read NAND chips.
Seems to be Hynix 3D v6 128 Layer TLC 512Gb which is not yet listed. Only the Hynix V5

Code:

Drive     : 4(NVME)
Scsi      : 2
IOCtl: NVME_OF failed 0x45d!
Driver    : W10
Model     : ADATA SX8200PNP
Fw        : 32B3T8EA
Size      : 1953514 MB [2048.4 GB]
LBA Size  : 512
Controller: SM2262 [SM2262AB]
FW revision: 32B3T8EA
ROM version: 2262ROM:SVN00235
Bank00: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank01: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank02: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank03: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank04: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank05: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank06: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank07: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank08: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank09: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank10: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank11: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank12: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank13: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank14: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank15: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank16: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank17: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank18: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank19: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank20: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank21: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank22: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank23: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank24: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank25: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank26: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank27: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank28: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank29: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank30: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank31: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
--- FW params ---
FlashID : 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Channel               : 8
Ch map                : 0xFF
CE map                : 0x0F
Pages/Block           : 1536
First Fblock          : 1
Total Fblock          : 722
Bad Block From Pretest: 29
Start TLC/MLC Fblock  : 42
DRAM Info             : [0x45 0x62]
DRAM Size,MB          : 2048 (possible incorrect)
DRAM Bus,bit          : 32
DRAM Type             : DDR4
DRAM Vendor           : Samsung
UEFI OROM             : Disable
Telemetry v8

Here is an almost straight photo of the SSD wher one can read the Labes on the Chips. Adata Rebrandend 60078667 hasnt shown up yet?
The K4A8G165WC-BCTD RAM chip is only 1GB. Is there another on the other Side? OR does it only have 1GB DRAM cache? How do i test that?

Performance seems decent... or at least compared to their tests or official ones. STH and SSDtester
Done on a X570 Mainboard, Upper Slot which is directly on CPU: 5900X

Still around 150gb SLC cache. Constant write speed of about 800MB/s after that. Read Test gives a fine Average of ca 1600MB/s

GabrielLP14 · Jan 18, 2023

Haldi said:

Hello,

I bought a Adata SX8200 Pro 2TB drive, knowing it was Hardware lottery. But other choice was a WD Blue SN570 so i was like "why not". And it was like 145chf. only 15.- more than the Blue and comes with DRAM cache.
Going by this reddit thread i tried to read NAND chips.
Seems to be Hynix 3D v6 128 Layer TLC 512Gb which is not yet listed. Only the Hynix V5

Code:

Drive     : 4(NVME)
Scsi      : 2
IOCtl: NVME_OF failed 0x45d!
Driver    : W10
Model     : ADATA SX8200PNP
Fw        : 32B3T8EA
Size      : 1953514 MB [2048.4 GB]
LBA Size  : 512
Controller: SM2262 [SM2262AB]
FW revision: 32B3T8EA
ROM version: 2262ROM:SVN00235
Bank00: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank01: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank02: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank03: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank04: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank05: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank06: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank07: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank08: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank09: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank10: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank11: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank12: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank13: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank14: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank15: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank16: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank17: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank18: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank19: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank20: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank21: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank22: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank23: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank24: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank25: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank26: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank27: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank28: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank29: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank30: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Bank31: 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
--- FW params ---
FlashID : 0xad,0x7e,0x28,0x53,0x2,0xb0,0x0,0x0 - Hynix 3dv6-128L TLC 16k 512Gb/CE 512Gb/die
Channel               : 8
Ch map                : 0xFF
CE map                : 0x0F
Pages/Block           : 1536
First Fblock          : 1
Total Fblock          : 722
Bad Block From Pretest: 29
Start TLC/MLC Fblock  : 42
DRAM Info             : [0x45 0x62]
DRAM Size,MB          : 2048 (possible incorrect)
DRAM Bus,bit          : 32
DRAM Type             : DDR4
DRAM Vendor           : Samsung
UEFI OROM             : Disable
Telemetry v8

Here is an almost straight photo of the SSD wher one can read the Labes on the Chips. Adata Rebrandend 60078667 hasnt shown up yet?
The K4A8G165WC-BCTD RAM chip is only 1GB. Is there another on the other Side? OR does it only have 1GB DRAM cache? How do i test that?

View attachment 279756 View attachment 279757

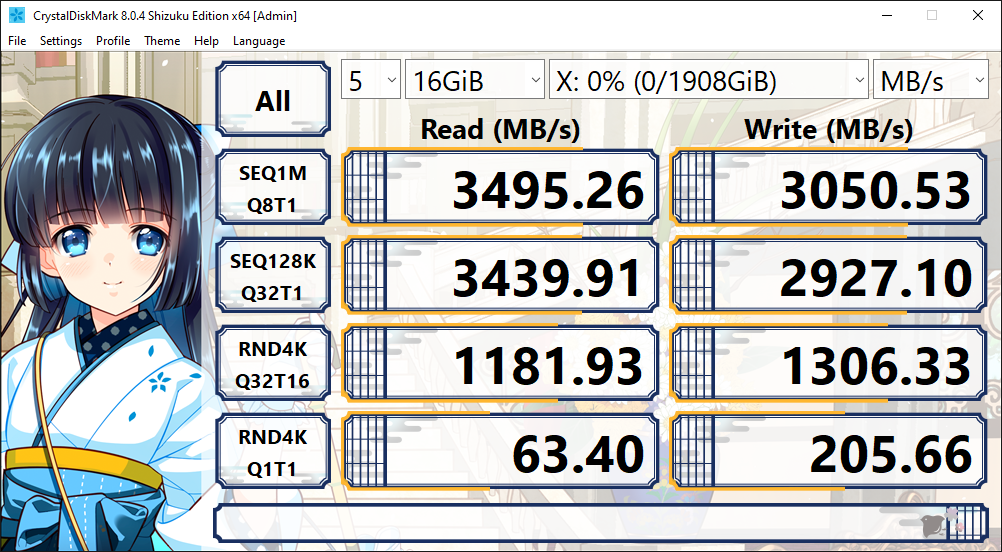

Performance seems decent... or at least compared to their tests or official ones. STH and SSDtester
Done on a X570 Mainboard, Upper Slot which is directly on CPU: 5900X

View attachment 279750
View attachment 279764

Still around 150gb SLC cache. Constant write speed of about 800MB/s after that. Read Test gives a fine Average of ca 1600MB/s
View attachment 279751 View attachment 279752

View attachment 279759 View attachment 279760

View attachment 279761 View attachment 279762

Thank you for the reply
First time i've seen this variant, this flash is pretty fast though.
I'll add this variant

Updated

XPG SX8200 Pro 2 TB Specs

2 TB, TLC, PCIe 3.0 x4, M.2 2280

www.techpowerup.com

@Haldi

S456 · Jan 18, 2023

Will you add the ones that I sent you? I found a few more but I don't want to overload you with work.

GabrielLP14 · Jan 18, 2023

S456 said:
Will you add the ones that I sent you? I found a few more but I don't want to overload you with work.

Will do, i just have a few first to add then i'll focus on those as well

S456 said:
Will you add the ones that I sent you? I found a few more but I don't want to overload you with work.

Kingspec NE Series 128 GB Specs

128 GB, TLC, PCIe 3.0 x4, M.2 2280

www.techpowerup.com

Will start adding some Silicon Power SSDs today

Haldi · Jan 23, 2023

GabrielLP14 said:
Here you can use many tools for different controllers to find information.

http://vlo.name:3000/ssdtool/

So... What exactly would one use to get Infos from a Toshiba Controller TC58NC1202GST-02-BB used on a Kioxia Exceria G2 ?
As that one seems not to be in the list yet.
Asking for a friend...

Edit: did I just miss it because it's hidden in another thread somewhere? Or is there no easy to understand noob friendly Guide on how to read most SSDs to help fill the database?

S456 · Jan 23, 2023

Haldi said:
So... What exactly would one use to get Infos from a Toshiba Controller TC58NC1202GST-02-BB used on a Kioxia Exceria G2 ?
As that one seems not to be in the list yet.
Asking for a friend...

They are supposedly based on a Phison design, so try that. If it doesn't work, then even if it is Phison-based it might be too different from their standard chips.

GabrielLP14 · Jan 24, 2023

Haldi said:
So... What exactly would one use to get Infos from a Toshiba Controller TC58NC1202GST-02-BB used on a Kioxia Exceria G2 ?
As that one seems not to be in the list yet.
Asking for a friend...

Edit: did I just miss it because it's hidden in another thread somewhere? Or is there no easy to understand noob friendly Guide on how to read most SSDs to help fill the database?

To be honest, i don't think Phison utility will work. But give it a try.
It's really hard to find information on these proprietary controllers

Haldi · Jan 25, 2023

It Does!

Code:

v0.382a
OS: 10.0 build 19045
Drive : 3(NVME)
Driver : W10(3:3)
Model : KIOXIA-EXCERIA G2 SSD
Fw : ECFA17.1
Size : 1907729 MB [2000.4 GB]
LBA Size: 512
AdminCmd: 0x00 0x01 0x02 0x04 0x05 0x06 0x08 0x09 0x0A 0x0C 0x10 0x11 0x14 0x80 0x81 0x82 0xD0 0xD1 0xD2
I/O Cmd : 0x00 0x01 0x02 0x04 0x05 0x08 0x09
F/W : ECFA17.1 00
P/N :
Bank00: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Bank01: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Bank02: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Bank03: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Bank04: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Bank05: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Bank06: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Bank07: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Bank08: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Bank09: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Bank10: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Bank11: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Bank12: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Bank13: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Bank14: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Bank15: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Controller : PS5012-E12
CPU Clk : 666
Flash CE : 16
Flash Channel : 4
Interleave : 4
Flash CE Mask : [++++++++ ++++++++ -------- --------]
FlashR Clk,MT : 666
FlashW Clk,MT : 666
Die per CE : 2
Block per CE : 6648
Page per Block: 1344
Bit Per Cell : 3(TLC)
DRAM Size,MB : 1024
DRAM Clock,MHz: 1600
DRAM Type : DDR4
PMIC Type : PS6102/PS6106
PE Cycle Limit: 725
SLC cache : 0x600000/0x400000

ParPage : 00
Defects Early Read Prog Erase
Bank00: 29 0 0 0
Bank01: 25 0 0 0
Bank02: 44 0 0 0
Bank03: 17 0 0 0
Bank04: 32 0 0 0
Bank05: 31 0 0 0
Bank06: 31 0 0 0
Bank07: 40 0 0 0
Bank08: 35 0 0 0
Bank09: 33 0 0 0
Bank10: 44 0 0 0
Bank11: 31 0 0 0
Bank12: 21 0 0 0
Bank13: 18 0 0 0
Bank14: 34 0 0 0
Bank15: 34 0 0 0
Total : 499 0 0 0

Defects Early Read Prog Erase
Ce00Pl0: 4 0 0 0
Ce00Pl1: 12 0 0 0
Ce01Pl0: 6 0 0 0
Ce01Pl1: 7 0 0 0
Ce02Pl0: 4 0 0 0
Ce02Pl1: 8 0 0 0
Ce03Pl0: 5 0 0 0
Ce03Pl1: 8 0 0 0
Ce04Pl0: 10 0 0 0
Ce04Pl1: 7 0 0 0
Ce05Pl0: 12 0 0 0
Ce05Pl1: 15 0 0 0
Ce06Pl0: 3 0 0 0
Ce06Pl1: 6 0 0 0
Ce07Pl0: 3 0 0 0
Ce07Pl1: 5 0 0 0
Ce08Pl0: 10 0 0 0
Ce08Pl1: 10 0 0 0
Ce09Pl0: 6 0 0 0
Ce09Pl1: 6 0 0 0
Ce10Pl0: 7 0 0 0
Ce10Pl1: 10 0 0 0
Ce11Pl0: 5 0 0 0
Ce11Pl1: 9 0 0 0
Ce12Pl0: 5 0 0 0
Ce12Pl1: 6 0 0 0
Ce13Pl0: 6 0 0 0
Ce13Pl1: 14 0 0 0
Ce14Pl0: 3 0 0 0
Ce14Pl1: 27 0 0 0
Ce15Pl0: 4 0 0 0
Ce15Pl1: 6 0 0 0
Total : 249 0 0 0

GabrielLP14 · Jan 25, 2023

Haldi said:

It Does!

Code:

v0.382a
OS: 10.0 build 19045
Drive : 3(NVME)
Driver : W10(3:3)
Model : KIOXIA-EXCERIA G2 SSD
Fw : ECFA17.1
Size : 1907729 MB [2000.4 GB]
LBA Size: 512
AdminCmd: 0x00 0x01 0x02 0x04 0x05 0x06 0x08 0x09 0x0A 0x0C 0x10 0x11 0x14 0x80 0x81 0x82 0xD0 0xD1 0xD2
I/O Cmd : 0x00 0x01 0x02 0x04 0x05 0x08 0x09
F/W : ECFA17.1 00
P/N :
Bank00: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Bank01: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Bank02: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Bank03: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Bank04: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Bank05: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Bank06: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Bank07: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Bank08: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Bank09: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Bank10: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Bank11: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Bank12: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Bank13: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Bank14: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Bank15: 0x98,0x48,0x99,0x3,0x7a,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 1024Gb/CE 512Gb/die 2Plane/die
Controller : PS5012-E12
CPU Clk : 666
Flash CE : 16
Flash Channel : 4
Interleave : 4
Flash CE Mask : [++++++++ ++++++++ -------- --------]
FlashR Clk,MT : 666
FlashW Clk,MT : 666
Die per CE : 2
Block per CE : 6648
Page per Block: 1344
Bit Per Cell : 3(TLC)
DRAM Size,MB : 1024
DRAM Clock,MHz: 1600
DRAM Type : DDR4
PMIC Type : PS6102/PS6106
PE Cycle Limit: 725
SLC cache : 0x600000/0x400000

ParPage : 00
Defects Early Read Prog Erase
Bank00: 29 0 0 0
Bank01: 25 0 0 0
Bank02: 44 0 0 0
Bank03: 17 0 0 0
Bank04: 32 0 0 0
Bank05: 31 0 0 0
Bank06: 31 0 0 0
Bank07: 40 0 0 0
Bank08: 35 0 0 0
Bank09: 33 0 0 0
Bank10: 44 0 0 0
Bank11: 31 0 0 0
Bank12: 21 0 0 0
Bank13: 18 0 0 0
Bank14: 34 0 0 0
Bank15: 34 0 0 0
Total : 499 0 0 0

Defects Early Read Prog Erase
Ce00Pl0: 4 0 0 0
Ce00Pl1: 12 0 0 0
Ce01Pl0: 6 0 0 0
Ce01Pl1: 7 0 0 0
Ce02Pl0: 4 0 0 0
Ce02Pl1: 8 0 0 0
Ce03Pl0: 5 0 0 0
Ce03Pl1: 8 0 0 0
Ce04Pl0: 10 0 0 0
Ce04Pl1: 7 0 0 0
Ce05Pl0: 12 0 0 0
Ce05Pl1: 15 0 0 0
Ce06Pl0: 3 0 0 0
Ce06Pl1: 6 0 0 0
Ce07Pl0: 3 0 0 0
Ce07Pl1: 5 0 0 0
Ce08Pl0: 10 0 0 0
Ce08Pl1: 10 0 0 0
Ce09Pl0: 6 0 0 0
Ce09Pl1: 6 0 0 0
Ce10Pl0: 7 0 0 0
Ce10Pl1: 10 0 0 0
Ce11Pl0: 5 0 0 0
Ce11Pl1: 9 0 0 0
Ce12Pl0: 5 0 0 0
Ce12Pl1: 6 0 0 0
Ce13Pl0: 6 0 0 0
Ce13Pl1: 14 0 0 0
Ce14Pl0: 3 0 0 0
Ce14Pl1: 27 0 0 0
Ce15Pl0: 4 0 0 0
Ce15Pl1: 6 0 0 0
Total : 249 0 0 0

Kioxia Exceria G2 1 TB Specs

1 TB, TLC, PCIe 3.0 x4, M.2 2280

www.techpowerup.com

GabrielLP14 · Jan 30, 2023

Hey guys we've updated the database with more accurate Overprovisioning sizes (in percentage and in GB) so please check if you find any mistakes since we had to update literally hundreds of SSDs. Thanks in advance.

S456 · Jan 30, 2023

I noticed that Crucial P3 1 TB says "4 chips @ 4 Tbit".

GabrielLP14 · Jan 30, 2023

S456 said:
I noticed that Crucial P3 1 TB says "4 chips @ 4 Tbit".

Oh true, there fixed it

Crucial P3 1 TB Specs

1 TB, QLC, PCIe 3.0 x4, M.2 2280

www.techpowerup.com

Didn't noticed i've typed 4 instead of 2

S456 · Jan 30, 2023

And a few more problems :laugh:

Acer Predator GM7 512 GB [2 chips @ 4 Tbit]
ADATA Falcon 512 GB [4 chips @ 2 Tbit]
Aorus Gen4 SSD 512 GB [4 chips @ 2 Tbit]
Aorus Gen4 SSD (v2) 512 GB [4 chips @ 2 Tbit]
Aorus Gen4 SSD (v2) 2 TB [4 chips @ 2 Tbit]
Intel 670p 512 GB [2 chips @ 1 Tbit]
Intel 660p 512 GB [2 chips @ 4 Tbit]
SOLIDIGM 670p 512 GB [2 chips @ 1 Tbit]
SOLIDIGM 670p 1 TB [2 chips @ 6 Tbit] (6 Tbit chip real?)
SOLIDIGM 670p 2 TB [2 chips @ 6 Tbit] (8 Tbit?)
Sabrent Rocket 4.0 500 GB [4 chips @ 2 Tbit]
Sabrent Rocket 4.0 (w/ Heatsink) 500 GB [4 chips @ 2 Tbit]

GabrielLP14 · Jan 31, 2023

Acer Predator GM7 512 GB [2 chips @ 4 Tbit] - Fixed
ADATA Falcon is correct - Fixed
Aorus Gen4 SSD 512 GB [4 chips @ 2 Tbit] - Fixex
Aorus Gen4 SSD (v2) 512 GB [4 chips @ 2 Tbit] - Fixed
Aorus Gen4 SSD (v2) 2 TB [4 chips @ 2 Tbit] - Fixed

I see what the problem is as soon as i've added some dies, it changed them in a few SSDs
These were already correct
Besides that thank you i've corrected all of them that you listed
@S456

easy_rider · Feb 7, 2023

Hi!

Recently I encountered a few SATA SSDs. I thought I share the details from the firmware, so you can extend the database. I know these cheap ones switch their components from time to time, but I encountered these variants.

Gigabyte 480GB - GP-GSTFS31480GNTD
Phison S11 (PS3111) - Toshiba 112L BiCS5 TLC

Code:

.\phison_flash_id.exe
Phison S5/S8/S9/S10/S11 flash ID reader v0.843a by Ochkin Vadim
0: (Samsung SSD 860 PRO 512GB
1: GIGABYTE GP-GSTFS31480GN
Please select drive number:1
Drive: 1(USB)
Model: GIGABYTE GP-GSTFS31480GNTD
Fw   : SBFM61.5
Size : 457862 MB
Firmware lock supported [FB 00 01 01]
Drive unlocked [FB 00 01 03]
P/N  : 511-221019267   , SBSM61.5
S11fw: SBFM61.5, 2022Sep 5
S11rv: M61.5-26
Bank00: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Bank01: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x8,0x1e - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Bank04: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x8,0x1e - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Bank05: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x8,0x1e - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Bank08: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x8,0x1e - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Bank09: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x8,0x1e - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Bank12: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Bank13: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Controller    : PS3111
Flash CE      : 8
Flash Channel : 2
DRAM Size,MB  : 32
Flash CE Mask : [++--++-- ++--++--]
Flash Mode/Clk: 3/7 (Set 3/7)
SLC Cache     : 786432(0xc0000)
PE Cycle Limit: 3000

Try to read nand parameter page...
ParPage   : 00
MaxBBPerPlane : 130
Plane         : 2

Defects All(per plane)  Early           Later
Bank00:  46(9,37)        46(9,37)         0(0,0)
Bank01:  33(1,32)        33(1,32)         0(0,0)
Bank04:  71(39,32)       71(39,32)        0(0,0)
Bank05:  46(33,13)       46(33,13)        0(0,0)
Bank08:  43(3,40)        43(3,40)         0(0,0)
Bank09:  56(37,19)       56(37,19)        0(0,0)
Bank12:  48(2,46)        48(2,46)         0(0,0)
Bank13:  68(30,38)       68(30,38)        0(0,0)
Total : 411             411               0

Read EC..
Saved to: phison_flash_id.txt

Adata SU650 512GB - ASU650SS-512GT
REALTEK RTS5735DLQ (RL6643XD0R6305) - Micron QLC

Code:

.\rtl_flash_id.exe
Realtek SSD flash id v0.15a by vlo
OS: 10.0 build 19045
Use: rtl_fid disk_num[b][y]
     - b for save binary
     - y disable any requests to user

0: (Samsung SSD 860 PRO 512GB
1: ADATA SU650
Please select drive number:1
Drive: 1(USB)
Model: ADATA SU650
Fw   : XD0R6305
Size : 488386 MB [512.1 GB]
FwStr: [REALTEK_RL6643XD0R6305_p_tN48RV5.9]
Bank04: 0x2c,0xd3,0xc,0x32,0xea,0x30,0x0,0x0 - Micron QLC 1024Gb/CE 1024Gb/die
Bank06: 0x2c,0xd3,0xc,0x32,0xea,0x30,0x0,0x0 - Micron QLC 1024Gb/CE 1024Gb/die
Bank08: 0x2c,0xd3,0xc,0x32,0xea,0x30,0x0,0x0 - Micron QLC 1024Gb/CE 1024Gb/die
Bank10: 0x2c,0xd3,0xc,0x32,0xea,0x30,0x0,0x0 - Micron QLC 1024Gb/CE 1024Gb/die
Flash CE Mask : [----+-+- +-+-----]
Banks       : 0
Channel     : 0
CE          : 0
Die/CE      : 0
Plane       : 0
Block/Die   : 0
Page/Block  : 0
Sect/Page   : 0
FullPageSize: 0

Adata SU650 480GB - ASU650SS-480GT
REALTEK RTS5735DLQ (RL6643XD0R6305) - Samsung 3dv5-92L TLC

Code:

.\rtl_flash_id.exe
Realtek SSD flash id v0.15a by vlo
OS: 10.0 build 19045
Use: rtl_fid disk_num[b][y]
     - b for save binary
     - y disable any requests to user

0: (Samsung SSD 860 PRO 512GB
1: ADATA SU650
Please select drive number:1
Drive: 1(USB)
Model: ADATA SU650
Fw   : XD0R3C0A
Size : 457862 MB [480.1 GB]
FwStr: [REALTEK_RL6643XD0R3C0A_p_tSSV5V5.14]
Bank00: 0xec,0x1e,0x98,0xbf,0x84,0xcc,0xec,0x1e - Samsung 3dv5-92L TLC 16k 512Gb/CE 512Gb/die
Bank01: 0xec,0x1e,0x98,0xbf,0x84,0xcc,0xec,0x1e - Samsung 3dv5-92L TLC 16k 512Gb/CE 512Gb/die
Bank04: 0xec,0x1e,0x98,0xbf,0x84,0xcc,0xec,0x1e - Samsung 3dv5-92L TLC 16k 512Gb/CE 512Gb/die
Bank05: 0xec,0x1e,0x98,0xbf,0x84,0xcc,0xec,0x1e - Samsung 3dv5-92L TLC 16k 512Gb/CE 512Gb/die
Bank08: 0xec,0x1e,0x98,0xbf,0x84,0xcc,0xec,0x1e - Samsung 3dv5-92L TLC 16k 512Gb/CE 512Gb/die
Bank09: 0xec,0x1e,0x98,0xbf,0x84,0xcc,0xec,0x1e - Samsung 3dv5-92L TLC 16k 512Gb/CE 512Gb/die
Bank12: 0xec,0x1e,0x98,0xbf,0x84,0xcc,0xec,0x1e - Samsung 3dv5-92L TLC 16k 512Gb/CE 512Gb/die
Bank13: 0xec,0x1e,0x98,0xbf,0x84,0xcc,0xec,0x1e - Samsung 3dv5-92L TLC 16k 512Gb/CE 512Gb/die
Flash CE Mask : [++--++-- ++--++--]
Banks       : 0
Channel     : 0
CE          : 0
Die/CE      : 0
Plane       : 0
Block/Die   : 0
Page/Block  : 0
Sect/Page   : 0
FullPageSize: 0

PNY CS900 480GB - SSD7CS900-480-PB
SMI2259XT (SM2259XA) - Intel 144L QLC

Code:

.\smi_flash_id_ata.exe
SMI 224x/225x SSD Flash ID ATA reader v0.565a by Ochkin Vadim
OS: 10.0 build 19045
Use: smi_flash_id drive_num[u]
     - u - model check override
0: (Samsung SSD 860 PRO 512GB
1: PNY 480GB SATA SSD
Please select drive number:1
Drive: 1(USB)
Model: PNY 480GB SATA SSD
Fw   : V0718B0
Size : 457862 MB [480.1 GB]
From smart : [SMI2259XT] [V0718B0 00] [N3800]
Controller : SM2259XA bufferless
FlashID: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0,0x0 - Intel 144L QLC 1024Gb/CE 1024Gb/die
Channel: 2
CE     : 2
TotDie : 4
Plane  : 2
Die/Ce : 1
Ch map : 0x03
CE map : 0x03
Inter. : 2
First Fblock  :    3
Total Fblock  :  516
Total Hblock  : 7155
Fblock Per Ce :  516
Fblock Per Die:  516
Original Spare Block Count :    40
Vendor Marked Bad Block    :     0
Bad Block From Pretest     :    10

If you have the time, you can find more SSDs here

: https://prohardver.hu/tema/flash_ssd_osszefoglalo_az_1_hsz-ben/friss.html

Silicon Power A55 512GB V1
https://prohardver.hu/tema/flash_ssd_osszefoglalo_az_1_hsz-ben/hsz_49076-49076.html

Silicon Power A55 512GB V2. The test showed TLC, but only because it was an old version of the tool. It is QLC.
https://prohardver.hu/tema/flash_ssd_osszefoglalo_az_1_hsz-ben/hsz_48881-48881.html
https://prohardver.hu/tema/flash_ssd_osszefoglalo_az_1_hsz-ben/hsz_49068-49071.html

GabrielLP14 · Feb 7, 2023

easy_rider said:

Hi!

Recently I encountered a few SATA SSDs. I thought I share the details from the firmware, so you can extend the database. I know these cheap ones switch their components from time to time, but I encountered these variants.

Gigabyte 480GB - GP-GSTFS31480GNTD
Phison S11 (PS3111) - Toshiba 112L BiCS5 TLC

Code:

.\phison_flash_id.exe
Phison S5/S8/S9/S10/S11 flash ID reader v0.843a by Ochkin Vadim
0: (Samsung SSD 860 PRO 512GB
1: GIGABYTE GP-GSTFS31480GN
Please select drive number:1
Drive: 1(USB)
Model: GIGABYTE GP-GSTFS31480GNTD
Fw   : SBFM61.5
Size : 457862 MB
Firmware lock supported [FB 00 01 01]
Drive unlocked [FB 00 01 03]
P/N  : 511-221019267   , SBSM61.5
S11fw: SBFM61.5, 2022Sep 5
S11rv: M61.5-26
Bank00: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Bank01: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x8,0x1e - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Bank04: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x8,0x1e - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Bank05: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x8,0x1e - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Bank08: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x8,0x1e - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Bank09: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x8,0x1e - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Bank12: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Bank13: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x8,0x16 - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Controller    : PS3111
Flash CE      : 8
Flash Channel : 2
DRAM Size,MB  : 32
Flash CE Mask : [++--++-- ++--++--]
Flash Mode/Clk: 3/7 (Set 3/7)
SLC Cache     : 786432(0xc0000)
PE Cycle Limit: 3000

Try to read nand parameter page...
ParPage   : 00
MaxBBPerPlane : 130
Plane         : 2

Defects All(per plane)  Early           Later
Bank00:  46(9,37)        46(9,37)         0(0,0)
Bank01:  33(1,32)        33(1,32)         0(0,0)
Bank04:  71(39,32)       71(39,32)        0(0,0)
Bank05:  46(33,13)       46(33,13)        0(0,0)
Bank08:  43(3,40)        43(3,40)         0(0,0)
Bank09:  56(37,19)       56(37,19)        0(0,0)
Bank12:  48(2,46)        48(2,46)         0(0,0)
Bank13:  68(30,38)       68(30,38)        0(0,0)
Total : 411             411               0

Read EC..
Saved to: phison_flash_id.txt

Adata SU650 512GB - ASU650SS-512GT
REALTEK RTS5735DLQ (RL6643XD0R6305) - Micron QLC

Code:

.\rtl_flash_id.exe
Realtek SSD flash id v0.15a by vlo
OS: 10.0 build 19045
Use: rtl_fid disk_num[b][y]
     - b for save binary
     - y disable any requests to user

0: (Samsung SSD 860 PRO 512GB
1: ADATA SU650
Please select drive number:1
Drive: 1(USB)
Model: ADATA SU650
Fw   : XD0R6305
Size : 488386 MB [512.1 GB]
FwStr: [REALTEK_RL6643XD0R6305_p_tN48RV5.9]
Bank04: 0x2c,0xd3,0xc,0x32,0xea,0x30,0x0,0x0 - Micron QLC 1024Gb/CE 1024Gb/die
Bank06: 0x2c,0xd3,0xc,0x32,0xea,0x30,0x0,0x0 - Micron QLC 1024Gb/CE 1024Gb/die
Bank08: 0x2c,0xd3,0xc,0x32,0xea,0x30,0x0,0x0 - Micron QLC 1024Gb/CE 1024Gb/die
Bank10: 0x2c,0xd3,0xc,0x32,0xea,0x30,0x0,0x0 - Micron QLC 1024Gb/CE 1024Gb/die
Flash CE Mask : [----+-+- +-+-----]
Banks       : 0
Channel     : 0
CE          : 0
Die/CE      : 0
Plane       : 0
Block/Die   : 0
Page/Block  : 0
Sect/Page   : 0
FullPageSize: 0

Adata SU650 480GB - ASU650SS-480GT
REALTEK RTS5735DLQ (RL6643XD0R6305) - Samsung 3dv5-92L TLC

Code:

.\rtl_flash_id.exe
Realtek SSD flash id v0.15a by vlo
OS: 10.0 build 19045
Use: rtl_fid disk_num[b][y]
     - b for save binary
     - y disable any requests to user

0: (Samsung SSD 860 PRO 512GB
1: ADATA SU650
Please select drive number:1
Drive: 1(USB)
Model: ADATA SU650
Fw   : XD0R3C0A
Size : 457862 MB [480.1 GB]
FwStr: [REALTEK_RL6643XD0R3C0A_p_tSSV5V5.14]
Bank00: 0xec,0x1e,0x98,0xbf,0x84,0xcc,0xec,0x1e - Samsung 3dv5-92L TLC 16k 512Gb/CE 512Gb/die
Bank01: 0xec,0x1e,0x98,0xbf,0x84,0xcc,0xec,0x1e - Samsung 3dv5-92L TLC 16k 512Gb/CE 512Gb/die
Bank04: 0xec,0x1e,0x98,0xbf,0x84,0xcc,0xec,0x1e - Samsung 3dv5-92L TLC 16k 512Gb/CE 512Gb/die
Bank05: 0xec,0x1e,0x98,0xbf,0x84,0xcc,0xec,0x1e - Samsung 3dv5-92L TLC 16k 512Gb/CE 512Gb/die
Bank08: 0xec,0x1e,0x98,0xbf,0x84,0xcc,0xec,0x1e - Samsung 3dv5-92L TLC 16k 512Gb/CE 512Gb/die
Bank09: 0xec,0x1e,0x98,0xbf,0x84,0xcc,0xec,0x1e - Samsung 3dv5-92L TLC 16k 512Gb/CE 512Gb/die
Bank12: 0xec,0x1e,0x98,0xbf,0x84,0xcc,0xec,0x1e - Samsung 3dv5-92L TLC 16k 512Gb/CE 512Gb/die
Bank13: 0xec,0x1e,0x98,0xbf,0x84,0xcc,0xec,0x1e - Samsung 3dv5-92L TLC 16k 512Gb/CE 512Gb/die
Flash CE Mask : [++--++-- ++--++--]
Banks       : 0
Channel     : 0
CE          : 0
Die/CE      : 0
Plane       : 0
Block/Die   : 0
Page/Block  : 0
Sect/Page   : 0
FullPageSize: 0

PNY CS900 480GB - SSD7CS900-480-PB
SMI2259XT (SM2259XA) - Intel 144L QLC

Code:

.\smi_flash_id_ata.exe
SMI 224x/225x SSD Flash ID ATA reader v0.565a by Ochkin Vadim
OS: 10.0 build 19045
Use: smi_flash_id drive_num[u]
     - u - model check override
0: (Samsung SSD 860 PRO 512GB
1: PNY 480GB SATA SSD
Please select drive number:1
Drive: 1(USB)
Model: PNY 480GB SATA SSD
Fw   : V0718B0
Size : 457862 MB [480.1 GB]
From smart : [SMI2259XT] [V0718B0 00] [N3800]
Controller : SM2259XA bufferless
FlashID: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0,0x0 - Intel 144L QLC 1024Gb/CE 1024Gb/die
Channel: 2
CE     : 2
TotDie : 4
Plane  : 2
Die/Ce : 1
Ch map : 0x03
CE map : 0x03
Inter. : 2
First Fblock  :    3
Total Fblock  :  516
Total Hblock  : 7155
Fblock Per Ce :  516
Fblock Per Die:  516
Original Spare Block Count :    40
Vendor Marked Bad Block    :     0
Bad Block From Pretest     :    10

If you have the time, you can find more SSDs here

: https://prohardver.hu/tema/flash_ssd_osszefoglalo_az_1_hsz-ben/friss.html

Silicon Power A55 512GB V1
https://prohardver.hu/tema/flash_ssd_osszefoglalo_az_1_hsz-ben/hsz_49076-49076.html

Silicon Power A55 512GB V2. The test showed TLC, but only because it was an old version of the tool. It is QLC.
https://prohardver.hu/tema/flash_ssd_osszefoglalo_az_1_hsz-ben/hsz_48881-48881.html
https://prohardver.hu/tema/flash_ssd_osszefoglalo_az_1_hsz-ben/hsz_49068-49071.html

Thank you so much

Those "Micron QLC" from the SU650 512GB are Micron N48R (176-L QLC)
Here's the prof:

Fw : XD0R6305
Size : 488386 MB [512.1 GB]
FwStr: [REALTEK_RL6643XD0R6305_p_tN48RV5.9]

GabrielLP14 · Mar 13, 2023

Hey everyone i've decided to add these "SSDs" to the database as well, from Apple in their Laptop Macbook series, but its really hard to find information so any news is welcome and i thanks in advance:

Apple Macbook Air M2 256 GB Specs

256 GB, Unknown, PCIe 3.0 x4, Embedded

www.techpowerup.com

rdk · Mar 15, 2023

GabrielLP14 said:
Thank you for the reply
First time i've seen this variant, this flash is pretty fast though.
I'll add this variant

Updated

XPG SX8200 Pro 2 TB Specs

2 TB, TLC, PCIe 3.0 x4, M.2 2280

www.techpowerup.com

@Haldi

Got almost the same version - only with SM2262ENG. Just bought on amazon.
Also got CS3040 2TB with DRAM cache 3200 - fastest i've ever seen.

GabrielLP14 · Mar 15, 2023

rdk said:
Got almost the same version - only with SM2262ENG. Just bought on amazon.
Also got CS3040 2TB with DRAM cache 3200 - fastest i've ever seen.

Cool but i doubt the DRAM Cache will run that fast, from this controller i expect to run close to 1600 MT/s since it's a controller "limitation" and also, latency is far more important at this point for FTL accessing.

rdk · Mar 15, 2023

GabrielLP14 said:
Cool but i doubt the DRAM Cache will run that fast, from this controller i expect to run close to 1600 MT/s since it's a controller "limitation" (...)

I'm not so sure about it. Phison specs:

There is no "MT/s" unit by the DDR (but is clearly visible with other values). For me "@1600" may mean "1600 MHz" = 3200 MT/s

GabrielLP14 · Mar 15, 2023

rdk said:
I'm not so sure about it. Phison specs:

View attachment 287925

There is no "MT/s" unit by the DDR (but is clearly visible with other values). For me "@1600" may mean "1600 MHz" = 3200 MT/s

1600 MTps - 800 MHz.

rdk · Mar 15, 2023

GabrielLP14 said:
1600 MTps - 800 MH

Is this your guess or there is a something that confirms it?

System Name	Gabriel-PC
Processor	Core i7-13700K (All Core 5.7GHz)
Motherboard	MSI Z790-P PRO WIFI DDR4
Cooling	NZXT Kraken X72 360mm
Memory	32GB Netac DDR4-3200 MT/s CL-16
Video Card(s)	RTX 4070 Ti Super Colorful
Storage	Memblaze P7940 7.68TB Gen5 (OS), SK Hynix P41 2TB (Games) + 4x 4TB WD Black HD (Synology NAS DS1817)
Display(s)	AOC G2460PF 144Hz 1ms (Kinda trash)
Case	NZXT Phantom 820 Black
Audio Device(s)	Motherboard onboard audio (good enough for me)
Power Supply	Corsair RM1000X
Mouse	Have no idea (Generic)
Keyboard	Have no idea (Generic)
Software	Windows 11 Pro 23H2 + Windows Server 2022 + Synology in NAS

System Name	Gabriel-PC
Processor	Core i7-13700K (All Core 5.7GHz)
Motherboard	MSI Z790-P PRO WIFI DDR4
Cooling	NZXT Kraken X72 360mm
Memory	32GB Netac DDR4-3200 MT/s CL-16
Video Card(s)	RTX 4070 Ti Super Colorful
Storage	Memblaze P7940 7.68TB Gen5 (OS), SK Hynix P41 2TB (Games) + 4x 4TB WD Black HD (Synology NAS DS1817)
Display(s)	AOC G2460PF 144Hz 1ms (Kinda trash)
Case	NZXT Phantom 820 Black
Audio Device(s)	Motherboard onboard audio (good enough for me)
Power Supply	Corsair RM1000X
Mouse	Have no idea (Generic)
Keyboard	Have no idea (Generic)
Software	Windows 11 Pro 23H2 + Windows Server 2022 + Synology in NAS

Processor	AMD Ryzen 5
Memory	16GB DDR4
Storage	Crucial P5 Plus (M.2 NVME PCIe 4.0)
Display(s)	27" QHD 144Hz
Power Supply	Seasonic Focus GX

System Name	Gabriel-PC
Processor	Core i7-13700K (All Core 5.7GHz)
Motherboard	MSI Z790-P PRO WIFI DDR4
Cooling	NZXT Kraken X72 360mm
Memory	32GB Netac DDR4-3200 MT/s CL-16
Video Card(s)	RTX 4070 Ti Super Colorful
Storage	Memblaze P7940 7.68TB Gen5 (OS), SK Hynix P41 2TB (Games) + 4x 4TB WD Black HD (Synology NAS DS1817)
Display(s)	AOC G2460PF 144Hz 1ms (Kinda trash)
Case	NZXT Phantom 820 Black
Audio Device(s)	Motherboard onboard audio (good enough for me)
Power Supply	Corsair RM1000X
Mouse	Have no idea (Generic)
Keyboard	Have no idea (Generic)
Software	Windows 11 Pro 23H2 + Windows Server 2022 + Synology in NAS

Processor	AMD Ryzen 5
Memory	16GB DDR4
Storage	Crucial P5 Plus (M.2 NVME PCIe 4.0)
Display(s)	27" QHD 144Hz
Power Supply	Seasonic Focus GX

Announcing the TechPowerUp SSD Specs Database

SSD DB Maintainer

New Member

SSD DB Maintainer

SSD DB Maintainer

New Member

SSD DB Maintainer

New Member

SSD DB Maintainer

SSD DB Maintainer

SSD DB Maintainer

SSD DB Maintainer

New Member

SSD DB Maintainer

SSD DB Maintainer

New Member

SSD DB Maintainer

New Member

SSD DB Maintainer

New Member
