Does Overclocking GPU Void Warranty?

Joined
Dec 12, 2022
Messages
136 (0.18/day)
Location
U.A.E
System Name Legion 5-15ACH6 Laptop (Lenovo)
Processor AMD Ryzen 5 5600H)
Motherboard LENOVO (LNVNB161216)
Cooling Legion Internal Cooling Fans
Memory 8gb SODIMM DDR4 3200Mhz x2 (16gb)
Video Card(s) NVIDIA GeForce RTX 3050 Mobile
Storage SAMSUNG MZVLB512HBJQ-000L2 M.2 SSD / Samsung 850 EVO SSD x2
Display(s) Built-in 165hz Monitor
Audio Device(s) Lenovo Legion H500 7.1 Headset/Realtek(R) Audio w/Nahimic Audio (ALC3306)
Power Supply 230W 100-240V 50-60Hz AC Adapter
Keyboard Legion Truestrike keyboard Enhanced (101-Key or 102-Key)
Software Microsoft Windows 11 Home Insider Preview x64 (Canary Channel)

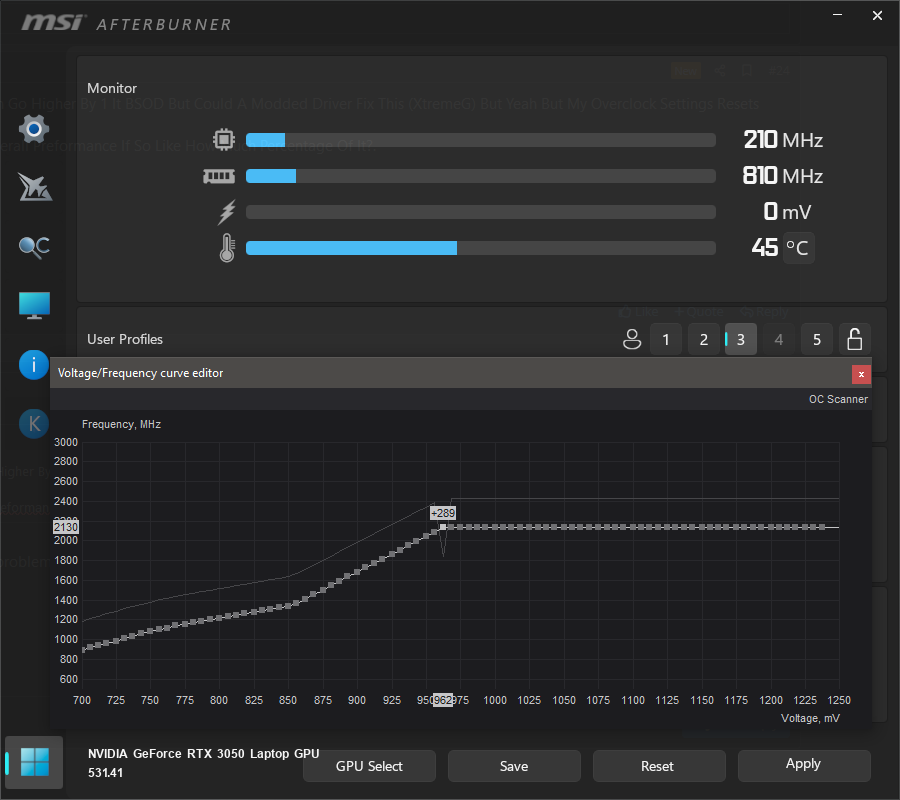

1. you're doing it wrong. Do not use the sliders. This is likely why you're running into problems. Reset MSI Afterburner to stock, and press Ctrl+F to bring up the curve editor. Then link the points you want in the X/Y axis, for example:

View attachment 289025

2. Do NOT use modded drivers. These are snake oil, if they were beneficial in any manner don't you think the companies would ship the drivers that way? (XtremeG for NVIDIA, NimeZ for AMD, etc.)

3. OS being beta doesn't affect anything in direct relation to this
So Any Amount Will Work (To Make Sure) And If Not To This Does Canary Affect Overall Preformance?

Last edited:
Joined
Dec 25, 2020
Messages
7,007 (4.81/day)
Location
São Paulo, Brazil
System Name "Icy Resurrection"
Processor 13th Gen Intel Core i9-13900KS Special Edition
Motherboard ASUS ROG MAXIMUS Z790 APEX ENCORE
Cooling Noctua NH-D15S upgraded with 2x NF-F12 iPPC-3000 fans and Honeywell PTM7950 TIM
Memory 32 GB G.SKILL Trident Z5 RGB F5-6800J3445G16GX2-TZ5RK @ 7600 MT/s 36-44-44-52-96 1.4V
Video Card(s) ASUS ROG Strix GeForce RTX™ 4080 16GB GDDR6X White OC Edition
Storage 500 GB WD Black SN750 SE NVMe SSD + 4 TB WD Red Plus WD40EFPX HDD
Display(s) 55-inch LG G3 OLED
Case Pichau Mancer CV500 White Edition
Power Supply EVGA 1300 G2 1.3kW 80+ Gold
Mouse Microsoft Classic Intellimouse
Keyboard Generic PS/2
Software Windows 11 IoT Enterprise LTSC 24H2
Benchmark Scores I pulled a Qiqi~
So An

So Any Amount Will Work (To Make Sure) And If Not To This Does Canary Affect Overall Preformance?

With the curve method you just select the max voltage and frequency that you want your GPU to achieve and it does the rest. Keep voltage below 1000 mV for best results, and core clock frequency between 1900 to 2000 MHz. If it crashes, lower the maximum frequency until you reach something stable, but avoid going over 975 mV to keep temperature and power consumption in check.

Beta Windows does not affect the performance but may have bugs of its own. Can't make any promises there - I use stable channel Windows 10 22H2 on my laptop.
