[EOL] Arctic MX-5 is here!!Tests incoming! Completed. Now its MX-6 testing time!

[Shrek]

"PC" was the context. I'm aware silicon can go much higher in non-PC configurations.

That's why I picked the PC power supply...

Just for fun... not here to argue.



[R-T-B]

That's why I picked the PC power supply...

Just for fun... not here to argue.

Oh, good point.

nah not arguing, no worries.



[Shrek]

I hope things will follow the Apple M1 chip, where things run cool and we don't need to worry about the thermal grease.



[Mussels]

That's why I picked the PC power supply...

Just for fun... not here to argue.

and the items in a PSU that use thermal paste are... ?



[Shrek]

and the items in a PSU that use thermal paste are... ?

I thought maybe some of the MOSFETs and perhaps some of the bridge diodes or even the low voltage diodes on the secondary side.

How about the VRM in a PC?



[R-T-B]

and the items in a PSU that use thermal paste are... ?

I've seen it in some psu teardowns.



[Shrek]

OK, enough mischief on my part... back to thermal paste longevity.



[lexluthermiester]

On that note, the Noctua NT-H1 I ordered has arrived. The testing will begin tomorrow.




To restate, the compounds I'll be testing are as follows;
Stars DRG-102(Generic TIM) known to perform on the same level as ArcticSilver5 but without the curing time.
Automotive Copper thread grease.
Noctua NT-H1
Arctic Cooling MX-5

Details to follow with test results.



[Shrek]

Ummm GD900?



[lexluthermiester]

Ummm GD900?

I don't have any.



[8BitZ80]

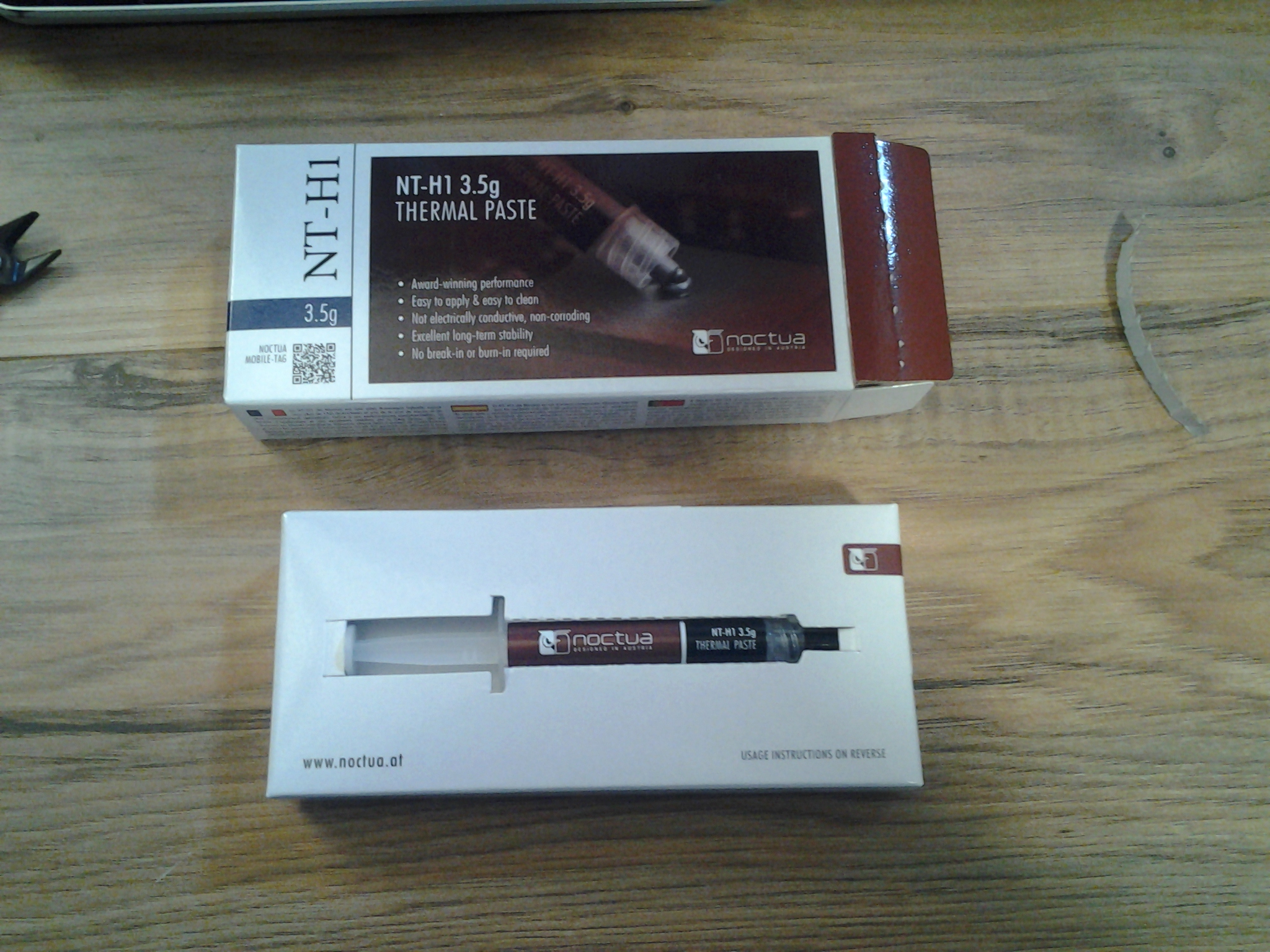

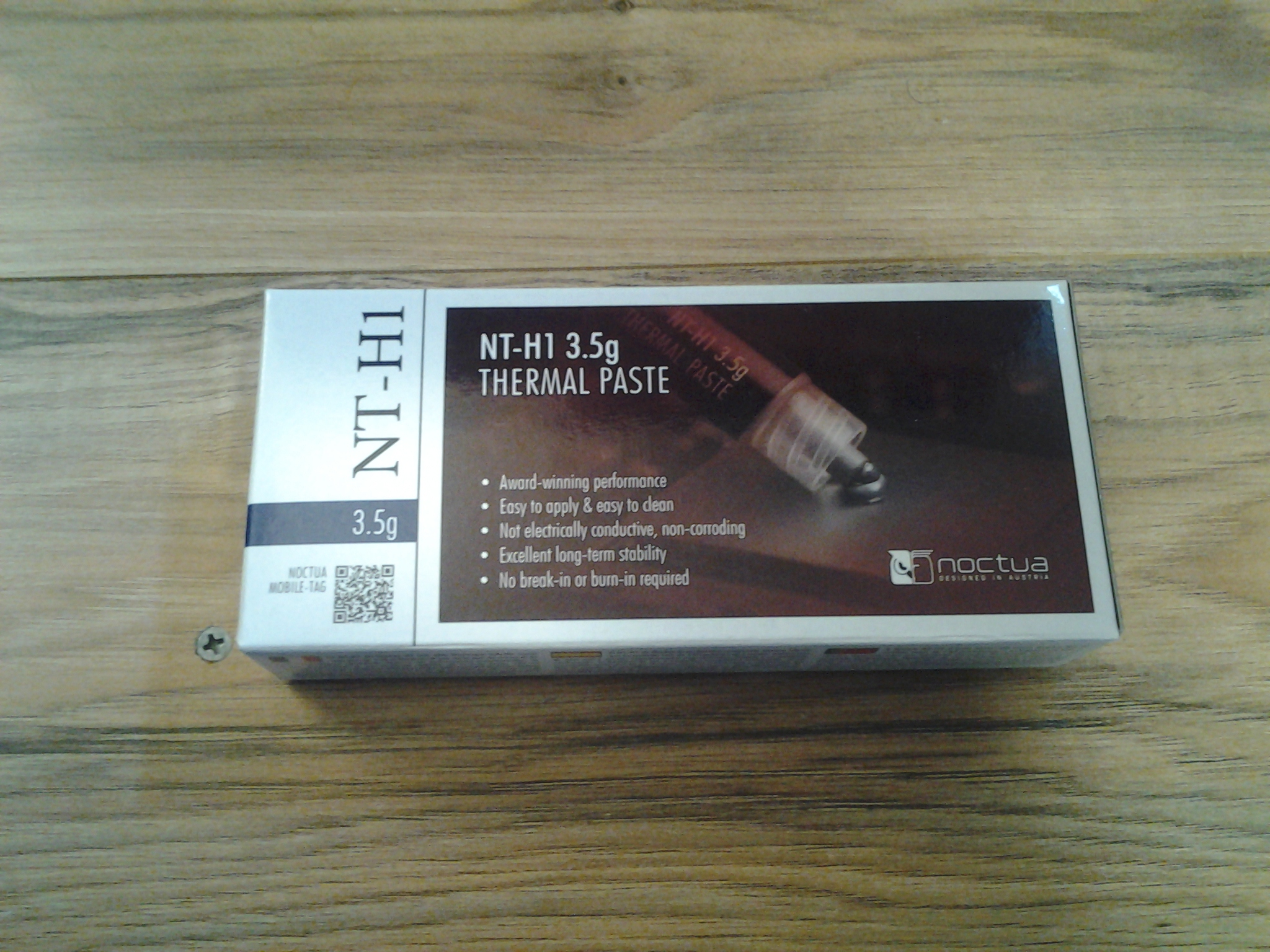

On that note, the Noctua NT-H1 I ordered has arrived. The testing will begin tomorrow.
View attachment 201730

View attachment 201731

To restate, the compounds I'll be testing are as follows;
Stars DRG-102(Generic TIM) known to perform on the same level as ArcticSilver5 but without the curing time.
Automotive Copper thread grease.
Noctua NT-H1
Arctic Cooling MX-5

Details to follow with test results.

I'm interested to see what you get. NT-H1 should perform a hair better than MX-5 if my own testing is anything to go by.



[lexluthermiester]

I'm interested to see what you get. NT-H1 should perform a hair better than MX-5 if my own testing is anything to go by.

Might be a margin of error thing, might not. I'm keeping things objective. Results will tell the tale. I'm taking pictures and screenshots so you all will be able to judge for yourselves.



[Shrek]

I don't have any.

Ah, didn't realize that.



[Space Lynx]

Might be a margin of error thing, might not. I'm keeping things objective. Results will tell the tale. I'm taking pictures and screenshots so you all will be able to judge for yourselves.

I'm looking forward to the results mate.



[Falkentyne]

The SYY Paste came today. They "apparently" have their own factory in China so it's not some fake paste, assuming the seller profile is correct.
Not sure if their amazon storefront profile is accurate but if it is this seems to be the company.

http://sztensan.com/company-profile/ (again I don't know if this is accurate, it's just what is listed on Amazon).

The paste is this.

Amazon.com: Thermal Paste, SYY 8 Grams CPU Paste Thermal Compound Paste Heatsink for IC/Processor/CPU/All Coolers, 15.7W/m.k Carbon Based High Performance, Thermal Interface Material, CPU Thermal Paste: Computers & Accessories

Amazon.com: Thermal Paste, SYY 8 Grams CPU Paste Thermal Compound Paste Heatsink for IC/Processor/CPU/All Coolers, 15.7W/m.k Carbon Based High Performance, Thermal Interface Material, CPU Thermal Paste: Computers & Accessories

www.amazon.com

This is a very interesting product.
The base components (fingerprint compression on finger + visual test) seems to be the exact same or extremely similar to Thermalright TFX / Thermagic ZF-EX. It has the exact same properties and appearance of TFX once compressed, that is, when you spread it on your finger thinly, it 'sticks' to it like a layer of coating, which is exactly what TFX does. (by comparison, doing this same test with coolermaster Gel Maker Nano is terrible--Gel Maker Nano feels more like a very sticky molasses instead). However there is a big difference in its spreading ability vs TFX.

It's a thick paste, just like TFX, very viscous, but it isn't overly dry and thick like TFX. TFX is extremely hard to spread without putting a lot on the die and brute forcing it (otherwise it just sticks to the spatula and itself). But this paste, while thick, is not quite as thick, feeling wetter and thus spreading much better. It's a lot easier to get a healthy full layer on the GPU without so much effort, although getting it into a thin layer is still difficult. But a thicker layer is effortless.

So it feels like a TFX that is simply easier to spread while maintaining TFX's advantages of good thickness. So it has easier wetting capability. It's thicker than Kryonaut Extreme and much thicker than MX-5.

Performance is literally identical to TFX on my laptop MXM GTX 1070 video card (TDP modded). Testing under terrible ambients (>32C), but just like TFX, it seems to be 1C better than Kryonaut Extreme so far.

Need to see if it retains TFX's long term durability.
And the price is just outstanding. 8 grams for $12. That's almost as good as MX-5's price/gram from the Arctic store.
That makes this paste a must buy, considering TFX is currently $40 for 6.2 grams on Amazon, $26 for 6.2 grams from the Slow Boat from China, and ZF-EX is $8/2 grams also from Aliexpress.

I'll probably throw this on some CPU's later, maybe my 9900k and my 11900k ES to do some prime95 temp comparisons between TFX and this to confirm it's the same paste, just formulated to spread easier.

Worth trying especially at the listed price, considering Kryonaut Extreme and TFX prices are still like a kick to the groin.



[Shrek]

Still trying to figure out if wettability or viscosity is more important.



[Falkentyne]

Still trying to figure out if wettability or viscosity is more important.

Why not both?



[lexluthermiester]

Why not both?

View attachment 201884

Interesting specs.



[freeagent]

Thanks man! Going to try it out



[Space Lynx]

Why not both?

View attachment 201884

I'm very tempted to try this SYY paste... you like it overall?



[freeagent]

A wetter TFX is better

I'm in



[Falkentyne]

I'm very tempted to try this SYY paste... you like it overall?

I love this paste.
Temps are within 0C of TFX, literally, just much easier to spread while still being thick! And less than half the price of TFX.



[Space Lynx]

@lexluthermiester what's taking so long on those temps?!?!?! womp... I still can't decide what paste to buy.. lol

part of me wants to go conductonaut since i do i have an air cooler... but im just so afraid if it leaks even one drop... bye bye mobo...



[Shrek]

A couple of degrees traded against the risk; doesn't seem worth it to me.

I just repasted 3 computers and have hardly made a scratch in my first 30g tub of GD900



[Space Lynx]

A couple of degrees traded against the risk; doesn't seem worth it to me.

I just repasted 3 computers and have hardly made a scratch in my first 30g tub of GD900

i most likely am going to get a tube of nt-h1. only 7 bucks on amazon. nt-h1 has always done me well in the past. mx-5 disappointed me honestly... it was so hard to remove... mx-4 was easy to remove..
