Frame loss across the board. PLEASE HELP

D

Deleted member 205776

Guest
Run memtest86 for a single pass which may take 1 to 2 hours. If there are no errors, then the RAM is not the issue and I would start checking the drives.

Joined
Jan 21, 2021
Messages
40 (0.03/day)
Should I do anything to correct these 10010 Errors? Also the windows update shows lots of errors as well especially the cumulative update. This update never installs when all the rest of the windows updates do.

Run memtest86 for a single pass which may take 1 to 2 hours. If there are no errors, then the RAM is not the issue and I would start checking the drives.
Should I do this on a flash as previously suggested or should I just run it on the drive installed?

Should I do anything to correct these 10010 Errors? Also the windows update shows lots of errors as well especially the cumulative update. This update never installs when all the rest of the windows updates do.


Should I do this on a flash as previously suggested or should I just run it on the drive installed?
Sorry, I should have read first. It specifically states that you should run it from a bootable flash. I will run this now. THANK YOU SO VERY MUCH TO EACH AND EVERY ONE OF YOU HELPING ME!!!!!!

Joined
Jan 8, 2020
Messages
834 (0.48/day)
Location
Maryland, USA
Processor Ryzen 5 5600X
Motherboard MSI MPG X570S Carbon Max Wifi
Cooling CPU: bequiet! Dark Rock 4. Case fans: 2x bequiet Silent Wings 3 140s, 2x Silent Wings 3 120s
Memory 2 x 8 GB Patriot Viper Steel DDR4-4400 C19
Video Card(s) Sapphire NITRO+ RX 5700 XT
Storage 2TB Mushkin Pilot-E M.2, 1 TB SK Hynix P31 M.2, 1 TB Inland Professional, 500 GB Samsung 860 Evo
Display(s) MSI Optix MAG271CQR 1440p 144Hz, MSI Optix MAG241C 1080p 144Hz
Case Lian Li Lancool III
Audio Device(s) Philips SHP9500, V-Moda BoomPro, Sybasonic Better Connectivity USB DAC/Amp
Power Supply EVGA SuperNOVA G3 80+ Gold 750W
Mouse Glorious Model D Wireless
Keyboard Custom Qwertykeys Navy QK80: Sarokeys Strawberry Wine switches, GMK CYL DMG3 keycaps
Should I do anything to correct these 10010 Errors?
After doing some quick research, I believe you can safely ignore those. May want a second opinion though as I'm by no means an Event Viewer guru.

Joined
Jan 21, 2021
Messages
40 (0.03/day)
After doing some quick research, I believe you can safely ignore those. May want a second opinion though as I'm by no means an Event Viewer guru.
I did see that they could just be ignored that they are mostly used for software dev's to optimize programs.

Joined
Jan 8, 2020
Messages
834 (0.48/day)
Location
Maryland, USA
Processor Ryzen 5 5600X
Motherboard MSI MPG X570S Carbon Max Wifi
Cooling CPU: bequiet! Dark Rock 4. Case fans: 2x bequiet Silent Wings 3 140s, 2x Silent Wings 3 120s
Memory 2 x 8 GB Patriot Viper Steel DDR4-4400 C19
Video Card(s) Sapphire NITRO+ RX 5700 XT
Storage 2TB Mushkin Pilot-E M.2, 1 TB SK Hynix P31 M.2, 1 TB Inland Professional, 500 GB Samsung 860 Evo
Display(s) MSI Optix MAG271CQR 1440p 144Hz, MSI Optix MAG241C 1080p 144Hz
Case Lian Li Lancool III
Audio Device(s) Philips SHP9500, V-Moda BoomPro, Sybasonic Better Connectivity USB DAC/Amp
Power Supply EVGA SuperNOVA G3 80+ Gold 750W
Mouse Glorious Model D Wireless
Keyboard Custom Qwertykeys Navy QK80: Sarokeys Strawberry Wine switches, GMK CYL DMG3 keycaps
I did see that they could just be ignored that they are mostly used for software dev's to optimize programs.
That's what I read as well. But again, don't necessarily take my word for it

D

Deleted member 205776

Guest
Should I do anything to correct these 10010 Errors? Also the windows update shows lots of errors as well especially the cumulative update. This update never installs when all the rest of the windows updates do.


Should I do this on a flash as previously suggested or should I just run it on the drive installed?


Sorry, I should have read first. It specifically states that you should run it from a bootable flash. I will run this now. THANK YOU SO VERY MUCH TO EACH AND EVERY ONE OF YOU HELPING ME!!!!!!
Ignore the rest, I have 20k errors.

Run memtest86 on a flash drive for 1 pass.

Joined
Jan 21, 2021
Messages
40 (0.03/day)
I don’t know why I’m having problems booting from the flash. It keeps booting me right back into windows. I even changed the bios settings to uefi only and boot priority to the flash and still boots me into windows

Joined
Mar 23, 2016
Messages
4,839 (1.56/day)
Processor Core i7-13700
Motherboard MSI Z790 Gaming Plus WiFi
Cooling Cooler Master RGB something
Memory Corsair DDR5-6000 small OC to 6200
Video Card(s) XFX Speedster SWFT309 AMD Radeon RX 6700 XT CORE Gaming
Storage 970 EVO NVMe M.2 500GB,,WD850N 2TB
Display(s) Samsung 28” 4K monitor
Case Phantek Eclipse P400S
Audio Device(s) EVGA NU Audio
Power Supply EVGA 850 BQ
Mouse SteelSeries Rival 310
Keyboard Logitech G G413 Silver
Software Windows 11 Professional v23H2
Ignorance again... where would this be exactly? Im sorry!
Backtracking to this reply since I'm home. This is what I was wanting to see.

Overview and Summary: Critical, sorted by most recent event.
Clipboard Image (21 January 2021) (2).jpg

Joined
Jan 8, 2020
Messages
834 (0.48/day)
Location
Maryland, USA
Processor Ryzen 5 5600X
Motherboard MSI MPG X570S Carbon Max Wifi
Cooling CPU: bequiet! Dark Rock 4. Case fans: 2x bequiet Silent Wings 3 140s, 2x Silent Wings 3 120s
Memory 2 x 8 GB Patriot Viper Steel DDR4-4400 C19
Video Card(s) Sapphire NITRO+ RX 5700 XT
Storage 2TB Mushkin Pilot-E M.2, 1 TB SK Hynix P31 M.2, 1 TB Inland Professional, 500 GB Samsung 860 Evo
Display(s) MSI Optix MAG271CQR 1440p 144Hz, MSI Optix MAG241C 1080p 144Hz
Case Lian Li Lancool III
Audio Device(s) Philips SHP9500, V-Moda BoomPro, Sybasonic Better Connectivity USB DAC/Amp
Power Supply EVGA SuperNOVA G3 80+ Gold 750W
Mouse Glorious Model D Wireless
Keyboard Custom Qwertykeys Navy QK80: Sarokeys Strawberry Wine switches, GMK CYL DMG3 keycaps
I don’t know why I’m having problems booting from the flash. It keeps booting me right back into windows. I even changed the bios settings to uefi only and boot priority to the flash and still boots me into windows
There's likely a setting in the BIOS (I believe it's called boot override or something of the sort) to manually select which drive to boot to (different than changing the boot order). Maybe memtest wasn't properly installed on the flash drive?

Joined
Mar 23, 2016
Messages
4,839 (1.56/day)
Processor Core i7-13700
Motherboard MSI Z790 Gaming Plus WiFi
Cooling Cooler Master RGB something
Memory Corsair DDR5-6000 small OC to 6200
Video Card(s) XFX Speedster SWFT309 AMD Radeon RX 6700 XT CORE Gaming
Storage 970 EVO NVMe M.2 500GB,,WD850N 2TB
Display(s) Samsung 28” 4K monitor
Case Phantek Eclipse P400S
Audio Device(s) EVGA NU Audio
Power Supply EVGA 850 BQ
Mouse SteelSeries Rival 310
Keyboard Logitech G G413 Silver
Software Windows 11 Professional v23H2
I don’t know why I’m having problems booting from the flash. It keeps booting me right back into windows. I even changed the bios settings to uefi only and boot priority to the flash and still boots me into windows
Try to get a boot menu by pushing on the keyboard F10/11 or F12 of the drives, and select the flash drive. You can interrupt the boot sequence by pressing the Pause key on the keyboard.

Joined
Jan 21, 2021
Messages
40 (0.03/day)
I’ve tried all keys to get a boot menu with no success. I even looked up asus key to be sure (says it’s f8) also with no success. Why is this such a pain in the arse .

Maybe I’m completely missing something.

In bios, I enabled CSM, changed boot to UEFI only, selected the flash as boot priority (since I can’t figure out how to get into boot menu outside of the bios) and continuously boots to windows. I even tried pause key and it doesn’t interrupt boot.

Joined
Mar 23, 2016
Messages
4,839 (1.56/day)
Processor Core i7-13700
Motherboard MSI Z790 Gaming Plus WiFi
Cooling Cooler Master RGB something
Memory Corsair DDR5-6000 small OC to 6200
Video Card(s) XFX Speedster SWFT309 AMD Radeon RX 6700 XT CORE Gaming
Storage 970 EVO NVMe M.2 500GB,,WD850N 2TB
Display(s) Samsung 28” 4K monitor
Case Phantek Eclipse P400S
Audio Device(s) EVGA NU Audio
Power Supply EVGA 850 BQ
Mouse SteelSeries Rival 310
Keyboard Logitech G G413 Silver
Software Windows 11 Professional v23H2
I even looked up asus key to be sure (says it’s f8) also with no success.
There's a Boot override option under the Boot tab/menus on top that should allow booting from the flash drive when selected.
Clipboard Image (21 January 2021) (3).jpg

Joined
Jan 21, 2021
Messages
40 (0.03/day)

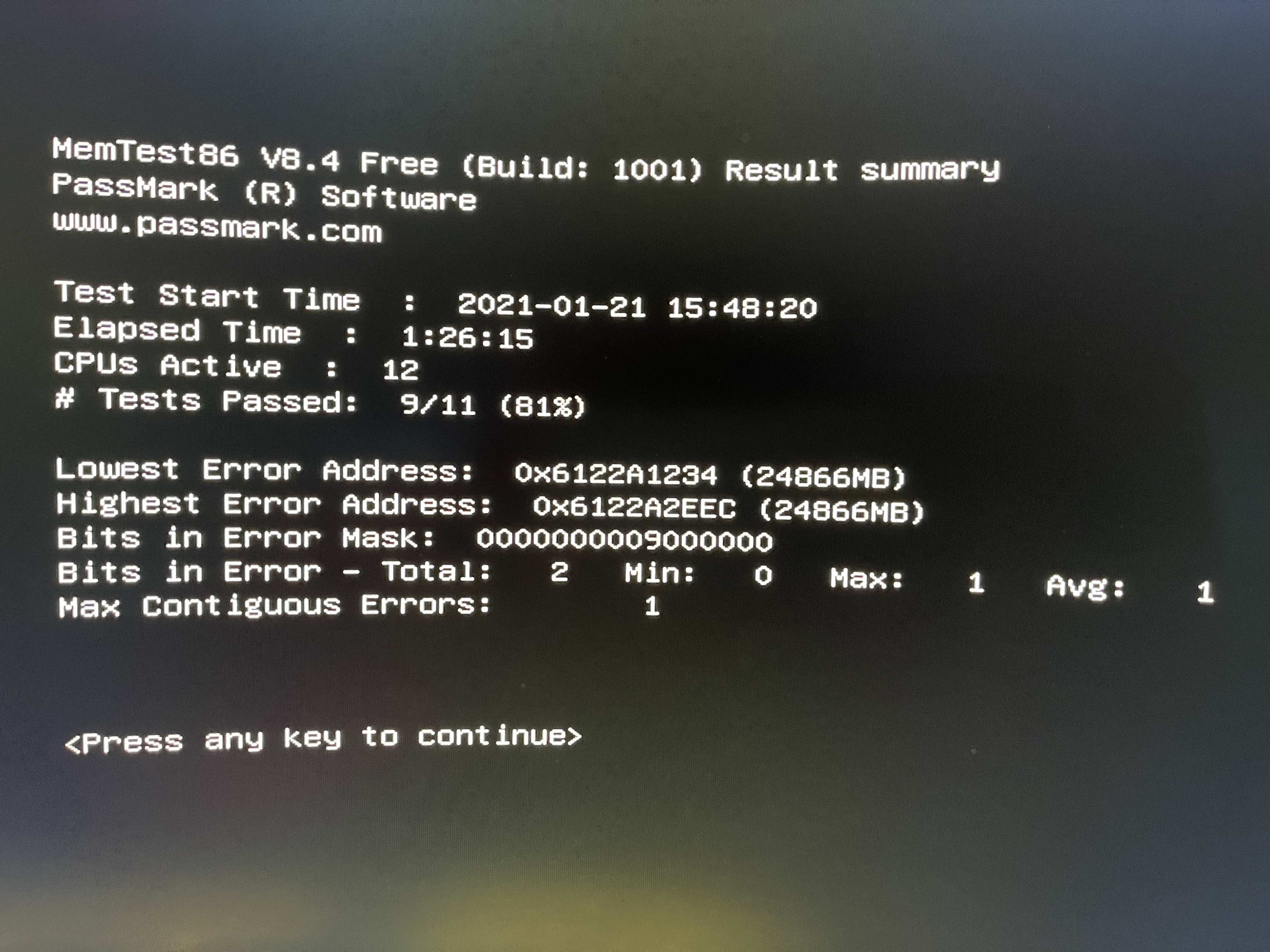

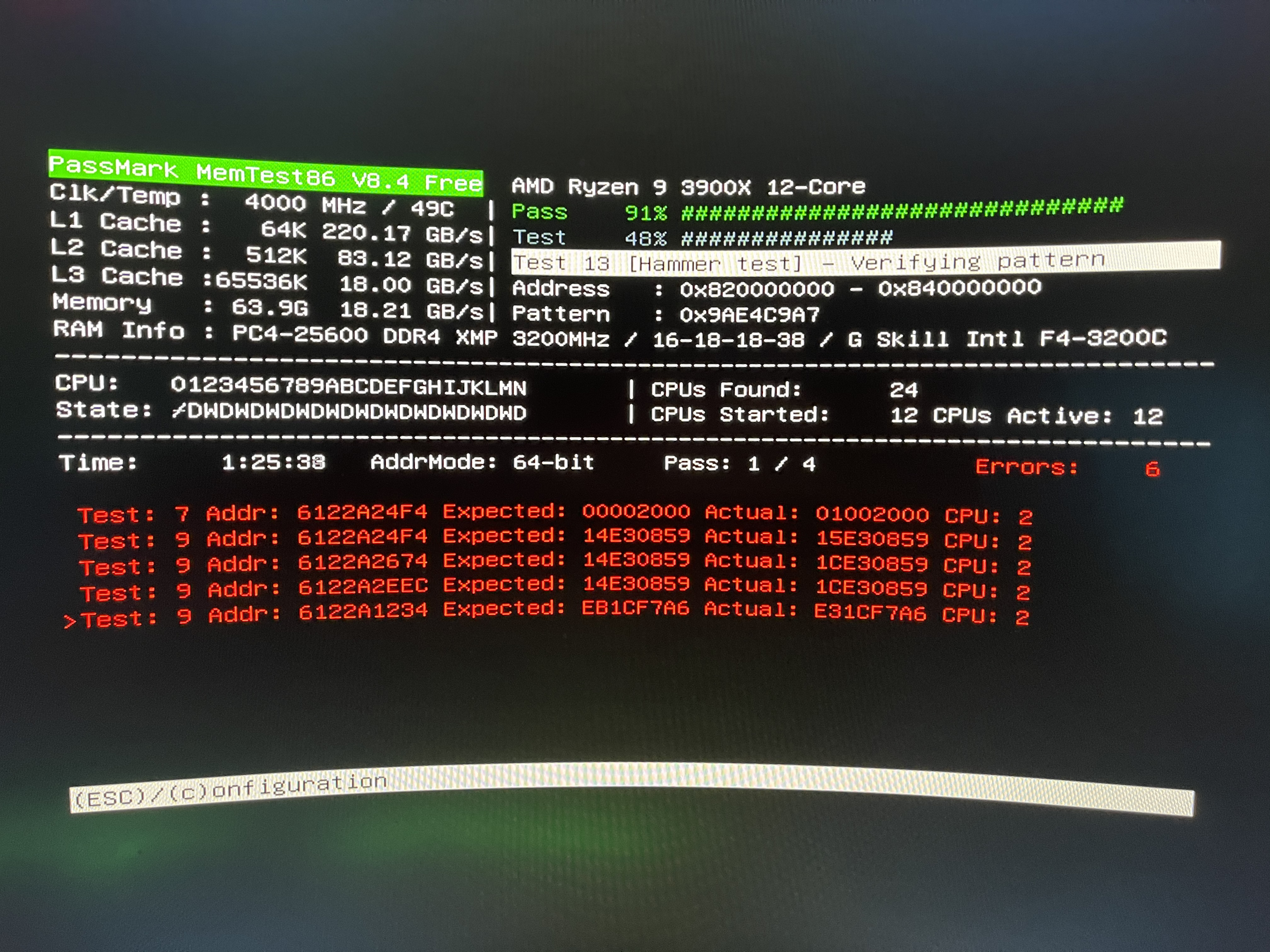

this was after 1.5 hours running. Anything I should do?


Second screen


Attachments

  • CC44CBB9-2E0F-420B-90C3-B005D2971B07.jpeg
    3.1 MB · Views: 72
  • 486F86FC-9B80-412D-A394-23AAA82DECF4.jpeg
    3.9 MB · Views: 59
Last edited:

qubit

Overclocked quantum bit
Joined
Dec 6, 2007
Messages
17,865 (2.91/day)
Location
Quantum Well UK
System Name Quantumville™
Processor Intel Core i7-2700K @ 4GHz
Motherboard Asus P8Z68-V PRO/GEN3
Cooling Noctua NH-D14
Memory 16GB (2 x 8GB Corsair Vengeance Black DDR3 PC3-12800 C9 1600MHz)
Video Card(s) MSI RTX 2080 SUPER Gaming X Trio
Storage Samsung 850 Pro 256GB | WD Black 4TB | WD Blue 6TB
Display(s) ASUS ROG Strix XG27UQR (4K, 144Hz, G-SYNC compatible) | Asus MG28UQ (4K, 60Hz, FreeSync compatible)
Case Cooler Master HAF 922
Audio Device(s) Creative Sound Blaster X-Fi Fatal1ty PCIe
Power Supply Corsair AX1600i
Mouse Microsoft Intellimouse Pro - Black Shadow
Keyboard Yes
Software Windows 10 Pro 64-bit
I am seeming to get locked at 100-120. I have all in game settings set as low as they get. No gsync enabled, no overlays, etc.
Those are the sort of framerates that my old 2700K gets (see specs). I know your CPU is much newer than mine, runs at a higher clock speed and has better multitasking, but I don't know what its gaming performance is like. Mine was a monster for its day. This game's engine is quite taxing too and it's hard to get really high framerates out of it.

The slow RAM speed could be making a difference here for sure. Definitely try fast RAM modules, like the others are suggesting.

D

Deleted member 205776

Guest
This is Ryzen. 2133 MHz RAM is definitely the problem. DOCP not being stable is another problem suggesting OP should probably not use two identical kits together, just use one of them or buy a kit of 64 GB of RAM at 2933 or higher. That kit is intended to be run 2x 16GB.

I was having my doubts that the CPU could just take 64 GB at 3200 MHz that easily, the errors were expected.

Joined
Mar 23, 2016
Messages
4,839 (1.56/day)
Processor Core i7-13700
Motherboard MSI Z790 Gaming Plus WiFi
Cooling Cooler Master RGB something
Memory Corsair DDR5-6000 small OC to 6200
Video Card(s) XFX Speedster SWFT309 AMD Radeon RX 6700 XT CORE Gaming
Storage 970 EVO NVMe M.2 500GB,,WD850N 2TB
Display(s) Samsung 28” 4K monitor
Case Phantek Eclipse P400S
Audio Device(s) EVGA NU Audio
Power Supply EVGA 850 BQ
Mouse SteelSeries Rival 310
Keyboard Logitech G G413 Silver
Software Windows 11 Professional v23H2
I was having my doubts that the CPU could just take 64 GB at 3200 MHz that easily, the errors were expected.
The Op could try a lower memory frequency of 2933 MHz if 64 GB is needed. It might be alright at 2933?

Joined
May 31, 2016
Messages
4,421 (1.45/day)
Location
Currently Norway
System Name Bro2
Processor Ryzen 5800X
Motherboard Gigabyte X570 Aorus Elite
Cooling Corsair h115i pro rgb
Memory 32GB G.Skill Flare X 3200 CL14 @3800Mhz CL16
Video Card(s) Powercolor 6900 XT Red Devil 1.1v@2400Mhz
Storage M.2 Samsung 970 Evo Plus 500MB/ Samsung 860 Evo 1TB
Display(s) LG 27UD69 UHD / LG 27GN950
Case Fractal Design G
Audio Device(s) Realtec 5.1
Power Supply Seasonic 750W GOLD
Mouse Logitech G402
Keyboard Logitech slim
Software Windows 10 64 bit
The Op could try a lower memory frequency of 2933 MHz if 64 GB is needed. It might be alright at 2933?
It is definitely the memory. I moved from 2 modules to 4 and had to dial down the mem frequency to 2933Mhz. While with 2 it was running stable at 3600Mhz to my surprise.
I would start with the memory since he's got errors with the memtest. If that is passed with no errors try game FPS and see what you will get. If there are still stability issues, I'd reinstall windows.

Joined
Oct 22, 2014
Messages
13,881 (3.83/day)
Location
Sunshine Coast
System Name Lenovo ThinkCentre
Processor AMD 5650GE
Motherboard Lenovo
Memory 32 GB DDR4
Display(s) AOC 24" Freesync 1m.s. 75Hz
Mouse Lenovo
Keyboard Lenovo
Software W11 Pro 64 bit
Joined
Aug 15, 2016
Messages
486 (0.16/day)
Processor Intel i7 4770k
Motherboard ASUS Sabertooth Z87
Cooling BeQuiet! Shadow Rock 3
Memory Patriot Viper 3 RedD 16 GB @ 1866 MHz
Video Card(s) XFX RX 480 GTR 8GB
Storage 1x SSD Samsung EVO 250 GB 1x HDD Seagate Barracuda 3 TB 1x HDD Seagate Barracuda 4 TB
Display(s) AOC Q27G2U QHD, Dell S2415H FHD
Case Cooler Master HAF XM
Audio Device(s) Magnat LZR 980, Razer BlackShark V2, Altec Lansing 251
Power Supply Corsair AX860
Mouse Razer DeathAdder V2
Keyboard Razer Huntsman Tournament Edition
Software Windows 10 Pro x64
This is Ryzen. 2133 MHz RAM is definitely the problem. DOCP not being stable is another problem suggesting OP should probably not use two identical kits together, just use one of them or buy a kit of 64 GB of RAM at 2933 or higher. That kit is intended to be run 2x 16GB.

I was having my doubts that the CPU could just take 64 GB at 3200 MHz that easily, the errors were expected.
I'm thinking the same, if the kit is intended to run with 2x16 GB with specified timings, it cannot run 2 x (2 x 16) with the same timings and being stable at the same time. That's why it's best to buy 4 packed DIMMs if you plan on using all 4 slots that need to run at specific (most likely less tighter) timings.

D

Deleted member 205776

Guest
I'm thinking the same, if the kit is intended to run with 2x16 GB with specified timings, it cannot run 2 x (2 x 16) with the same timings and being stable at the same time. That's why it's best to buy 4 packed DIMMs if you plan on using all 4 slots that need to run at specific (most likely less tighter) timings.
OP can try lowering the speed to 2933. Though, returning two of the sticks may be the best course of action here. Or returning them both and buying an actual 64 GB kit that's on the QVL list.

Joined
Jan 21, 2021
Messages
40 (0.03/day)
OP can try lowering the speed to 2933. Though, returning two of the sticks may be the best course of action here. Or returning them both and buying an actual 64 GB kit that's on the QVL list.
i bought them and have been fighting with them for about a year so no shot on a return lol. Ill buy a (4) module kit if that will fix the issue. Or, I could also just uninstall one of the kits?

Or should I just try to change the clock speed down to the 2933?

D

Deleted member 205776

Guest
i bought them and have been fighting with them for about a year so no shot on a return lol. Ill buy a (4) module kit if that will fix the issue. Or, I could also just uninstall one of the kits?

Or should I just try to change the clock speed down to the 2933?
Try lowering the clock speed first. If that still throws out errors, try one 2x 16 GB kit.

If that doesn't work either, get a singular 4 DIMM 64 gb kit, not two separate kits. Refer to the QVL list

Joined
Jan 22, 2021
Messages
15 (0.01/day)
System Name Alder
Processor Intel Core i5-12400F @ 4.4GHz (Cooler: Deepcool AK400)
Motherboard MSI PRO B660-A DDR4
Cooling 2x be quiet! Silent Wings 3 140mm High-Speed (Intake), 2x Corsair AirGuide 120mm (Exhaust)
Memory Corsair Vengeance LPX 16GB (2x8, CL16) @ 3200 MT/s
Video Card(s) MSI NVIDIA GeForce RTX 3070 Gaming X Trio
Storage Crucial P2 1TB NVME
Display(s) AOC 24G2W1G4 - 1920x1080@144hz, PHILIPS 193V5 1920x1080@60hz
Case Corsair 4000D Airflow
Audio Device(s) Sharkoon Gaming DAC Pro S V2
Power Supply Seasonic Focus GX-650 (80+ Gold)
Mouse Glorious Model O
Keyboard Corsair K70 Platinum MK.2
Software Windows 11 Pro 22H2
i bought them and have been fighting with them for about a year so no shot on a return lol. Ill buy a (4) module kit if that will fix the issue. Or, I could also just uninstall one of the kits?

Or should I just try to change the clock speed down to the 2933?
You could try uninstalling one of the kits, but no guarantees. Your best option would be to lower the clock speed, and then uninstalling one of the kits, to see if a specific one is causing the problem or if it's caused by mixing two separate kits. If that doesn't work, buy a singular kit 4x16. Refer to the QVL list as post above says.

Joined
Jan 21, 2021
Messages
40 (0.03/day)
Try lowering the clock speed first. If that still throws out errors, try one 2x 16 GB kit.

If that doesn't work either, get a singular 4 DIMM 64 gb kit, not two separate kits. Refer to the QVL list
is there a link for this list?

Top
