Help with Powercolor RX 580 8GB 3DHDV2/OC bios

[Vladimir 984]

I will try some rx 570 bioses

Anybody?

Then ifound this https://www.ifixit.com/Guide/RX+480+Disassembly+cleaning+and+thermal+paste+replacement/132635#
I am so confused



[Imperator]

Hello.
Cleaning an old video card is a must.
After several years, the thermal paste and pads aren't making what they supposed to do.
So changing them is a must.
I do that to all my cards.
Why are you confused ?



[Count von Schwalbe]

Your card is not an RX 570 - it has more shaders than an RX 570. It is either an RX 480 or RX 580.



[Imperator]

Exactly.
Due to the serial number on the GPU i would say that we have a RX480.
But this is my point of view.



[Vladimir 984]

I think you are right it is rx 480 and i will download bioses and try them tomorrow because i have night shifts all week
Thank you for your help



[Imperator]

you are most welcome mate.



[Count von Schwalbe]

Hm. The picture you posted of the PCIe connector has a number: 109-D00947-00B_02. This nearly matches the board number for Sapphire RX 480: 109-D00947-00_02. I wonder if they reused the same board and gave it an updated Device ID to make it an RX 580 - Revision B. This probably means an RX 480 BIOS would work better, as the specific RX 580 BIOS for the Polaris 10 XT may not be available.



[Imperator]

This probably means an RX 480 BIOS would work better, as the specific RX 580 BIOS for the Polaris 10 XT may not be available.

I totally agree.



[Vladimir 984]

I have downloaded them all matching for my card



[Imperator]

Well, now it's time for testing.
Good luck mate!



[Vladimir 984]

Tomorrow morning fight continues
With all your help good people i think something good will come out

Well, now it's time for testing.
Good luck mate!

Thank you

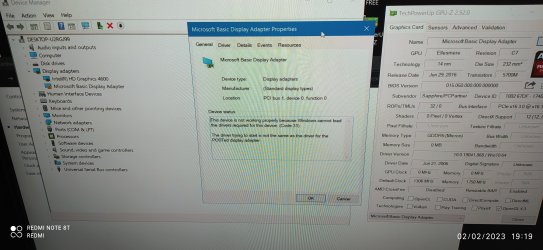

Hello again,i have tried every RX480 bios and no luck.Windows couldn't load drivers and showing error 31.Installed first Bios Imperator send me and

So here i go again with the search for the right BIOS

Now i'm looking for the right card with 1002 67df 1da2 e353 and Samsung K4G41325FE memory



[Count von Schwalbe]

Try this one:

Sapphire RX 580 VBIOS

4 GB GDDR5, 1306 MHz GPU, 1750 MHz Memory

www.techpowerup.com

It appears to be an RX 580 with the Polaris 10 XT, Samsung FE memory, and the correct ID.



[Vladimir 984]

Well, now it's time for testing.
Good luck mate!

All RX 480 BIOS-es without drivers where showed that i have Micron memory but with RX 580 BIOS you send me it is showing Samsung without drivers



[Count von Schwalbe]

All RX 480 BIOS-es without drivers where showed that i have Micron memory but with RX 580 BIOS you send me it is showing Samsung without drivers

Did you get a chance to try the one I linked above?

I think it is a good shot on that one.



[Vladimir 984]

I will try everything,after i try few more bioses i will check memory with python on linux-usb method



[Deleted member 185158]

I will try everything,after i try few more bioses i will check memory with python on linux-usb method

Post 3, you had the cooler off. It has Samsung memory. You don't need software to confirm at this point. Just try the bios's with Samsung memory, all others are useless to you.



[Vladimir 984]

Did you get a chance to try the one I linked above?

I think it is a good shot on that one.

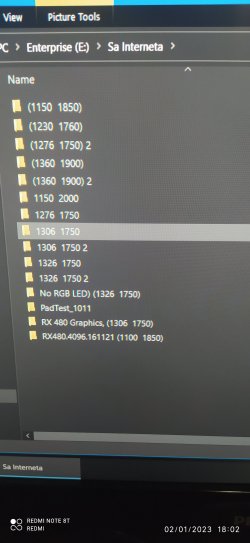

I think i did because i tried every Bios with 1306/1750Mhz

Post 3, you had the cooler off. It has Samsung memory. You don't need software to confirm at this point. Just try the bios's with Samsung memory, all others are useless to you.

I wanted to try memory for errors

Ok thanks will try



[Deleted member 185158]

Looking closer, post 25, those memory chips look burnt.

You probably already had the correct bios, the card is probably foobar.



[Count von Schwalbe]

I think i did because i tried every Bios with 1306/1750Mhz

I would make sure of that, by trying it again. There are over 1000 VBIOS in the database for the RX 580 alone.



[Vladimir 984]

I will keep searching

Try this one:

Sapphire RX 580 VBIOS

4 GB GDDR5, 1306 MHz GPU, 1750 MHz Memory

www.techpowerup.com

It appears to be an RX 580 with the Polaris 10 XT, Samsung FE memory, and the correct ID.

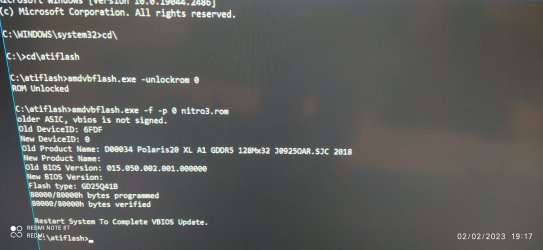

After that bios i got this

What to do next?

I would make sure of that, by trying it again. There are over 1000 VBIOS in the database for the RX 580 alone.

I will definetly check memory with linux and python method

I will keep searching


After that bios i got this

What to do next?


I will definetly check memory with linux and python method

I will keep searching


After that bios i got this

What to do next?


I will definetly check memory with linux and python method

That last bios is for rx480 because

Subsystem Id:	174B



[Count von Schwalbe]

That last bios is for rx480 because

Subsystem Id:	174B

The think is, your GPU uses a "Polaris 10 XT" die, the one used in the RX 480. That Subsystem ID reflects that. The RX 580 used the "Polaris 20 XTX" die.

We are trying to find a BIOS that works with the Polaris 10 XT.



[Imperator]

Ok guys.
Lets review one more time the facts - the ones that we can confirm :
1st - we have a serial number on the GPU that confirm for sure that it is a Polaris 10
2nd - we have the pictures of those memory chips that confirm for sure that we have Samsung FE

So we must find a BIOS for Sapphire Polaris 10 with Samsung FE

Those are the facts



[Vladimir 984]

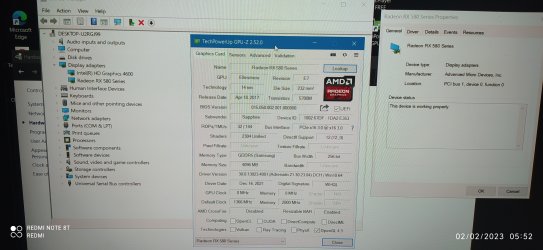

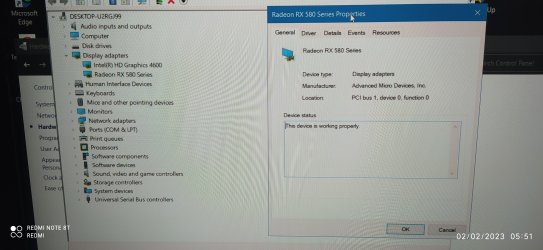

You are probably right but only Bios that got me to a working gpu is first RX580,SHOWED Samsung memory without drivers.All others showed Micron



[Count von Schwalbe]

So here is a list of potential BIOS files. The column on the left is RX 480, right is RX 580. All have 4GB Samsung FE memory, appear to be working VBIOS files, and match the Device/Subsystem ID of the column they are in. I cannot guarantee any of them, but I think the RX 480 files may work better.

1002 67DF 174B E353	1002 67DF 1DA2 E353
https://www.techpowerup.com/vgabios/211779/211779	https://www.techpowerup.com/vgabios/205961/205961
https://www.techpowerup.com/vgabios/191424/191424	https://www.techpowerup.com/vgabios/213032/213032
https://www.techpowerup.com/vgabios/191424/191424	https://www.techpowerup.com/vgabios/211373/211373
https://www.techpowerup.com/vgabios/218667/218667	https://www.techpowerup.com/vgabios/213033/213033
https://www.techpowerup.com/vgabios/204834/204834	https://www.techpowerup.com/vgabios/210679/210679
https://www.techpowerup.com/vgabios/230400/230400	https://www.techpowerup.com/vgabios/209115/209115
https://www.techpowerup.com/vgabios/188360/188360	https://www.techpowerup.com/vgabios/217720/217720
https://www.techpowerup.com/vgabios/196251/196251	https://www.techpowerup.com/vgabios/227824/227824
https://www.techpowerup.com/vgabios/190497/190497	https://www.techpowerup.com/vgabios/240662/240662
https://www.techpowerup.com/vgabios/211482/211482	https://www.techpowerup.com/vgabios/211231/211231
https://www.techpowerup.com/vgabios/202214/202214	https://www.techpowerup.com/vgabios/211232/211232
https://www.techpowerup.com/vgabios/201049/201049	https://www.techpowerup.com/vgabios/244516/244516
https://www.techpowerup.com/vgabios/223368/223368	https://www.techpowerup.com/vgabios/229926/229926
https://www.techpowerup.com/vgabios/223373/223373	https://www.techpowerup.com/vgabios/223018/223018
https://www.techpowerup.com/vgabios/223375/223375	https://www.techpowerup.com/vgabios/233832/233832
https://www.techpowerup.com/vgabios/208028/208028	https://www.techpowerup.com/vgabios/217195/217195
https://www.techpowerup.com/vgabios/231580/231580	https://www.techpowerup.com/vgabios/246913/246913
https://www.techpowerup.com/vgabios/201129/201129	https://www.techpowerup.com/vgabios/222854/222854
https://www.techpowerup.com/vgabios/220076/220076	https://www.techpowerup.com/vgabios/230281/230281
https://www.techpowerup.com/vgabios/254404/254404	https://www.techpowerup.com/vgabios/243600/243600
https://www.techpowerup.com/vgabios/207815/207815	https://www.techpowerup.com/vgabios/235190/235190
https://www.techpowerup.com/vgabios/215796/215796	https://www.techpowerup.com/vgabios/223192/223192
	https://www.techpowerup.com/vgabios/220378/220378
	https://www.techpowerup.com/vgabios/215264/215264
	https://www.techpowerup.com/vgabios/228077/228077
	https://www.techpowerup.com/vgabios/228081/228081
	https://www.techpowerup.com/vgabios/251635/251635
	https://www.techpowerup.com/vgabios/224760/224760

I will point out that I filtered by device and subsystem ID, so if none of them work it is probably due to an incorrect device ID. I had to take a guess based on the "E353" sticker near the PCIe blade.


Also, I have no idea why it is thinking you have Micron RAM, when none of the VBIOS files you tried even support it.



[Vladimir 984]

Wow that is a list i will tinker with in the morning ave maestro

Could it be that one of the ram chips is bad and bioses cant be read correctly in GPU-Z?
