How Low Can You Go? Memory Latency Competition - AIDA64

P4-630 · Feb 25, 2020

CPU...….........………..Intel i7 6700K @ 4.3GHz
Cooling…………...…..Noctua U12A air
MEMORY......………..16GB (4x4) Corsair Vengeance @ 3000MHz
MOTHERBOARD.....Asus Z170 Pro gaming

DR4G00N · Feb 27, 2020

Here's one for DDR4 with a more typical mobo instead of the glorious MOCF.

That said the board is bad for mem oc even for gigabyte Z270 standards, which is expected for a low end 4 dimm'er. As you can see, once you go beyond 3866 the memory performance tanks although the latency does improve.
Auto timings for secondary's & tertiary's are also terrible, might be able to yield more by setting them all manually but who know's if it'll even boot then.

CPU.......................... Intel i3 7350K @ 5.0GHz 1.375V
COOLING................ Custom water
MEMORY................. 16GB 2X8GB G.Skill Trident Z F4-4133C19D-16GTZA @ 4000 13-12-12-28 2T 1.6V
MOTHERBOARD….. Gigabyte Z270-Gaming 3

Yukikaze · Feb 29, 2020

Figured I'd throw my T430s into the mix, seeing as it has some of the fastest (and most overpriced) DDR3 sodimms ever made, so it makes for an interesting data point.

******************************************************

CPU..........................Intel X2 - Core i7 3520M @ 3.6Ghz
COOLING................Lenovo T430s stock chassis
MEMORY.................16GB (8GB x 2) Kingston HyperX Impact Black 2133Mhz
MOTHERBOARD…..Lenovo T430s 2355

agent_x007 · Mar 1, 2020

CPU.......................... AMD Athlon 64 x2 6400+ @ 3392MHz
COOLING................ AMD Wraith (AIR)
MEMORY................. 4GB (2GB x 2) A-Data Vitesta Extreme Edition 800MHz CL4 @ 848MHz CL4
MOTHERBOARD….. AM2NF3-VSTA

R2DSF · Mar 4, 2020

DR4G00N said:
ere's one for DDR4 with a more typical mobo instead of the glorious MOCF.

Why it has so low memory bandwidth?

storm-chaser · Mar 5, 2020

Sorry guys I've been neglecting the leaderboards the past few days. So I will get that fixed today at some point.

agent_x007 said:
View attachment 146308

CPU.......................... AMD Athlon 64 x2 6400+ @ 3392MHz
COOLING................ AMD Wraith (AIR)
MEMORY................. 4GB (2GB x 2) A-Data Vitesta Extreme Edition 800MHz CL4 @ 848MHz CL4
MOTHERBOARD….. AM2NF3-VSTA

This is actually a very impressive result... Love me the Athlon 6400+ for that ultra low latency.. not sure what leaderboard to put you on because you are ahead of some of the Ryzen systems and not that far away from my Phenom II result of 49 ns.

EarthDog · Mar 5, 2020

Here's a quad channel result. Too bad us quad users don't stand a chance in this contest since dram latency is inherently higher on quad platforms.

Also note, it is the YELLOW jersey in cycling that shows the overall leader. The green jersey has to do with sprints and is not the overall leader.

7960x @ 4.5 ghz, 4x8gb ddr4 3600 cl16.

storm-chaser · Mar 6, 2020

EarthDog said:
Here's a quad channel result. Too bad us quad users don't stand a chance in this contest since dram latency is inherently higher on quad platforms.

Also note, it is the YELLOW jersey in cycling that shows the overall leader. The green jersey has to do with sprints and is not the overall leader.

7960x @ 4.5 ghz, 4x8gb ddr4 3600 cl16.View attachment 147308

Go back and re-read the first post, I correctly assigned the green Jersey to the points competition portion of the event, NOT the overall leader.

EarthDog said:
Here's a quad channel result. Too bad us quad users don't stand a chance in this contest since dram latency is inherently higher on quad platforms.

I hear you on the latency disparity between dual and quad channel. That's why we will eventually have an AIDA64 bandwidth competition. Just gets crazy when you have to tabulate the results from both latency and bandwidth in the same comp...

EarthDog · Mar 6, 2020

storm-chaser said:
Go back and re-read the first post, I correctly assigned the green Jersey to the points competition portion of the event, NOT the overall leader.

Please excuse my confusion...

The yellow jersey is awarded....to the rider who is the overall leader of the race so far.

storm-chaser said:
In cycling, the green Jersey represents the winner or current leader in the points classification.

storm-chaser said:
The Green Jersey will be awarded to the rig that dominates the competition across multiple categories.

Isn't the second chart/green chart/points chart determine an overall leader since it combines latency and caches?? Seems so considering it's across multiple(all) categories so a winner there would fall under yellow. Again, apologies if I'm confused...I digress.

Edit: ok..I see where I went wrong. Memory latency determines the winner not the combined result.

storm-chaser said:
Combativity Award*
The combativity award is a prize given to a participant for the most combative overclocker overall.

How does one win this? What is a combative overclocker?

storm-chaser · Mar 6, 2020

EarthDog said:
How does one win this? What is a combative overclocker?

This was won by Phanbouy on Feb 19, 2020 because he substantially improved both his latency and his overclock in one go. Do something exceptional and you might just get it.

EarthDog said:
Edit: ok..I see where I went wrong. Memory latency determines the winner not the combined result.

I knew you would figure it out eventually.

*leaderboards updated*

EarthDog · Mar 6, 2020

storm-chaser said:
*leaderboards updated*

Did you get mine?

agent_x007 · Mar 6, 2020

storm-chaser · Mar 10, 2020

agent_x007 said:
View attachment 146308

CPU.......................... AMD Athlon 64 x2 6400+ @ 3392MHz
COOLING................ AMD Wraith (AIR)
MEMORY................. 4GB (2GB x 2) A-Data Vitesta Extreme Edition 800MHz CL4 @ 848MHz CL4
MOTHERBOARD….. AM2NF3-VSTA

You technically have the only operational 6400+ rig, so you still win. But I was digging through my archives the other day and came across this little snip from WAY BACK... April 2nd, 2011...

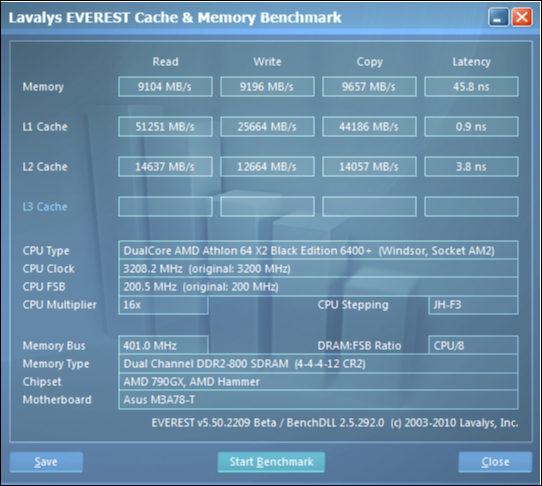

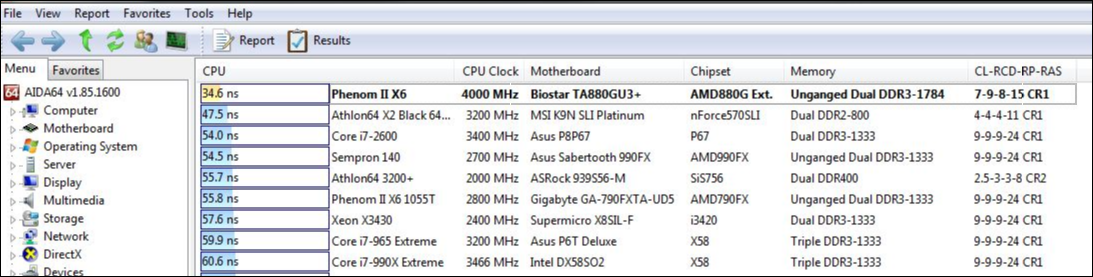

Also found this while I was browsing through some of my benchmarks from the good old days. This was my all out best effort on the Phenom II platform for latency... it doesn't count... but for historical purposes I thought I'd post... wish I still had this ram

Consequently, I got a little nostalgic and had to pull out the old Q9650 rig, still running strong. This is a 100% rock solid overclock...

CPU.......................... Intel Quad Core Q9650 @ 4.275GHz
COOLING................ Thermaltake 120 Extreme
MEMORY................. 4GB DDR3 (2GB x 2) Corsair XMS3 @ 712MHz
MOTHERBOARD….. Asus P5Q3

CPU.......................... Intel Quad Core Q9650 @ 4.275GHz
COOLING................ Thermaltake 120 Extreme
MEMORY................. 4GB DDR3 (2GB x 2) Corsair XMS3 @ 712MHz
MOTHERBOARD….. Asus P5Q3

This is a 100% stable overclock. However, it gets incredibility tricky to remain stable when you get to the 4.4-4.5 range with this chip, especially on air cooling...

This is my FX4350 rig running at 4.8GHz behind a hyper 212...

agent_x007 · Mar 10, 2020

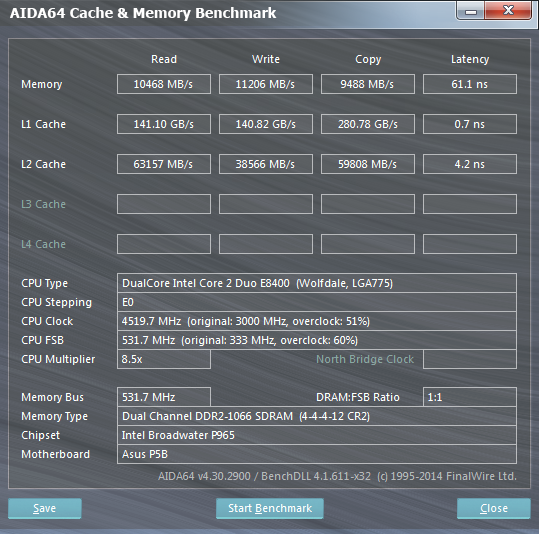

Not fast enough on that LGA 775, I got this out of P5B

CPU.......................... Intel Core 2 E8400 @ 4.52GHz
COOLING................ Thermaltake 120 Extreme
MEMORY................. 2x 1GB CellShock CS2221450 1000MHz CL5
MOTHERBOARD….. Asus P5B (with Vdroop mod)

Here's going hardcore on E8600 and 4x4GB kit(s) :

CPU.......................... Intel Core 2 E8600 @ 4.33GHz
COOLING................ AIO Alphacool Eisbaer 240
MEMORY................. 4x 4GB Corsair CMX8GX3M2A2000C9 @ 1850MHz CL9
MOTHERBOARD….. Asus P5B (with Vdroop mod)

@storm-chaser Win98 result :
CPU.......................... Intel Core i7 980X @ 4.3GHz
COOLING................ Stock (Intel tower cooler)
MEMORY................. 3x 4GB Corsair CMX8GX3M2A2000C9 @ 1953MHz CL9 (max. 3GB usable because 32-bit OS)
MOTHERBOARD….. Asus Rampage II Extreme (with Vdroop mod)

Also, I should point out that doing it as average puts L1 + L2 at enormous disadvantage, since you get to divide by 4 on everything with L3 cache, while only by three on L2 max. system.

^L4 is as slow as IMC on this, so not exactly usefull.

Platform :
CPU.......................... Intel Core i7 5775C @ 3.6GHz (w/Turbo)
COOLING................ Stock (Intel BOX cooler)
MEMORY................. 2x 4GB Corsair CMX8GX3M2B1600C9 @ 1600MHz CL9
MOTHERBOARD….. Asus Maximus VII Hero

pcwolf · Mar 10, 2020

Suddenly, a stranger in a 3950X Jersey enters the course
***********************************************

CPU..........................AMD Ryzen 3950X on ECO Mode

COOLING................Corsair H100 AIO
MEMORY.................32GB (4 x 8Gb) Team Dark Group XTREEM TXKD416G4133HC18FDC01
MOTHERBOARD…..ASRock X470 Taichi

storm-chaser · Mar 11, 2020

pcwolf said:
Suddenly, a stranger in a 3950X Jersey enters the course
***********************************************

CPU..........................AMD Ryzen 3950X on ECO Mode
COOLING................Corsair H100 AIO
MEMORY.................32GB (4 x 8Gb) Team Dark Group XTREEM TXKD416G4133HC18FDC01
MOTHERBOARD…..ASRock X470 Taichi
View attachment 147764

Awesome hardware choices you have there. The 3950X will likely be going in my next rig, I may PM you with about 20 questions later.

EDIT: Have you tried tweaking and tuning the NB speed?

moproblems99 · Mar 11, 2020

storm-chaser said:
Have you tried tweaking and tuning the NB speed?

Oh has he.

https://www.techpowerup.com/forums/threads/dram-overclock-complete-noob-dumb-question.264094/

Voltaj .45 ACP · Mar 11, 2020

Can't beat If you're not join

fly1ngh1gh · Mar 11, 2020

I have already uploaded the result of this memory at a high frequency , so you can replace it with this one)
CPU - i7 8086k 5.4Ghz, Cash 5.3Ghz
Cooler - Cryorig R1 Universal
Motherboard - ASRock z370 Taichi
Memory - Corsair Vengeance LpX Red Version BoX AiR (CMK16GX4M2B4266C19R) @ 4200Mhz CL 13-13-13-28

londiste · Mar 11, 2020

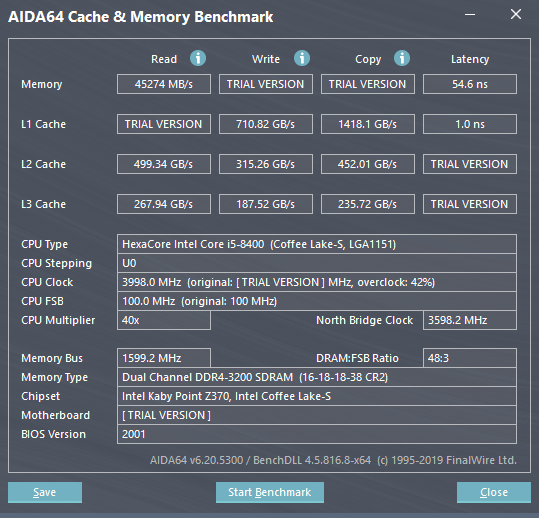

Only have trial of AIDA64, so limited results.

CPU - i5 8400
Cooling - Alpenföhn Black Ridge
Memory - 32GB (16GB x 2) Ripjaws V F4-3200C16D-32GVK
Motherboard - ASUS ROG Strix Z370-I Gaming

R2DSF · Mar 11, 2020

Slightly tweak secondary timings and IMC voltages.

storm-chaser · Mar 11, 2020

Alright, thanks for the subs... I will be busy well into the evening, so uploading these will be slightly delayed.

pcwolf · Mar 12, 2020

storm-chaser said:
Awesome hardware choices you have there. The 3950X will likely be going in my next rig, I may PM you with about 20 questions later.

EDIT: Have you tried tweaking and tuning the NB speed?

Hey, thank you kindly, stranger

Don't mind questions at all, isn't that how we all learn. I may be a little slow, but I clocked a flat 66ns the other day. I'm getting there.

Here I tried just a touch of boost. Maybe update my entry?

storm-chaser · Mar 12, 2020

Okay Guys. I just added a number of subs to the leaderboard and made some modifications as I saw fit. Please tell me if any of your data is missing or moved around.

I think it's all there but it gets difficult working with the data set when you have to keep track of multiple pages.

@agent_x007

I need your AIDA64 result for the windows 98 rig... EDIT: nevermind got it....

freeagent · Mar 12, 2020

I’ll have a run after work today, I should be able to squeeze my 3770K into the top ten for latency.. maybe :rockout:
