OCPC RX580 SP2048 8gb vbios flash issue.

[VuurVOS]

test are ok but no signal on gpu hdmi port and the gpu became very noisi

Can you try the following bioses?

JIESHUO AMD RX 580 8G VBIOS

8 GB GDDR5, 1244 MHz GPU, 1750 MHz Memory

www.techpowerup.com

MLLSE RX 580 VBIOS

8 GB GDDR5, 1284 MHz GPU, 1750 MHz Memory

www.techpowerup.com



[miampo kevin]

thank you i will try and reply you

thank you very much for saving my GPU I was starting to lose hope it's now ok i have used the JESHOU rom



[VuurVOS]

Your welcome



[impeeza]

Hello guys, I am very new here, I just brought a cheap card from a closing farm, seems on good condition, the dust on it was minimal, even the thermal paste is still gummy (obviously changed it ). I connected to my PC and dump the current BIOS and information using atiflash_293, by the way had to copy AMDVBFlashDriverInstaller.exe from amdvbflash_win_5.0.567.zip and install the driver before atiflash_293 start working.

This is the result of the process

C:\ATI>AMDVBFlashDriverInstaller.exe -i
AMDVBFlash Driver Installer & Uninstaller by W1zzard @ TechPowerUp
https://www.techpowerup.com/download/ati-atiflash/

AMD Tools Driver has been installed successfully

** IMPORTANT **: Once you are finished with flashing, make sure to uninstall the AMD VBFlash drivers using this utility.

C:\ATI>amdvbflash.exe -i

adapter bn dn fn dID       asic           flash      romsize test    bios p/n
======= == == == ==== =============== ============== ======= ==== ==============
   0    01 00 00 67DF Polaris10       M25P20/c         40000 pass 113-4E353WU-O67

C:\ATI>amdvbflash.exe -ai
Adapter  0 (BN=01, DN=00, FN=00, PCIID=00001002, SSID=0000E353)
    Asic Family     :  Polaris10
    Flash Type         :  M25P20/c    (256 KB)
    Product Name is :    E353 Polaris20 XTX A1 GDDR5 256Mx32 8GB
    Bios Config File:  353Y6HAJ.O67
    Bios P/N is     :    113-4E353WU-O67
    Bios Version    :    015.050.002.001.000000
    Bios Date is    :    07/19/18 04:49
Image 1 -- Offset 0x0
=======================
  ROM header contents:
    Signature              0xAA55
    PCIR offset            0x0258
  PCI Data Structure
    Signature              PCIR
    Vendor ID              0x1002
    Device ID              0x67DF
    PCI Revision           0x00
    Image size             0xEC00
    Code revision          0x0F32
    Indicator              0x00   (Not last image)
    Code type              0x00   (PCAT Image)
  Legacy BIOS File Name    353Y6HAJ.O67
  Legacy BIOS Part Number  113-4E353WU-O67
  Legacy BIOS Build Number 424908
  Legacy BIOS Change List  1582656
  Binary BIOS_IDTF         0xE4134172
  ByteCheckSum             0
Image 2 -- Offset 0xEC00
=======================
  ROM header contents:
    Signature              0xAA55
    PCIR offset            0x001C
  PCI Data Structure
    Signature              PCIR
    Vendor ID              0x1002
    Device ID              0x67DF
    PCI Revision           0x00
    Image size             0xE600
    Code revision          0x0000
    Indicator              0x80   (last image)
    Code type              0x03   (EFI Image)
    EFI Signature          0x0EF1
    Compression Type       0x0001 (compressed)
    Machine type           0x8664 (X64)
    Subsystem              0x000B (EFI boot service driver)
    EFI image offset       0x0058 (abs: 0xEC58)
  Uefi Ids from EFI_PCI_EXPANSION_ROM_HEADER:
    UefiSourceRevision     GOP AMD REV: x.x.x.x.x
    UefiSourceChangeList   xxxx
    UefiBiosBuildNumber    xxxx

  Dump Gop Driver Info:
    Machine type code      X64
    The GOP Driver appears to be Authenticode signed.
    Size Of Gop Image      97472 (95 KB)
    GOP Driver Name: AMD GOP X64 Release Driver Rev.1.66.0.15.50.Apr 23 2018.17:50:07
    GOP AMD_Build          2035
    GOP AMD_CL             1545325
    GOP BIOS_IDTF          0xDEADBEEF
    GOP Driver does not carry tables!

The labels on the side of the card are:

So far seems what the actual firmware on the card is the one published on https://www.techpowerup.com/vgabios/208710/sapphire-rx580-8192-180719, I downloaded from that URL and is identical bit to bit with my dump.

That URL have some others "Compatible" ROMs but all of them are from 2017 prior to the one on my card.

Can you please help me to find the latest BIOS for my card and / or how to identify which are the correct BIOS for my card on the database (https://www.techpowerup.com/vgabios/?manufacturer=Sapphire&model=RX+580)

Thank you so much.



[Imperator]

Hello.
In order to find an exact match for your card, we need more pictures.

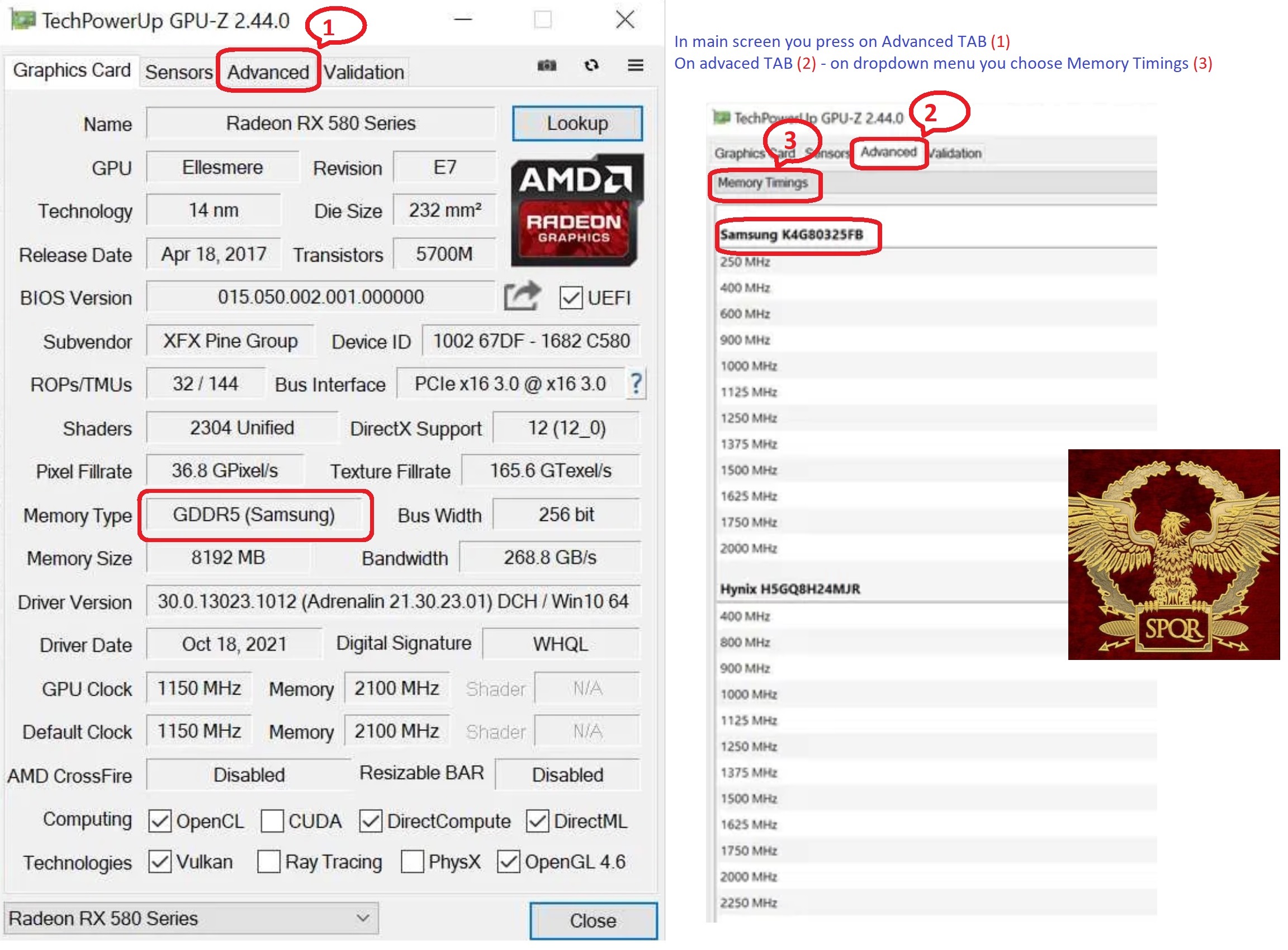

One from GPU-z main screen
One picture from GPU-z > Advanced tab and from drop down menu you must choose memory info.



[impeeza]

Thanks a lot for your quick answer,

This are my screenshots

Regards from Colombia.



[Imperator]

Well, i checked TPU db and indeed you are right.
The BIOS you have right now in your card is identical to the one in db.
That BIOS was checked by admins.
On the other hand i have a question : why you need to flash the card?
If your card is working as it should, then you have no reason to "update" your BIOS.
Unlike motherboards, the video cards don't need the BIOS to be updated.
So keep it as it is now cause you have the right BIOS in it.
Cheers



[impeeza]

Ok, perfect, Thanks a lot for your quick response.

I just want to be sure My card do not have any BIOS with well know bugs or similar, if that is a tested BIOS, so will leave like that and enjoy it.

Again Thanks a lot.



[Imperator]

You are most welcome.
Enjoy your card.
Have a nice day!
