only 8gb ram of 16gb usable half of the ram is hardware reserved even after formatting

  • Thread starter Deleted member 216316
  • Start date
Jetster

Jetster

Joined
Jan 17, 2010
Messages
12,311 (2.28/day)
Location
Oregon
System Specs
System Name Juliette // HTPC
Processor Intel i7 9700K // AMD Ryzen 5 5600G
Motherboard ASUS Prime Z390X-A // ASRock B550 ITX-AC
Cooling Noctua NH-U12 Black // Stock
Memory Corsair DDR4 3600 32gb //G.SKILL Trident Z Royal Series 16GB (2 x 8GB) 3600
Video Card(s) ASUS RTX4070 OC// GTX 1650
Storage Samsung 970 EVO NVMe 1Tb, Intel 665p Series M.2 2280 1TB // Samsung 1Tb SSD
Display(s) ASUS VP348QGL 34" Quad HD 3440 x 1440 // 55" LG 4K SK8000 Series
Case Seasonic SYNCRO Q7// Silverstone Granada GD05
Audio Device(s) Focusrite Scarlett 4i4 // HDMI to Samsung HW-R650 sound bar
Power Supply Seasonic SYNCRO 750 W // CORSAIR Vengeance 650M
Mouse Cooler Master MM710 53G
Keyboard Logitech 920-009300 G512 SE
Software Windows 10 Pro // Windows 10 Pro
Whats it show in the bios? 8 or 16

If its 16 load up a Linux live disk and see what it sees

And test that ram with Memtest 86

Caring1

Caring1

Joined
Oct 22, 2014
Messages
13,988 (3.83/day)
Location
Sunshine Coast
System Specs
System Name Lenovo ThinkCentre
Processor AMD 5650GE
Motherboard Lenovo
Memory 32 GB DDR4
Display(s) AOC 24" Freesync 1m.s. 75Hz
Mouse Lenovo
Keyboard Lenovo
Software W11 Pro 64 bit
It's showing all 16GB Ram but for some reason it has 8GB hardware reserved, so not available. Found online:

Go to search and type msconfig. When that box opens go to boot tab and then advanced options button. Set the max memory value to 0 and uncheck the box. Click to save and restart the machine when prompt to do so

A

AlwaysHope

Joined
Jun 16, 2013
Messages
1,457 (0.35/day)
Location
Australia
The uma video on this Asrock board only supports up to 1GB, 12.5% from the 8GB that the OP claims is missing in his system so that is not the whole problem obviously. Like what Tetras commented, run CPU-Z & open the SPD tab, look at slot 1, 2, etc until the fields are filled in & upload a screenshot of that here so we can confirm you haver a matched set of ram in your system.

eidairaman1

eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
41,711 (6.60/day)
Location
Republic of Texas (True Patriot)
System Specs
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
What ram are you using?

I know that my ram which is stock 2133, when ran at 2400 with cas lower than 10 the system will only allow 8GB useable.

Bomby569

Bomby569

Joined
May 17, 2021
Messages
3,005 (2.40/day)
System Specs
Processor Ryzen 5 5700x
Motherboard B550 Elite
Cooling Thermalright Perless Assassin 120 SE
Memory 32GB Fury Beast DDR4 3200Mhz
Video Card(s) Gigabyte 3060 ti gaming oc pro
Storage Samsung 970 Evo 1TB, WD SN850x 1TB, plus some random HDDs
Display(s) LG 27gp850 1440p 165Hz 27''
Case Lian Li Lancool II performance
Power Supply MSI 750w
Mouse G502
RAM is working just fine, this is no harware issue, try what @Caring1 said

D

Deleted member 216316

Guest
Caring1 said:
It's showing all 16GB Ram but for some reason it has 8GB hardware reserved, so not available. Found online:

Go to search and type msconfig. When that box opens go to boot tab and then advanced options button. Set the max memory value to 0 and uncheck the box. Click to save and restart the machine when prompt to do so
Click to expand...
did you read what i said lmao

Bomby569 said:
RAM is working just fine, this is no harware issue, try what @Caring1 said
Click to expand...
it was already unchecked as always

Jetster said:
Whats it show in the bios? 8 or 16

If its 16 load up a Linux live disk and see what it sees

And test that ram with Memtest 86
Click to expand...

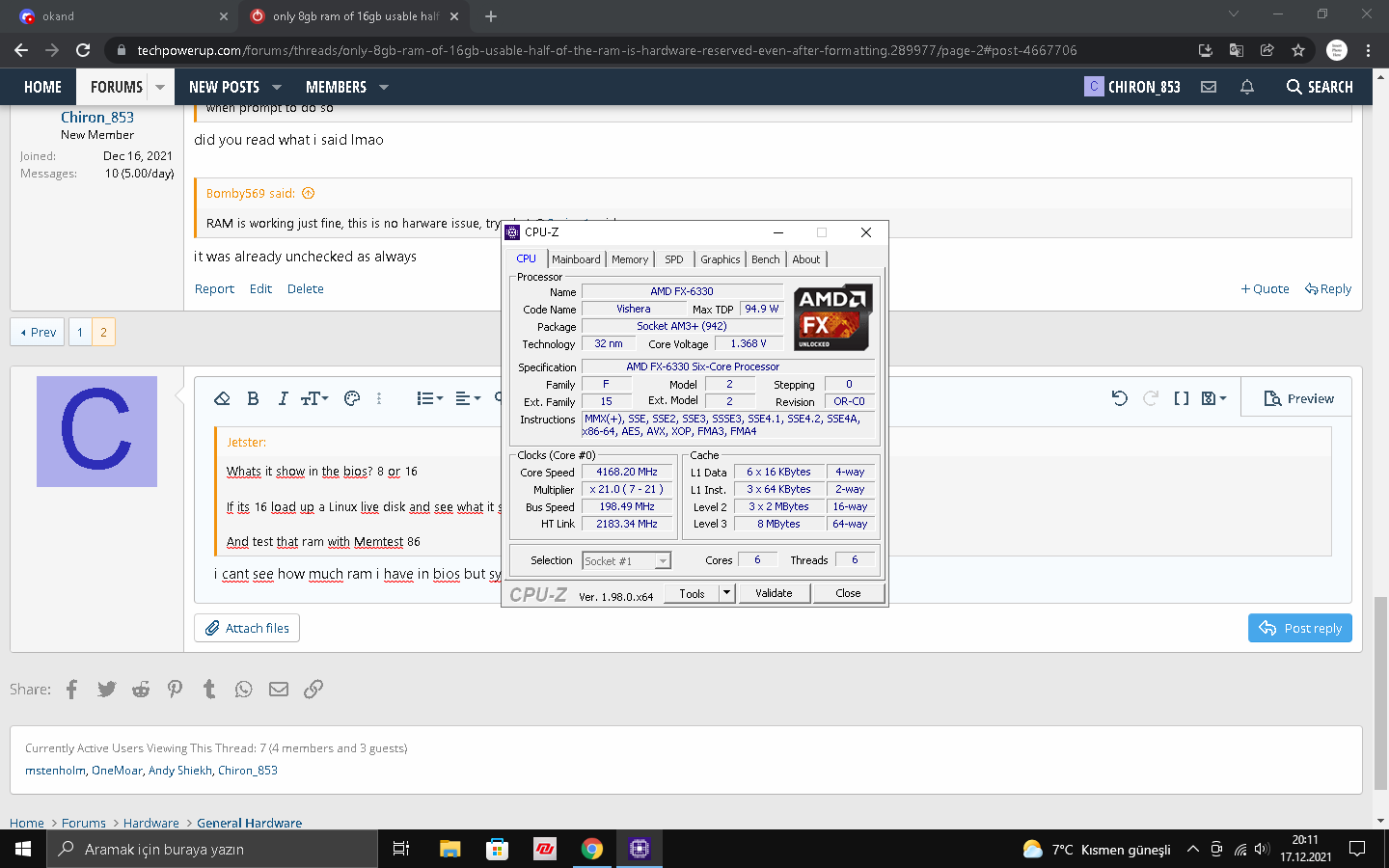

i cant see how much ram i have in bios but system info and all other thing says 16gb totall





OneMoar

OneMoar

There is Always Moar
Joined
Apr 9, 2010
Messages
8,793 (1.66/day)
Location
Rochester area
System Specs
System Name RPC MK2.5
Processor Ryzen 5800x
Motherboard Gigabyte Aorus Pro V2
Cooling Thermalright Phantom Spirit SE
Memory CL16 BL2K16G36C16U4RL 3600 1:1 micron e-die
Video Card(s) GIGABYTE RTX 3070 Ti GAMING OC
Storage Nextorage NE1N 2TB ADATA SX8200PRO NVME 512GB, Intel 545s 500GBSSD, ADATA SU800 SSD, 3TB Spinner
Display(s) LG Ultra Gear 32 1440p 165hz Dell 1440p 75hz
Case Phanteks P300 /w 300A front panel conversion
Audio Device(s) onboard
Power Supply SeaSonic Focus+ Platinum 750W
Mouse Kone burst Pro
Keyboard SteelSeries Apex 7
Software Windows 11 +startisallback
need SPD slot2
the fact that you are in single channel when you have two sticks immediately tells me there is something wrong with the memory kit or the kit is not compatible with the board

OneMoar

OneMoar

There is Always Moar
Joined
Apr 9, 2010
Messages
8,793 (1.66/day)
Location
Rochester area
System Specs
System Name RPC MK2.5
Processor Ryzen 5800x
Motherboard Gigabyte Aorus Pro V2
Cooling Thermalright Phantom Spirit SE
Memory CL16 BL2K16G36C16U4RL 3600 1:1 micron e-die
Video Card(s) GIGABYTE RTX 3070 Ti GAMING OC
Storage Nextorage NE1N 2TB ADATA SX8200PRO NVME 512GB, Intel 545s 500GBSSD, ADATA SU800 SSD, 3TB Spinner
Display(s) LG Ultra Gear 32 1440p 165hz Dell 1440p 75hz
Case Phanteks P300 /w 300A front panel conversion
Audio Device(s) onboard
Power Supply SeaSonic Focus+ Platinum 750W
Mouse Kone burst Pro
Keyboard SteelSeries Apex 7
Software Windows 11 +startisallback
take the memory out and take a picture of both sticks both sides and upload it here
make sure to get the lables clearly

D

Deleted member 216316

Guest
OneMoar said:
take the memory out and take a picture of both sticks both sides and upload it here
make sure to get the lables clearly
Click to expand...
ok.. also when i take a ram out the pc cannot be opened until i reset cmos why does this happen

OneMoar

OneMoar

There is Always Moar
Joined
Apr 9, 2010
Messages
8,793 (1.66/day)
Location
Rochester area
System Specs
System Name RPC MK2.5
Processor Ryzen 5800x
Motherboard Gigabyte Aorus Pro V2
Cooling Thermalright Phantom Spirit SE
Memory CL16 BL2K16G36C16U4RL 3600 1:1 micron e-die
Video Card(s) GIGABYTE RTX 3070 Ti GAMING OC
Storage Nextorage NE1N 2TB ADATA SX8200PRO NVME 512GB, Intel 545s 500GBSSD, ADATA SU800 SSD, 3TB Spinner
Display(s) LG Ultra Gear 32 1440p 165hz Dell 1440p 75hz
Case Phanteks P300 /w 300A front panel conversion
Audio Device(s) onboard
Power Supply SeaSonic Focus+ Platinum 750W
Mouse Kone burst Pro
Keyboard SteelSeries Apex 7
Software Windows 11 +startisallback
bad or incompatible stick of ram likely the latter

elemelek

elemelek

Supporter
Joined
Feb 18, 2012
Messages
38 (0.01/day)
Location
Poland
System Specs
System Name Desktop
Processor AMD Ryzen 9 5950X
Motherboard Asus ROG Crosshair VIII Dark Hero
Cooling Noctua NH-D15 chromax.black
Memory Ripjaws V DDR4-3600MHz CL16-19-19-39 1.35V 64GB (4x16GB)
Video Card(s) PowerColor Radeon RX 6800 16GB
Storage WD 2TB M.2 PCIe NVMe Black SN850, WD spinners
Display(s) ASUS MG278 27" 144Hz + LG 27GL850-B NanoIPS HDR10 27"
Case Fractal Design Define 7 black white TG Clear Tint
Audio Device(s) Focusrite Scarlett 2i4
Power Supply Seasonic Prime TX 1000W 80 Plus Titanium
Mouse Corsair SCIMITAR RGB
Keyboard Corsair K70 RGB MK.2 LP
Check also in boot configuration if there aren't any mem restricting options - bcdedit /enum all /v

Jetster

Jetster

Joined
Jan 17, 2010
Messages
12,311 (2.28/day)
Location
Oregon
System Specs
System Name Juliette // HTPC
Processor Intel i7 9700K // AMD Ryzen 5 5600G
Motherboard ASUS Prime Z390X-A // ASRock B550 ITX-AC
Cooling Noctua NH-U12 Black // Stock
Memory Corsair DDR4 3600 32gb //G.SKILL Trident Z Royal Series 16GB (2 x 8GB) 3600
Video Card(s) ASUS RTX4070 OC// GTX 1650
Storage Samsung 970 EVO NVMe 1Tb, Intel 665p Series M.2 2280 1TB // Samsung 1Tb SSD
Display(s) ASUS VP348QGL 34" Quad HD 3440 x 1440 // 55" LG 4K SK8000 Series
Case Seasonic SYNCRO Q7// Silverstone Granada GD05
Audio Device(s) Focusrite Scarlett 4i4 // HDMI to Samsung HW-R650 sound bar
Power Supply Seasonic SYNCRO 750 W // CORSAIR Vengeance 650M
Mouse Cooler Master MM710 53G
Keyboard Logitech 920-009300 G512 SE
Software Windows 10 Pro // Windows 10 Pro
Yeah "Single channel" you got some bad memory, or the memory controller is bad. My guess is it's the board or maybe they are not a match set

Pro tip, instead of doing a screen capture use the windows snipping tool. Just type Snip in the search bar.

then new, drag your curser across the part you want to capture a shot of, then save

D

Deleted member 216316

Guest
Jetster said:
Yeah "Single channel" you got some bad memory, or the memory controller is bad. My guess is it's the board or maybe they are not a match set

Pro tip, instead of doing a screen capture use the windows snipping tool. Just type Snip in the search bar.

then new, drag your curser across the part you want to capture a shot of, then save
Click to expand...
the mouse cant hold more than 2 seconds

Tetras said:
Recently? Did they seller not test the PC before they sent it?
Click to expand...
idk

D

Deleted member 216316

Guest
OneMoar said:
take the memory out and take a picture of both sticks both sides and upload it here
make sure to get the lables clearly
Click to expand...
now i have unplugged every single chable and removed everything then did a ternal paste again and still same nothing changed

Shrek

Shrek

Joined
Mar 21, 2021
Messages
5,016 (3.83/day)
Location
Colorado, U.S.A.
System Specs
System Name CyberPowerPC ET8070
Processor Intel Core i5-10400F
Motherboard Gigabyte B460M DS3H AC-Y1
Memory 2 x Crucial Ballistix 8GB DDR4-3000
Video Card(s) MSI Nvidia GeForce GTX 1660 Super
Storage Boot: Intel OPTANE SSD P1600X Series 118GB M.2 PCIE
Display(s) Dell P2416D (2560 x 1440)
Power Supply EVGA 500W1 (modified to have two bridge rectifiers)
Software Windows 11 Home
Two 8GB sticks of DDR3?

Shrek

Shrek

Joined
Mar 21, 2021
Messages
5,016 (3.83/day)
Location
Colorado, U.S.A.
System Specs
System Name CyberPowerPC ET8070
Processor Intel Core i5-10400F
Motherboard Gigabyte B460M DS3H AC-Y1
Memory 2 x Crucial Ballistix 8GB DDR4-3000
Video Card(s) MSI Nvidia GeForce GTX 1660 Super
Storage Boot: Intel OPTANE SSD P1600X Series 118GB M.2 PCIE
Display(s) Dell P2416D (2560 x 1440)
Power Supply EVGA 500W1 (modified to have two bridge rectifiers)
Software Windows 11 Home
Chiron_853 said:
yes

all of them same model everything same
Click to expand...

If I recall correctly, CPU-Z did not report dual channel

and at one point reported DDR3 and at another DDR3L

R

Retrorockit

Joined
Jan 19, 2016
Messages
1,085 (0.34/day)
Location
South Florida
System Specs
System Name BTXTREME
Processor QX6800 SLACP Core2 Extreme
Motherboard Dell 0WG864 LGA775 BTX
Cooling Dell T9303 heatpipe cooler, Delta GFB1212VHG 2 motor fan.
Memory 8GB Dell DDR2@800
Video Card(s) Sapphire Dual BIOS R9-285 ITX O/C 2GB DDR5
Storage Crucial M500 240GB SSD
Display(s) Dell 22" LCD
Case Dell Dimension E 520 MT
Audio Device(s) onboard sound with Logitech Z523 speakers
Power Supply EVGA B2 750W semi modular
Mouse Logitech wireless (two installed)
Keyboard Logitech wireless backlit
Software Win7-64, Throttlestop 6.00 overclock
Benchmark Scores 3DMark 11 P7644 (52% )In Win7 64, Firestrike 6892 ( 58% ) http://valid.x86.fr/l2j5p1
Some low end WIN7 versions have an 8GB RAM limit. An older low end system might have this.

www.zdnet.com

Max memory limits for 64-bit Windows 7

While the maximum RAM limit for 32-bit Windows 7 editions is 4GB, when it comes to 64-bit editions, the amount of memory that the OS can address depends on which edition you are running.
www.zdnet.com www.zdnet.com

The other possibility is that the CPU needs 4 RAM modules to address 16GB. Older hardware may not be able to use RAM module sizes that didn't exist yet.
I would go to Userbenchmark.com and see if any others are getting 16GB on that MB. If you run your sytem there it will be put in with other similar systems.


Last edited:
You must log in or register to reply here.
Top
