Share your AIDA 64 cache and memory benchmark here

erixx · Jul 6, 2016

nice times ^ but L1 cache is miles away from X99....

scipio · Jul 6, 2016

erixx said:
nice times ^ but L1 cache is miles away from X99....

As should be expected

Enterprise24 · Jul 7, 2016

erixx said:
nice times ^ but L1 cache is miles away from X99....

And price is also miles away

erixx · Jul 7, 2016

you dare to shake the foundations of hardware hardcoreness?! ha!

erixx · Jul 11, 2016

I have not even started to stress this mobo.... Over 70K MB/s is WOW

ulukay · Jul 12, 2016

scipio said:

Hi,

i got a question regarding my benchmark results, compared to other 6700k@ddr4 benches.
While my memory read stat is way better (as it should be when comparing ddr4-3000 to ddr4-3600 at almost same timings), my write and copy stats are way slower.
and i got no idea why!

could you take a look?

Edit: already figured it out.
if i use all 4x 8gb modules, it's slower
with 2x 8gb modules i get 48gb/s read, 52gb/s write and 45gb/s copy

Enterprise24 · Jul 13, 2016

Enterprise24 · Jul 16, 2016

Some small update.

Enterprise24 · Jul 25, 2016

Pass Super Pi 32m but not Hyper PI 32m.

Evoluti0n · Jul 27, 2016

My Intel Core i5-6500.

L1 Cache ?? WTF

cadaveca · Jul 27, 2016

Evoluti0n said:
L1 Cache ?? WTF

Looks normal.

Arctucas · Jul 28, 2016

Memory latency under 40ns:

xkm1948 · Jul 28, 2016

Updated BIOS from 3101 to 3301, Got some major RAM performance update! Thanks ASUS!

Old 3101 BIOS

New 3301 BIOS

kamkuta89 · Jul 28, 2016

cadaveca said:
Looks normal.

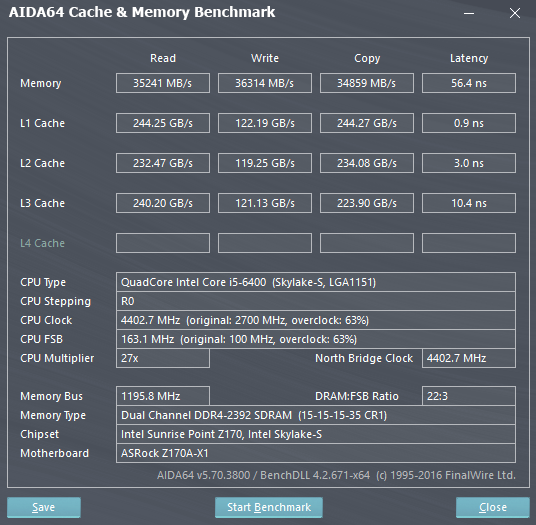

Any idea what's going on with my L1 cache? Is it some kind of bug with AIDA?

Enterprise24 · Jul 28, 2016

kamkuta89 said:
Any idea what's going on with my L1 cache? Is it some kind of bug with AIDA?

That is normal for Skylake non K OC.

kamkuta89 · Jul 28, 2016

Enterprise24 said:
That is normal for Skylake non K OC.

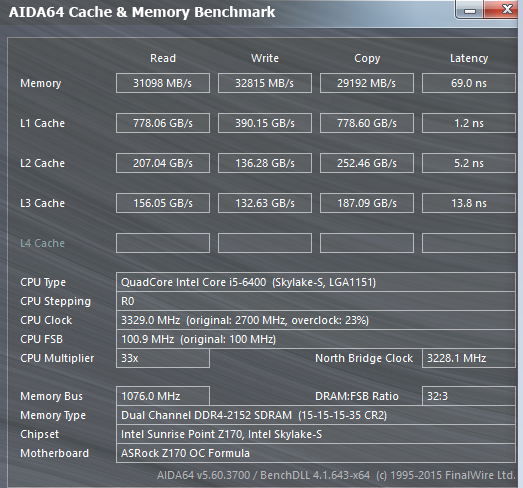

ok thanks. Is it a faulty measurement due to a bug in AIDA64 or is the L1 cache actually that low due to the BCLK overclock? I've attached a reference cache memory benchmark for the i5 6400 and the numbers are much higher, shouldn't it be the other way around.

Enterprise24 · Jul 29, 2016

kamkuta89 said:
ok thanks. Is it a faulty measurement due to a bug in AIDA64 or is the L1 cache actually that low due to the BCLK overclock? I've attached a reference cache memory benchmark for the i5 6400 and the numbers are much higher, shouldn't it be the other way around.

I don't sure. Probably there benchmark make use of AVX2. I try many benchmarks and score seem normal when compare to 6600k oc to same level. Except benchmark that utilize AVX2 instruction set like XTU and x265 where my i5-6500 @ 5ghz is much much slower than stock.

kamkuta89 · Jul 29, 2016

Enterprise24 said:
I don't sure. Probably there benchmark make use of AVX2. I try many benchmarks and score seem normal when compare to 6600k oc to same level. Except benchmark that utilize AVX2 instruction set like XTU and x265 where my i5-6500 @ 5ghz is much much slower than stock.

Yup you are right, the benchmarks are on par with a similarly clocked 6600K so the actual performance doesn't seem to be affected. It's possible that it is AVX related and since it's disabled upon BCLK overclock the AIDA64 benchmark results are skewed. Thanks for your input.

Sempron Guy · Jul 29, 2016

so memory performance also depends on what processor you'll pair it at?

Arctucas · Jul 30, 2016

Sub-39ns

Enterprise24 · Jul 30, 2016

Sempron Guy said:
so memory performance also depends on what processor you'll pair it at?

of course ! Try to OC your G4400 to 4.5Ghz (both core and cache) and see what happen !!

Silas Woodruff · Jul 30, 2016

Sempron Guy · Aug 4, 2016

Enterprise24 said:
of course ! Try to OC your G4400 to 4.5Ghz (both core and cache) and see what happen !!

I wish I could but board doesn't allow it

Enterprise24 · Sep 1, 2016

Arctucas · Sep 1, 2016

Enterprise24 said:

Nice... what voltage are you running those sticks at?
