(SOLVED) CPU led lit up

Joined
Aug 15, 2022
Messages
455 (0.51/day)
Location
Some Where On Earth
System Name Spam
Processor i9-12900K PL1=125 TA=56 PL2=288
Motherboard MSI MAG B660M Mortar WiFi DDR4
Cooling Scythe Kaze Flex 120mm ARGB Fans x1 / Alphacool Eisbaer 360
Memory Mushkin Red Line DDR4 4000 16Gb x2 18-22-22-42 1T
Video Card(s) Sapphire Pulse RX 7900 XT
Storage Team Group MP33 512Mb / 1Tb
Display(s) SAMSUNG Odyssey G50A (LS27AG500PNXZA) (2560x1440)
Case Lan-Li A3
Audio Device(s) Real Tek on Board Audio
Power Supply EVGA SuperNOVA 850 GM
Mouse M910-K
Keyboard K636CLO
Software WIN 11 Pro
Ok one further question because google is giving me conflicting information. About the case standoff keep out zones. Do I put the standoffs that came with the motherboard in the ATX slots on the case even if there isn't a screw hole there or do I leave them empty? I am finding conflicting information on google and the Manuel doesn't really tell me if I should or shouldn't.
just to be clear. Right now, I have the 3 standoffs that came with the moba in the case all of them touching the keep out zones. Some things I'm finding tell me this is how it should be, and others are telling me the exact opposite.


I have not tried with different ram as I don't have any further ram. Later today after work I was going to double check that the ram I have was properly installed.

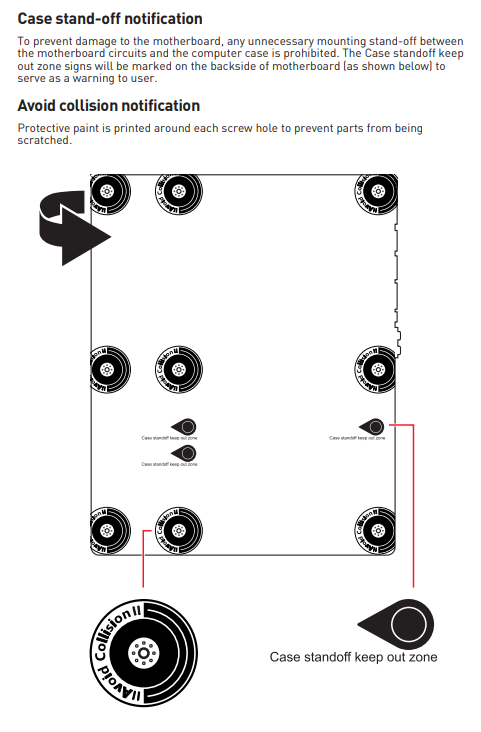

You should not have any standoffs in the keepout zones listed in the mother board manual. These locations will short some things out and may damage the board.

The round indicators are ware the standoffs go, and the teardrop is ware they should not be installed.


Joined
Nov 24, 2022
Messages
33 (0.04/day)
You should not have any standoffs in the keepout zones listed in the mother board manual. These locations will short some things out and may damage the board.

The round indicators are ware the standoffs go, and the teardrop is ware they should not be installed.

View attachment 272820
Got I'll remove those then. Some of the forums I found said they needed to be installed there and some said they didn't so I was confused. Thank you.

Joined
Dec 14, 2013
Messages
2,748 (0.68/day)
Location
Alabama
Processor Ryzen 2600
Motherboard X470 Tachi Ultimate
Cooling AM3+ Wraith CPU cooler
Memory C.R.S.
Video Card(s) GTX 970
Software Linux Peppermint 10
Benchmark Scores Never high enough
Rule of thumb if not sure:
If it has a circle of metal on (Around) the screw hole's frontside, it should have it on it's backside too - It's fine since that's for grounding the board when it's mounted in the case.
If you must, double-check it but that's always the case I've ever seen before.

If it doesn't have the metallic circle at the screw hole, do not use it for mounting the board and keep all metallic objects away from it.

Joined
Aug 15, 2022
Messages
455 (0.51/day)
Location
Some Where On Earth
System Name Spam
Processor i9-12900K PL1=125 TA=56 PL2=288
Motherboard MSI MAG B660M Mortar WiFi DDR4
Cooling Scythe Kaze Flex 120mm ARGB Fans x1 / Alphacool Eisbaer 360
Memory Mushkin Red Line DDR4 4000 16Gb x2 18-22-22-42 1T
Video Card(s) Sapphire Pulse RX 7900 XT
Storage Team Group MP33 512Mb / 1Tb
Display(s) SAMSUNG Odyssey G50A (LS27AG500PNXZA) (2560x1440)
Case Lan-Li A3
Audio Device(s) Real Tek on Board Audio
Power Supply EVGA SuperNOVA 850 GM
Mouse M910-K
Keyboard K636CLO
Software WIN 11 Pro
Issue is fixed. The ram had not been properly installed. The amount of force I need to put into the cards to get them into place was insane.

Did you remove the standoffs that might cause shorting with the motherboard? Also, glad to hear all is working now for you.

Joined
Nov 7, 2009
Messages
4,519 (0.81/day)
Location
Denmark
System Name The work PC /2700x/5950x
Processor 3900X stock/ 2700x stock/ 5950x 4200 MHz fixed @ 1,056-1,08V
Motherboard Gigabyte AORUS Master X570/2xMSI X470 M7 AC
Cooling Custom WC XSPC RX480, Laing DDC, XSPC Laing DDC Top V3 and EK Velocity/NH15/NH-U12S SE
Memory 32 GB Viper 3600/14 /16 GB Trident Z F4-4000C18D-16GTZSW 3600 /32 GB G Skill Flare CL14 3400
Video Card(s) 2070 Super X MSI/GTX 970 MSI/ GTX 970 MSI
Storage 1 TB SSD+500 GB NVMe / 500 GB SSD/ 2 TB 990 Pro
Display(s) Dell UltraSharp U2518D/2408WFP
Case Corsair 800D / Lian test bench/NZXT 500
Power Supply AX 850 Titanium/AX 860i/AX 760
Software Dual boot/Win 10 / Linux / Win 10+Linux
Issue is fixed. The ram had not been properly installed. The amount of force I need to put into the cards to get them into place was insane.
Good to hear. Can you add solved to the headline, or do we need a moderator?

Joined
Oct 16, 2018
Messages
968 (0.42/day)
Location
Uttar Pradesh, India
Processor AMD R7 1700X @ 4100Mhz
Motherboard MSI B450M MORTAR MAX (MS-7B89)
Cooling Phanteks PH-TC14PE
Memory Crucial Technology 16GB DR (DDR4-3600) - C9BLM:045M:E BL16G36C16U4W.M16FE1 X2 @ CL14
Video Card(s) XFX RX480 GTR 8GB @ 1408Mhz (AMD Auto OC)
Storage Samsung SSD 850 EVO 250GB
Display(s) Acer KG271 1080p @ 81Hz
Power Supply SuperFlower Leadex II 750W 80+ Gold
Keyboard Redragon Devarajas RGB
Software Microsoft Windows 10 (10.0) Professional 64-bit
Benchmark Scores https://valid.x86.fr/mvvj3a
Issue is fixed. The ram had not been properly installed. The amount of force I need to put into the cards to get them into place was insane.
Ahh... so I was right it was something related to the RAM.

Important lesson to takeaway CPU red light does not always mean CPU fault. :)


Mussels

Freshwater Moderator
Joined
Oct 6, 2004
Messages
58,413 (7.87/day)
Location
Oystralia
System Name Rainbow Sparkles (Power efficient, <350W gaming load)
Processor Ryzen R7 5800x3D (Undervolted, 4.45GHz all core)
Motherboard Asus x570-F (BIOS Modded)
Cooling Alphacool Apex UV - Alphacool Eisblock XPX Aurora + EK Quantum ARGB 3090 w/ active backplate
Memory 2x32GB DDR4 3600 Corsair Vengeance RGB @3866 C18-22-22-22-42 TRFC704 (1.4V Hynix MJR - SoC 1.15V)
Video Card(s) Galax RTX 3090 SG 24GB: Underclocked to 1700Mhz 0.750v (375W down to 250W))
Storage 2TB WD SN850 NVME + 1TB Sasmsung 970 Pro NVME + 1TB Intel 6000P NVME USB 3.2
Display(s) Phillips 32 32M1N5800A (4k144), LG 32" (4K60) | Gigabyte G32QC (2k165) | Phillips 328m6fjrmb (2K144)
Case Fractal Design R6
Audio Device(s) Logitech G560 | Corsair Void pro RGB |Blue Yeti mic
Power Supply Fractal Ion+ 2 860W (Platinum) (This thing is God-tier. Silent and TINY)
Mouse Logitech G Pro wireless + Steelseries Prisma XL
Keyboard Razer Huntsman TE ( Sexy white keycaps)
VR HMD Oculus Rift S + Quest 2
Software Windows 11 pro x64 (Yes, it's genuinely a good OS) OpenRGB - ditch the branded bloatware!
Benchmark Scores Nyooom.
So much misinformation here.
1 - That motherboard will 100% guaranteed power on with the one 8-pin EPS connection, unless there is a different problem. The 4-pin connection is for extreme overclocking and even then it is unnecessary 97% of the time.
2 - That is an X570S motherboard, it is new enough to have a bios that support 5000-series CPUs without flashing anything.
3 - That PSU comes with one 4+4-pin EPS cable and one 8-pin EPS cable. Use either one to power the 8-pin connection on the motherboard.
4 - The motherboard should boot without any fans connected and give you a warning that the CPU fan is not running/detected. But I would absolutely connect the cooler fan to this header, I have run into stubborn motherboards before.

Now to address one beginner error I have seen numerous times and I don't see mentioned here. Remove the motherboard and make sure you haven't screwed up the standoffs in the case. You need to be absolutely sure you have the exact amount of standoffs to match the motherboard and that they are in the correct position. A misplaced standoff can short out the motherboard and cause a non-booting issue.
1. Should doesn't mean it's always the case. Some odd motherboards have a requirement that one connector be used before the other, and it also helps rule out a loose or damaged connector to try all options.
2. BIOS issues still exist, just because the CPU is supported doesn't mean it's guaranteed to work with his hardware (GPU/RAM, mostly) on a launch BIOS
3. Ideally, use both
4. I've used that board in person and it does stop at a fan error. It's a good way to ensure it stops at a BIOS level for troubleshooting instead of booting into an OS, tbh.

Issue is fixed. The ram had not been properly installed. The amount of force I need to put into the cards to get them into place was insane.
That's uncommon

Are these the RAM slots where one side clips in but the opposite side is just a slit? If so, you gotta make sure they're "Straight" before pushing down centrally, not one side then the other

Joined
Nov 24, 2022
Messages
33 (0.04/day)
...


That's uncommon

Are these the RAM slots where one side clips in but the opposite side is just a slit? If so, you gotta make sure they're "Straight" before pushing down centrally, not one side then the other
It was both sides that needed to be pushed in. I pushed hard enough to leave marks on my fingers before they finally clicked into place.

Joined
Dec 14, 2013
Messages
2,748 (0.68/day)
Location
Alabama
Processor Ryzen 2600
Motherboard X470 Tachi Ultimate
Cooling AM3+ Wraith CPU cooler
Memory C.R.S.
Video Card(s) GTX 970
Software Linux Peppermint 10
Benchmark Scores Never high enough
Over time the amount of force required will lessen, esp if you're always swapping sticks around.
Alot of the time it's simply because the board is new and the gold fingers in the slots are just tight because of it.

Good to hear you got it going. :)
