GALAX RTX 5060 Ti Magic Blade
GeForce RTX 5060 Ti 魔刃
- Graphics Processor
- GB206
- Cores
- 4608
- TMUs
- 144
- ROPs
- 48
- Memory Size
- 8 GB
- Memory Type
- GDDR7
- Bus Width
- 128 bit

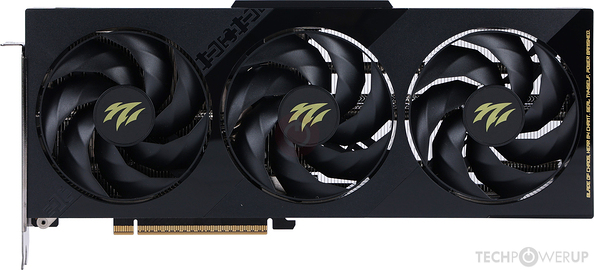

GPU

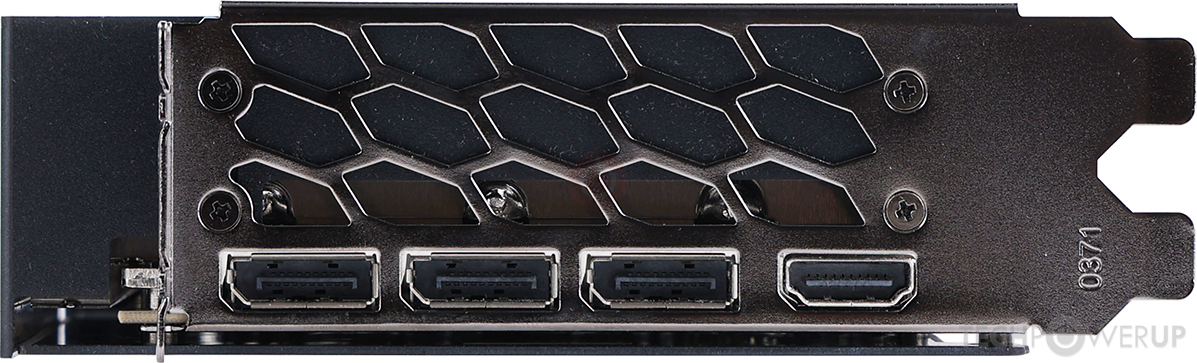

I/O
Top

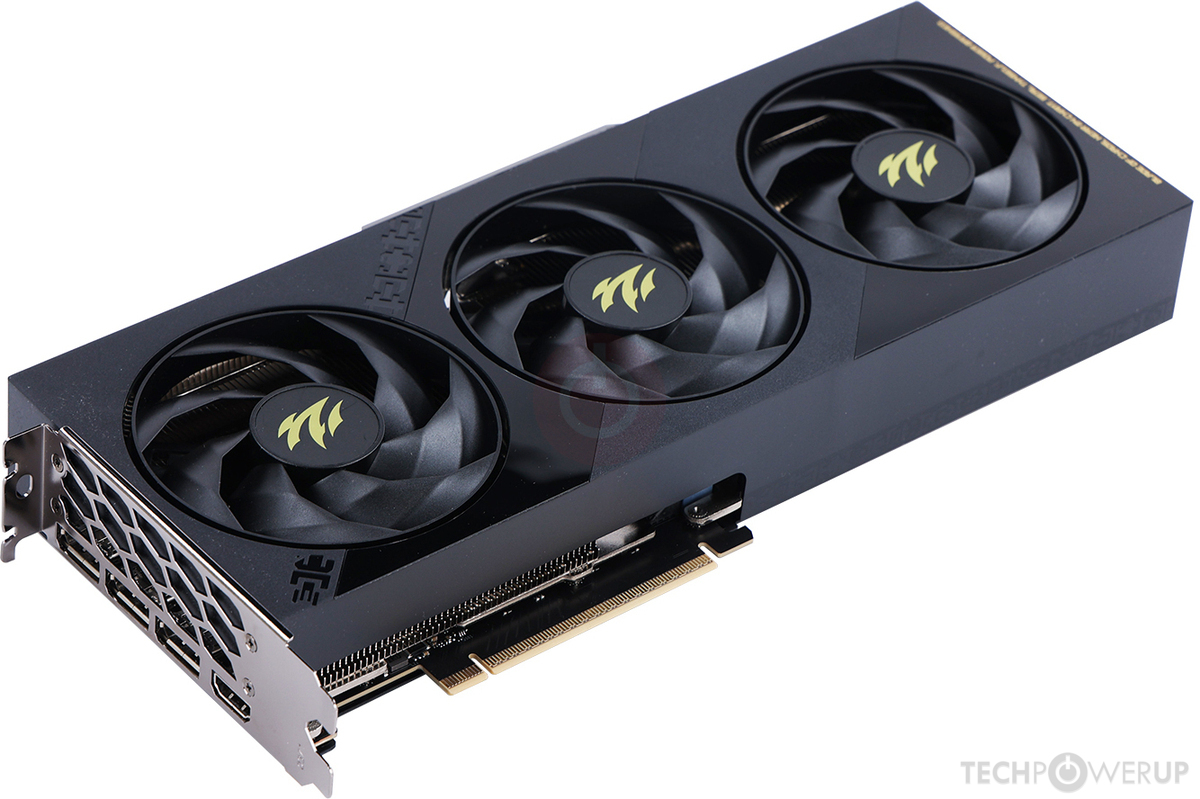

Bottom

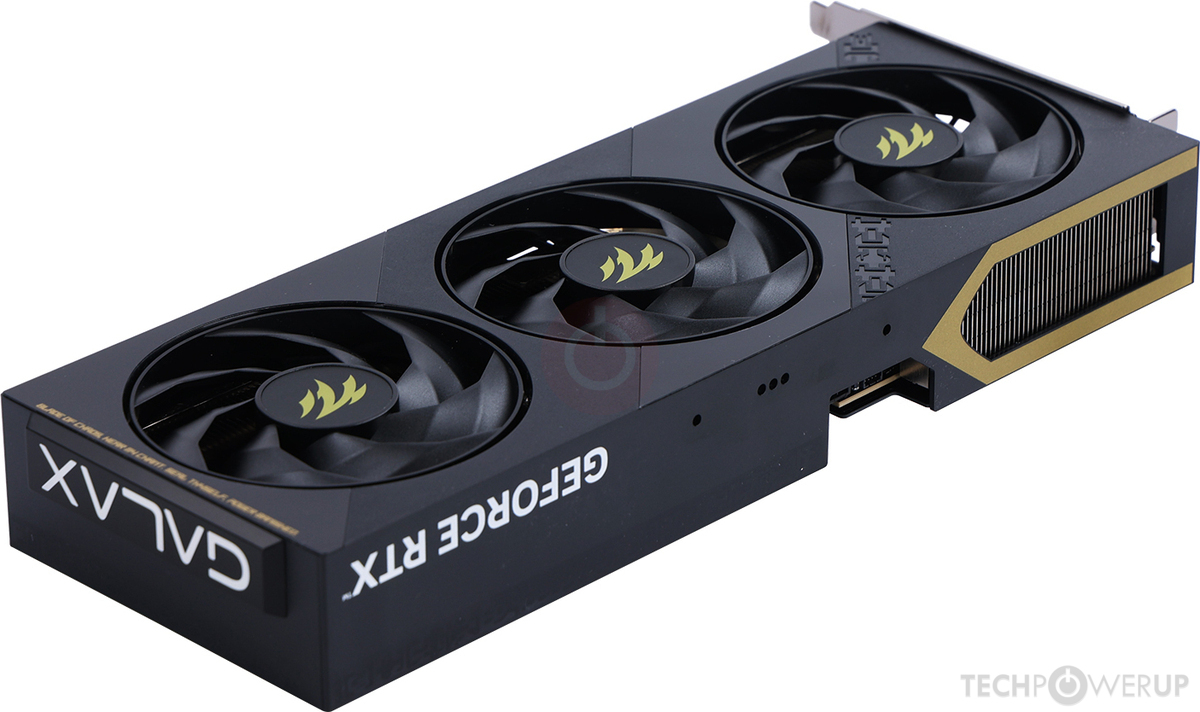

Rear
Graphics Processor
- GPU Name
- GB206
- GPU Variant
- GB206-300-A1
- Architecture
- Blackwell 2.0
- Foundry
- TSMC
- Process Type
- 4N FinFET
- Process Size
- 5 nm
- Transistors
- 21,900 million
- Density
- 121.0M / mm²
- Die Size
- 181 mm²
Graphics Card
- Release Date
- Apr 16th, 2025
- Announced
- Apr 15th, 2025
- Generation
- GeForce 50
- Predecessor
- GeForce 40
- Production
- Active
- Bus Interface
- PCIe 5.0 x8
Clock Speeds
- Base Clock
- 2407 MHz
- Boost Clock
- 2572 MHz
- Memory Clock
-
1750 MHz
28 Gbps effective
Memory
- Memory Size
- 8 GB
- Memory Type
- GDDR7
- Memory Bus
- 128 bit
- Bandwidth
- 448.0 GB/s
Render Config
- Shading Units
- 4608
- TMUs
- 144
- ROPs
- 48
- SM Count
- 36
- Tensor Cores
- 144
- RT Cores
- 36
- L1 Cache
- 128 KB (per SM)
- L2 Cache
- 32 MB
Theoretical Performance
- Pixel Rate
- 123.5 GPixel/s
- Texture Rate
- 370.4 GTexel/s
- FP16 (half)
- 23.70 TFLOPS (1:1)
- FP32 (float)
- 23.70 TFLOPS
- FP64 (double)
- 370.4 GFLOPS (1:64)
Board Design
- Slot Width
- Dual-slot
- Length
241 mm
304 mm
9.5 inches
12 inches
- Width
111 mm
125 mm
4.4 inches
4.9 inches
- Height
- 40 mm
1.6 inches
- TDP
- 180 W
- Suggested PSU
- 450 W
- Outputs
- 1x HDMI 2.1b
3x DisplayPort 2.1b
- Power Connectors
- 1x 8-pin
- Board Number
- PG152 SKU 10
Graphics Features
- DirectX
- 12 Ultimate (12_2)
- OpenGL
- 4.6
- OpenCL
- 3.0
- Vulkan
- 1.4
- CUDA
- 12.0
- Shader Model
- 6.8
Card Notes
| MSRP: $379 USD for 8 GB $429 USD for 16 GB |
GB206 GPU Notes
| Ray Tracing Cores: 4th Gen Tensor Cores: 5th Gen NVENC: 9th Gen NVDEC: 6th Gen PureVideo HD: VP11 VDPAU: Feature Set K Latest Drivers: Windows 10 / 11: GeForce Release: Latest Quadro Release: Latest Data Center Release: Latest |
Other retail boards based on this design (142)
| Name | GPU Clock | Boost Clock | Memory Clock | Other Changes |
|---|---|---|---|---|
| 2407 MHz | 2572 MHz | 1750 MHz | 229 mm/9 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 16 GB, 229 mm/9 inches | |
| 2407 MHz | 2602 MHz | 1750 MHz | 229 mm/9 inches | |
| 2407 MHz | 2602 MHz | 1750 MHz | 16 GB, 229 mm/9 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 304 mm/12 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 16 GB, 304 mm/12 inches | |
| 2407 MHz | 2617 MHz | 1750 MHz | 304 mm/12 inches | |
| 2407 MHz | 2617 MHz | 1750 MHz | 16 GB, 304 mm/12 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 302 mm/11.9 inches, Triple-slot | |
| 2407 MHz | 2572 MHz | 1750 MHz | 16 GB, 302 mm/11.9 inches, Triple-slot | |
| 2407 MHz | 2662 MHz | 1750 MHz | 302 mm/11.9 inches, Triple-slot | |
| 2407 MHz | 2662 MHz | 1750 MHz | 16 GB, 302 mm/11.9 inches, Triple-slot | |
| 2407 MHz | 2572 MHz | 1750 MHz | 240 mm/9.4 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 16 GB, 240 mm/9.4 inches | |
| 2407 MHz | 2587 MHz | 1750 MHz | 240 mm/9.4 inches | |
| 2407 MHz | 2587 MHz | 1750 MHz | 16 GB, 240 mm/9.4 inches | |
| 2407 MHz | 2602 MHz | 1750 MHz | 316 mm/12.4 inches, Triple-slot | |
| 2407 MHz | 2602 MHz | 1750 MHz | 16 GB, 316 mm/12.4 inches, Triple-slot | |
| 2407 MHz | 2572 MHz | 1750 MHz | 301 mm/11.9 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 16 GB, 301 mm/11.9 inches | |
| 2407 MHz | 2662 MHz | 1750 MHz | 300 mm/11.8 inches, Triple-slot | |
| 2407 MHz | 2662 MHz | 1750 MHz | 16 GB, 300 mm/11.8 inches, Triple-slot | |
| 2407 MHz | 2632 MHz | 1750 MHz | 231 mm/9.1 inches | |
| 2407 MHz | 2632 MHz | 1750 MHz | 16 GB, 231 mm/9.1 inches | |
| 2407 MHz | 2632 MHz | 1750 MHz | 301 mm/11.9 inches | |
| 2407 MHz | 2632 MHz | 1750 MHz | 16 GB, 301 mm/11.9 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 301 mm/11.9 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 16 GB, 301 mm/11.9 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 16 GB, 231 mm/9.1 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 262 mm/10.3 inches | |
| 2407 MHz | 2632 MHz | 1750 MHz | 262 mm/10.3 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 292 mm/11.5 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 16 GB, 292 mm/11.5 inches | |
| 2407 MHz | 2662 MHz | 1750 MHz | 292 mm/11.5 inches | |
| 2407 MHz | 2662 MHz | 1750 MHz | 16 GB, 292 mm/11.5 inches | |
| 2407 MHz | 2587 MHz | 1750 MHz | 234 mm/9.2 inches | |
| 2407 MHz | 2587 MHz | 1750 MHz | 16 GB, 234 mm/9.2 inches | |
| 2407 MHz | 2617 MHz | 1750 MHz | 315 mm/12.4 inches | |
| 2407 MHz | 2617 MHz | 1750 MHz | 16 GB, 315 mm/12.4 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 234 mm/9.2 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 16 GB, 234 mm/9.2 inches | |
| 2407 MHz | 2587 MHz | 1750 MHz | 234 mm/9.2 inches | |
| 2407 MHz | 2587 MHz | 1750 MHz | 16 GB, 234 mm/9.2 inches | |
| 2407 MHz | 2587 MHz | 1750 MHz | 234 mm/9.2 inches | |
| 2407 MHz | 2587 MHz | 1750 MHz | 16 GB, 234 mm/9.2 inches | |
| 2407 MHz | 2587 MHz | 1750 MHz | 235 mm/9.3 inches | |
| 2407 MHz | 2587 MHz | 1750 MHz | 16 GB, 235 mm/9.3 inches | |
| 2407 MHz | 2587 MHz | 1750 MHz | 235 mm/9.3 inches | |
| 2407 MHz | 2617 MHz | 1750 MHz | 255 mm/10 inches | |
| 2407 MHz | 2617 MHz | 1750 MHz | 255 mm/10 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 302 mm/11.9 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 16 GB, 302 mm/11.9 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 304 mm/12 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 16 GB, 304 mm/12 inches | |
| 2407 MHz | 2602 MHz | 1750 MHz | 16 GB, 304 mm/12 inches | |
| 2407 MHz | 2602 MHz | 1750 MHz | 304 mm/12 inches | |
|
GALAX RTX 5060 Ti Magic Blade
|
2407 MHz | 2572 MHz | 1750 MHz | 304 mm/12 inches |
| 2407 MHz | 2572 MHz | 1750 MHz | 16 GB, 304 mm/12 inches | |
| 2407 MHz | 2602 MHz | 1750 MHz | 16 GB, 304 mm/12 inches | |
| 2407 MHz | 2602 MHz | 1750 MHz | 304 mm/12 inches | |
| 2407 MHz | 2722 MHz | 1750 MHz | 16 GB, 329 mm/13 inches | |
| 2407 MHz | 2647 MHz | 1750 MHz | 281 mm/11.1 inches | |
| 2407 MHz | 2647 MHz | 1750 MHz | 16 GB, 281 mm/11.1 inches | |
| 2407 MHz | 2617 MHz | 1750 MHz | 215 mm/8.5 inches | |
| 2407 MHz | 2617 MHz | 1750 MHz | 16 GB, 215 mm/8.5 inches | |
| 2407 MHz | 2617 MHz | 1750 MHz | 215 mm/8.5 inches | |
| 2407 MHz | 2617 MHz | 1750 MHz | 16 GB, 215 mm/8.5 inches | |
| 2407 MHz | 2647 MHz | 1750 MHz | 281 mm/11.1 inches | |
| 2407 MHz | 2647 MHz | 1750 MHz | 16 GB, 281 mm/11.1 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 208 mm/8.2 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 16 GB, 208 mm/8.2 inches | |
| 2407 MHz | 2587 MHz | 1750 MHz | 208 mm/8.2 inches | |
| 2407 MHz | 2587 MHz | 1750 MHz | 16 GB, 208 mm/8.2 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 250 mm/9.8 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 16 GB, 250 mm/9.8 inches | |
| 2407 MHz | 2602 MHz | 1750 MHz | 250 mm/9.8 inches | |
| 2407 MHz | 2602 MHz | 1750 MHz | 16 GB, 250 mm/9.8 inches | |
| 2407 MHz | 2602 MHz | 1750 MHz | 250 mm/9.8 inches | |
| 2407 MHz | 2602 MHz | 1750 MHz | 16 GB, 250 mm/9.8 inches | |
| 2407 MHz | 2602 MHz | 1750 MHz | 300 mm/11.8 inches | |
| 2407 MHz | 2602 MHz | 1750 MHz | 16 GB, 300 mm/11.8 inches | |
| 2407 MHz | 2617 MHz | 1750 MHz | 255 mm/10 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 239 mm/9.4 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 16 GB, 239 mm/9.4 inches | |
| 2407 MHz | 2602 MHz | 1750 MHz | 240 mm/9.4 inches | |
| 2407 MHz | 2602 MHz | 1750 MHz | 16 GB, 240 mm/9.4 inches | |
| 2407 MHz | 2632 MHz | 1750 MHz | 315 mm/12.4 inches, Triple-slot | |
| 2407 MHz | 2632 MHz | 1750 MHz | 16 GB, 315 mm/12.4 inches, Triple-slot | |
| 2407 MHz | 2572 MHz | 1750 MHz | 16 GB, 292 mm/11.5 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 247 mm/9.7 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 16 GB, 247 mm/9.7 inches | |
| 2407 MHz | 2647 MHz | 1750 MHz | 247 mm/9.7 inches | |
| 2407 MHz | 2647 MHz | 1750 MHz | 16 GB, 247 mm/9.7 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 300 mm/11.8 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 16 GB, 300 mm/11.8 inches | |
| 2407 MHz | 2647 MHz | 1750 MHz | 300 mm/11.8 inches | |
| 2407 MHz | 2647 MHz | 1750 MHz | 16 GB, 300 mm/11.8 inches | |
| 2407 MHz | 2647 MHz | 1750 MHz | 300 mm/11.8 inches | |
| 2407 MHz | 2647 MHz | 1750 MHz | 16 GB, 300 mm/11.8 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 300 mm/11.8 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 16 GB, 300 mm/11.8 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 204 mm/8 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 16 GB, 204 mm/8 inches | |
| 2407 MHz | 2617 MHz | 1750 MHz | 204 mm/8 inches | |
| 2407 MHz | 2617 MHz | 1750 MHz | 16 GB, 204 mm/8 inches | |
| 2407 MHz | 2647 MHz | 1750 MHz | 16 GB, 337 mm/13.3 inches, Triple-slot | |
| 2407 MHz | 2692 MHz | 1750 MHz | 16 GB, 337 mm/13.3 inches, Triple-slot | |
| 2407 MHz | 2602 MHz | 1750 MHz | 227 mm/8.9 inches | |
| 2407 MHz | 2602 MHz | 1750 MHz | 16 GB, 227 mm/8.9 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 227 mm/8.9 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 16 GB, 227 mm/8.9 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 306 mm/12 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 16 GB, 306 mm/12 inches | |
| 2407 MHz | 2602 MHz | 1750 MHz | 306 mm/12 inches | |
| 2407 MHz | 2602 MHz | 1750 MHz | 16 GB, 306 mm/12 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 262 mm/10.3 inches | |
| 2407 MHz | 2632 MHz | 1750 MHz | 262 mm/10.3 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 292 mm/11.5 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 16 GB, 292 mm/11.5 inches | |
| 2407 MHz | 2662 MHz | 1750 MHz | 292 mm/11.5 inches | |
| 2407 MHz | 2662 MHz | 1750 MHz | 16 GB, 292 mm/11.5 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 245 mm/9.6 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 16 GB, 245 mm/9.6 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 300 mm/11.8 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 16 GB, 300 mm/11.8 inches | |
| 2407 MHz | 2692 MHz | 1750 MHz | 300 mm/11.8 inches | |
| 2407 MHz | 2692 MHz | 1750 MHz | 16 GB, 300 mm/11.8 inches | |
| 2407 MHz | 2692 MHz | 1750 MHz | 245 mm/9.6 inches | |
| 2407 MHz | 2692 MHz | 1750 MHz | 16 GB, 245 mm/9.6 inches | |
| 2407 MHz | 2632 MHz | 1750 MHz | 221 mm/8.7 inches | |
| 2407 MHz | 2632 MHz | 1750 MHz | 16 GB, 221 mm/8.7 inches | |
| 2407 MHz | 2602 MHz | 1750 MHz | 293 mm/11.5 inches | |
| 2407 MHz | 2602 MHz | 1750 MHz | 293 mm/11.5 inches | |
| 2407 MHz | 2587 MHz | 1750 MHz | 238 mm/9.4 inches | |
| 2407 MHz | 2587 MHz | 1750 MHz | 238 mm/9.4 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 221 mm/8.7 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 16 GB, 221 mm/8.7 inches | |
| 2407 MHz | 2602 MHz | 1750 MHz | 221 mm/8.7 inches | |
| 2407 MHz | 2602 MHz | 1750 MHz | 16 GB, 221 mm/8.7 inches | |
| 2407 MHz | 2572 MHz | 1750 MHz | 16 GB, 320 mm/12.6 inches | |
| 2407 MHz | 2632 MHz | 1750 MHz | 320 mm/12.6 inches | |
| 2407 MHz | 2632 MHz | 1750 MHz | 16 GB, 320 mm/12.6 inches |
Apr 24th, 2025 00:10 EDT
change timezone
Latest GPU Drivers
New Forum Posts
- RX 9000 series GPU Owners Club (500)
- Asus Rx570 o4g cannot losd drivers error code 43 (13)
- How do you calculate the cost of a chip? (4)
- need help with 12900hx (6)
- Are the 8 GB cards worth it? (108)
- 5060 Ti 8GB DOA (257)
- Help getting a mini pc (7)
- Which is the best replacement for Microsoft Office? (22)
- 5070ti overclock...what are your settings? (16)
- New GPU 5070 Ti or better CPU Ryzen7 7800X3D ? (6)
Popular Reviews
- NVIDIA GeForce RTX 5060 Ti 8 GB Review - So Many Compromises
- ASUS GeForce RTX 5060 Ti TUF OC 16 GB Review
- ASRock X870E Taichi Lite Review
- Colorful iGame B860M Ultra V20 Review
- Upcoming Hardware Launches 2025 (Updated Apr 2025)
- Sapphire Radeon RX 9070 XT Pulse Review
- Sapphire Radeon RX 9070 XT Nitro+ Review - Beating NVIDIA
- NVIDIA GeForce RTX 5060 Ti PCI-Express x8 Scaling
- AMD Ryzen 7 9800X3D Review - The Best Gaming Processor
- ASUS GeForce RTX 5080 TUF OC Review
Controversial News Posts
- NVIDIA GeForce RTX 5060 Ti 16 GB SKU Likely Launching at $499, According to Supply Chain Leak (182)
- NVIDIA Sends MSRP Numbers to Partners: GeForce RTX 5060 Ti 8 GB at $379, RTX 5060 Ti 16 GB at $429 (127)
- NVIDIA Launches GeForce RTX 5060 Series, Beginning with RTX 5060 Ti This Week (115)
- Nintendo Confirms That Switch 2 Joy-Cons Will Not Utilize Hall Effect Stick Technology (105)
- Nintendo Switch 2 Launches June 5 at $449.99 with New Hardware and Games (99)
- Sony Increases the PS5 Pricing in EMEA and ANZ by Around 25 Percent (85)
- NVIDIA PhysX and Flow Made Fully Open-Source (77)
- Windows Notepad Gets Microsoft Copilot Integration (75)
