High-resolution PCB Pictures

These pictures are for the convenience of volt-modders and people who would like to see all the finer details on the PCB. Feel free to link back to us and use them in your articles or forum posts.

Graphics Card Teardown PCB Front
Graphics Card Teardown PCB Back


High-res versions are also available (front, back).

Circuit Board (PCB) Analysis

GPU Chip Voltage Controller
GPU Voltage, VRM Configuration

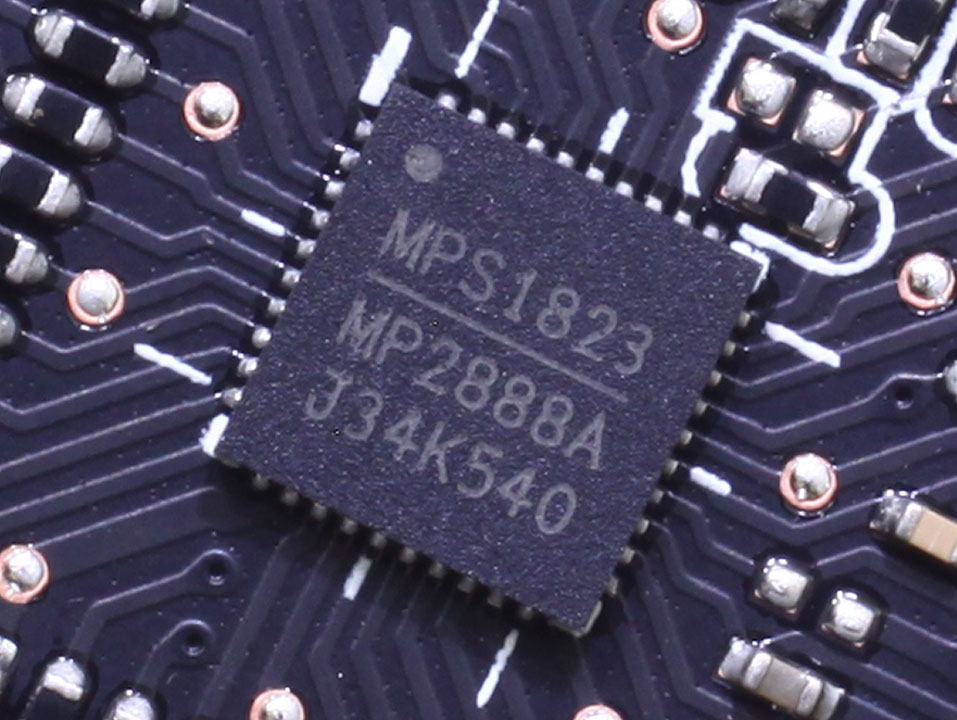

ASUS uses ten phases for the GPU voltage, which is controlled by a Monolithic Power Systems MP2888A controller (same as on the Titan V).

Memory Chip Voltage Controller
Memory Voltage, VRM Configuration

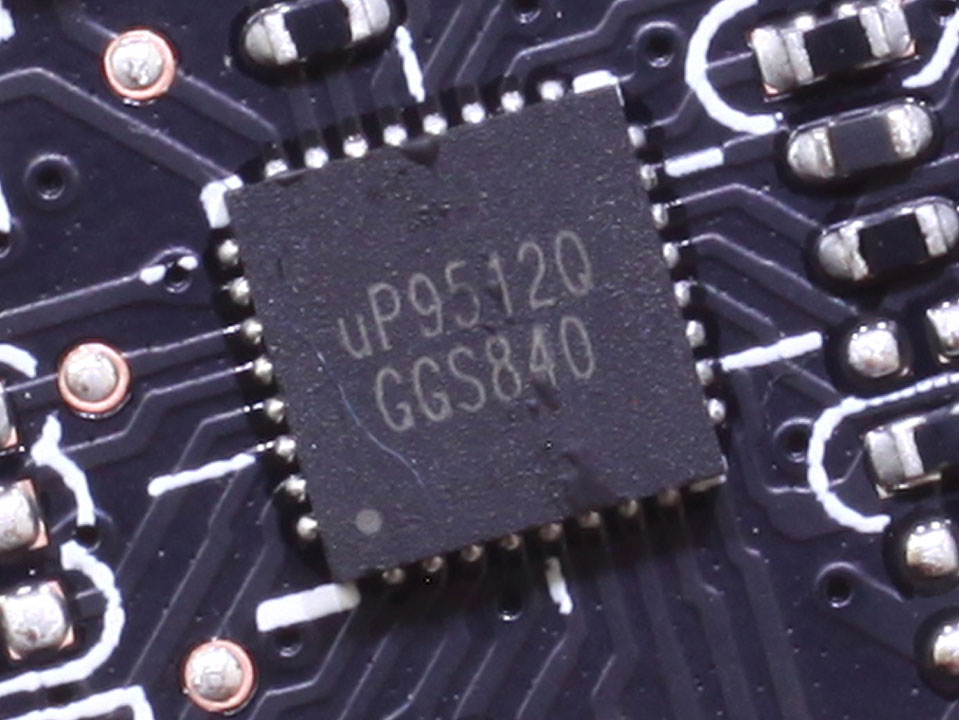

The memory VRM is 2-phase and managed by a uP9512P controller.

Graphics Card Memory Chips

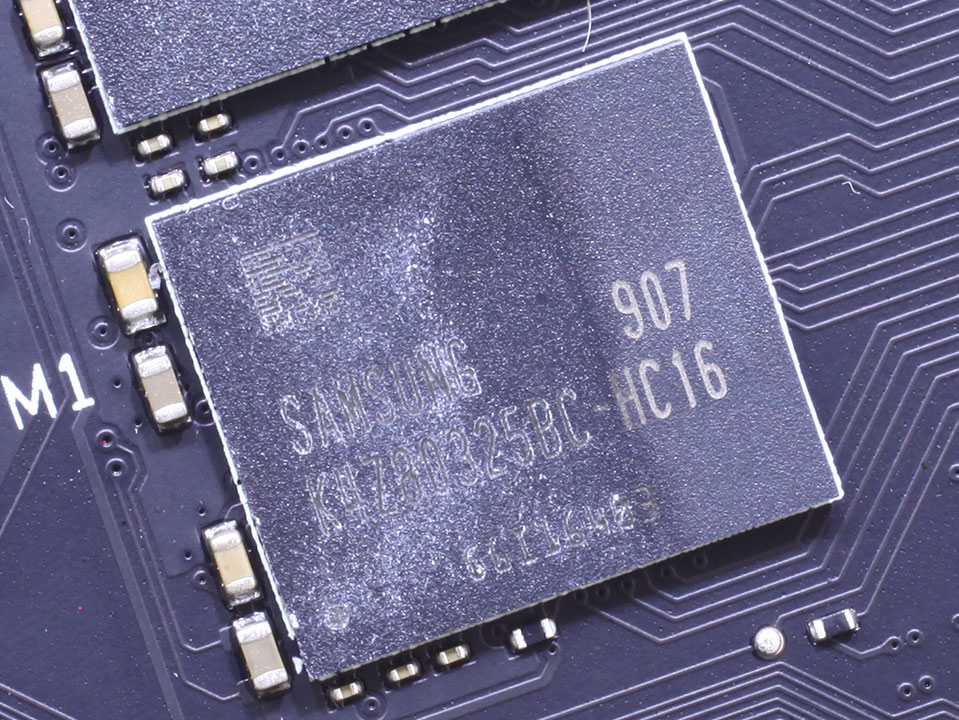

The GDDR6 memory chips are made by Samsung and carry the model number K4Z80325BC-HC16. They are specified to run at 2000 MHz (16 Gbps GDDR6 effective).

Graphics Chip GPU

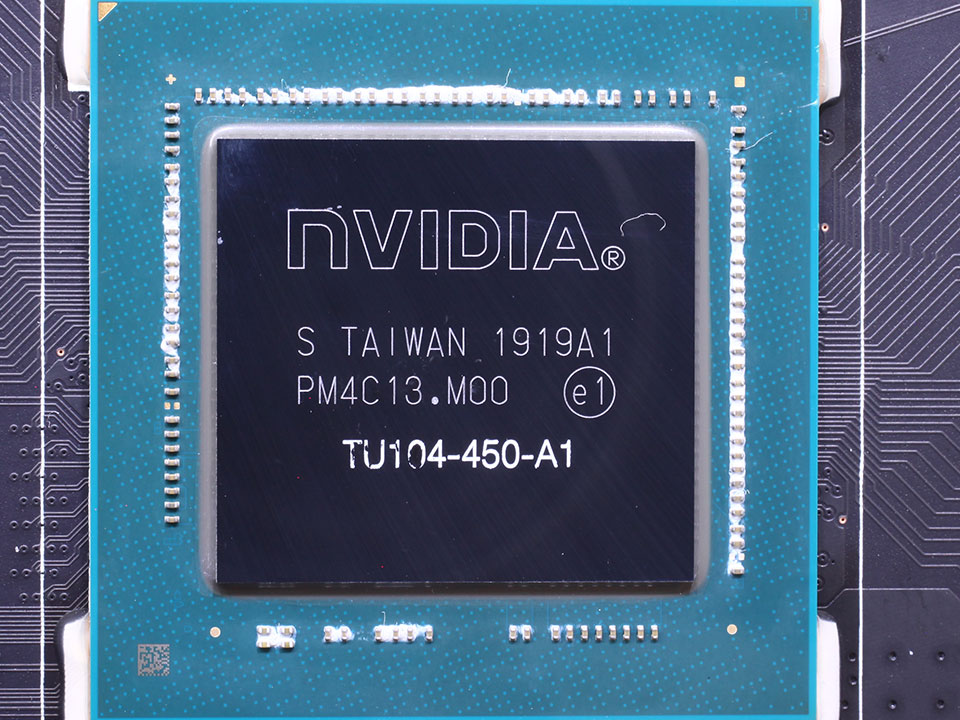

NVIDIA's TU104 graphics processor is the company's second-largest chip using the Turing architecture. It is produced on a 12 nm process at TSMC, Taiwan and has a transistor count of 13.6 billion, with a die size of 545 mm².
