High-resolution PCB Pictures

These pictures are for the convenience of volt modders and people who would like to see all the finer details on the PCB. Feel free to link back to us and use these in your articles, videos or forum posts.

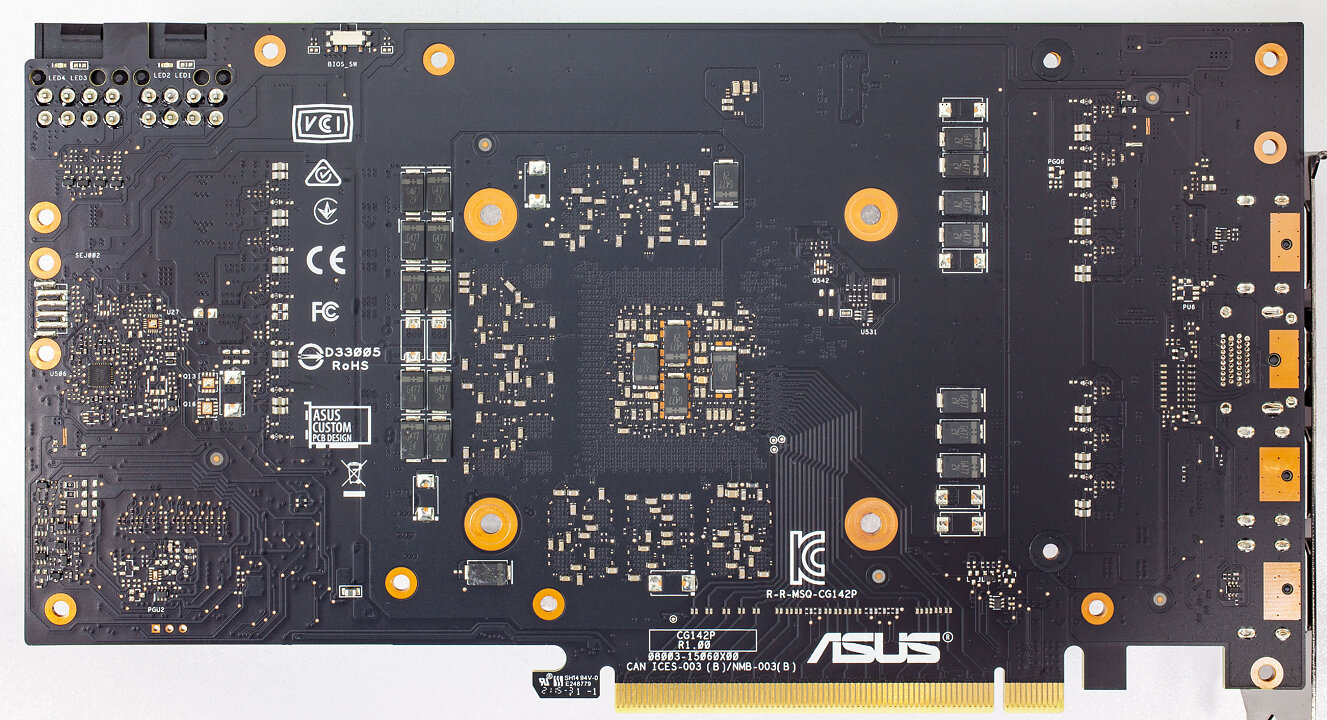

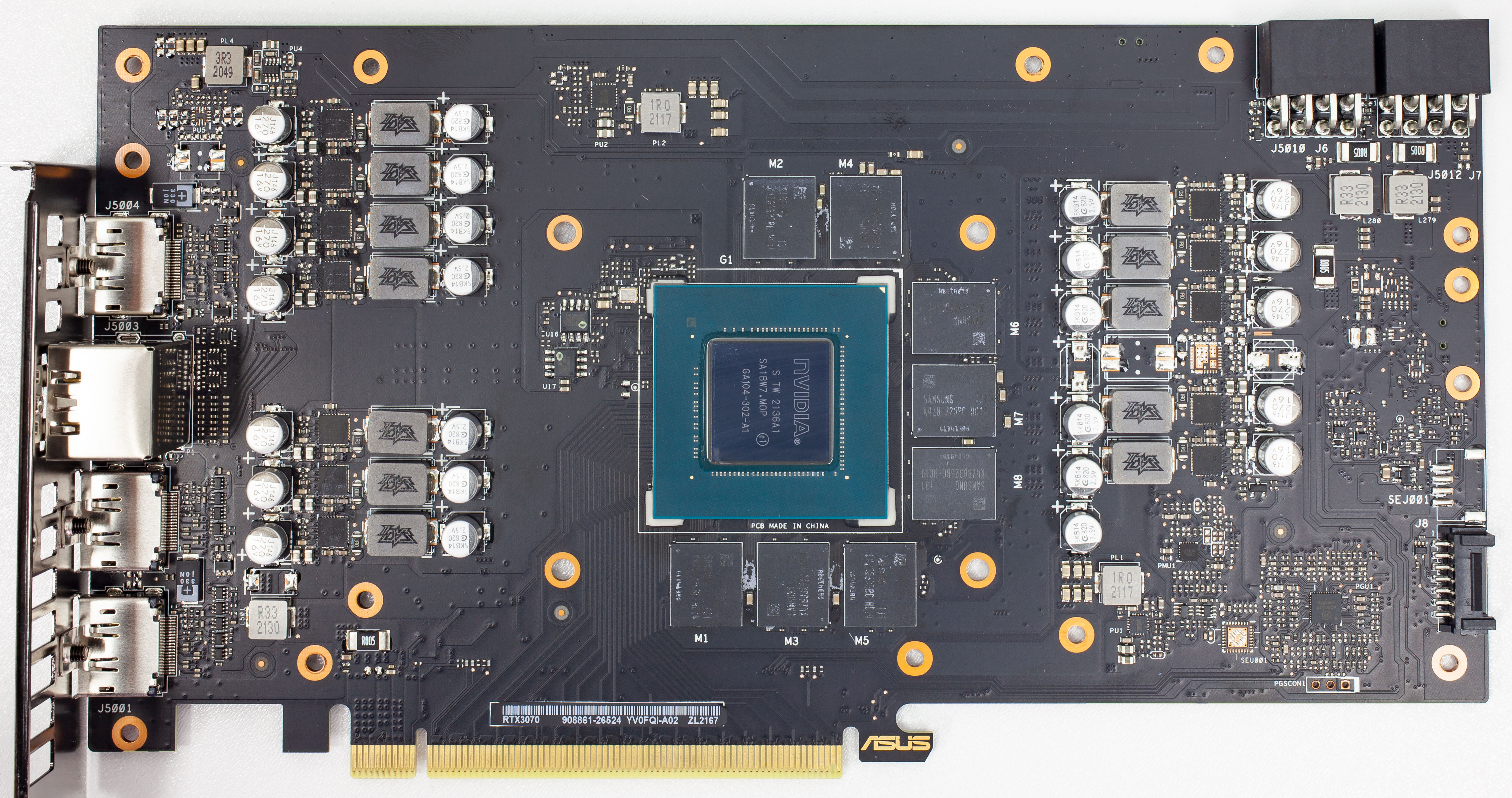

High-res versions are also available (front, back).

Circuit Board (PCB) Analysis

GPU voltage is 10-phase and managed by an OnSemi NCP81610 controller.

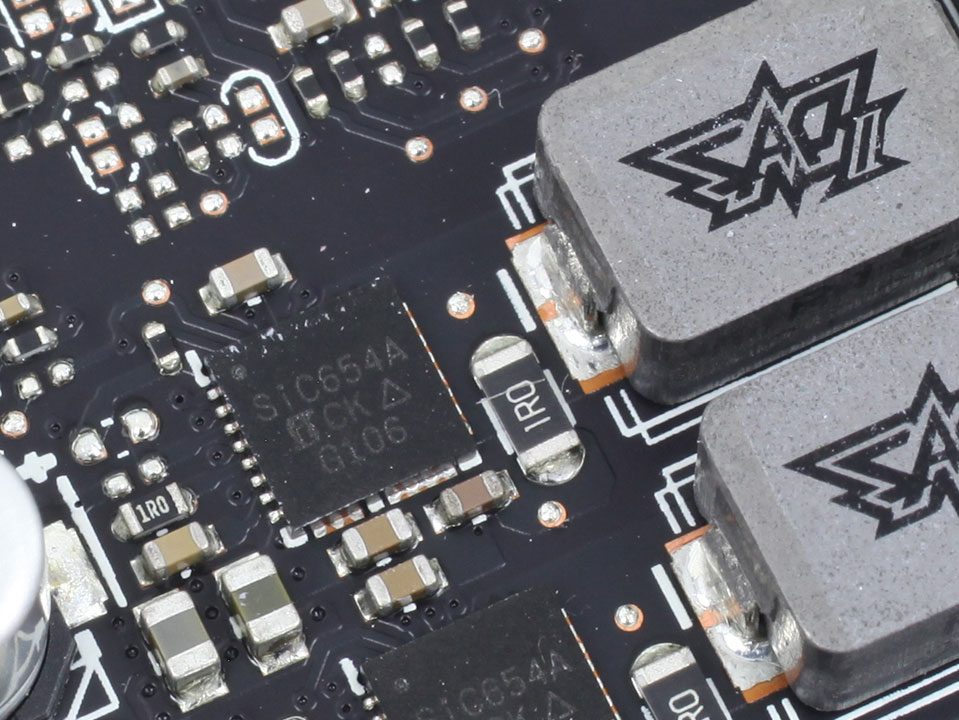

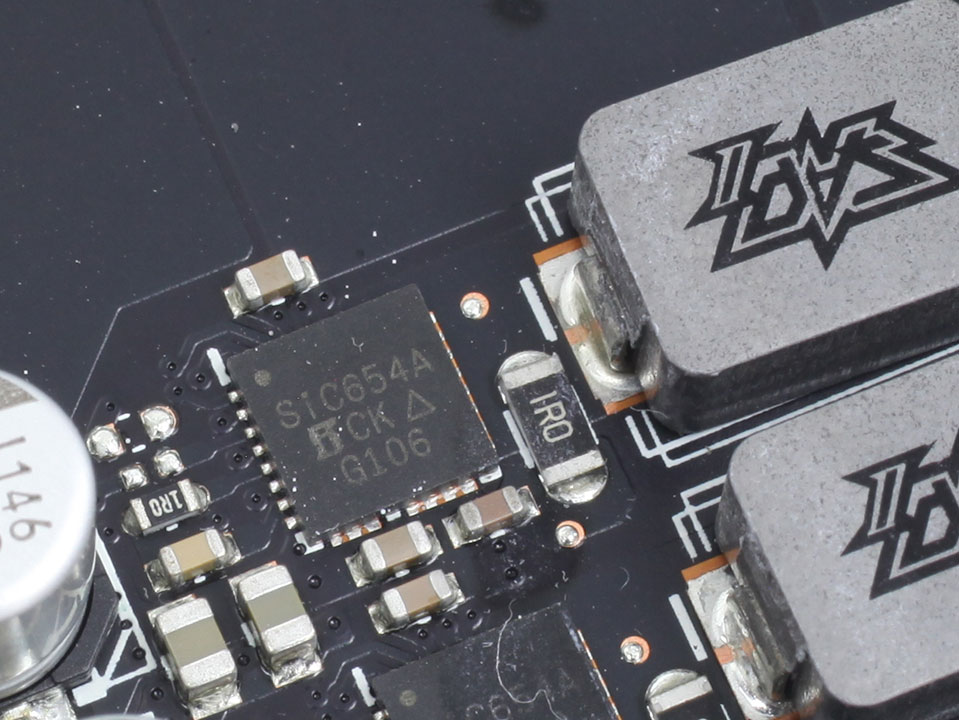

The GPU VRM uses Vishay SIC654A DrMOS components rated for 50 A.

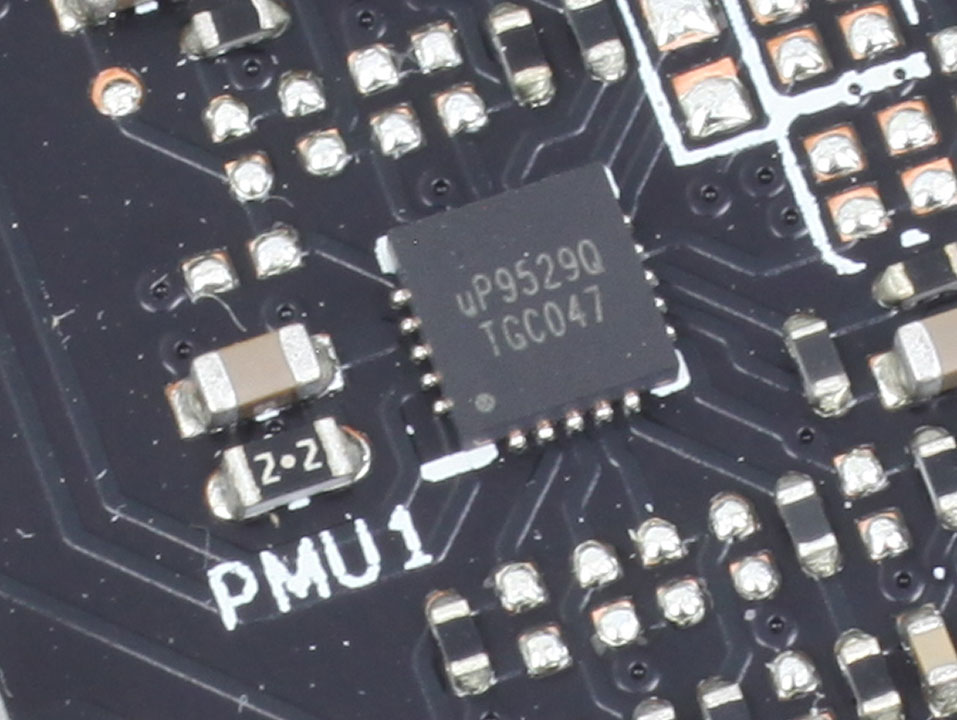

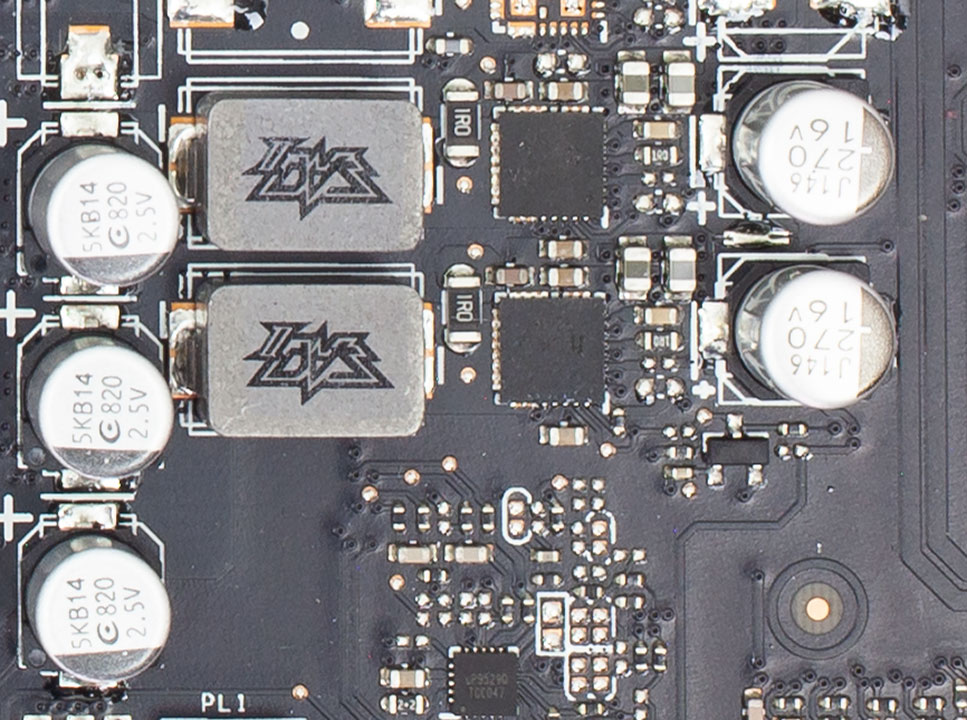

Memory voltage uses a two-phase design and is generated by a UPI uP9529Q controller.


For memory, 50 A Vishay SIC654A DrMOS chips are used, too.

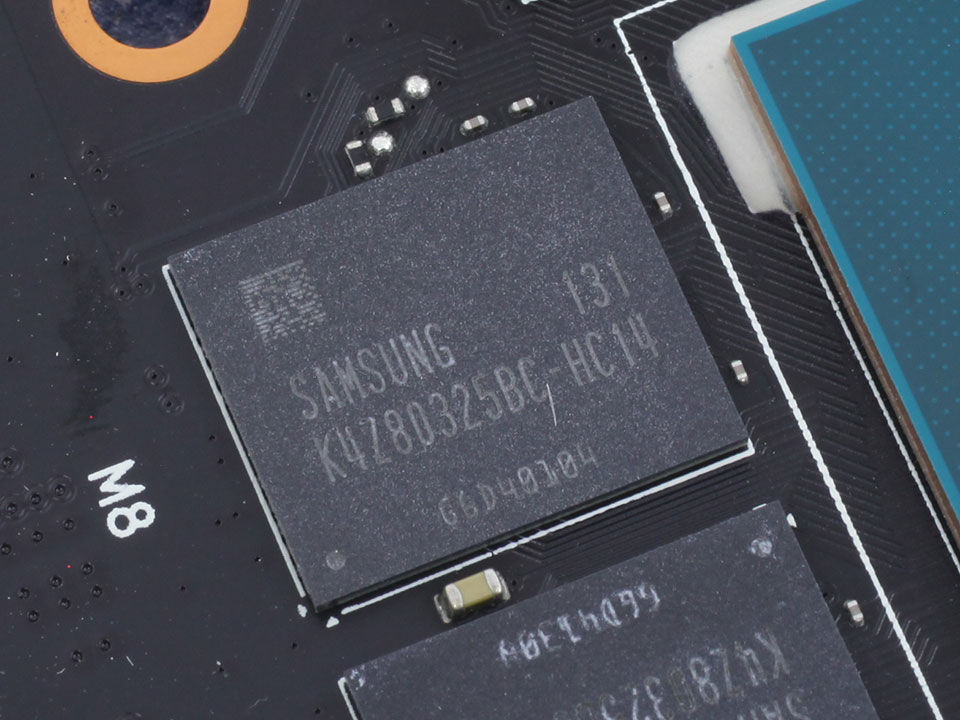

The GDDR6 memory chips are made by Samsung and carry the model number K4Z80325BC-HC14. They are specified to run at 1750 MHz (14 Gbps GDDR6 effective).


NVIDIA's GA104 graphics processor is the company's third Ampere architecture chip, the second one targeted at GeForce gamers. It is produced on a 8 nanometer process at Samsung and has a transistor count of 17.4 billion with a die size of 392 mm².
