EVGA SuperNOVA 1600 T2 Review

Name: EVGA SuperNOVA 1600 T2
Brand: EVGA

crmaris

on Feb 5th, 2016,

in Power Supplies.

Manufacturer: EVGA

EMC Pre-Compliance Testing »

Ripple Measurements

You will see the ripple levels we measured on the SuperNOVA T2 1600's rails in the following table. The limits are, according to the ATX specification, 120 mV (+12V) and 50 mV (5V, 3.3V, and 5VSB).

Ripple Measurements - EVGA SuperNOVA 1600 T2
Test	12 V	5 V	3.3 V	5VSB	Pass/Fail
10% Load	4.1 mV	5.3 mV	7.9 mV	4.9 mV	Pass
20% Load	5.0 mV	7.3 mV	10.1 mV	6.3 mV	Pass
30% Load	6.2 mV	9.4 mV	11.7 mV	6.5 mV	Pass
40% Load	7.3 mV	11.0 mV	13.0 mV	7.0 mV	Pass
50% Load	8.4 mV	13.8 mV	15.9 mV	8.2 mV	Pass
60% Load	8.8 mV	15.3 mV	17.5 mV	9.8 mV	Pass
70% Load	9.5 mV	17.6 mV	16.6 mV	8.7 mV	Pass
80% Load	9.8 mV	18.9 mV	18.5 mV	10.1 mV	Pass
90% Load	11.2 mV	21.7 mV	20.6 mV	10.2 mV	Pass
100% Load	12.0 mV	24.4 mV	23.1 mV	12.3 mV	Pass
110% Load	12.7 mV	26.7 mV	25.8 mV	12.6 mV	Pass
Crossload 1	4.4 mV	5.8 mV	8.5 mV	11.9 mV	Pass
Crossload 2	11.9 mV	24.4 mV	22.9 mV	11.7 mV	Pass

Ripple at +12V is very low, but we have seen other Super Flower platforms perform much better on the minor rails (5V and 3.3V). However, less than 25 mV ripple on the minor rails under full load is still a good result.

Ripple at Full Load

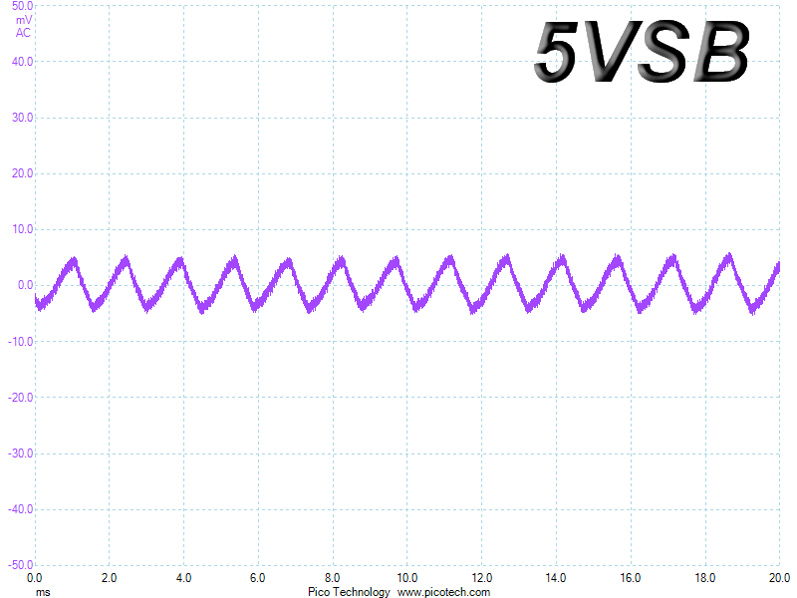

You can see the AC ripple the main rails registered (+12V, 5V, 3.3V, and 5VSB) in the following oscilloscope screenshots. The bigger the fluctuations on the oscilloscope's screen, the bigger the ripple. We set 0.01 V/Div (each vertical division/box equals 0.01 V) as the standard for all of these measurements.
