Finished Looks

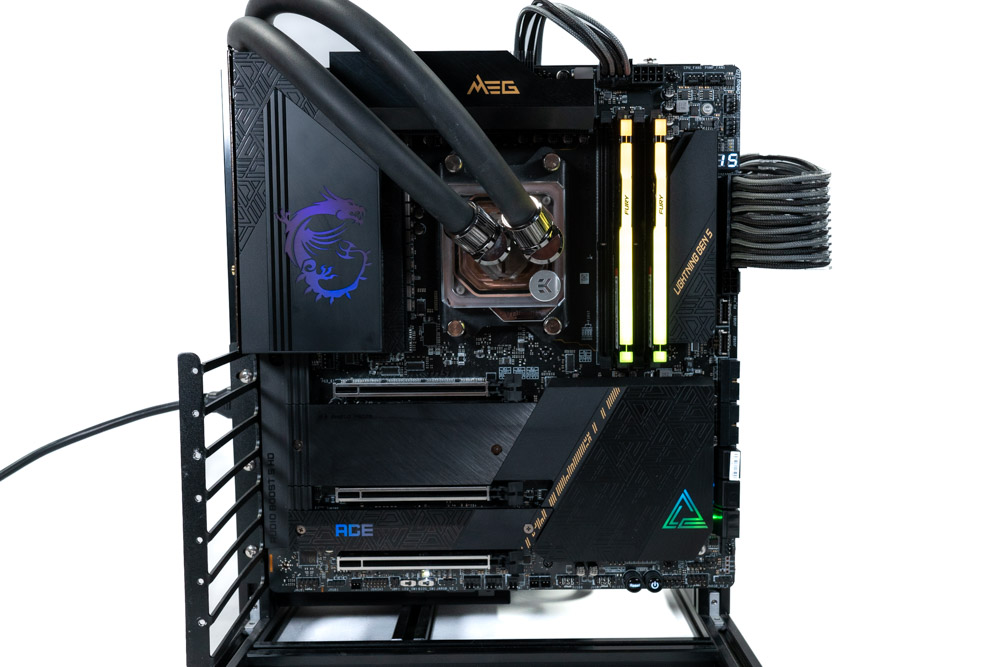

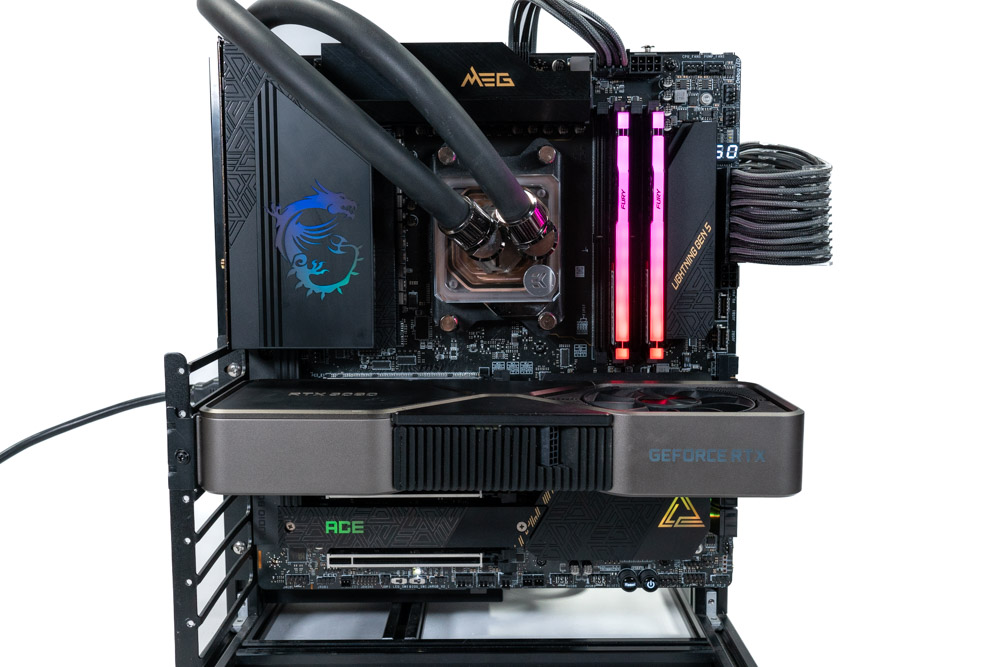

Getting a closer look at the MSI MEG X670E ACE motherboard while it's powered on, we can see the RGB lighting implementation from a distance, while the motherboard has a sleek black design. Upon closer inspection, we can see a finer mosaic triangle pattern sprawled throughout various parts of the motherboard and heatsinks. Four sections of the motherboard have RGB lighting baked in. First is the rear IO with the MSI dragon logo. On the other VRM heatsink is the MEG series branding. Next is the bottom left "ACE" logo and in the right corner is the familiar triangle used in the patterns. Those who prefer no RGB in their system have the option to turn off the RGB elements in software, or with the physical switch.
Test System
Test System |
---|
Processor: | AMD Ryzen 9 7950X |
---|
Memory: | 2x 16 GB Kingston Fury DDR5-6000 KF560C36BBEA-16 (EXPO Enabled) |
---|
Cooling: | Custom loop: EKWB Quantum Velocity, D5 pump, 480 mm radiator |
---|
BIOS Version: | 1.25 |
---|
Graphics Card: | NVIDIA RTX 3080 Ti Founder Edition |
---|
Harddisk: | 1x Neo Forza NFS01 480GB SATA 6 Gb/s SSD (OS) 1x Neo Forza eSPORTS 1TB NVMe M.2 (data) |
---|
Power Supply: | Seasonic PRIME 1000 W Titanium SSR-1000TR |
---|
Case: | Primochill Praxis Wetbench |
---|
Software: | Windows 11 Pro 64-bit NVIDIA GeForce 512.95 WHQL |
---|
Supporting Hardware
Testing is performed with the newest available version of the BIOS at the time of review. All BIOS settings related to the CPU are left untouched. EXPO is enabled for the memory. However, if the primary, secondary or tertiary memory timings are incorrectly set by the BIOS, it is tested as-is, to mimic a standard user. The same goes for the CPU. Unless it is a bug in the current BIOS—i.e., not present in other versions—any and all CPU boost parameters are left alone.
Note: Using BIOS 1.25, DDR5-6000 automatically has the memory controller in a 2:1:1 Ratio. (Infinity Fabric-Memory-Memory Controller).

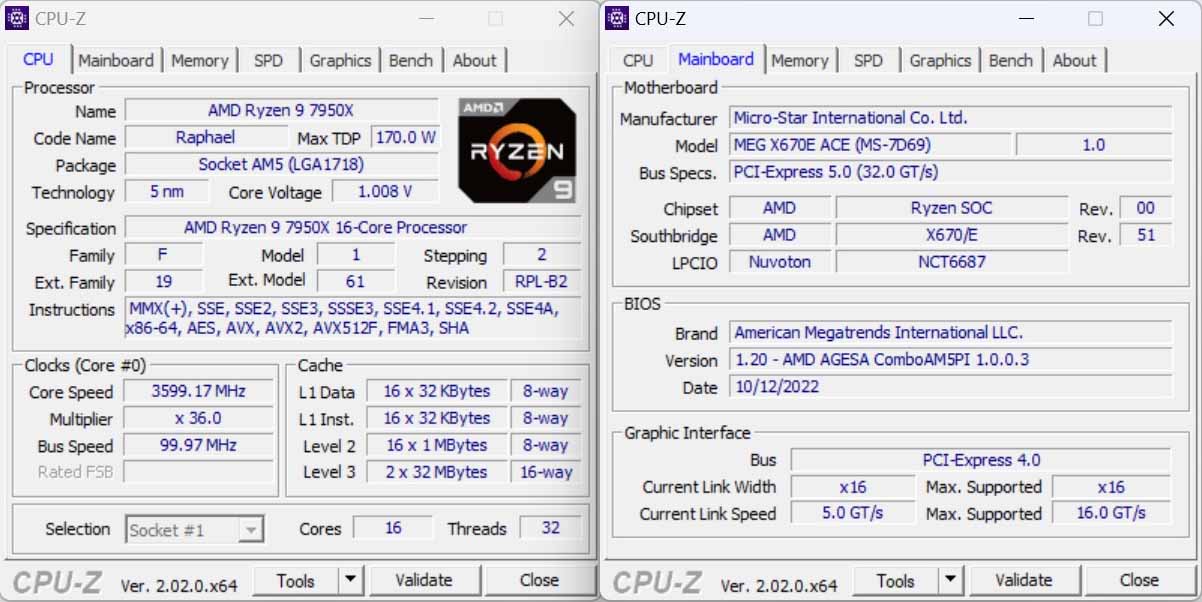

CPU-Z screenshot from previous BIOS version
