2022-X58/1366 PIN Motherboards NVME M.2 SSD BIOS MOD Collection

[kaids32]

gday bud.
many thanks, looking for an update.


MB: Asus Sabertooth
SSD: Samsung 980 PRO 1TB

-hardware ids
PCI\VEN_144D&DEV_A80A&SUBSYS_A801144D&REV_00
PCI\VEN_144D&DEV_A80A&SUBSYS_A801144D
PCI\VEN_144D&DEV_A80A&CC_010802
PCI\VEN_144D&DEV_A80A&CC_0108



[İsmailTPC_Hastanesi]

@İsmailTPC_Hastanesi, Thank You a lot!!! Everything works great! Here are my screens.
Now it's time to try to win "impossible battle" - boot with UEFI only GPU (MSI RX5700)

Thank you for providing information with pictures.
This will benefit other X58 motherboard users.
Thank you.

Finally got the adapter in for the Samsung 970 EVO Plus 2TB.
View attachment 277981

Definitely knocks the socks off the Crucial MX500 1TB SATA SSD that had the OS installed on it before.
View attachment 277983

It would be great to see successful results with more pictures.
Thank you anyway.
This will benefit other X58 motherboard users.
Thank you.

Hi! First for all, sorry for my english You doing a great job @İsmailTPC_Hastanesi ! You make the people happy Can i ask for add another ssd to the same MB?
I have a Kioxia Exceria disk, it's a PCI\VEN_1E0F&DEV_0009 module i think. I will be happy to join x58 team
Best to you and greetings from Poland!

I got the information.
I will prepare the new bios file soon.
Stay tuned.



[Mozzio]

I got the information.
I will prepare the new bios file soon.
Stay tuned.

Already got it @İsmailTPC_Hastanesi
Thanks to @SiwyBis ! Already i have the ori modded bios FH for my mobo and nvme kioxia exceria disk and it works great!

Finally, i'm in x58 team
For other users, bios from @SiwyBis - many thanks!!! Password the same as nick of @SiwyBis
Pozdrowienia z Polski



[İsmailTPC_Hastanesi]

Already got it @İsmailTPC_Hastanesi
Thanks to @SiwyBis ! Already i have the ori modded bios FH for my mobo and nvme kioxia exceria disk and it works great!

Finally, i'm in x58 team
For other users, bios from @SiwyBis - many thanks!!! Password the same as nick of @SiwyBis
Pozdrowienia z Polski

I am so glad you were successful.
I appreciate your work.
However, when I review your file, I see some problems.
Of course, it can also be used as it is.

Some corrections were made for this file, which was previously @Regeneration work.



[necta]

Mr. @İsmailTPC_Hastanesi, thank you very much for putting your energy in this project. It makes me really happy.
If you find some time -and if you are willing to- would you be so kind to add following drive!?

mb:
asus p6x85d-e
ssd:
kingston snV2s/1000g
ids:
PCI\VEN_2646&DEV_5017&SUBSYS_50172646&REV_03
PCI\VEN_2646&DEV_5017&SUBSYS_50172646
PCI\VEN_2646&DEV_5017&CC_010802
PCI\VEN_2646&DEV_5017&CC_0108

Thank you very much in advance!



[İsmailTPC_Hastanesi]

Mr. @İsmailTPC_Hastanesi, thank you very much for putting your energy in this project. It makes me really happy.
If you find some time -and if you are willing to- would you be so kind to add following drive!?

mb:
asus p6x85d-e
ssd:
kingston snV2s/1000g
ids:
PCI\VEN_2646&DEV_5017&SUBSYS_50172646&REV_03
PCI\VEN_2646&DEV_5017&SUBSYS_50172646
PCI\VEN_2646&DEV_5017&CC_010802
PCI\VEN_2646&DEV_5017&CC_0108

Thank you very much in advance!

I got the information.
I will prepare the new bios file as soon as possible.
add some



[Autumn Able]

Thank you for providing information with pictures.
This will benefit other X58 motherboard users.
Thank you.


It would be great to see successful results with more pictures.
Thank you anyway.
This will benefit other X58 motherboard users.
Thank you.


I got the information.
I will prepare the new bios file soon.
Stay tuned.

Here's the BIOS pics. One oddity though is that there's quite a long time now between the POST screen and when it actually gets to the Windows 10 loading screen. Between the two screens there is just a black screen with a blinking cursor at the top left. I'll try to get video of it later.



[İsmailTPC_Hastanesi]

gday bud.
many thanks, looking for an update.


MB: Asus Sabertooth
SSD: Samsung 980 PRO 1TB

-hardware ids
PCI\VEN_144D&DEV_A80A&SUBSYS_A801144D&REV_00
PCI\VEN_144D&DEV_A80A&SUBSYS_A801144D
PCI\VEN_144D&DEV_A80A&CC_010802
PCI\VEN_144D&DEV_A80A&CC_0108

The file is ready..

• 2022/ASUS Sabertooth X58 NVMe SSD BIOS MOD

Feel free to share post update bios screenshots and desktop screenshots with me with other people.
You will also serve the X58 community, you will be helpful.
Thanks.

Mr. @İsmailTPC_Hastanesi, thank you very much for putting your energy in this project. It makes me really happy.
If you find some time -and if you are willing to- would you be so kind to add following drive!?

mb:
asus p6x85d-e
ssd:
kingston snV2s/1000g
ids:
PCI\VEN_2646&DEV_5017&SUBSYS_50172646&REV_03
PCI\VEN_2646&DEV_5017&SUBSYS_50172646
PCI\VEN_2646&DEV_5017&CC_010802
PCI\VEN_2646&DEV_5017&CC_0108

Thank you very much in advance!

The file is ready..

• 2022/ASUS P6X58D-E NVMe SSD BIOS MOD

Feel free to share post update bios screenshots and desktop screenshots with me with other people.
You will also serve the X58 community, you will be helpful.
Thanks.



[kaids32]

If you're ever in Melbourne Australia, I'll have a slab of your favourite beer waiting!! Thank you mate!!!

X58 FTW!!!



[chrisz3]

hello guys!I was searching for various modifications for my old pc,i just saw this amazing mod and i am going to try it just for fun.I own a dfi lanparty dk x58-t3eh6.
I ordered a nvme to pcie adaptor and i am looking for the nvme ssd now, i have 2 (totally) noob questions though!
1st) is any type or brand of nvme gonna work?
2nd) is the file for the motherboard just like a regular update to the motherboard?(if there is any how to in youtube maybe?)
Many thanks to the creator and all the effords here
I will post the results like all the other guys here so more people have access to this!



[milkxxx]

Respected İsmailTPC_Hastanesi[/USER]​

Hi!
Thank you for your good work!
If there is time, see what can be done to make NVME appear in my bios.

MB: ASUS P6X58D Premium
SSD: Netac NV3000 (500 Gb)
Hardware id:
PCI\VEN_1F40&DEV_1202&SUBSYS_12021F40&REV_01
PCI\VEN_1F40&DEV_1202&SUBSYS_12021F40
PCI\VEN_1F40&DEV_1202&CC_010802
PCI\VEN_1F40&DEV_1202&CC_0108

Thank you in advance!

​



[dejan_bin_laden]

Respected İsmailTPC_Hastanesi[/USER]​

Hi!
Thank you for your good work!
If there is time, see what can be done to make NVME appear in my bios.

MB: ASUS P6X58D Premium
SSD: Netac NV3000 (500 Gb)
Hardware id:
PCI\VEN_1F40&DEV_1202&SUBSYS_12021F40&REV_01
PCI\VEN_1F40&DEV_1202&SUBSYS_12021F40
PCI\VEN_1F40&DEV_1202&CC_010802
PCI\VEN_1F40&DEV_1202&CC_0108

Thank you in advance!

​

Here is my mod for P6X58D Premium, can you try it, i tried it with my Kingston A2000, now i added yours also... there are no meltdown and spectre pacthes because of lower performance... if you want them i can add them...



[MattiOfc]

Hey, nice work! - And thank you for everything you do for the community.

Are all the nvme ssd's on the first page (the ones you tried) added to each individual bios file? I saw you already tried with the "Samsung PM961 Series SSD (256GB)" - i have this exact one. Does this mean i can just download the bios file for my motherboard? Thanks.

Motherboard: ASUS P6T DELUXE V2
SSD: Samsung PM961 Series SSD (Samsung MZVLW256HEHP-00000)
PCI\VEN_144D&DEV_A804&SUBSYS_A801144D&REV_00
PCI\VEN_144D&DEV_A804&SUBSYS_A801144D
PCI\VEN_144D&DEV_A804&CC_010802
PCI\VEN_144D&DEV_A804&CC_0108



[dejan_bin_laden]

Hey, nice work! - And thank you for everything you do for the community.

Are all the nvme ssd's on the first page (the ones you tried) added to each individual bios file? I saw you already tried with the "Samsung PM961 Series SSD (256GB)" - i have this exact one. Does this mean i can just download the bios file for my motherboard? Thanks.

Motherboard: ASUS P6T DELUXE V2
SSD: Samsung PM961 Series SSD (Samsung MZVLW256HEHP-00000)
PCI\VEN_144D&DEV_A804&SUBSYS_A801144D&REV_00
PCI\VEN_144D&DEV_A804&SUBSYS_A801144D
PCI\VEN_144D&DEV_A804&CC_010802
PCI\VEN_144D&DEV_A804&CC_0108

yes you can use it that model is integrated already



[MattiOfc]

Here's the BIOS pics. One oddity though is that there's quite a long time now between the POST screen and when it actually gets to the Windows 10 loading screen. Between the two screens there is just a black screen with a blinking cursor at the top left. I'll try to get video of it later.

Same here. For me it just stays like that.



[İsmailTPC_Hastanesi]

If you're ever in Melbourne Australia, I'll have a slab of your favourite beer waiting!! Thank you mate!!!

X58 FTW!!!

View attachment 278372View attachment 278373View attachment 278374

Thank you for your kind offer.
I do not use alcohol.
But in response to your sincere offer, I can order you a doner kebab in Turkey.
What is "doner kebab"?
do a google search.
All expenses are mine.
Thank you very much for the feedback.
The pictures are amazing and you've helped others as well.
Thank you again for your sincerity.

hello guys!I was searching for various modifications for my old pc,i just saw this amazing mod and i am going to try it just for fun.I own a dfi lanparty dk x58-t3eh6.
I ordered a nvme to pcie adaptor and i am looking for the nvme ssd now, i have 2 (totally) noob questions though!
1st) is any type or brand of nvme gonna work?
2nd) is the file for the motherboard just like a regular update to the motherboard?(if there is any how to in youtube maybe?)
Many thanks to the creator and all the effords here
I will post the results like all the other guys here so more people have access to this!

Read the pages here.
For example, there is an explanation on the first page.

• 2022/DFI LANParty DK X58-T3eH6 NVMe SSD BIOS MOD

Same here. For me it just stays like that.

It's a faulty practice to just update the BIOS MOD, do nothing else and move on.
Have you tried queuing your NVMe SSD from the bios boot options and removing any other unnecessary hardware like USB flash drives or cameras?
You should read other users' experiences on the previous pages.
To say "a black line on the screen" is to escape from simplicity and convenience.
Just a little effort.



[necta]

The file is ready..

• 2022/ASUS P6X58D-E NVMe SSD BIOS MOD

Feel free to share post update bios screenshots and desktop screenshots with me with other people.
You will also serve the X58 community, you will be helpful.
Thanks.

Thank you very much for your efforts.
Please excuse my late reply. I don't have much time at the moment, but wanted to let you know, that the BIOS-Flash worked pretty smooth without any problems.
I have to take a closer look at the RND4K results soon. (Maybe it's a problem of partition-alignment!?)



I want to share more detailed informations as soon as I'm no longer stressed.
@İsmailTPC_Hastanesi = fire



[İsmailTPC_Hastanesi]

Added new modded bios files for X58.

• 2022/ASRock X58 SuperComputer NVMe SSD BIOS MOD
• 2022/ASUS Rampage III Gene NVMe SSD BIOS MOD

Brand/Model completed bios files will not be updated again.
After that, special Bios requests will unfortunately not be answered.
Reason;
Since I am extremely busy, the bios modding process for each NVMe SSD module takes a lot of time..
Bios requests will not be interrupted and there will be many requests for individual bios modding for the user.
That's why I don't have much time.

Thank you very much for your efforts.
Please excuse my late reply. I don't have much time at the moment, but wanted to let you know, that the BIOS-Flash worked pretty smooth without any problems.
I have to take a closer look at the RND4K results soon. (Maybe it's a problem of partition-alignment!?)

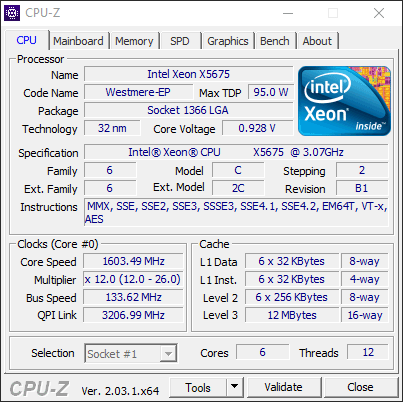

View attachment 278564View attachment 278565View attachment 278566View attachment 278567View attachment 278568

I want to share more detailed informations as soon as I'm no longer stressed.
@İsmailTPC_Hastanesi = fire

Thank you.
The pictures have been great.
Looking forward to other reviews.



[MachineLearning]

EVGA X58 Classified3 (141-GT-E770-A1) NVMe BIOS -
SUCCESS

(Slow write speeds are due to the SSD itself.)

Thank you as always @İsmailTPC_Hastanesi . I will have K8N Neo3-F & A8N32-SLI Deluxe results ready within 1-2 weeks max.



[milkxxx]

Here is my mod for P6X58D Premium, can you try it, i tried it with my Kingston A2000, now i added yours also... there are no meltdown and spectre pacthes because of lower performance... if you want them i can add them...
View attachment 278436

dejan_bin_laden, hello!​

Thank you for your help! With your bios, the disk is working! I installed Windows 11, everything works fine and I'm sending a report!!!



[dejan_bin_laden]

dejan_bin_laden, hello!​

Thank you for your help! With your bios, the disk is working! I installed Windows 11, everything works fine and I'm sending a report!!!

great, say thx to Ismail also he started it first i just adopted for my needs...
If you need spcetre and meltdown pacthes in bios just write here and i will add them



[milkxxx]

great, say thx to Ismail also he started it first i just adopted for my needs...
If you need spcetre and meltdown pacthes in bios just write here and i will add them

Yes, thanks to Ismail for founding such a direction on old platforms and helping people! Dejan_bin_laden, if you have time to fix spectre and meltdown in bios b, I will be grateful!



[dejan_bin_laden]

Yes, thanks to Ismail for founding such a direction on old platforms and helping people! Dejan_bin_laden, if you have time to fix spectre and meltdown in bios b, I will be grateful!

i didnt add them cause it degrades performance, but i will make one for you ...



[İsmailTPC_Hastanesi]

i didnt add them cause it degrades performance, but i will make one for you ...

I haven't been able to find any definite information about it reducing performance.
Rumors are in this direction.
But still the most recent microcode is the best.
I follow your work and hope it continues to help other people.



[dejan_bin_laden]

I haven't been able to find any definite information about it reducing performance.
Rumors are in this direction.
But still the most recent microcode is the best.
I follow your work and hope it continues to help other people.

For example run memory benchmark in aida64 and compare results

Yes, thanks to Ismail for founding such a direction on old platforms and helping people! Dejan_bin_laden, if you have time to fix spectre and meltdown in bios b, I will be grateful!

here it is didnt have time to test so be careful as always
