[Goldfinger]

@MrPanda and @catup
The cooling system for the StarTech adapters is finished. With this, the restoration of this old heirloom is complete. It runs perfectly. Thank you for your friendly support!



[MrPanda]

you gave me a big smile.

this, sir, is some seriously awesome work.

GG



[İsmailTPC_Hastanesi]

Now you can easily add and use NVMe M.2 SSD support to your motherboards.
How to Add NVMe M.2 SSD Module? I Showed the Links Below.
HOW TO ADD NVMe M.2 SSD SUPPORT TO OLD MOTHERBOARDS WITH AMI BIOS LEGACY SUPPORT?

HOW TO ADD NVMe M.2 SSD SUPPORT TO OLD MOTHERBOARDS WITH AMI BIOS LEGACY SUPPORT?

In Legacy Mode, How to add NVMe Option-Option Rom to Ami Bios supported motherboards, which are now called old? PCIe x4 and x1 NVMe M.2 SSD Adapter PCIe x4 NVMe M.2 SSD Adapter PCIe x1 NVMe M.2 SSD Adapter How to? Watch on Youtube. BIOS Modlama, BIOS Modding, AMI BIOS NVMe M.2...

www.techpowerup.com

AWARD-Phoenix Legacy-HOW TO ADD BIOS NVMe M.2 SSD SUPPORT TO OLD MOTHERBOARDS?

AWARD-Phoenix Legacy-HOW TO ADD BIOS NVMe M.2 SSD SUPPORT TO OLD MOTHERBOARDS?

How to Add NVMe Option ROM to AWARD-Phoenix Bios Supported Motherboards in Legacy Mode? Watch videos on Youtube: How to Add NVMe M 2 SSD Support in AWARD Phoenix Legacy BIOS? BIOS Modding, AWARD BIOS NVMe M.2 SSD BOOTABLE BIOS MOD 1-) This process can be done with CBROMTR.exe Turkish...

www.techpowerup.com



[SiggiTheHun]

Re: Startech PEX8M2E2 pcie x8 adapter with bifurcation

Look out for
- Ableconn PEXM2-130
or
- Lycom DT-130

Same card - 20 sometimes up to 30% cheaper.



[RacerAC]

It's good to see you back on these forums Mr. Ismail and once again thank you for helping me out back in 2022 (page 7 of this thread) with the very successful NVME boot SSD upgrade to my aging PC (still my main PC).

One question that has been on my mind all this time and hopefully you will kindly answer is, besides the 500GB WD SN850 ssd I upgraded to, what other name brands/models if any are already baked into the bios file you configured for the original ASUS P6T?

I hope you are doing well.

Thank you in advance for your valuable time.



[İsmailTPC_Hastanesi]

2022/ASUS P6T NVMe SSD BIOS MOD
At that time, I added 20 modules to this Motherboard bios file.

1-1C5C:174A (SKHynix_HFM256GD3HX015N (FW: 41030C20))
2-1987:5012 (Pny CS2130 M280CS2130-500-RB 500GB 3500/925MB/S Pcie Nvme M.2 SSD)
3-2646:2263 (Kingston 500GB M.2 22x80mm PCIe 4.0 NVMe SSD SNV2S/500G)
4-8086:F1A5 (Intel Pro 7600p (SSDPEKKF128G8X1))
5-C0A9:5412 (Micron_NVME_SSD)
6-144D:A808 (Samsung Evo 970 Plus NVMe MZVLB500HBJQ MZ-V7S500)
7-144D:A809 (Samsung SSD 256GB PM991 M.2 2242 42mm PCIe 3.0 x4 NVMe MZALQ256HAJD MZ-ALQ2560)
8-144D:A804 (Samsung PM961 Series SSD (256 GB) MZVLW256HEHP)
9-144D:A822 (Samsung-MZPLL1T6HEHP/1,6 TB)
10-15B7:5009
11-1987:5019 (MSI SSD SPATIUM M450 PCIE 4.0 NVME M.2 500GB)
12-15B7:5011
13-10EC:5763 (CARDEA ZERO Z330 M.2 PCIe SSD)
14-15B7:5019 (Western Digital WDC PC SN530 SDBPNPZ-256G-1006 (FW: HPS2))
15-17AA:0005
16-126F:2263
17-144D:A80A (Samsung 990 Pro NVMe 2.0/2TB)
18-2646:5013
19-2646:5017
20-15B7:5017

I remember some of them right now. I don't remember the others.
But I'm sure you'll find them if you do some research.

I would like to give you and X58 Motherboard users another piece of good news.
Appreciate the motherboard you have.
Because these magnificent motherboards, although they do not fully respond to today's technological updates, are in the top series class of motherboards without a "BACK DOOR".
I tried to explain this a little bit in my latest video on Youtube.
Just appreciate it, That's it.



[raVenXDA]

1-1C5C:174A (SKHynix_HFM256GD3HX015N (FW: 41030C20))
2-1987:5012 (Pny CS2130 M280CS2130-500-RB 500GB 3500/925MB/S Pcie Nvme M.2 SSD)
3-2646:2263 (Kingston 500GB M.2 22x80mm PCIe 4.0 NVMe SSD SNV2S/500G)
4-8086:F1A5 (Intel Pro 7600p (SSDPEKKF128G8X1))
5-C0A9:5412 (Micron_NVME_SSD)
6-144D:A808 (Samsung Evo 970 Plus NVMe MZVLB500HBJQ MZ-V7S500)
7-144D:A809 (Samsung SSD 256GB PM991 M.2 2242 42mm PCIe 3.0 x4 NVMe MZALQ256HAJD MZ-ALQ2560)
8-144D:A804 (Samsung PM961 Series SSD (256 GB) MZVLW256HEHP)
9-144D:A822 (Samsung-MZPLL1T6HEHP/1,6 TB)
10-15B7:5009 (Sandisk Corp : WD Blue SN550 NVMe SSD)
11-1987:5019 (MSI SSD SPATIUM M450 PCIE 4.0 NVME M.2 500GB)
12-15B7:5011 (WD PC SN810 / Black SN850 NVMe SSD)
13-10EC:5763 (CARDEA ZERO Z330 M.2 PCIe SSD)
14-15B7:5019 (Western Digital WDC PC SN530 SDBPNPZ-256G-1006 (FW: HPS2))
15-17AA:0005 (Lenovo unknown device Id)
16-126F:2263 ( Silicon Motion, Inc. : SM2263EN/SM2263XT SSD Controller)
17-144D:A80A (Samsung 990 Pro NVMe 2.0/2TB)
18-2646:5013 (Kingston Renegade NVMe 1tb)
19-2646:5017 (Kingston : unknown device Id)
20-15B7:5017

this is for the 2022/ASUS P6T NVMe SSD BIOS MOD
would be great to have this full list for all the modded bios files (if different to this list)


but you can check your modded bios file to see what vendor and device id are contained within it and then using devicehunt.com find out what the NVMe drive and vendor are.
To see what in your bios or to be able to add a new vendor and device id i have written up a step by step guide



[cadabra]

hello first of all thank you guys very much for all the helpful information and could you so kindle do a bios for my machine please.

Intel(R) Xeon(R) CPU X5675 @ 3.07GHz 3.07 GHz
Crucial P2 500GB M.2 Internal SSD
CT500P2SSD8
PCI\VEN_C0A9&DEV_540A&CC_0108
ASUS P6X58D Premium

thank you again.



[Goldfinger]

I’ve set up a new test environment based on a GA-X58A-UD3R board (Rev. 2.0, BIOS already updated — see my previous posts). To improve thermal conditions, I installed a CPU cooler that also provides airflow over the Northbridge/Southbridge and RAM banks — a critical factor for X58-based systems, especially under sustained load.
The board is equipped with 6 × 8 GB Crucial Ballistix modules (BLT8G3D1869DT1TX0.16FED, DDR3-1866), which pushes the platform close to its specification limits. Memory training and timing adjustments are still being fine-tuned manually. So far, the system has proven fully stable under load (gaming, file transfers >100 GB, stress testing).

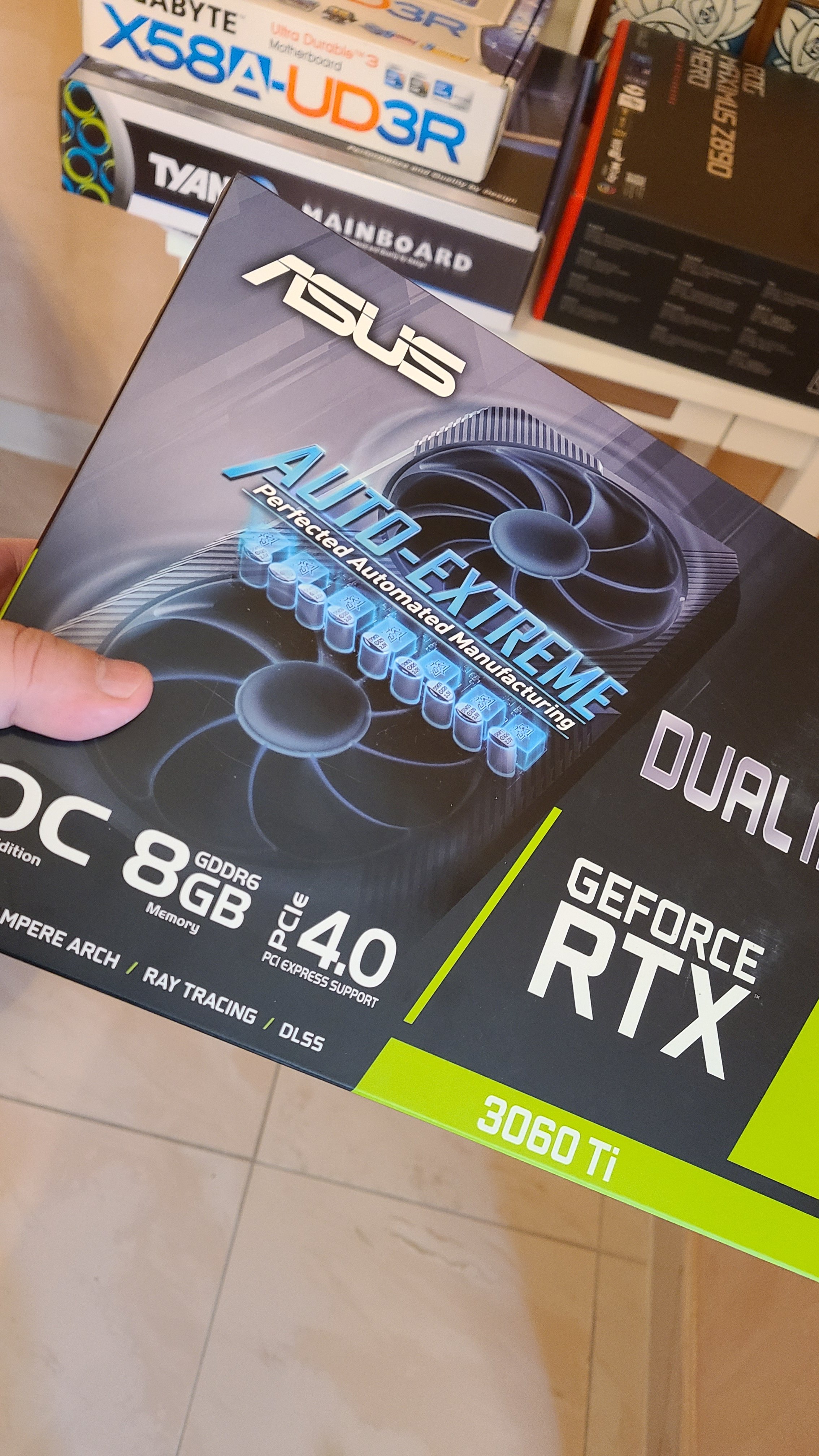

A RTX 3060 Ti Mini (Asus, dual-fan design) will be installed next. The test run with the 3060 Ti is still pending.

Following that, I plan to restore and test an older Asus P8Z77 Premium board (paired with an i7-3770K). I’ll provide further updates once initial benchmarks and stability results are available — though this may take some time due to the workload involved.



[Silwer]

@MrPanda and @catup
Thank you both for your efforts and for responding to the requests for help and support from Users in this content.
This is a voluntary work.
Unfortunately, everything has become money in the world.
We have started to heal the wounds of that great earthquake disaster in my country.
For now, I am very well and healthy on my own behalf.
My dear brother @Silwer,
I understand that this is your first message in this forum and the reason you found here is NVMe M.2 SSD Bios support for X58 motherboard.
I am happy to inform you that you can now add NVMe M.2 Support to your old motherboards more easily.
You can do this very easily yourself.
I opened a new topic in the Link below.

HOW TO ADD NVMe M.2 SSD SUPPORT TO OLD MOTHERBOARDS WITH AMI BIOS LEGACY SUPPORT?​

HOW TO ADD NVMe M.2 SSD SUPPORT TO OLD MOTHERBOARDS WITH AMI BIOS LEGACY SUPPORT?

In Legacy Mode, How to add NVMe Option-Option Rom to Ami Bios supported motherboards, which are now called old? PCIe x4 and x1 NVMe M.2 SSD Adapter PCIe x4 NVMe M.2 SSD Adapter PCIe x1 NVMe M.2 SSD Adapter How to? Watch on Youtube. BIOS Modlama, BIOS Modding, AMI BIOS NVMe M.2...

www.techpowerup.com

Hi @İsmailTPC_Hastanesi

And hi @MrPanda and @catup

Thank you all very much for your replies. I've been offshore for work and just got started to click on the links provided:


..the device id from my NMVE:

VEN: 2646
DEV: 5028

--

So here's what I did:

I downloaded files via @catup post on Jul 18, 2024

mmtool322.exe
OpRomCfg.exe
NvmeOpRom.BIN

But the SABRTOTH.ROM file came from 2022_ASUS_SABERTOOTH-X58-1403-NVME_M.2_SSD_BIOS_MOD.rar.

I followed the instructions to make a TEST folder and put all files above in to it.
In CMD promt:

C:\Users\pc\Desktop>OpRomCfg NvmeOpRom.bin 2646 5028
'OpRomCfg' is not recognized as an internal or external command,
operable program or batch file.

I releized that I needed to instal OpRomCfg.exe first. But I found out that I could not use/open the "OpRomCfg.exe" (a black window apear/dissapered) ?? I've also tried disable blocking of unwanted app in the system.



[MrPanda]

hello

i modded an Asus P8Z68-V PRO here so it can run a nvme, things went smoothly and are working fine.
also a MSI Z87-G45 gaming. in fact all computers in house run nvme as system drive now.

the X58-UD7 is provided with a waterblock for the northdridge. still thinking about it, problem being to find space to put the liquid tank, and the money to buy custom accessories that probably wont fit 15 years old waterblock.

as long as the IOH doesnt run over 60-65° all is fine here. problem being the summer and heatwaves. things get tricky then, when the room temp goes over 35°c, shutting down the computer and putting desktop fans on the NAS is the only way to go.

i wish i could get a 48GB ram kit. sometimes 24GB is just enough here (and i dont run 3x VMs for W.O.W.) i guess i'll have to learn how to close my browsers tabs (more than a hundred most of the time.)



[Silwer]

So I just wanted to update the progress.

I have made it work. So thank you all for posting to right directions!
