90c+ CPUs

Joined
Jan 14, 2019
Messages
12,586 (5.80/day)
Location
Midlands, UK
System Name Nebulon B
Processor AMD Ryzen 7 7800X3D
Motherboard MSi PRO B650M-A WiFi
Cooling be quiet! Dark Rock 4
Memory 2x 24 GB Corsair Vengeance DDR5-4800
Video Card(s) AMD Radeon RX 6750 XT 12 GB
Storage 2 TB Corsair MP600 GS, 2 TB Corsair MP600 R2
Display(s) Dell S3422DWG, 7" Waveshare touchscreen
Case Kolink Citadel Mesh black
Audio Device(s) Logitech Z333 2.1 speakers, AKG Y50 headphones
Power Supply Seasonic Prime GX-750
Mouse Logitech MX Master 2S
Keyboard Logitech G413 SE
Software Bazzite (Fedora Linux) KDE
Unlikely

@tabascosauz talked about IF degradation which related to DRAM OC and IF v/f.
Has nothing to do with false CPU telemetry to force it exceed stock package power.
Fair enough. But what if it was using so much power because the board unnecessarily overvolted the CPU and IF as @Zach_01 mentioned? That overvoltage could have led to degradation maybe?

Just trying to learn how things work. :ohwell:

Last edited:
Joined
Sep 3, 2019
Messages
3,584 (1.85/day)
Location
Thessaloniki, Greece
System Name PC on since Aug 2019, 1st CPU R5 3600 + ASUS ROG RX580 8GB >> MSI Gaming X RX5700XT (Jan 2020)
Processor Ryzen 9 5900X (July 2022), 200W PPT limit, 80C temp limit, CO -6-14, +50MHz (up to 5.0GHz)
Motherboard Gigabyte X570 Aorus Pro (Rev1.0), BIOS F39b, AGESA V2 1.2.0.C
Cooling Arctic Liquid Freezer II 420mm Rev7 (Jan 2024) with off-center mount for Ryzen, TIM: Kryonaut
Memory 2x16GB G.Skill Trident Z Neo GTZN (July 2022) 3667MT/s 1.42V CL16-16-16-16-32-48 1T, tRFC:280, B-die
Video Card(s) Sapphire Nitro+ RX 7900XTX (Dec 2023) 314~467W (382W current) PowerLimit, 1060mV, Adrenalin v24.12.1
Storage Samsung NVMe: 980Pro 1TB(OS 2022), 970Pro 512GB(2019) / SATA-III: 850Pro 1TB(2015) 860Evo 1TB(2020)
Display(s) Dell Alienware AW3423DW 34" QD-OLED curved (1800R), 3440x1440 144Hz (max 175Hz) HDR400/1000, VRR on
Case None... naked on desk
Audio Device(s) Astro A50 headset
Power Supply Corsair HX750i, ATX v2.4, 80+ Platinum, 93% (250~700W), modular, single/dual rail (switch)
Mouse Logitech MX Master (Gen1)
Keyboard Logitech G15 (Gen2) w/ LCDSirReal applet
Software Windows 11 Home 64bit (v24H2, OSBuild 26100.2605), upgraded from Win10 to Win11 on Jan 2024
Fair enough. But what if it was using so much power because of the board unnecessarily overvolting the CPU and IF as @Zach_01 mentioned?
Board cannot overvolt or overclock IF by it self. Its different from Core v/f.
Boards are using false current(A) telemetry data to tell the CPU that it draws less power than it does and the CPU asks VRMs for more. But that is on Core VRM rails only.
SoC VRMs are separate


Count von Schwalbe

Nocturnus Moderatus
Staff member
Joined
Nov 15, 2021
Messages
3,179 (2.80/day)
Location
Knoxville, TN, USA
System Name Work Computer | Unfinished Computer
Processor Core i7-6700 | Ryzen 5 5600X
Motherboard Dell Q170 | Gigabyte Aorus Elite Wi-Fi
Cooling A fan? | Truly Custom Loop
Memory 4x4GB Crucial 2133 C17 | 4x8GB Corsair Vengeance RGB 3600 C26
Video Card(s) Dell Radeon R7 450 | RTX 2080 Ti FE
Storage Crucial BX500 2TB | TBD
Display(s) 3x LG QHD 32" GSM5B96 | TBD
Case Dell | Heavily Modified Phanteks P400
Power Supply Dell TFX Non-standard | EVGA BQ 650W
Mouse Monster No-Name $7 Gaming Mouse| TBD
Is there a PRD for SoC power, affecting Vsoc?

Joined
Sep 3, 2019
Messages
3,584 (1.85/day)
Location
Thessaloniki, Greece
System Name PC on since Aug 2019, 1st CPU R5 3600 + ASUS ROG RX580 8GB >> MSI Gaming X RX5700XT (Jan 2020)
Processor Ryzen 9 5900X (July 2022), 200W PPT limit, 80C temp limit, CO -6-14, +50MHz (up to 5.0GHz)
Motherboard Gigabyte X570 Aorus Pro (Rev1.0), BIOS F39b, AGESA V2 1.2.0.C
Cooling Arctic Liquid Freezer II 420mm Rev7 (Jan 2024) with off-center mount for Ryzen, TIM: Kryonaut
Memory 2x16GB G.Skill Trident Z Neo GTZN (July 2022) 3667MT/s 1.42V CL16-16-16-16-32-48 1T, tRFC:280, B-die
Video Card(s) Sapphire Nitro+ RX 7900XTX (Dec 2023) 314~467W (382W current) PowerLimit, 1060mV, Adrenalin v24.12.1
Storage Samsung NVMe: 980Pro 1TB(OS 2022), 970Pro 512GB(2019) / SATA-III: 850Pro 1TB(2015) 860Evo 1TB(2020)
Display(s) Dell Alienware AW3423DW 34" QD-OLED curved (1800R), 3440x1440 144Hz (max 175Hz) HDR400/1000, VRR on
Case None... naked on desk
Audio Device(s) Astro A50 headset
Power Supply Corsair HX750i, ATX v2.4, 80+ Platinum, 93% (250~700W), modular, single/dual rail (switch)
Mouse Logitech MX Master (Gen1)
Keyboard Logitech G15 (Gen2) w/ LCDSirReal applet
Software Windows 11 Home 64bit (v24H2, OSBuild 26100.2605), upgraded from Win10 to Win11 on Jan 2024
Joined
Mar 16, 2017
Messages
2,161 (0.76/day)
Location
Tanagra
System Name Budget Box
Processor Xeon E5-2667v2
Motherboard ASUS P9X79 Pro
Cooling Some cheap tower cooler, I dunno
Memory 32GB 1866-DDR3 ECC
Video Card(s) XFX RX 5600XT
Storage WD NVME 1GB
Display(s) ASUS Pro Art 27"
Case Antec P7 Neo
I remember my 3DFX Voodoo 3 2000 had a dinky passive heat sink on it, and if you touched it after a gaming session it would burn your finger. No clue what the temps were since GPUs back then didn’t report them, but it was scalding.

Joined
May 2, 2017
Messages
7,762 (2.78/day)
Location
Back in Norway
System Name Hotbox
Processor AMD Ryzen 7 5800X, 110/95/110, PBO +150Mhz, CO -7,-7,-20(x6),
Motherboard ASRock Phantom Gaming B550 ITX/ax
Cooling LOBO + Laing DDC 1T Plus PWM + Corsair XR5 280mm + 2x Arctic P14
Memory 32GB G.Skill FlareX 3200c14 @3800c15
Video Card(s) PowerColor Radeon 6900XT Liquid Devil Ultimate, UC@2250MHz max @~200W
Storage 2TB Adata SX8200 Pro
Display(s) Dell U2711 main, AOC 24P2C secondary
Case SSUPD Meshlicious
Audio Device(s) Optoma Nuforce μDAC 3
Power Supply Corsair SF750 Platinum
Mouse Logitech G603
Keyboard Keychron K3/Cooler Master MasterKeys Pro M w/DSA profile caps
Software Windows 10 Pro
I remember my 3DFX Voodoo 3 2000 had a dinky passive heat sink on it, and if you touched it after a gaming session it would burn your finger. No clue what the temps were since GPUs back then didn’t report them, but it was scalding.
Fingers are poor thermometers though - even 60°C can give serious burns on skin.

Joined
Aug 15, 2016
Messages
486 (0.16/day)
Processor Intel i7 4770k
Motherboard ASUS Sabertooth Z87
Cooling BeQuiet! Shadow Rock 3
Memory Patriot Viper 3 RedD 16 GB @ 1866 MHz
Video Card(s) XFX RX 480 GTR 8GB
Storage 1x SSD Samsung EVO 250 GB 1x HDD Seagate Barracuda 3 TB 1x HDD Seagate Barracuda 4 TB
Display(s) AOC Q27G2U QHD, Dell S2415H FHD
Case Cooler Master HAF XM
Audio Device(s) Magnat LZR 980, Razer BlackShark V2, Altec Lansing 251
Power Supply Corsair AX860
Mouse Razer DeathAdder V2
Keyboard Razer Huntsman Tournament Edition
Software Windows 10 Pro x64
It takes quite a lot of effort to scratch through a nickel plating. It's not tin foil.
You're right, it's not like tin foil, it's way thinner than that.

The maximum thickness of electroless nickel plating is limited to approximately 0.1 mm.

Joined
May 2, 2017
Messages
7,762 (2.78/day)
Location
Back in Norway
System Name Hotbox
Processor AMD Ryzen 7 5800X, 110/95/110, PBO +150Mhz, CO -7,-7,-20(x6),
Motherboard ASRock Phantom Gaming B550 ITX/ax
Cooling LOBO + Laing DDC 1T Plus PWM + Corsair XR5 280mm + 2x Arctic P14
Memory 32GB G.Skill FlareX 3200c14 @3800c15
Video Card(s) PowerColor Radeon 6900XT Liquid Devil Ultimate, UC@2250MHz max @~200W
Storage 2TB Adata SX8200 Pro
Display(s) Dell U2711 main, AOC 24P2C secondary
Case SSUPD Meshlicious
Audio Device(s) Optoma Nuforce μDAC 3
Power Supply Corsair SF750 Platinum
Mouse Logitech G603
Keyboard Keychron K3/Cooler Master MasterKeys Pro M w/DSA profile caps
Software Windows 10 Pro
You're right, it's not like tin foil, it's way thinner than that.
But also far more tightly bonded, and a much, much stronger metal than aluminium. So, scratching it off takes effort. Sure, a single gouge with a sharp piece of steel will do it - but that gouge must then have some force behind it. Light abrasion won't take it off. Heck, you can still see the laser etched markings on them - that really isn't a lot of wear. Nickel is also harder than copper, making it quite wear resistant even in thin coatings, especially when contacting cold plates made from either nickel plated copper, copper, or aluminium.

Also, according to this, standard duty aluminium foil in the US is between 0.0004-0.0007" thick, or ~0.01016-0.01778mm thick. That's an order of magnitude thinner than 0.1mm.

Joined
Aug 15, 2016
Messages
486 (0.16/day)
Processor Intel i7 4770k
Motherboard ASUS Sabertooth Z87
Cooling BeQuiet! Shadow Rock 3
Memory Patriot Viper 3 RedD 16 GB @ 1866 MHz
Video Card(s) XFX RX 480 GTR 8GB
Storage 1x SSD Samsung EVO 250 GB 1x HDD Seagate Barracuda 3 TB 1x HDD Seagate Barracuda 4 TB
Display(s) AOC Q27G2U QHD, Dell S2415H FHD
Case Cooler Master HAF XM
Audio Device(s) Magnat LZR 980, Razer BlackShark V2, Altec Lansing 251
Power Supply Corsair AX860
Mouse Razer DeathAdder V2
Keyboard Razer Huntsman Tournament Edition
Software Windows 10 Pro x64
But also far more tightly bonded, and a much, much stronger metal than aluminium. So, scratching it off takes effort. Sure, a single gouge with a sharp piece of steel will do it - but that gouge must then have some force behind it. Light abrasion won't take it off. Heck, you can still see the laser etched markings on them - that really isn't a lot of wear. Nickel is also harder than copper, making it quite wear resistant even in thin coatings, especially when contacting cold plates made from either nickel plated copper, copper, or aluminium.

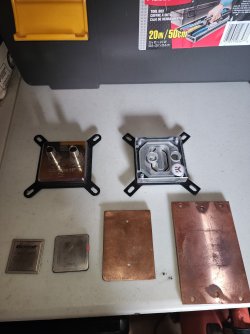

I've circled a torn off piece of the Athlon's IHS, you can clearly see that there is no copper under there.


Attachments

  • 20220928_113asd321.jpg
    2.2 MB · Views: 73
Joined
May 2, 2017
Messages
7,762 (2.78/day)
Location
Back in Norway
System Name Hotbox
Processor AMD Ryzen 7 5800X, 110/95/110, PBO +150Mhz, CO -7,-7,-20(x6),
Motherboard ASRock Phantom Gaming B550 ITX/ax
Cooling LOBO + Laing DDC 1T Plus PWM + Corsair XR5 280mm + 2x Arctic P14
Memory 32GB G.Skill FlareX 3200c14 @3800c15
Video Card(s) PowerColor Radeon 6900XT Liquid Devil Ultimate, UC@2250MHz max @~200W
Storage 2TB Adata SX8200 Pro
Display(s) Dell U2711 main, AOC 24P2C secondary
Case SSUPD Meshlicious
Audio Device(s) Optoma Nuforce μDAC 3
Power Supply Corsair SF750 Platinum
Mouse Logitech G603
Keyboard Keychron K3/Cooler Master MasterKeys Pro M w/DSA profile caps
Software Windows 10 Pro
I've circled a torn off piece of the Athlon's IHS, you can clearly see that there is no copper under there.
Torn off? That's dented. How on earth would you tear a chunk out of an IHS like that?


tabascosauz

Moderator
Supporter
Staff member
Joined
Jun 24, 2015
Messages
8,182 (2.36/day)
Location
Western Canada
System Name ab┃ob
Processor 7800X3D┃5800X3D
Motherboard B650E PG-ITX┃X570 Impact
Cooling NH-U12A + T30┃AXP120-x67
Memory 64GB 6400CL32┃32GB 3600CL14
Video Card(s) RTX 4070 Ti Eagle┃RTX A2000
Storage 8TB of SSDs┃1TB SN550
Case Caselabs S3┃Lazer3D HT5
Was it PRD 76% along with 88W PPT? Because you do know PRD value alone doesn't mean anything.
I've seen some CPUs on screenshots here at TPU that had a awfully low PRD but also their PPT value was too low at the same time during all core loads/tests.

I mean if you had 88W PPT, 76% PRD this is:
88 / 0.76 = 115~116W

But if PPT was also lower that 88W (lets say 75) then true wattage is something else
75 / 0.76 = 98~99W

This was Zen2, it consistently maxed out PPT in all-core benches, 87-88W usually

Usually 76.1-76.5%, other boards were around the 95% mark with the TUF at 101-103%

Joined
May 2, 2017
Messages
7,762 (2.78/day)
Location
Back in Norway
System Name Hotbox
Processor AMD Ryzen 7 5800X, 110/95/110, PBO +150Mhz, CO -7,-7,-20(x6),
Motherboard ASRock Phantom Gaming B550 ITX/ax
Cooling LOBO + Laing DDC 1T Plus PWM + Corsair XR5 280mm + 2x Arctic P14
Memory 32GB G.Skill FlareX 3200c14 @3800c15
Video Card(s) PowerColor Radeon 6900XT Liquid Devil Ultimate, UC@2250MHz max @~200W
Storage 2TB Adata SX8200 Pro
Display(s) Dell U2711 main, AOC 24P2C secondary
Case SSUPD Meshlicious
Audio Device(s) Optoma Nuforce μDAC 3
Power Supply Corsair SF750 Platinum
Mouse Logitech G603
Keyboard Keychron K3/Cooler Master MasterKeys Pro M w/DSA profile caps
Software Windows 10 Pro
This was Zen2, it consistently maxed out PPT in all-core benches, 87-88W usually

Usually 76.1-76.5%, other boards were around the 95% mark with the TUF at 101-103%
Wow, that's pretty bad. Was B450 worse than B550 for this? Both my ASRock B550 boards never leave 100% under load.


tabascosauz

Moderator
Supporter
Staff member
Joined
Jun 24, 2015
Messages
8,182 (2.36/day)
Location
Western Canada
System Name ab┃ob
Processor 7800X3D┃5800X3D
Motherboard B650E PG-ITX┃X570 Impact
Cooling NH-U12A + T30┃AXP120-x67
Memory 64GB 6400CL32┃32GB 3600CL14
Video Card(s) RTX 4070 Ti Eagle┃RTX A2000
Storage 8TB of SSDs┃1TB SN550
Case Caselabs S3┃Lazer3D HT5
Wow, that's pretty bad. Was B450 worse than B550 for this? Both my ASRock B550 boards never leave 100% under load.

They definitely wisened up a bit after HWInfo had the feature. I can't recall any specific B550 or X570 boards that bad, but I can remember quite a few B450 and earlier boards being that bad.

I didn't have the opportunity to get past AGESA 1100D I think, to see whether Gigabyte eventually patched it. But I don't think any of my boards have changed their power reporting deviation over time

Joined
Sep 3, 2019
Messages
3,584 (1.85/day)
Location
Thessaloniki, Greece
System Name PC on since Aug 2019, 1st CPU R5 3600 + ASUS ROG RX580 8GB >> MSI Gaming X RX5700XT (Jan 2020)
Processor Ryzen 9 5900X (July 2022), 200W PPT limit, 80C temp limit, CO -6-14, +50MHz (up to 5.0GHz)
Motherboard Gigabyte X570 Aorus Pro (Rev1.0), BIOS F39b, AGESA V2 1.2.0.C
Cooling Arctic Liquid Freezer II 420mm Rev7 (Jan 2024) with off-center mount for Ryzen, TIM: Kryonaut
Memory 2x16GB G.Skill Trident Z Neo GTZN (July 2022) 3667MT/s 1.42V CL16-16-16-16-32-48 1T, tRFC:280, B-die
Video Card(s) Sapphire Nitro+ RX 7900XTX (Dec 2023) 314~467W (382W current) PowerLimit, 1060mV, Adrenalin v24.12.1
Storage Samsung NVMe: 980Pro 1TB(OS 2022), 970Pro 512GB(2019) / SATA-III: 850Pro 1TB(2015) 860Evo 1TB(2020)
Display(s) Dell Alienware AW3423DW 34" QD-OLED curved (1800R), 3440x1440 144Hz (max 175Hz) HDR400/1000, VRR on
Case None... naked on desk
Audio Device(s) Astro A50 headset
Power Supply Corsair HX750i, ATX v2.4, 80+ Platinum, 93% (250~700W), modular, single/dual rail (switch)
Mouse Logitech MX Master (Gen1)
Keyboard Logitech G15 (Gen2) w/ LCDSirReal applet
Software Windows 11 Home 64bit (v24H2, OSBuild 26100.2605), upgraded from Win10 to Win11 on Jan 2024
This was Zen2, it consistently maxed out PPT in all-core benches, 87-88W usually

Usually 76.1-76.5%, other boards were around the 95% mark with the TUF at 101-103%
True...
Same board I have now worked the R5 3600 at 87~88W PPT and PRD 91~92% And that was across all BIOSs even the latests (test it up to F35 v1.2.0.5)

Now the 5900X is what ever PPT I have set it and PRD is varying between 101~110% depending the load.
Usually around 102~104%.

Last edited:
D

Deleted member 185158

Guest
Torn off? That's dented. How on earth would you tear a chunk out of an IHS like that?
Those dents are from the pair of vice grips used to rip the plate off the chip. Not literally, but a great handle for a delid. I heat the plate with a soldering torch for removal.

No, it makes it possible to respond to individual statements so that things are at least moderately readable, unlike this wall of spaced-out sentences you've posted here.

Okay, I had a long answer here, but reading to the end of your post has made it abundantly clear to me that we're not discussing the same thing. You've been working off of radically different assumptions for what is being discussed here, and arguing against my statements about a given platform with statements that assume every single variable is up for discussion. It isn't. Yes, there is a relation between die size, IHS size, and IHS thickness. For a given platform, IHS size is fixed, as it's determined by the socket and package dimensions (with maybe a mm or two of leeway for tweaking the design in X and Y directions. So: the area of the IHS for any given platform is fixed, and not up for discussion - at least unless it's brought up at the beginning of the damn discussion. Which you didn't. You responded to me saying the IHS was too thick by arguing that no, a thicker IHS would be better. Which ... no. Just no.

The question I've been trying to discuss with you this whole time has been this: given the size of AM5 heatsinks, assuming a cooler designed for the platform, would it be better with a thinner IHS? This is what I have argued for. Neither more nor less. You've come here dragging in all kinds of absurd examples, which are entirely irrelevant to this discussion. If you have been trying to argue this whole time that the fundamental characteristics of the platform are wrong, then why didn't you say so? It is so utterly and completely frustrating to try have a discussion with someone who doesn't even try to clarify the parameters of what they're discussing. This is also why you've been constantly contradicting yourself in all kinds of ways: because you've been responding to my arguments that presuppose that all other factors are pre-given with statements that assume that everything is in flux, making your logic fundamentally inapplicable to the question at hand.

To sum up: for any given surface area, a thinner IHS is better, assuming it has sufficient thickness to be mechanically stable and isn't so thin as to entirely hinder spreading heat outwards (which generally overlaps with mechanical stability - an IHS so thin as to stop heat spreading outwards sufficiently would also bend under pressure). Which I have come to believe that you agree with.

Whether the AM5 socket should have had a larger IHS is an entirely different discussion.


Why on earth are you linking garbage rumor mill site WCCFtech instead of Der8auer's video for this? You prefer to use a secondary source notorious for terrible analysis rather than the original source? Cool.

Jesus, have you read anything that has been posted in all the various 7000-series threads? CPU core temperature does not equal heat exhausted into your room. Power draw equals heat exhausted into your room. The absolute temperature of your CPU is not directly tied to the amount of heat energy put out by the system - if it was, then you wouldn't be able to lower temperatures with better cooling on any CPU ever.

The absolute temperature of the CPU is a function of power consumption and how quickly the cooling setup (TIM, IHS, TIM, cooler, ambient air temp) is able to move heat away from the core.

The heat output into ambient air is a function of the power consumption of the core. Period. If your CPU is consuming 230W consistently, then 230W of heat energy is being dumped into your room, regardless if the CPU cores are 30°C or 95°C.


That's what Eco mode is for. IMO, that should have been the default setting for these CPUs, but sadly the competitive situation makes things different right now.

It takes quite a lot of effort to scratch through a nickel plating. It's not tin foil.
Yessir, I am completely aware we are not talking about the same thing. lol. I knew that when I told you a second time my reason to quote you in the first place.

Simply can't take Der Bauers word on the plate being to thick, or too small or too large without testing with other plates, It's simply an opinion made statement and nothing more.

My point is that I've tested various sized plates and don't think thinner would suffice given the nature of current gen chips and the very heavily packed transistor area which the die sizes are getting smaller and smaller. This makes less surface area, a thicker or perhaps just larger in general might actually work better.

No, you don't need to use an IHS plate to increase how tall a CPU sticks out from a board. They could force cooler manufacturers to accommodate this minor issue, which isn't AMD's issue, but the end users. I've not read any statement from AMD concerning the design. Again, these are mostly assumptions.

Unless someone can slap a statement here (From AMD themselves) as to WHY the IHS plate is thicker, then it's all fake news. After a quick google search, there's just a bunch of guessing going on there.....

-----

To back up your statements to the other gentleman, (I underlined it)

CPU doesn't consume hardly any power a all. Super inefficient really. Most of the energy is dissipated as a heat, not being used.

An engine for example on average is about 30% efficient. All that fuel used and the rest dissipated by heat and cooled 3 ways. Water, Air and Oil.

Joined
Jun 2, 2017
Messages
9,377 (3.40/day)
System Name Best AMD Computer
Processor AMD 7900X3D
Motherboard Asus X670E E Strix
Cooling In Win SR36
Memory GSKILL DDR5 32GB 5200 30
Video Card(s) Sapphire Pulse 7900XT (Watercooled)
Storage Corsair MP 700, Seagate 530 2Tb, Adata SX8200 2TBx2, Kingston 2 TBx2, Micron 8 TB, WD AN 1500
Display(s) GIGABYTE FV43U
Case Corsair 7000D Airflow
Audio Device(s) Corsair Void Pro, Logitch Z523 5.1
Power Supply Deepcool 1000M
Mouse Logitech g7 gaming mouse
Keyboard Logitech G510
Software Windows 11 Pro 64 Steam. GOG, Uplay, Origin
Benchmark Scores Firestrike: 46183 Time Spy: 25121
Why has no one referenced the fact the the base clock on the 7950X is about the All core Boost clock of the 5950X and the single core is 600-800 MHZ higher depending on the board in both scenarios. It is obvious the 7700x is just like the 5800x in terms of thermals. As much as the cooler compatibility seems to be an issue we have to keep in mind that most AM4 coolers also supported 11th and 12th Gen CPUs so they are already designed with the intention of keeping 200+ Watt CPUs cool.

Joined
Jan 14, 2019
Messages
12,586 (5.80/day)
Location
Midlands, UK
System Name Nebulon B
Processor AMD Ryzen 7 7800X3D
Motherboard MSi PRO B650M-A WiFi
Cooling be quiet! Dark Rock 4
Memory 2x 24 GB Corsair Vengeance DDR5-4800
Video Card(s) AMD Radeon RX 6750 XT 12 GB
Storage 2 TB Corsair MP600 GS, 2 TB Corsair MP600 R2
Display(s) Dell S3422DWG, 7" Waveshare touchscreen
Case Kolink Citadel Mesh black
Audio Device(s) Logitech Z333 2.1 speakers, AKG Y50 headphones
Power Supply Seasonic Prime GX-750
Mouse Logitech MX Master 2S
Keyboard Logitech G413 SE
Software Bazzite (Fedora Linux) KDE
Why has no one referenced the fact the the base clock on the 7950X is about the All core Boost clock of the 5950X and the single core is 600-800 MHZ higher depending on the board in both scenarios.
Advertised clock speeds are never to be taken seriously, imo. Base clock is just a number (f**k knows what it really means nowadays), and boost clock is the clock speed you see in light workloads if your temperature, power consumption, motherboard VRM capabilities and the alignment of the planets in the solar system are OK. The clocks you really see are somewhere in between the two.

Joined
Mar 16, 2017
Messages
2,161 (0.76/day)
Location
Tanagra
System Name Budget Box
Processor Xeon E5-2667v2
Motherboard ASUS P9X79 Pro
Cooling Some cheap tower cooler, I dunno
Memory 32GB 1866-DDR3 ECC
Video Card(s) XFX RX 5600XT
Storage WD NVME 1GB
Display(s) ASUS Pro Art 27"
Case Antec P7 Neo
Advertised clock speeds are never to be taken seriously, imo. Base clock is just a number (f**k knows what it really means nowadays), and boost clock is the clock speed you see in light workloads if your temperature, power consumption, motherboard VRM capabilities and the alignment of the planets in the solar system are OK. The clocks you really see are somewhere in between the two.
I thought base clock was the guaranteed clock that you get all-core at the rated TDP. You can get way more, but that’s what the manufacturer guarantees under their recommended minimum setup.

Joined
Jan 14, 2019
Messages
12,586 (5.80/day)
Location
Midlands, UK
System Name Nebulon B
Processor AMD Ryzen 7 7800X3D
Motherboard MSi PRO B650M-A WiFi
Cooling be quiet! Dark Rock 4
Memory 2x 24 GB Corsair Vengeance DDR5-4800
Video Card(s) AMD Radeon RX 6750 XT 12 GB
Storage 2 TB Corsair MP600 GS, 2 TB Corsair MP600 R2
Display(s) Dell S3422DWG, 7" Waveshare touchscreen
Case Kolink Citadel Mesh black
Audio Device(s) Logitech Z333 2.1 speakers, AKG Y50 headphones
Power Supply Seasonic Prime GX-750
Mouse Logitech MX Master 2S
Keyboard Logitech G413 SE
Software Bazzite (Fedora Linux) KDE
I thought base clock was the guaranteed clock that you get all-core at the rated TDP. You can get way more, but that’s what the manufacturer guarantees under their recommended minimum setup.
That may be true for Intel, but AMD has to give a proper definition of "TDP" first (I know their stupid formula - I just don't believe that it has any connection with reality).


Count von Schwalbe

Nocturnus Moderatus
Staff member
Joined
Nov 15, 2021
Messages
3,179 (2.80/day)
Location
Knoxville, TN, USA
System Name Work Computer | Unfinished Computer
Processor Core i7-6700 | Ryzen 5 5600X
Motherboard Dell Q170 | Gigabyte Aorus Elite Wi-Fi
Cooling A fan? | Truly Custom Loop
Memory 4x4GB Crucial 2133 C17 | 4x8GB Corsair Vengeance RGB 3600 C26
Video Card(s) Dell Radeon R7 450 | RTX 2080 Ti FE
Storage Crucial BX500 2TB | TBD
Display(s) 3x LG QHD 32" GSM5B96 | TBD
Case Dell | Heavily Modified Phanteks P400
Power Supply Dell TFX Non-standard | EVGA BQ 650W
Mouse Monster No-Name $7 Gaming Mouse| TBD
That may be true for Intel, but AMD has to give a proper definition of "TDP" first (I know their stupid formula - I just don't believe that it has any connection with reality).
And you say Intel has one? TDP is just a number now.


tabascosauz

Moderator
Supporter
Staff member
Joined
Jun 24, 2015
Messages
8,182 (2.36/day)
Location
Western Canada
System Name ab┃ob
Processor 7800X3D┃5800X3D
Motherboard B650E PG-ITX┃X570 Impact
Cooling NH-U12A + T30┃AXP120-x67
Memory 64GB 6400CL32┃32GB 3600CL14
Video Card(s) RTX 4070 Ti Eagle┃RTX A2000
Storage 8TB of SSDs┃1TB SN550
Case Caselabs S3┃Lazer3D HT5
And you say Intel has one? TDP is just a number now.

Intel TDP is always defined as the max load power at base clock. At boost this goes out the window, but that's what their Turbo power metric is for, to better approximate realistic max power. Intel also renamed TDP to "Base Power", so now you get a number for base clock and a number for boost all-core.

AMD's TDP is utterly meaningless to power consumption. PPT is more or less the equivalent to Turbo power (barring obvious big differences in how Turbo vs. PB works), but AMD still advertises mostly "TDP" as if it meant something useful, and ignores PPT in most of their advertising materials. For some CPUs they get a number close to TDP at base clock all-core, but it's not defined or intended in that way.

There are more references to it now in 7000 slides but I've only really seen it in reference to AM5's design power (230W), the weird power efficiency slide about the "Ryzen 7970X", and the EDC and TDC changes (from 88/60/90, 142/95/140 to 88/75/150, 142/110/170 and 230/160/225).

Could argue it either way I guess, blue didn't even have a measurement for actual power for years, and red keep advertising this absolutely pointless number.

the 7970X slide:


Last edited:
Joined
Sep 3, 2019
Messages
3,584 (1.85/day)
Location
Thessaloniki, Greece
System Name PC on since Aug 2019, 1st CPU R5 3600 + ASUS ROG RX580 8GB >> MSI Gaming X RX5700XT (Jan 2020)
Processor Ryzen 9 5900X (July 2022), 200W PPT limit, 80C temp limit, CO -6-14, +50MHz (up to 5.0GHz)
Motherboard Gigabyte X570 Aorus Pro (Rev1.0), BIOS F39b, AGESA V2 1.2.0.C
Cooling Arctic Liquid Freezer II 420mm Rev7 (Jan 2024) with off-center mount for Ryzen, TIM: Kryonaut
Memory 2x16GB G.Skill Trident Z Neo GTZN (July 2022) 3667MT/s 1.42V CL16-16-16-16-32-48 1T, tRFC:280, B-die
Video Card(s) Sapphire Nitro+ RX 7900XTX (Dec 2023) 314~467W (382W current) PowerLimit, 1060mV, Adrenalin v24.12.1
Storage Samsung NVMe: 980Pro 1TB(OS 2022), 970Pro 512GB(2019) / SATA-III: 850Pro 1TB(2015) 860Evo 1TB(2020)
Display(s) Dell Alienware AW3423DW 34" QD-OLED curved (1800R), 3440x1440 144Hz (max 175Hz) HDR400/1000, VRR on
Case None... naked on desk
Audio Device(s) Astro A50 headset
Power Supply Corsair HX750i, ATX v2.4, 80+ Platinum, 93% (250~700W), modular, single/dual rail (switch)
Mouse Logitech MX Master (Gen1)
Keyboard Logitech G15 (Gen2) w/ LCDSirReal applet
Software Windows 11 Home 64bit (v24H2, OSBuild 26100.2605), upgraded from Win10 to Win11 on Jan 2024
I thought base clock was the guaranteed clock that you get all-core at the rated TDP. You can get way more, but that’s what the manufacturer guarantees under their recommended minimum setup.
That is the Intel definition of TDP up to 11th. On 12 gen they specify a PL1 and PL2 TDP.

AMD’s is way more complicated than this and has no real value to the user as it’s formulated in a way to tell something to cooler manufacturers mostly …only?

Advertised clock speeds are never to be taken seriously, imo. Base clock is just a number (f**k knows what it really means nowadays), and boost clock is the clock speed you see in light workloads if your temperature, power consumption, motherboard VRM capabilities and the alignment of the planets in the solar system are OK. The clocks you really see are somewhere in between the two.
At least for AMD if you disable PB, performance boost, the upper clock is the base clock on any situation (ST or MT).
Also with PB on and under minimum cooling conditions (TDP formula) you will get base clock at least on any given all core workload, even on the heaviest one.

So because 99.99% of users are not meting these situations the base clock is a speed that a CPU will not stop and has no meaning. But it’s not a random number.

Joined
Jul 30, 2019
Messages
3,338 (1.69/day)
System Name Still not a thread ripper but pretty good.
Processor Ryzen 9 7950x, Thermal Grizzly AM5 Offset Mounting Kit, Thermal Grizzly Extreme Paste
Motherboard ASRock B650 LiveMixer (BIOS/UEFI version P3.08, AGESA 1.2.0.2)
Cooling EK-Quantum Velocity, EK-Quantum Reflection PC-O11, D5 PWM, EK-CoolStream PE 360, XSPC TX360
Memory Micron DDR5-5600 ECC Unbuffered Memory (2 sticks, 64GB, MTC20C2085S1EC56BD1) + JONSBO NF-1
Video Card(s) XFX Radeon RX 5700 & EK-Quantum Vector Radeon RX 5700 +XT & Backplate
Storage Samsung 4TB 980 PRO, 2 x Optane 905p 1.5TB (striped), AMD Radeon RAMDisk
Display(s) 2 x 4K LG 27UL600-W (and HUANUO Dual Monitor Mount)
Case Lian Li PC-O11 Dynamic Black (original model)
Audio Device(s) Corsair Commander Pro for Fans, RGB, & Temp Sensors (x4)
Power Supply Corsair RM750x
Mouse Logitech M575
Keyboard Corsair Strafe RGB MK.2
Software Windows 10 Professional (64bit)
Benchmark Scores RIP Ryzen 9 5950x, ASRock X570 Taichi (v1.06), 128GB Micron DDR4-3200 ECC UDIMM (18ASF4G72AZ-3G2F1)
Mate my 5950x hits 80c tops with PBO/curve tweaked, 4.4 all core with a 4.95 single, as the chip is intended. Your cooler is just not enough for that chip if it can't cool 130w.
If you don't mind me asking what settings are you using for your PBO setup? I'm playing around with PBO on my 5950x and looking for ideas that will likely work well.
In limited limited testing I've had time for PPT=170, TDC=130, and EDC=136 will get me CB23=27814 (better than my stock CB23=25067) under 70c and that is without any curves applied.

Joined
Sep 3, 2019
Messages
3,584 (1.85/day)
Location
Thessaloniki, Greece
System Name PC on since Aug 2019, 1st CPU R5 3600 + ASUS ROG RX580 8GB >> MSI Gaming X RX5700XT (Jan 2020)
Processor Ryzen 9 5900X (July 2022), 200W PPT limit, 80C temp limit, CO -6-14, +50MHz (up to 5.0GHz)
Motherboard Gigabyte X570 Aorus Pro (Rev1.0), BIOS F39b, AGESA V2 1.2.0.C
Cooling Arctic Liquid Freezer II 420mm Rev7 (Jan 2024) with off-center mount for Ryzen, TIM: Kryonaut
Memory 2x16GB G.Skill Trident Z Neo GTZN (July 2022) 3667MT/s 1.42V CL16-16-16-16-32-48 1T, tRFC:280, B-die
Video Card(s) Sapphire Nitro+ RX 7900XTX (Dec 2023) 314~467W (382W current) PowerLimit, 1060mV, Adrenalin v24.12.1
Storage Samsung NVMe: 980Pro 1TB(OS 2022), 970Pro 512GB(2019) / SATA-III: 850Pro 1TB(2015) 860Evo 1TB(2020)
Display(s) Dell Alienware AW3423DW 34" QD-OLED curved (1800R), 3440x1440 144Hz (max 175Hz) HDR400/1000, VRR on
Case None... naked on desk
Audio Device(s) Astro A50 headset
Power Supply Corsair HX750i, ATX v2.4, 80+ Platinum, 93% (250~700W), modular, single/dual rail (switch)
Mouse Logitech MX Master (Gen1)
Keyboard Logitech G15 (Gen2) w/ LCDSirReal applet
Software Windows 11 Home 64bit (v24H2, OSBuild 26100.2605), upgraded from Win10 to Win11 on Jan 2024
If you don't mind me asking what settings are you using for your PBO setup? I'm playing around with PBO on my 5950x and looking for ideas that will likely work well.
In limited limited testing I've had time for PPT=170, TDC=130, and EDC=136 will get me CB23=27814 (better than my stock CB23=25067) under 70c and that is without any curves applied.
The truth is that the higher the SKU the smaller the room for negative curve shifting. Almost all or most 5600X can do -30 steps on all 6 cores, depends on boost override too.
My CPU (5900X) on couple of cores can't do past -5 and I have the rest so far at -9 up to -19. Also currently the boost override is +75MHz, PPT 148, TDC 101, EDC 138.
Peak temp for all core boost is under 70C but on every other stuff wants to go to 80C or even more. I have a limit of 76C so cant pass that.

Avg clock on a couple of cores on games is 4.7~4.85GHz depending the type of game with a peak of 4.95~5.0+GHz

Last edited:

Toothless

Tech, Games, and TPU!
Supporter
Joined
Mar 26, 2014
Messages
9,654 (2.46/day)
Location
Washington, USA
System Name Veral
Processor 7800x3D
Motherboard x670e Asus Crosshair Hero
Cooling Corsair H150i RGB Elite
Memory 2x24 Klevv Cras V RGB
Video Card(s) Powercolor 7900XTX Red Devil
Storage Crucial P5 Plus 1TB, Samsung 980 1TB, Teamgroup MP34 4TB
Display(s) Acer Nitro XZ342CK Pbmiiphx, 2x AOC 2425W, AOC I1601FWUX
Case Fractal Design Meshify Lite 2
Audio Device(s) Blue Yeti + SteelSeries Arctis 5 / Samsung HW-T550
Power Supply Corsair HX850
Mouse Corsair Nightsword
Keyboard Corsair K55
VR HMD HP Reverb G2
Software Windows 11 Professional
Benchmark Scores PEBCAK
If you don't mind me asking what settings are you using for your PBO setup? I'm playing around with PBO on my 5950x and looking for ideas that will likely work well.
In limited limited testing I've had time for PPT=170, TDC=130, and EDC=136 will get me CB23=27814 (better than my stock CB23=25067) under 70c and that is without any curves applied.
I just did -10 curve on all core and left everything else auto. I hit around 28.4k in R23

Oh and +200 on the uh, override? Thing. 4.4ghz all core and 4950mhz single.

Top
