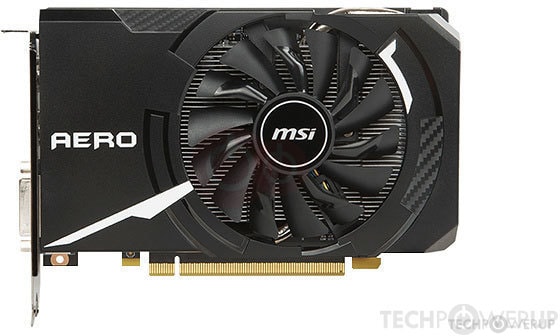

MSI GTX 1060 AERO ITX OC

GTX-1060-AERO-ITX-6G-OC

Graphics Processor

GP106

Cores

1280

TMUs

ROPs

Memory Size

6 GB

Memory Type

GDDR5

Bus Width

192 bit

GPU

Graphics Processor

GPU Name: GP106

GPU Variant: GP106-400-A1

Architecture: Pascal

Foundry: TSMC

Process Size: 16 nm

Transistors: 4,400 million

Density: 22.0M / mm²

Die Size: 200 mm²

Chip Package: BGA-2173

Graphics Card

Release Date: Jan 5th, 2018

Generation: GeForce 10

Predecessor: GeForce 900

Successor: GeForce 20

Production: End-of-life

Bus Interface: PCIe 3.0 x16

Clock Speeds

Base Clock: ~~1506 MHz~~
1544 MHz (+3%)

Boost Clock: ~~1709 MHz~~
1759 MHz (+3%)

Memory Clock: 2002 MHz
8 Gbps effective

Memory

Memory Size: 6 GB

Memory Type: GDDR5

Memory Bus: 192 bit

Bandwidth: 192.2 GB/s

Render Config

Shading Units: 1280

TMUs: 80

ROPs: 48

SM Count: 10

L1 Cache: 48 KB (per SM)

L2 Cache: 1536 KB

Theoretical Performance

Pixel Rate: ~~82.03 GPixel/s~~
84.43 GPixel/s

Texture Rate: ~~136.7 GTexel/s~~
140.7 GTexel/s

FP16 (half): ~~68.36 GFLOPS~~
70.36 GFLOPS (1:64)

FP32 (float): ~~4.375 TFLOPS~~
4.503 TFLOPS

FP64 (double): ~~136.7 GFLOPS~~
140.7 GFLOPS (1:32)

Board Design

Slot Width: Dual-slot

Length: ~~250 mm~~
175 mm
~~9.8 inches~~
6.9 inches

TDP: 120 W

Suggested PSU: 300 W

Outputs: 1x DVI
1x HDMI 2.0
3x DisplayPort 1.4a

Power Connectors: 1x 6-pin

Board Number: PG410 SKU 31

Graphics Features

DirectX: 12 (12_1)

OpenGL: 4.6

OpenCL: 3.0

Vulkan: 1.3

CUDA: 6.1

Shader Model: 6.8

GP106 GPU Notes

NVENC: 6th Gen
NVDEC: 3rd Gen
PureVideo HD: VP8
VDPAU: Feature Set H

Latest Drivers:
Windows 7 / 8 / 8.1 (x32 / x64):
GeForce Release 391.35 / 474.89
Quadro Release R390 U9 (392.37) / R440 U4 (441.66)

Windows 10 / 11 (x32 / x64):
GeForce Release 391.35 / Latest
Quadro Release R390 U9 (392.37) / Latest

Other retail boards based on this design (7)

Name	GPU Clock	Boost Clock	Memory Clock	Other Changes
ASUS DUAL GTX 1060 OC	1569 MHz	1784 MHz	2002 MHz	242 mm/9.5 inches, 1x DVI 2x HDMI 2x DisplayPort
MSI GTX 1060 AERO ITX OC	1544 MHz	1759 MHz	2002 MHz	175 mm/6.9 inches
MSI GTX 1060 ARMOR OC	1544 MHz	1759 MHz	2002 MHz	279 mm/11 inches
MSI GTX 1060 GAMING X VR	1569 MHz	1784 MHz	2002 MHz	277 mm/10.9 inches, 1x DVI 2x HDMI 2x DisplayPort
MSI GTX 1060 OCV1	1544 MHz	1759 MHz	2002 MHz	243 mm/9.6 inches, 1x DVI 1x HDMI 1x DisplayPort
MSI GTX 1060 OCV2	1544 MHz	1759 MHz	2002 MHz	243 mm/9.6 inches, 1x DVI 1x HDMI 1x DisplayPort
Palit GTX 1060 Super JetStream	1620 MHz	1848 MHz	2002 MHz	248 mm/9.8 inches
