Antec High Current Pro Platinum 1300 W Review

Name: Antec High Current Pro Platinum 1300 W
Brand: Antec

crmaris

on Mar 7th, 2014,

in Power Supplies.

Manufacturer: Antec

Performance Rating, Performance per Dollar, Noise & Efficiency Rating »

Ripple Measurements

You will see the ripple levels we measured on the main rails of the HCP-1300 in the following table. The limits are, according to the ATX specification, 120 mV (+12V) and 50 mV (5V, 3.3V, and 5VSB).

Ripple Measurements - Antec HCP-1300
Test	12 V	5 V	3.3 V	5VSB	Pass/Fail
20% Load	13.8 mV	11.8 mV	11.6 mV	8.5 mV	Pass
40% Load	14.9 mV	11.7 mV	11.8 mV	9.3 mV	Pass
50% Load	16.3 mV	12.2 mV	11.6 mV	9.6 mV	Pass
60% Load	16.3 mV	12.2 mV	11.7 mV	9.8 mV	Pass
80% Load	18.9 mV	13.4 mV	11.6 mV	11.5 mV	Pass
100% Load	20.6 mV	13.5 mV	12.1 mV	12.7 mV	Pass
110% Load	22.4 mV	13.8 mV	12.4 mV	12.8 mV	Pass
Crossload 1	7.4 mV	11.1 mV	11.5 mV	9.0 mV	Pass
Crossload 2	20.9 mV	11.8 mV	12.2 mV	8.4 mV	Pass

Ripple suppression is Delta's specialty and this unit proves it. All rails registered incredibly low ripple levels under even extremely tough conditions, which shows what Delta's combination of excellent components and great design can accomplish. The HCP-1300 will feed your system components power of excellent quality under all conditions, allowing you to achieve the highest possible overclock if you are a hardcore overclocker or guaranteeing the best possible stability if you are a regular user.

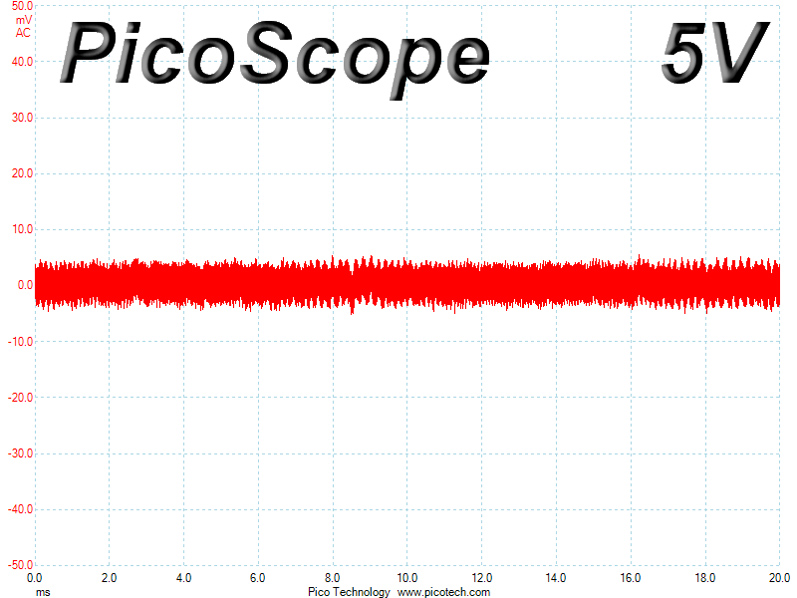

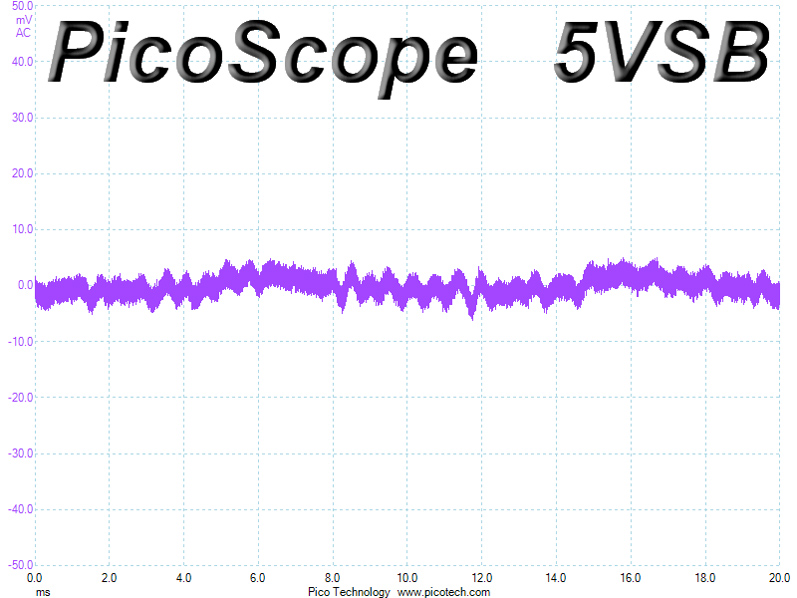

Ripple at Full Load

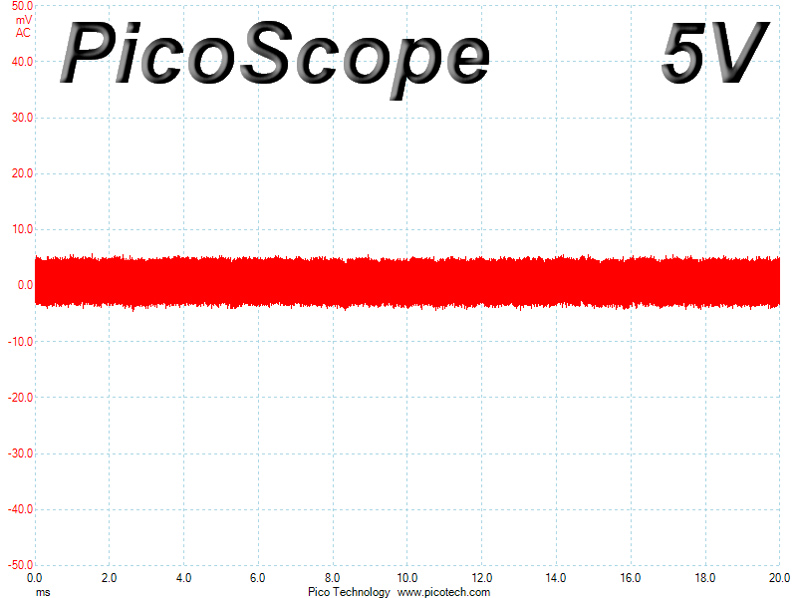

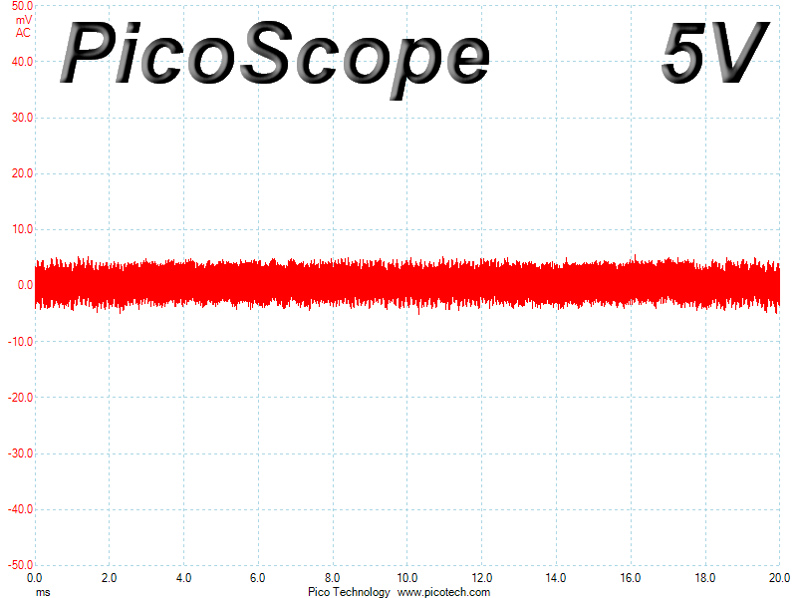

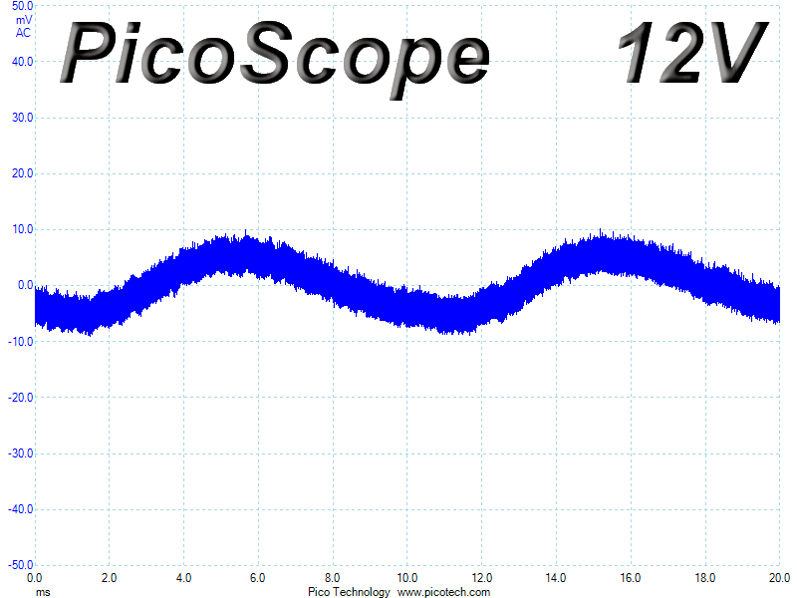

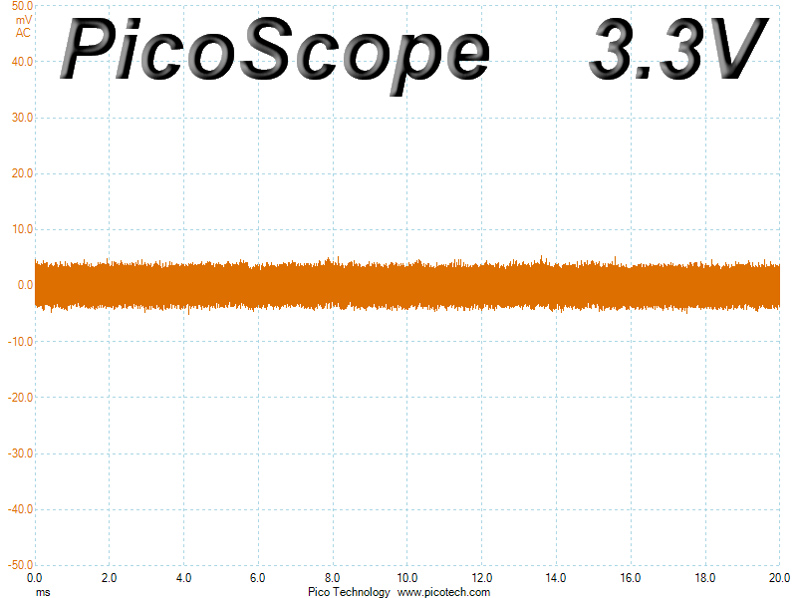

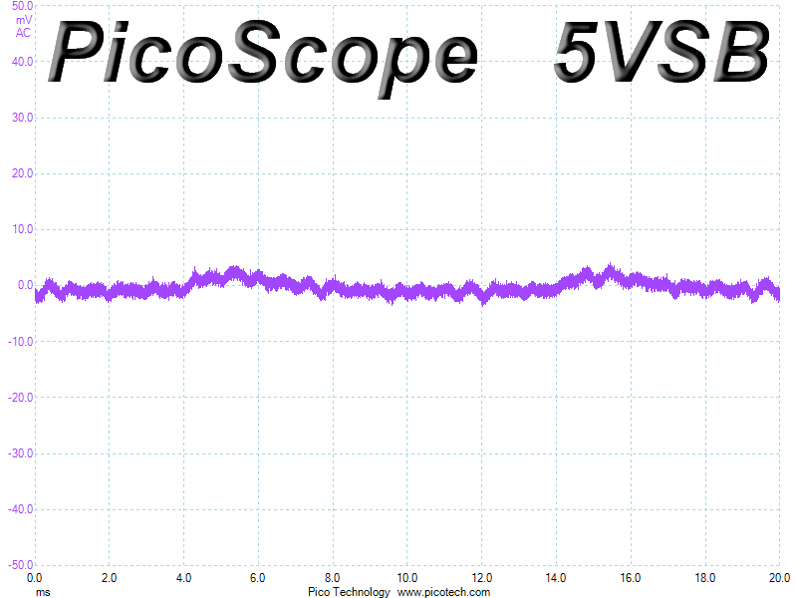

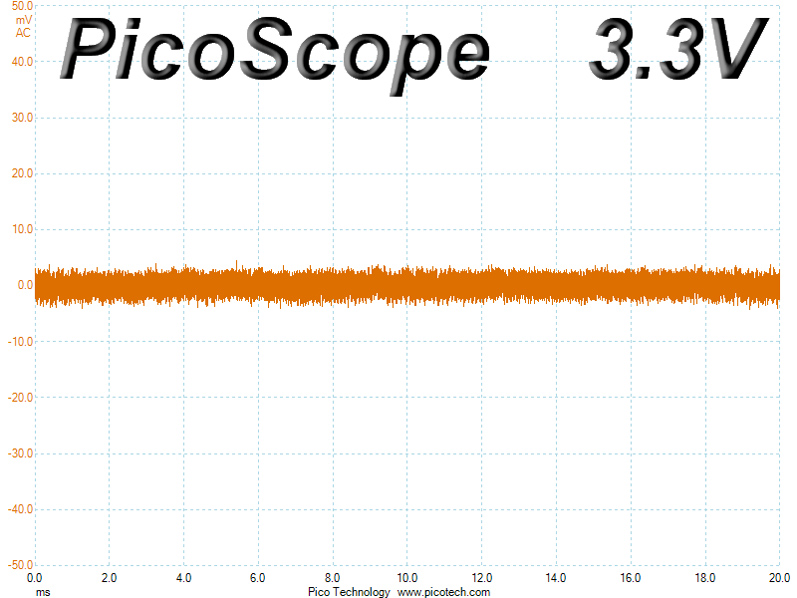

In the following oscilloscope screenshots, you can see the AC ripple and noise the main rails registered (+12V, 5V, 3.3V, and 5VSB). The bigger the fluctuations on the oscilloscope's screen, the bigger the ripple/noise. For all measurements, we set 0.01 V/Div (each vertical division/box equals 0.01 V) as the standard.
