Protection Features Evaluation
Protection Features |
---|
OCP | +12 V: 117.2 A (141.2%), 12.274 V +5 V: 29 A (116%), 5.067 V +3.3 V: 29.7 A (118.8%), 3.347 V 5VSB: 3.7 A (123.33%), 5.024 V |
---|
OPP | 1374.26 W (137.43%) |
---|
OTP | Yes (164 °C @ 12 V heat sink) |
---|
SCP | +12 V: Yes +5 V: Yes +3.3 V: Yes 5VSB: Yes -12 V: Yes |
---|
PWR_OK | Proper Operation |
---|
NLO | Yes |
---|
SIP | Surge: MOV Inrush: NTC & Bypass Relay |
---|
The protection features are generally correctly configured. I don't have a problem with the OPP triggering point above 130% or the +12 V rail's OCP because the PSU uses parts that can withstand such high loads. However, someone could argue that there is no reason for such high triggering points (at +12 V and OPP) in a PSU with 1 kW maximum power output.
DC Power Sequencing
According to Intel's most recent Power Supply Design Guide (revision 1.4), the +12 V and +5 V rails must have voltages equal to or greater than the +3.3 V rail's output at all times. For our first measurement, we turn the unit off and switch it back on without a load on any of the rails.

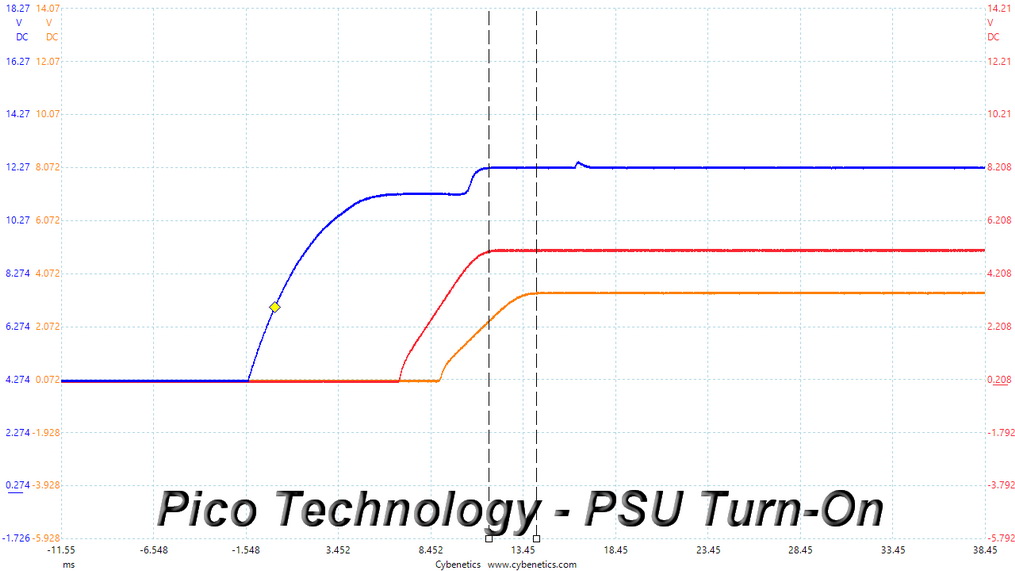

Besides the nasty step at +12 V, there is nothing to worry about here because the 3.3 V rail is always below the other two.
EMC Pre-Compliance Testing - Average and Quasi-Peak EMI Detector Results
Electromagnetic Compatibility (EMC) is the ability of a device to operate properly in its environment without disrupting the proper operation of other close-by devices.
Electromagnetic Interference (EMI) stands for the electromagnetic energy a device emits, and it can cause problems in other close-by devices if too high.
The AVG EMI detector shows some spurs that exceed the limits, which is not the case with the QP detector that is more accurate.
