Architecture

The GM206 silicon on which the GeForce GTX 960 is based looks like a GM204 that's been sawed off sideways. At 1,024, it has exactly half the CUDA cores, which it spread across two graphics processing clusters, half the memory bus width, half the TMUs at 64, and half the ROPs at 32. At 2 GB, the GTX 960 even has half the memory amount of the GTX 980. The transistor count of the GM206 is roughly 2.94 billion, which is about 17 percent less than the GK104 silicon on which the GTX 760 was based.



Don't be quick to write off the 128-bit memory bus width just yet as NVIDIA is backing it with a new lossless texture compression technology that reduces memory bandwidth usage, effectively making it a wider memory bus than it physically is. The performance figures put out by the GTX 970, with its 256-bit wide memory bus outperforming the Radeon R9 290X with its 512-bit bus, give us no reason to doubt the memory chops made to the GTX 960. It allows NVIDIA to lower costs by using just four memory chips on the PCB. Since the GTX 960 is for Full HD gaming, 2 GB shouldn't let you down with any of today's games. NVIDIA tells us that the GTX 960 has just enough muscle for DOTA 2 at 4K. That should draw scores of budding gamers who can spend just about $200 on their graphics card and $500 on a monitor to the scene, instead of messing things up with a $300 graphics card and a $400 QHD monitor.

The GM206 is structured just like a GM204 with half the number of components. At the heart of the Maxwell architecture is a redesigned streaming multiprocessor (SMM), the tertiary subunit of the GPU. Variants of NVIDIA's GeForce GTX products are carved out by setting the number of SMM units at the chip's disposal. The chip begins with a PCI-Express 3.0 x16 bus interface, a 128-bit wide GDDR5 memory interface, and a display controller that supports as many as three Ultra HD displays or five physical displays in total. This display controller introduces support for HDMI 2.0, which has enough bandwidth to drive Ultra HD displays at 60 Hz refresh rates. The controller is ready for 5K (5120x2880, four times the pixels of QuadHD). The 128-bit wide memory interface holds a standardized 2 GB of memory with a bus that has been clocked at 7.00 GHz on both the GTX 980 and GTX 970, which works out to a memory bandwidth of 112 GB/s. With NVIDIA's memory bandwidth management sauce added to the mix, the company is talking about an unscientific "effective bandwidth" figure of around 144 GB/s. The core of the GTX 960 is clocked at 1126 MHz, with a maximum GPU Boost frequency of 1178 MHz. The memory ticks in at 7.00 GHz (GDDR5-effective).

GeForce Features

With each new architecture, NVIDIA introduces innovations in the consumer graphics space that go beyond simple feature-level compatibility with new DirectX versions. NVIDIA says GeForce GTX 980 and GTX 970 cards to be DirectX 12 cards, but exact feature levels and requirements have not been finalized by Microsoft, although support for OpenGL 4.4 has also been added. OpenGL 4.4 adds a few new features through its GameWorks SDK that give game developers easy-to-implement visual features through existing APIs.



According to NVIDIA, the first and most important is VXGI, or real-time voxel global illumination. VGXI adds realism to the way light behaves with different surfaces in a 3D scene. VXGI introduces volume pixels, or voxels, a new 3D graphics component. These are pixels with built-in 3-dimensional data, so their interactions in 3D objects with light look more photo-realistic.



No new NVIDIA GPU architecture launch is complete without advancements in post-processing, particularly anti-aliasing. NVIDIA introduced an interesting feature called Dynamic Super Resolution (DSR), which it claims offers "4K-like clarity on a 1080p display". To us, it comes across as a really nice super-sampling AA algorithm with a filter.

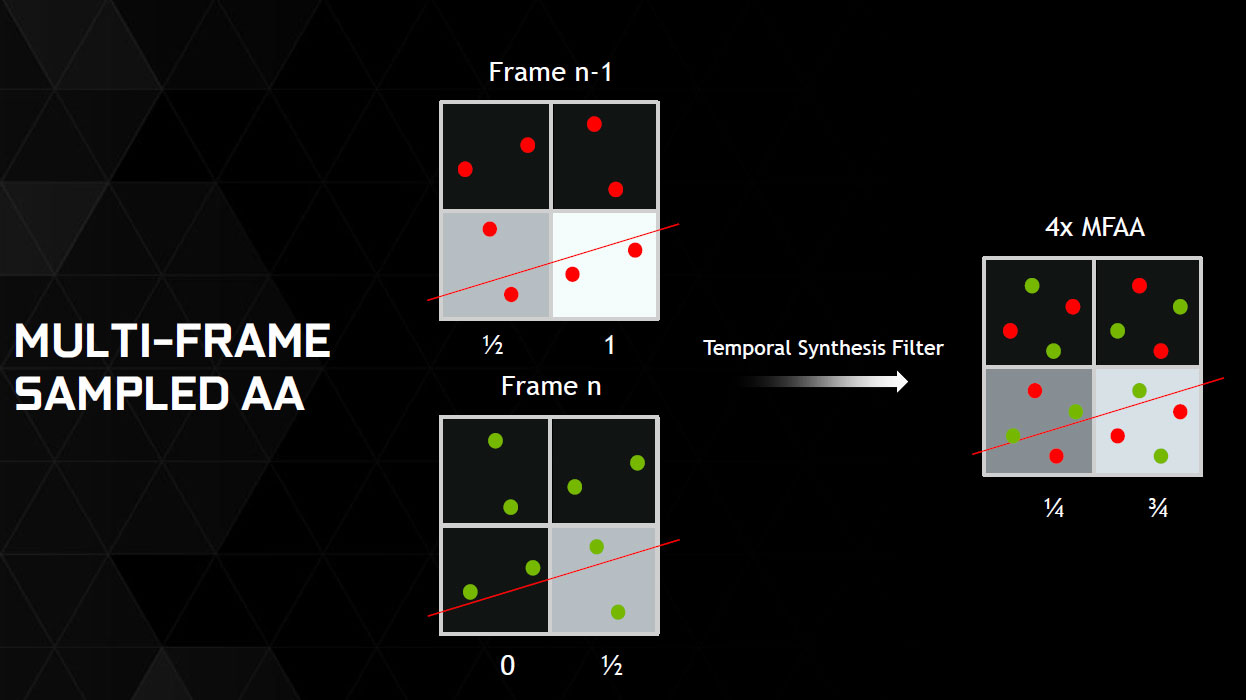

Using GeForce Experience, you can enable DSR arbitrarily for 3D apps. The other new algorithm is MFAA (multi-frame sampled AA), which offers MSAA-like image quality at a deficit of 30 percent in performance. Using GeForce Experience, MFAA can hence be substituted for MSAA, perhaps even arbitrarily.



Moving on, NVIDIA introduced VR Direct, a technology designed for the reemerging VR headset market, due to the growing interest in Facebook's Occulus Rift VR headset. VR Direct is an API designed to reduce latency between the headset's input and the change on the display, governed by the principle that head movements are more rapid and unpredictable than pointing and clicking with a mouse.

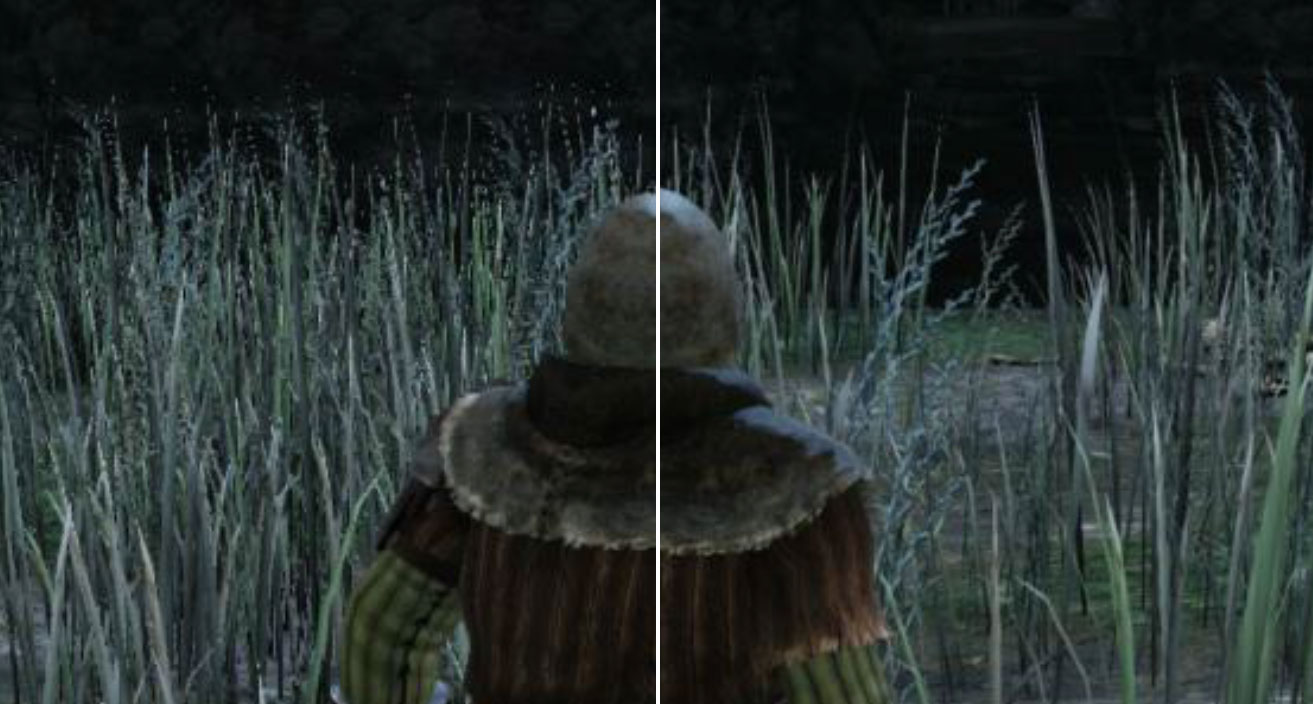

To meet the need for a low-cost (performance cost), realistic hair- or grass-rendering technology, NVIDIA came up with Turf Effects. NVIDIA PhysX also got a much needed feature-set update that introduces new gas dynamics and fluid adhesion effects. Epic's Unreal Engine 4 will implement the technology.

GeForce Experience

With its GeForce 320.18 WHQL drivers, NVIDIA released the first stable version of GeForce Experience. The application simplifies the process of configuring a game and is meant for PC gamers who aren't well-versed in all the necessary technobabble required to get a game to run at the best-possible settings with the hardware available to them. GeForce Experience is aptly named as it completes the experience of owning a GeForce graphics card; PCs, being the best-possible way to play video games, should not be any harder to use than gaming consoles.

NVIDIA Shadow Play

GeForce Experience Shadow Play is another feature NVIDIA recently debuted. Shadow Play lets you record gaming footage or stream content in real time, with a minimal performance drop to the game you're playing. The feature is handled by GeForce Experience, which lets you set hot-keys to toggle recording on the fly, or set output, format, quality, etc.

NVIDIA G-Sync

G-Sync is a new technology by NVIDIA that addresses monitor-stuttering issues that were deemed unsolvable. The GeForce GTX 980 features three full-size DisplayPort 1.2 connectors into which you can plug up to three G-Sync-ready monitors for your own fluid-smooth 3D Vision Surround setup.

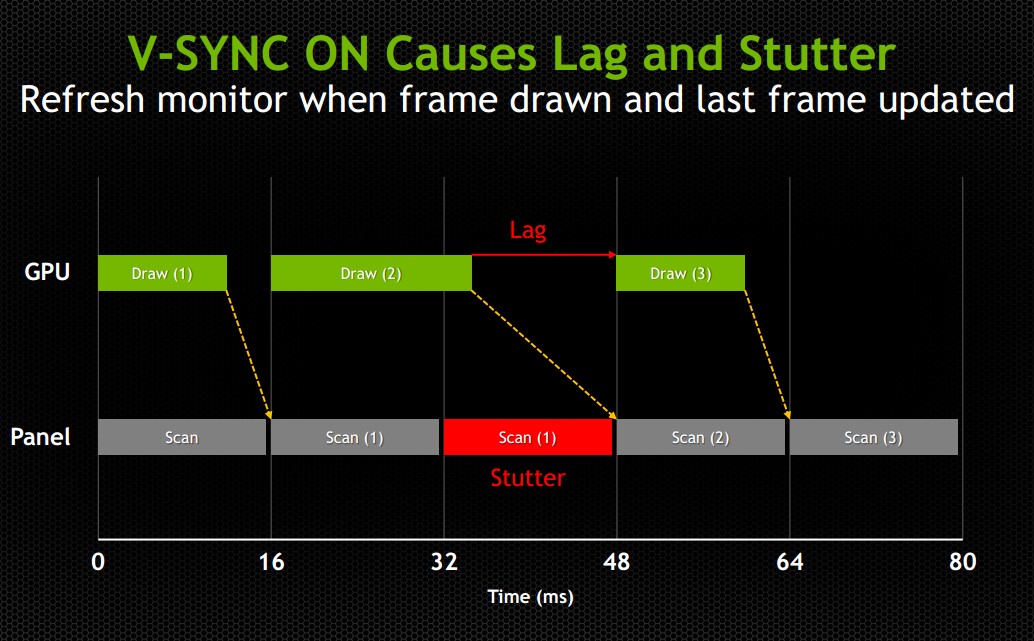

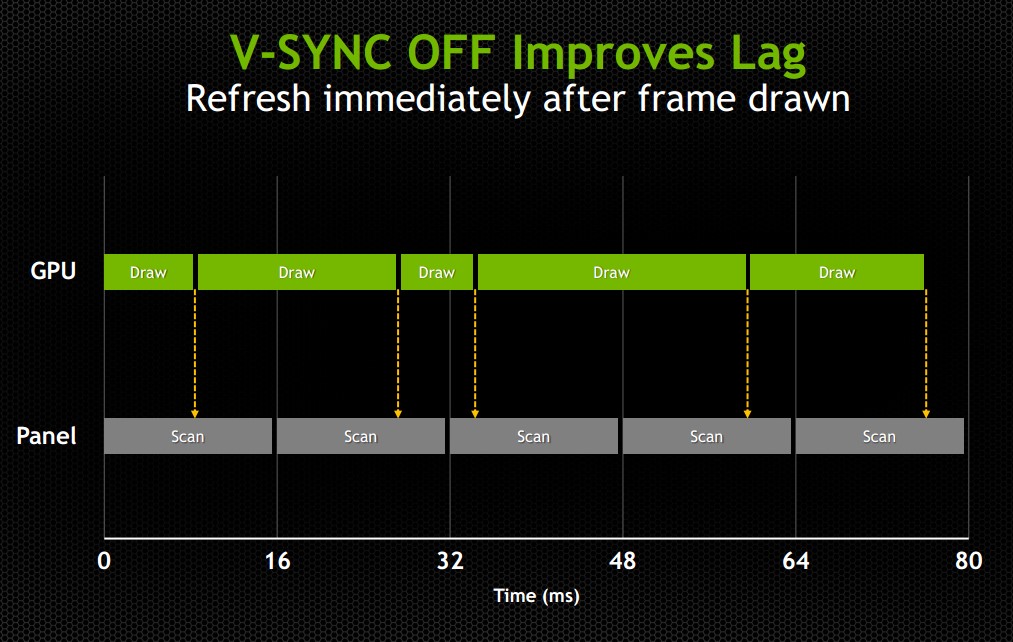

For archaic reasons, such as essentially evolving off television sets, PC monitors feature fixed refresh-rates, the number of times a display refreshes what it is displaying per second. There's no technical reason why a modern flat-screen display should feature fixed refresh rates. Since it's the displays that dictate refresh rates, it has always been the GPU's job to ensure display output is fluid, which it did by deploying technologies such as V-Sync (vertical sync). Output won't appear fluid if a GPU sends out less frames per second than the display refresh rate, and artifacts, such as display tearing caused by parts of multiple frames overlapping, will appear if more frames per second are produced.



NVIDIA's solution to the problem is to kill fixed refresh rates on monitors to instead make them synchronize their refresh rates to the frame-rates generated by a GPU in real time. Ever wonder why a movie watched in a theater feels more fluid at even 24 frames per second while a PC game being played at that frame-rate doesn't? It's because the monitor mandates that the GPU obey its refresh-rate. G-Sync tilts that equation and makes the monitor sync its refresh-rate to the GPU's frame-rates, so games will feel more fluid at frame-rates well below 60. To make this happen, NVIDIA developed hardware that resides inside the display—hardware that communicates with the GPU in real-time to coordinate G-Sync.



We've witnessed G-Sync with our own eyes at the London event and couldn't believe what we were seeing. Games (playable, so we could tell they weren't recordings) were butter-smooth and extremely fluid. At the demo, NVIDIA displayed games that were running at 40 to 59 FPS in a given scene, and it felt like a constant frame-rate throughout. NVIDIA obviously demonstrated cases where G-Sync unleashed its full potential—between 35 and 59 FPS. I am still a bit skeptical because it looks too good to be true, and I definitely look forward to testing G-Sync with my own setup and my own games for a complete assessment, mouse and keyboard included. One can't make a video recording of a display that's running G-Sync to show you. You really need to experience G-Sync first-hand to buy into the idea. NVIDIA's G-Sync will launch with a $100 price premium on monitors. That's not insignificant, but could also go down in the future. Also, from what I've seen, G-Sync promises lower framerates that look smoother, which means you no longer need an expensive card for 60 FPS—money you then put into a G-Sync-enabled monitor instead.
