Corsair RMx Series 850 W (2021) Review

Name: Corsair RMx Series 850 W (2021)
Brand: Corsair
Price: 150 USD

crmaris

on Mar 30th, 2021,

in Power Supplies.

Manufacturer: Corsair

Teardown & Components »

Photos

The box is relatively small, and at its face is a photo of the RMx 850 W PSU, with the 80 PLUS and warranty badges in the bottom-right corner.

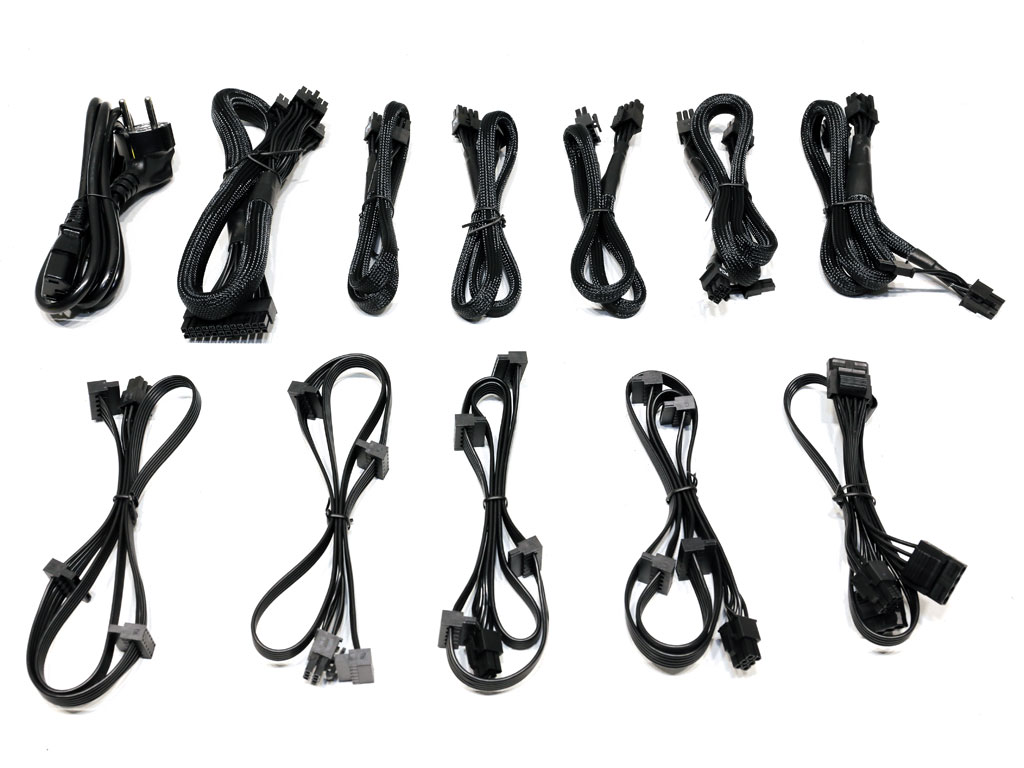

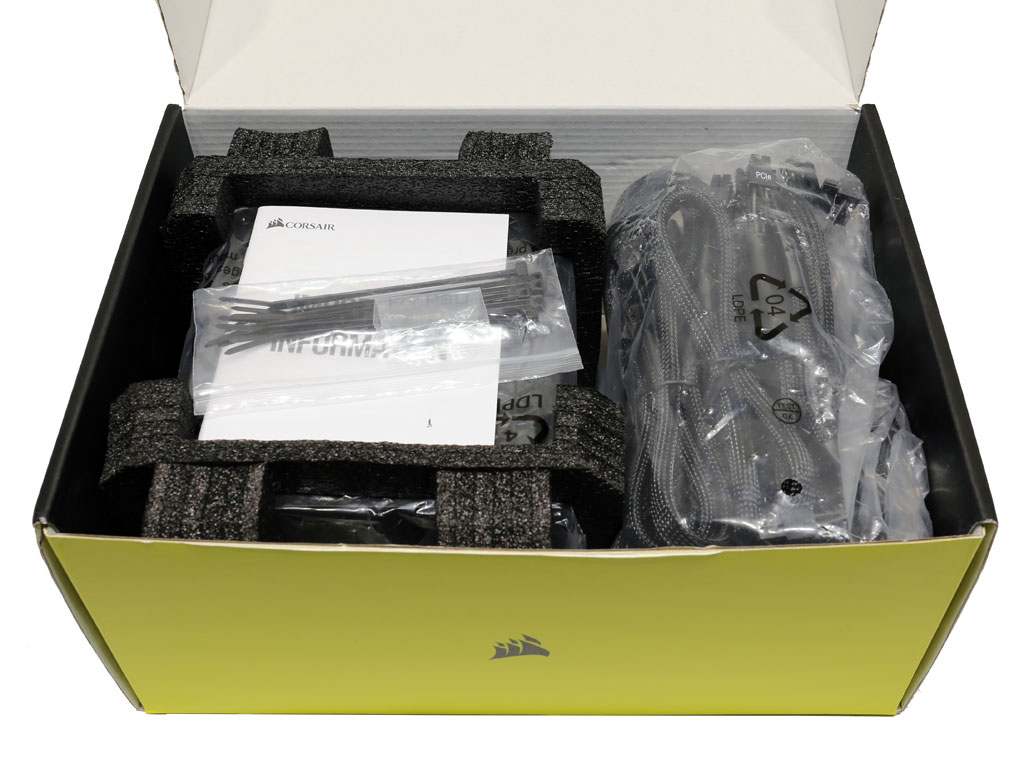

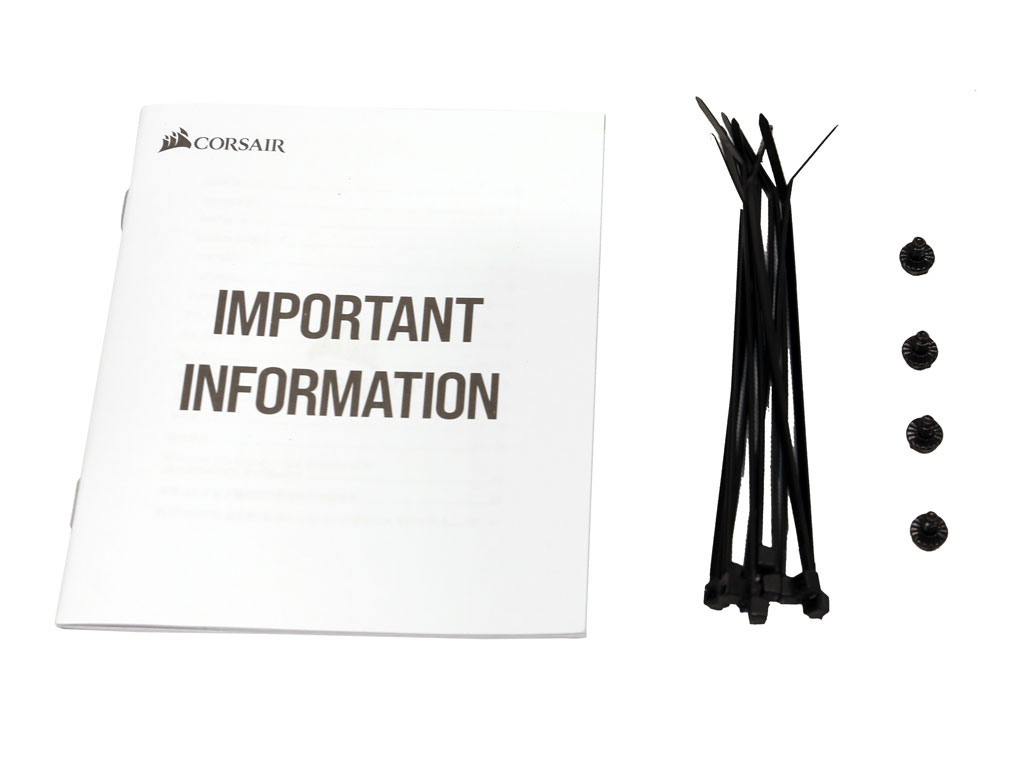

Packing protection is adequate, and the bundle includes the necessary paperwork and mounting screws, along with several zip ties and modular cables.

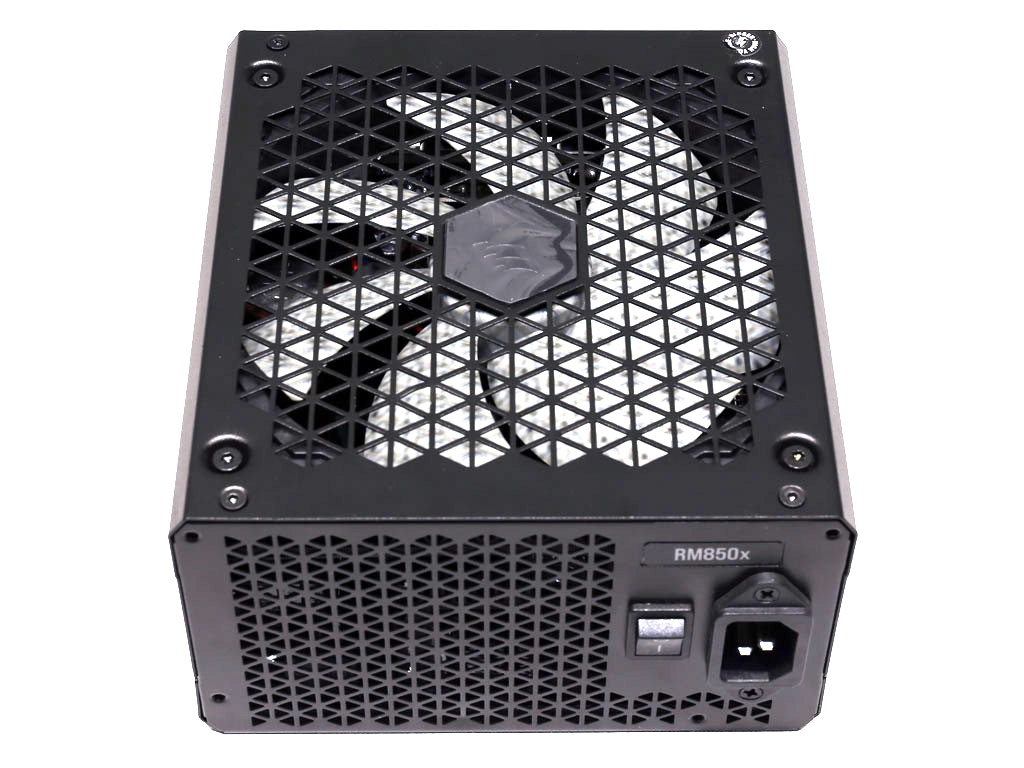

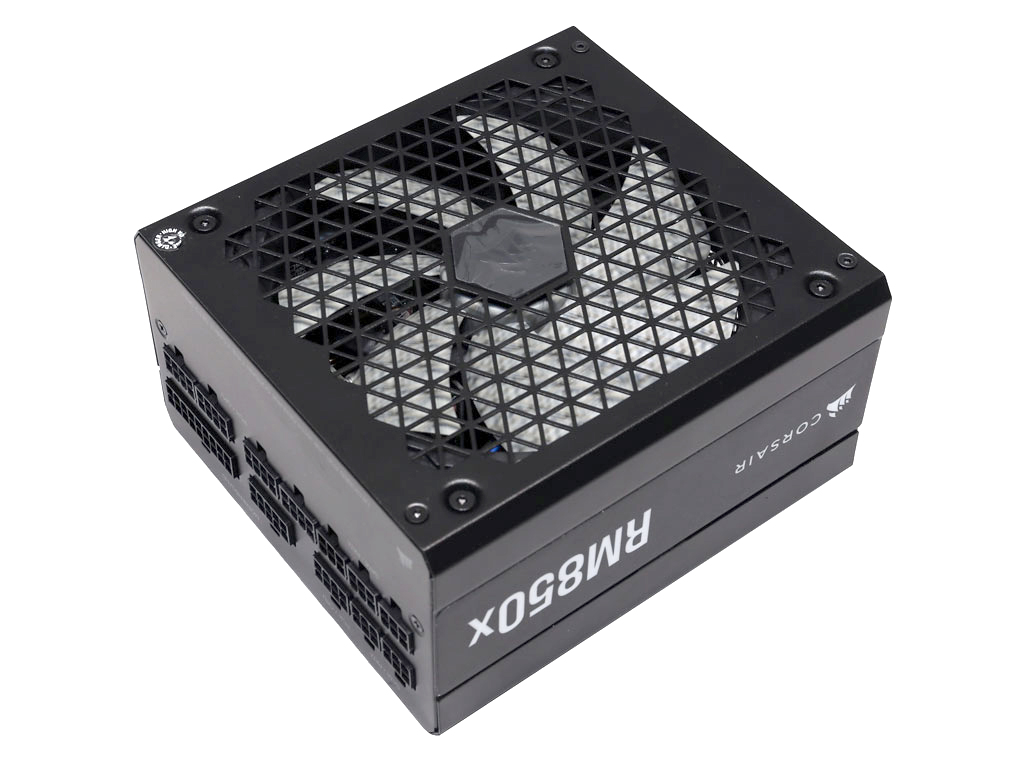

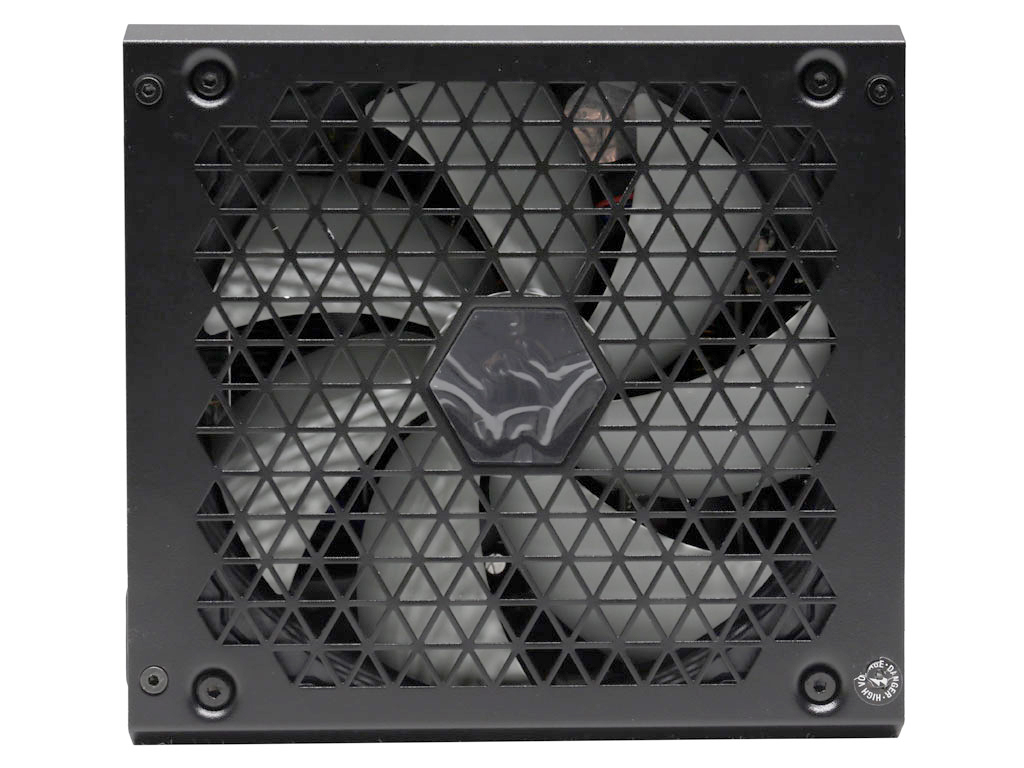

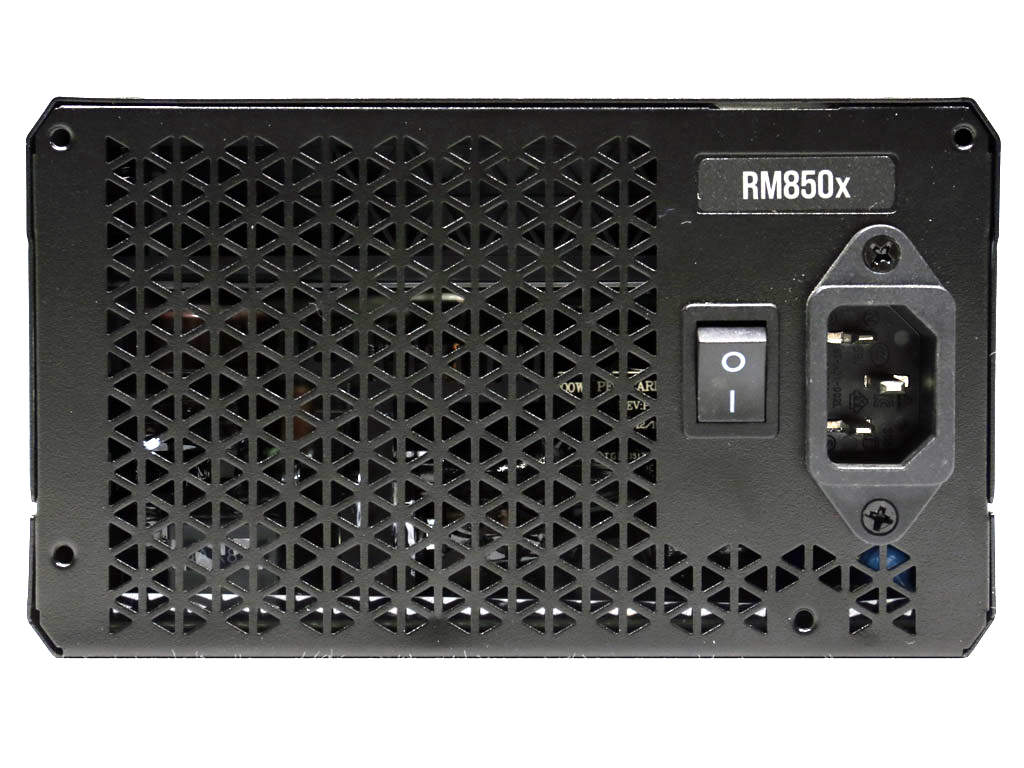

The exterior design has changed, and both fan grille and front exhaust look better now because of triangular openings.

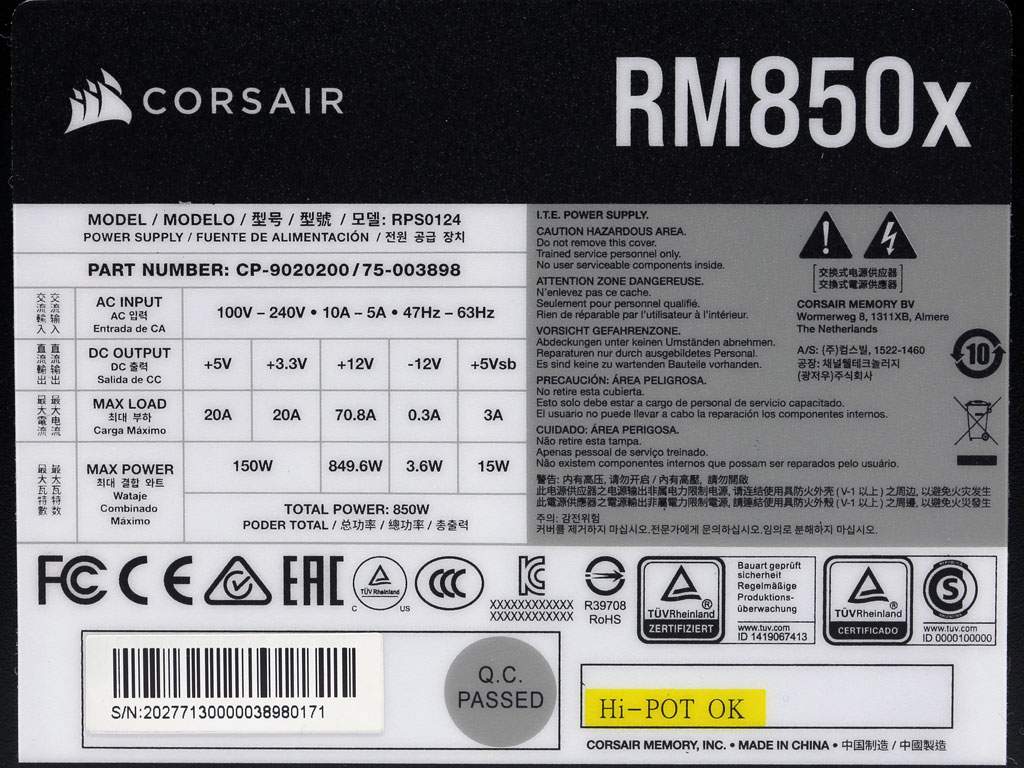

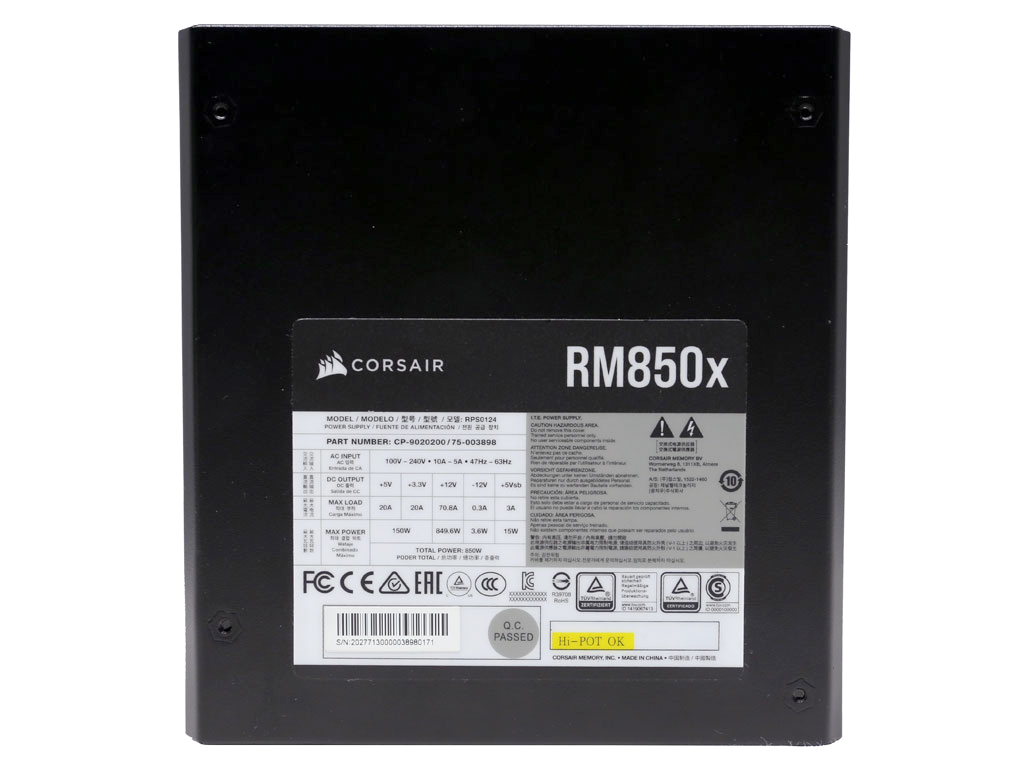

The power specifications label resides on the bottom.

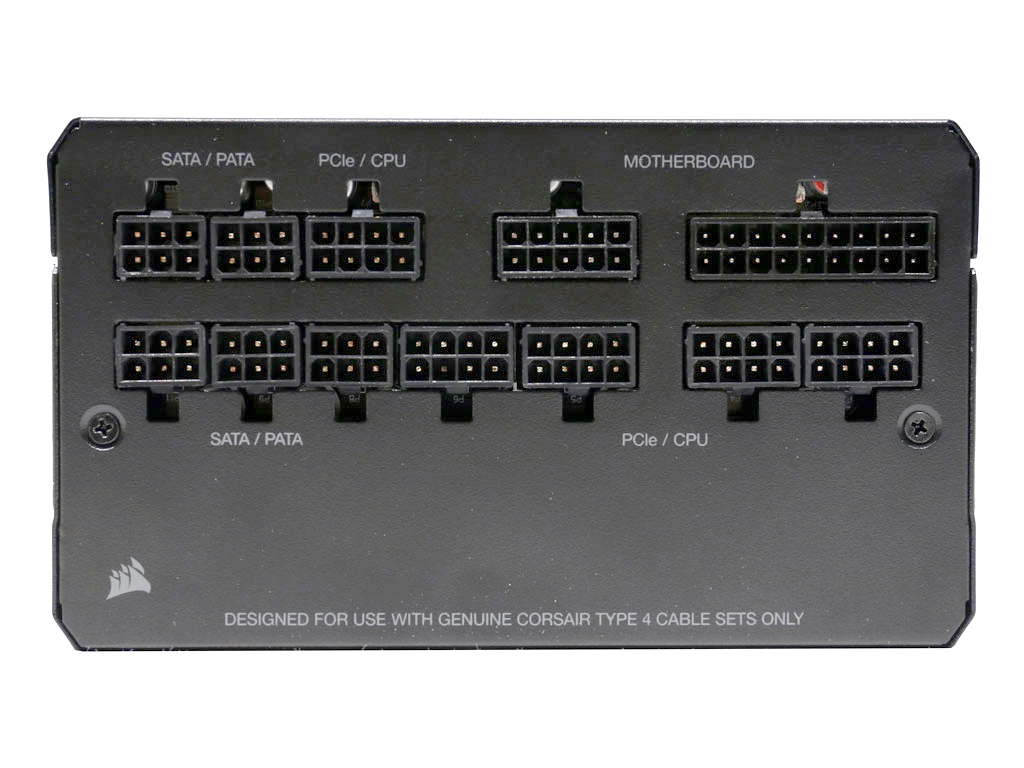

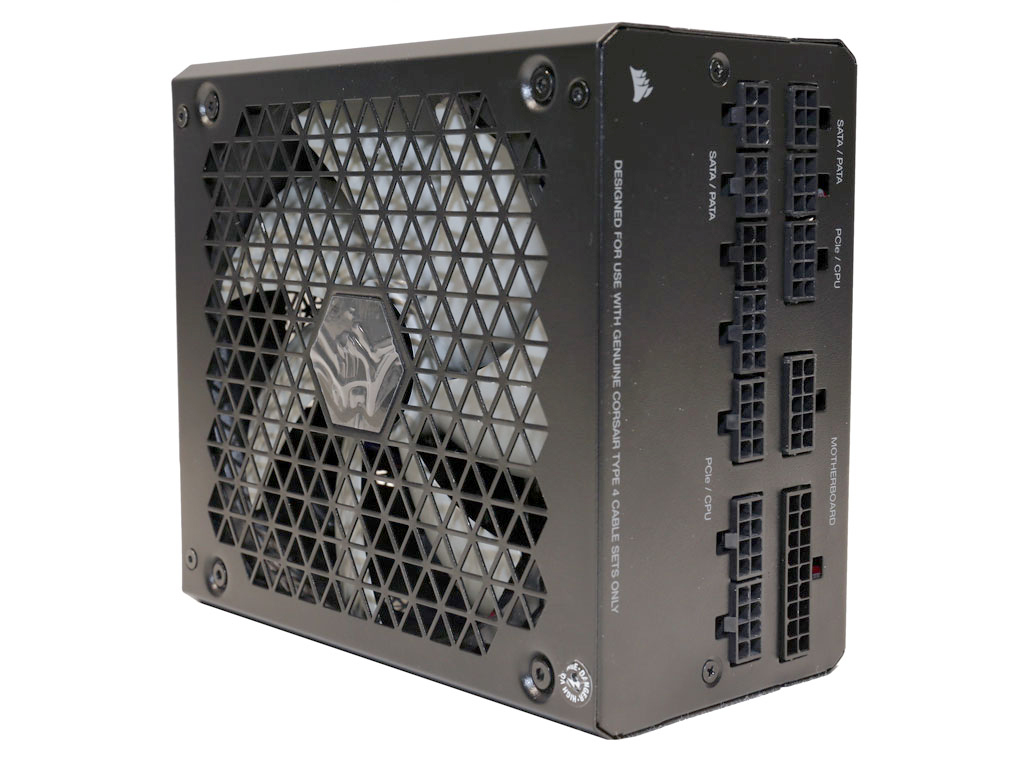

The modular panel includes twelve sockets.

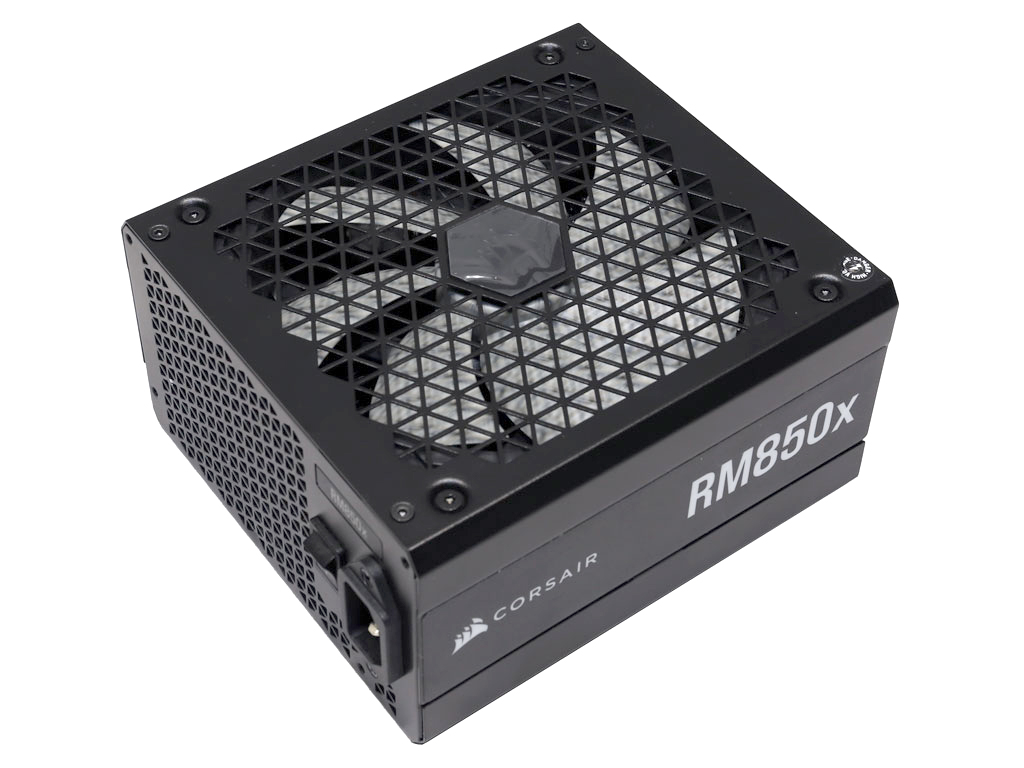

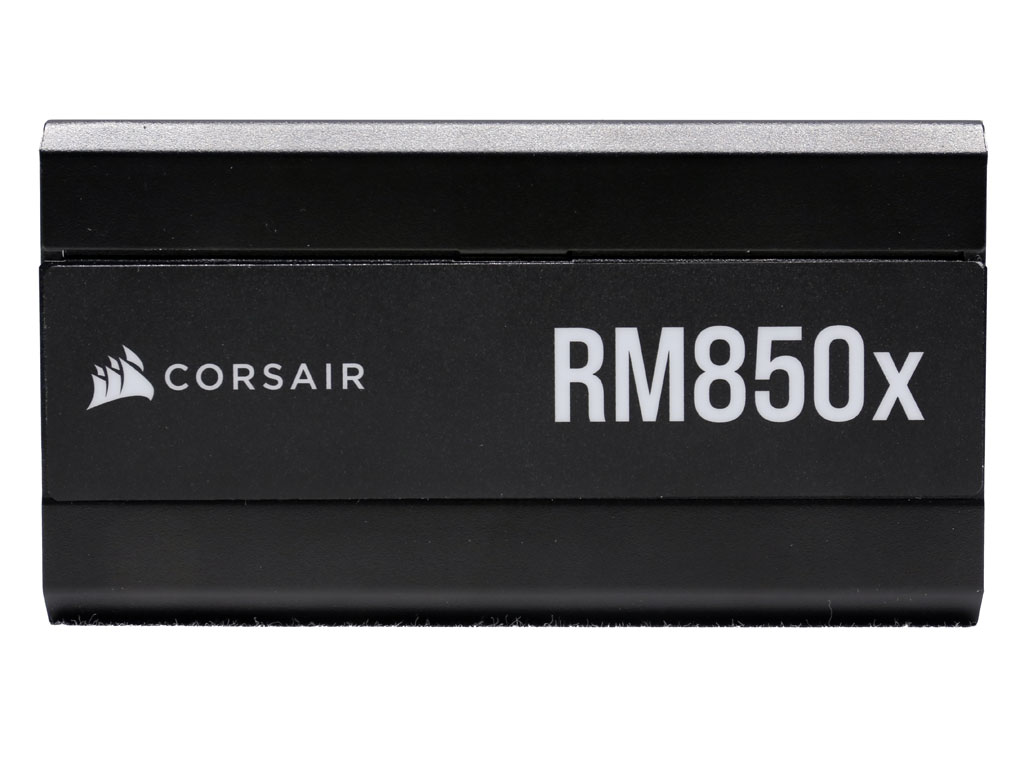

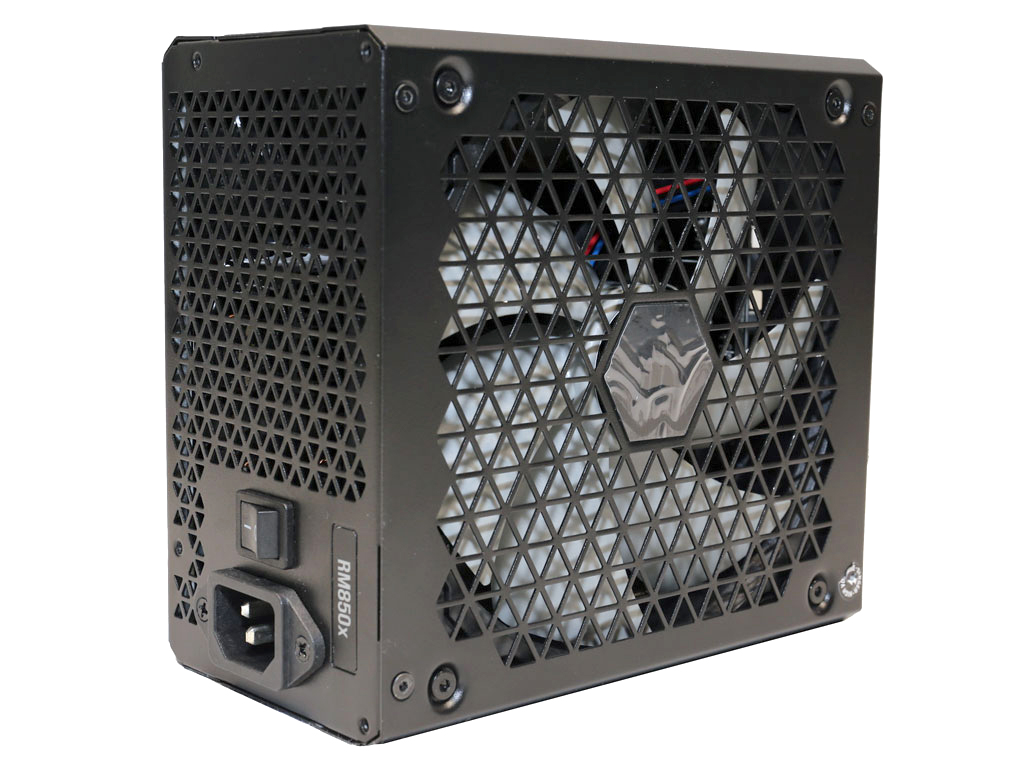

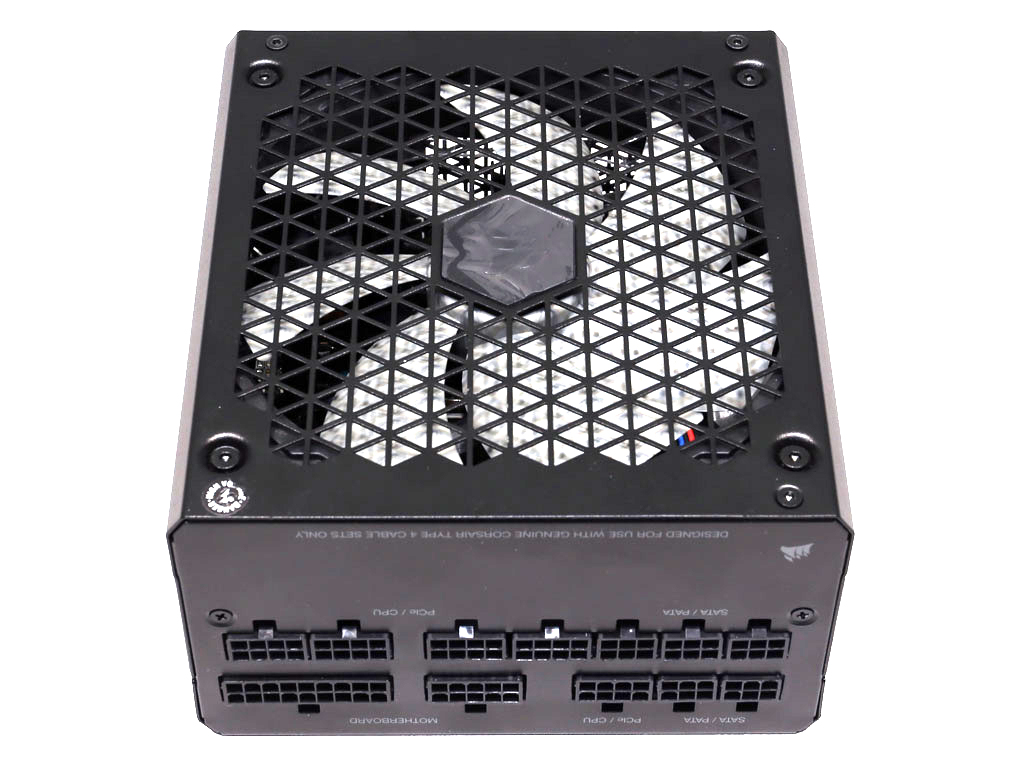

Some more photos of the power supply.

Cables and Connectors

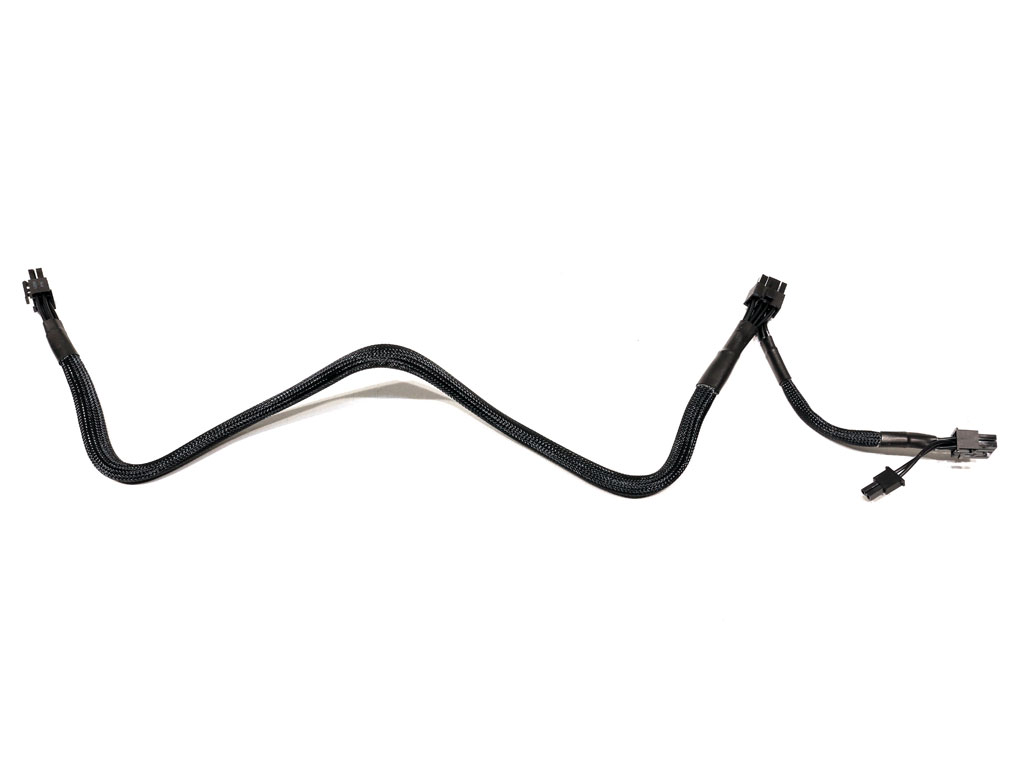

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In-Cable Capacitors

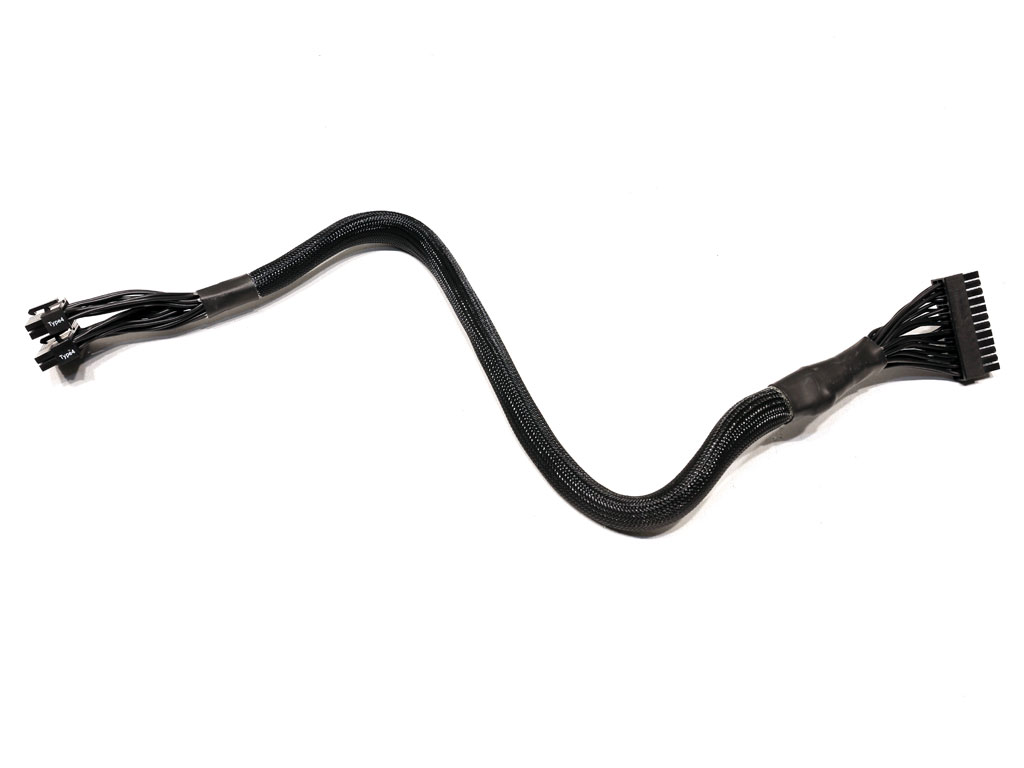

ATX connector 20+4 pin (610 mm)	1	1	16–20AWG	Yes

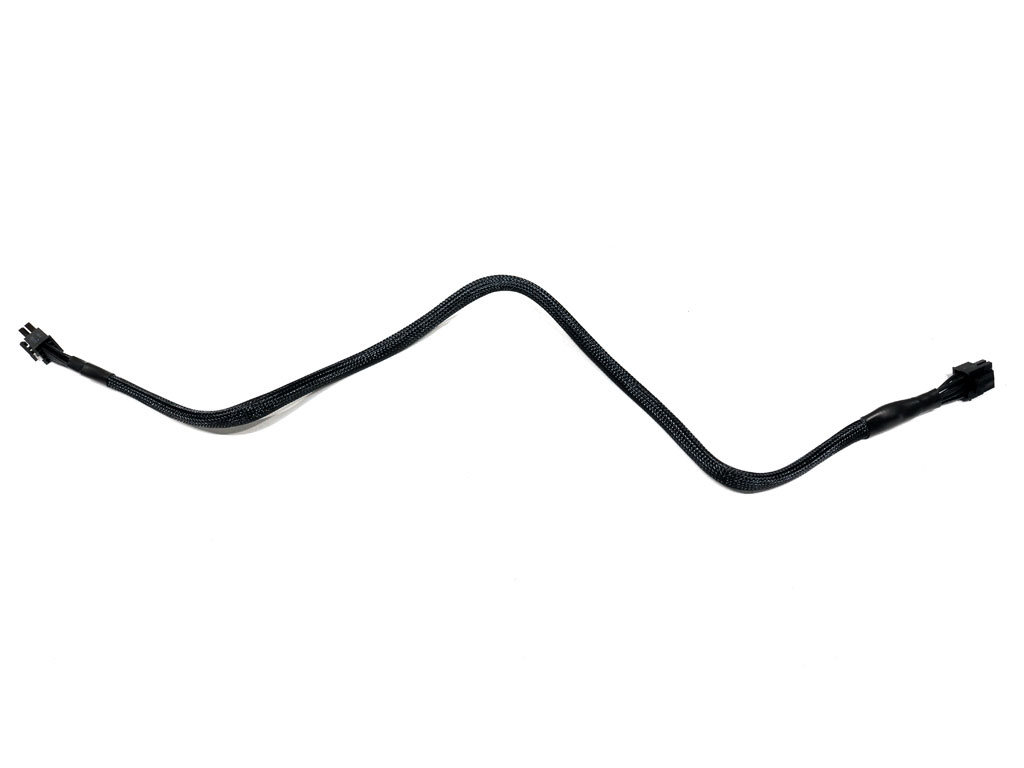

4+4 pin EPS12V (650 mm)	3	3	18AWG	Yes
6+2 pin PCIe (600 mm+150 mm)	2	4	16-18AWG	Yes

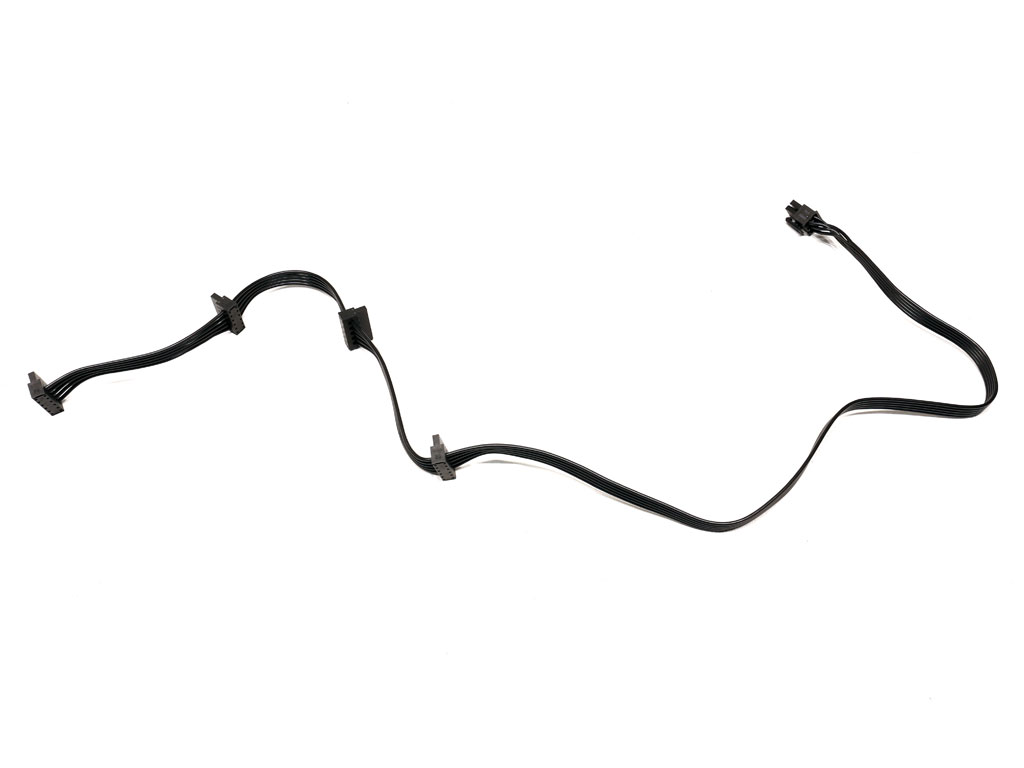

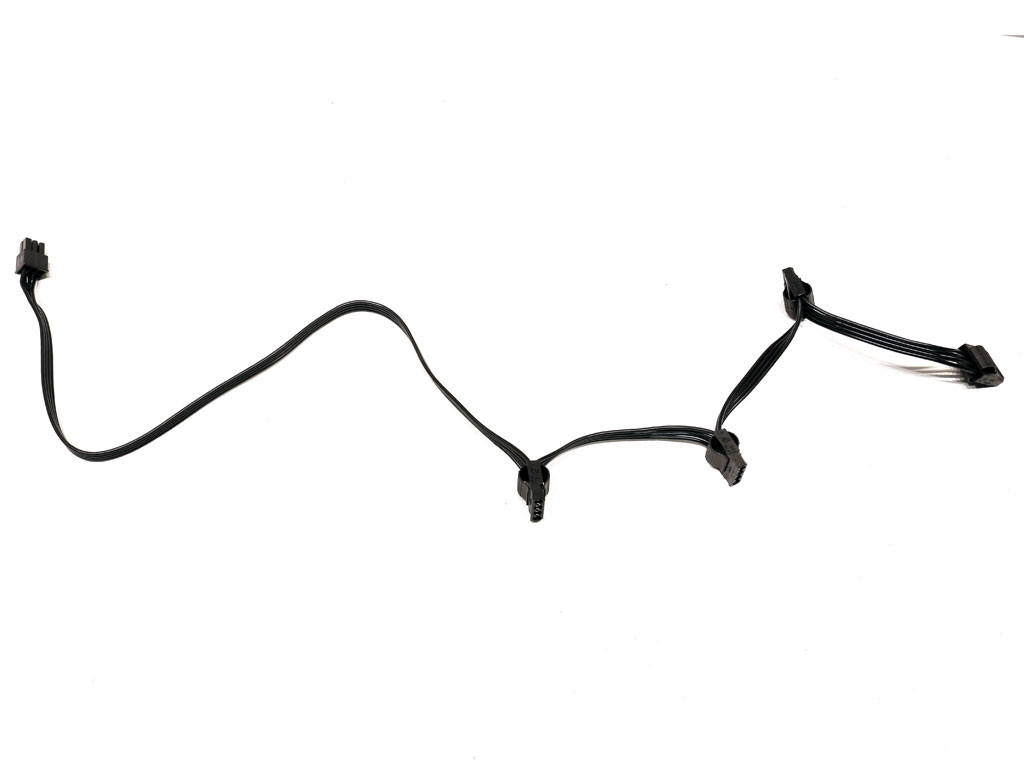

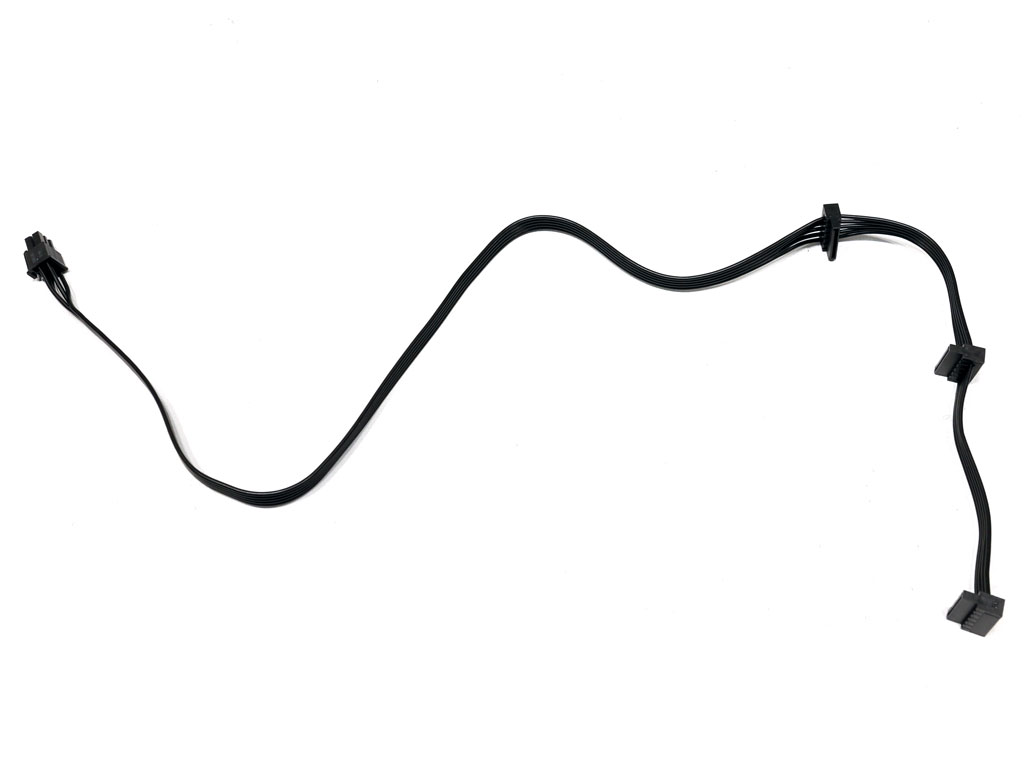

SATA (500 mm+110 mm+110 mm+110 mm)	2	8	18AWG	No
SATA (520 mm+110 mm+110 mm)	2	6	18AWG	No
4-pin Molex (450 mm+100 mm+100 mm+100 mm)	1	4	18AWG	No

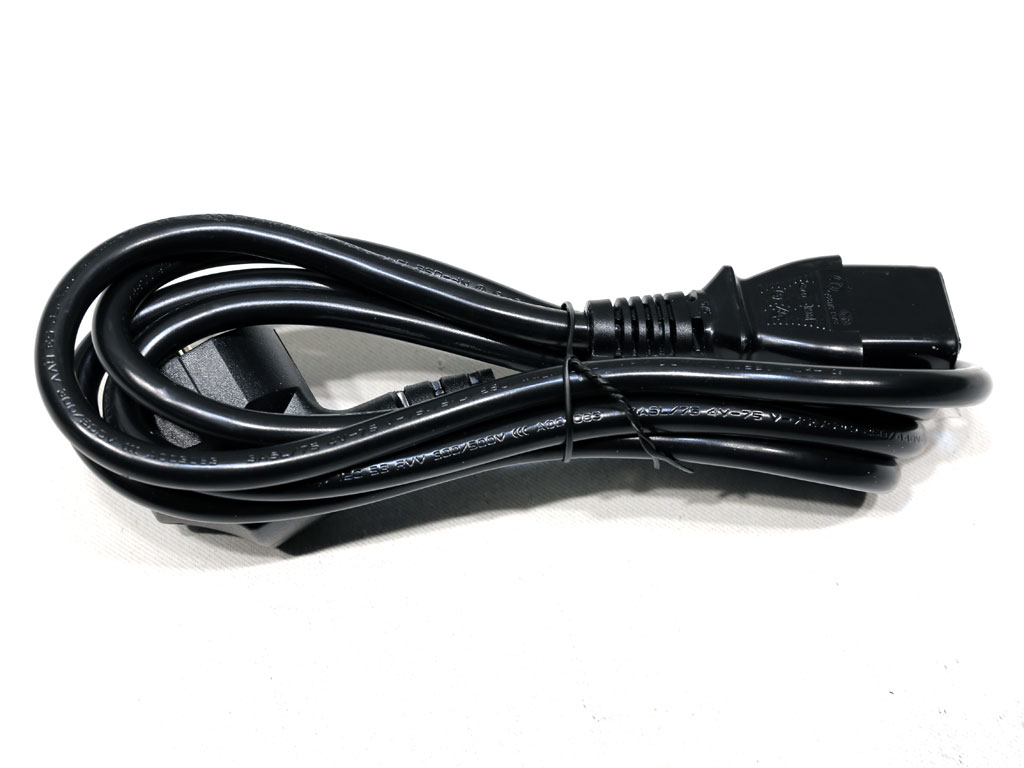

AC Power Cord (1400 mm) - C13 coupler	1	1	18AWG	-

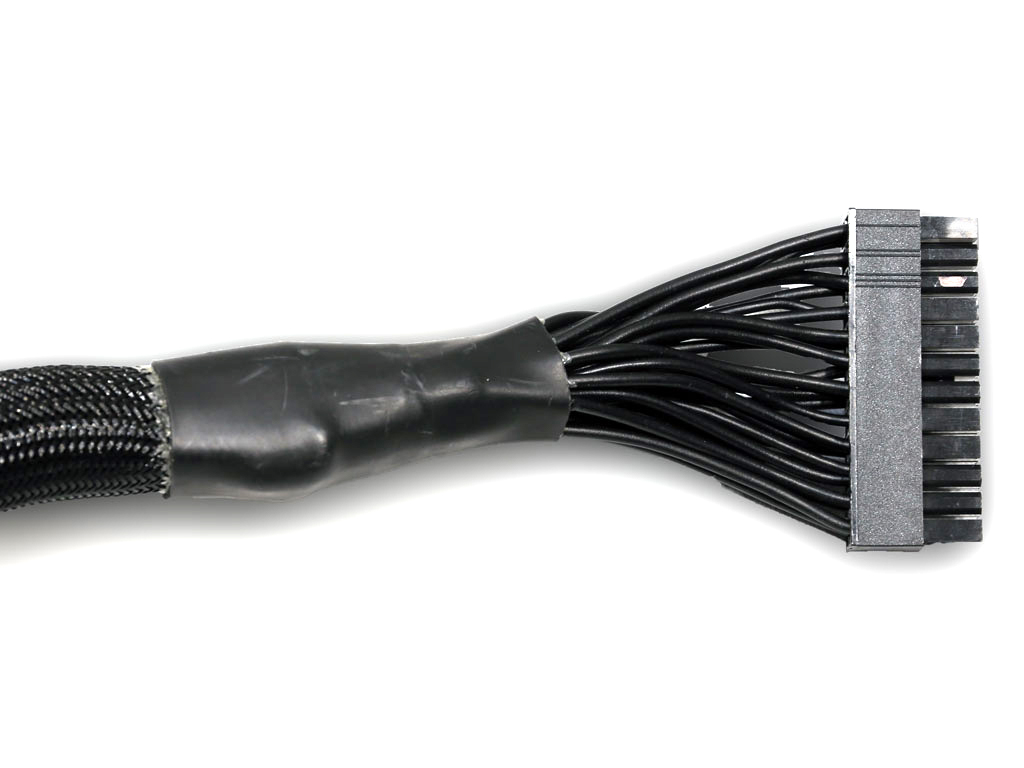

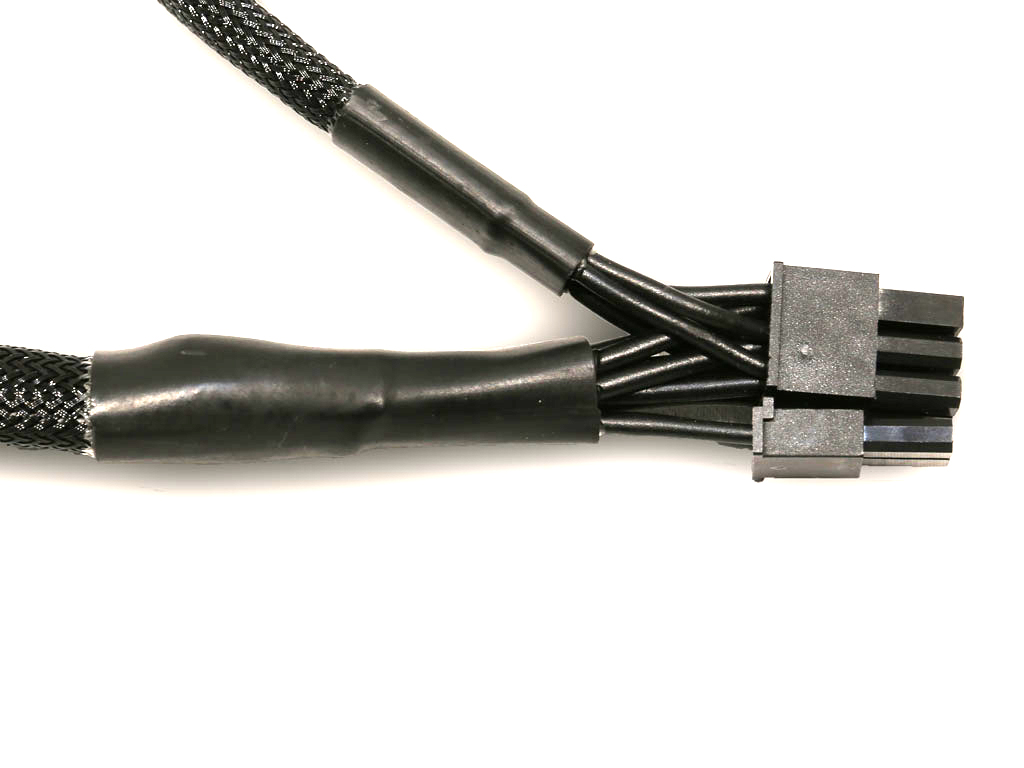

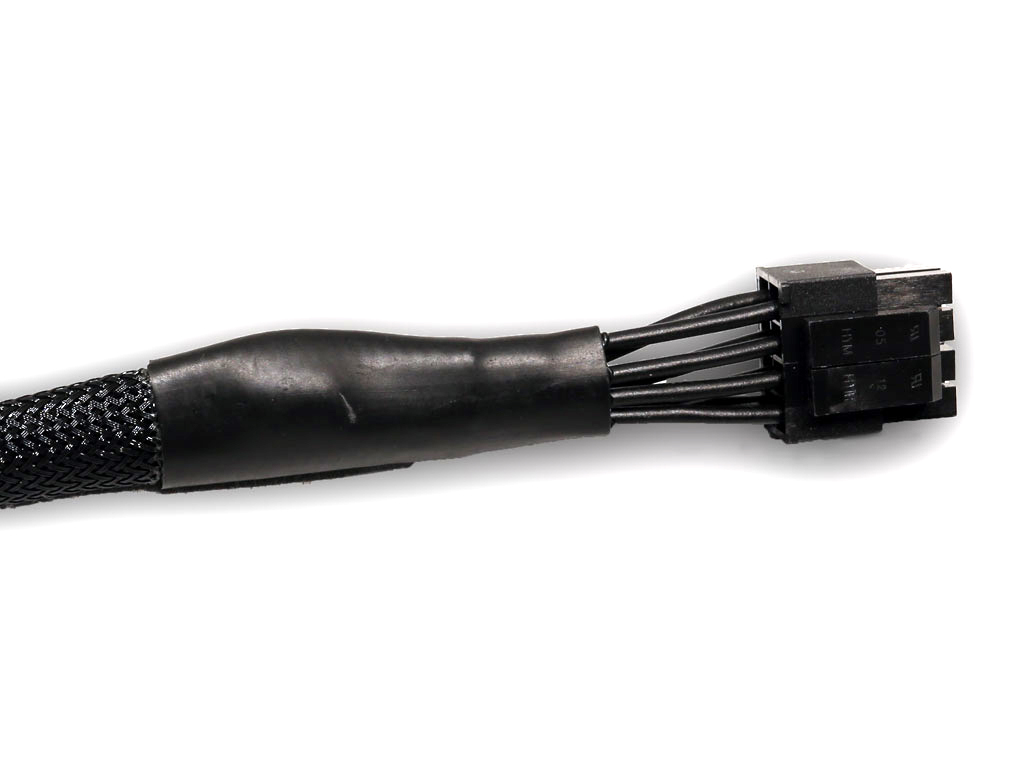

Three EPS connectors and four PCIe are all available at the same time! A large number of peripheral connectors are present as well. Finally, in-cable capacitors have been put on the main ATX, EPS, and PCIe cables.
