MSI GeForce RTX 4090 Suprim Liquid X Review

Name: MSI GeForce RTX 4090 Suprim Liquid X
Brand: MSI
Price: 1700 USD

on Oct 12th, 2022,

Manufacturer: MSI

Test System

Test System - VGA 2022.2
Processor:	AMD Ryzen 7 5800X, PBO Max Enabled (Zen 3, 32 MB Cache)
Motherboard:	EVGA X570 Dark BIOS 1.08
Resizable BAR:	Enabled on all supported AMD, NVIDIA & Intel cards
Memory:	Thermaltake TOUGHRAM, 16 GB DDR4 @ 4000 MHz 20-23-23-42 1T Infinity Fabric @ 2000 MHz (1:1)
Cooling:	Arctic Liquid Freezer II 280 mm AIO
Thermal Paste:	Arctic MX-5

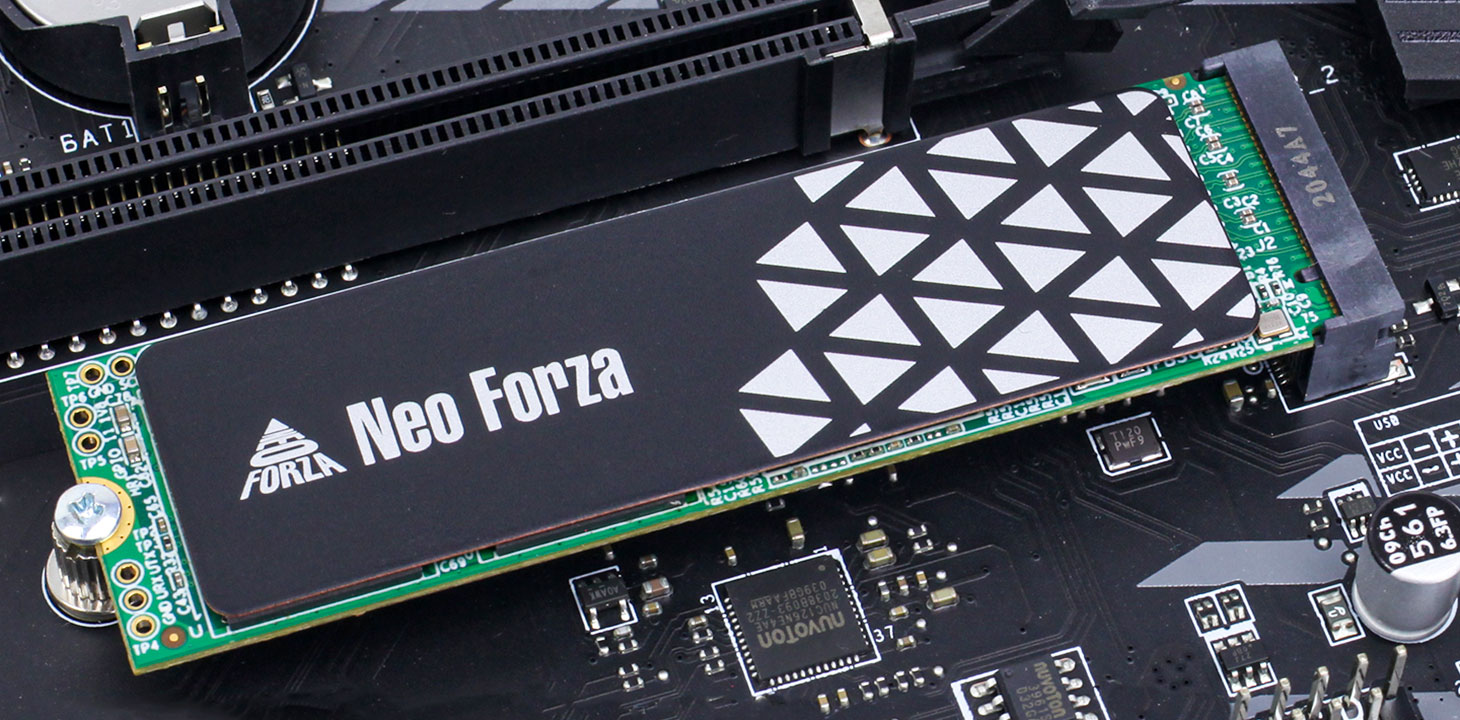

Storage:	2x Neo Forza NFP455 2 TB M.2 NVMe SSD
Power Supply:	Seasonic Prime Ultra Titanium 850 W
Case:	darkFlash DLZ31 Mesh
Operating System:	Windows 10 Professional 64-bit Version 21H2 (Nov 2021 Update)
Drivers:	RTX 4090: 521.90 Press Driver NVIDIA: 516.94 WHQL AMD: 22.8.1 Beta Intel Arc: 101.3433 Press Driver

Benchmark scores in other reviews are only comparable when this exact same configuration is used.

All games and cards are tested with the drivers listed above—no performance results were recycled between test systems. Only this exact system with exactly the same configuration is used.
All graphics cards are tested using the same game version.
All games are set to their highest quality setting unless indicated otherwise.
AA and AF are applied via in-game settings, not via the driver's control panel.
Before starting measurements, we heat up the card for each test to ensure a steady state is tested. This ensures that the card won't boost to unrealistically high clocks for only a few seconds until it heats up, as that doesn't represent prolonged gameplay.

Each game is tested at these screen resolutions:

1920x1080: Most popular monitor resolution.
2560x1440: Intermediary resolution between Full HD and 4K, with reasonable performance requirements.
3840x2160: 4K Ultra HD resolution, available on the latest high-end monitors.
