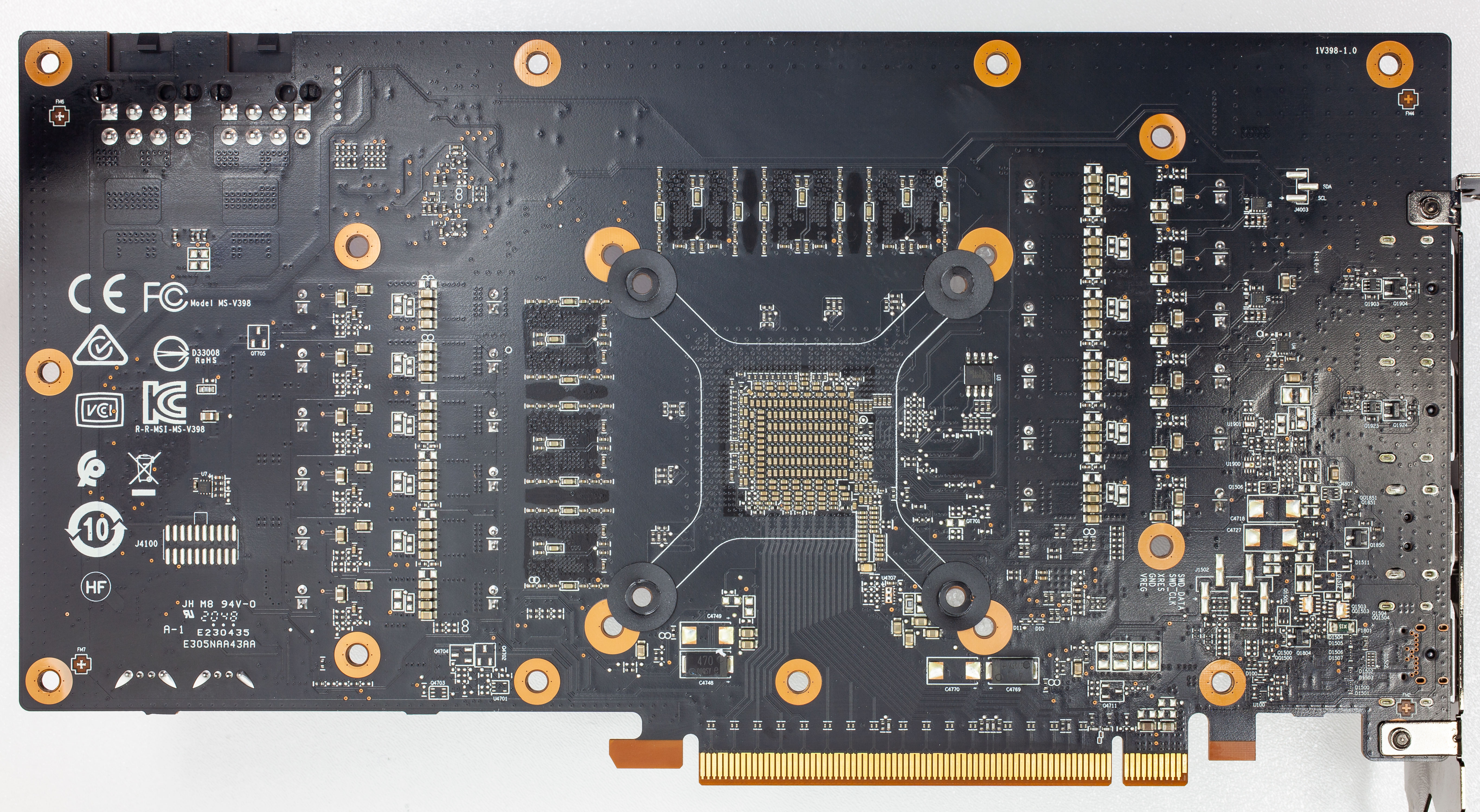

High-resolution PCB Pictures

These pictures are for the convenience of volt modders and people who would like to see all the finer details on the PCB. Feel free to link back to us and use these in your articles, videos or forum posts.



High-res versions are also available (front, back).

Circuit Board (PCB) Analysis

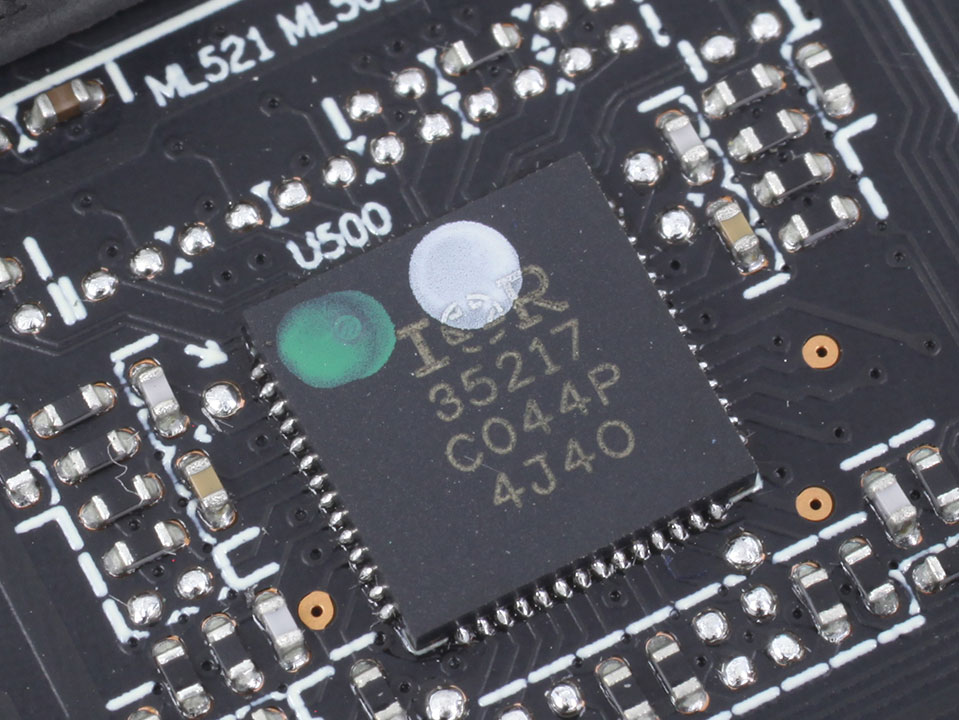

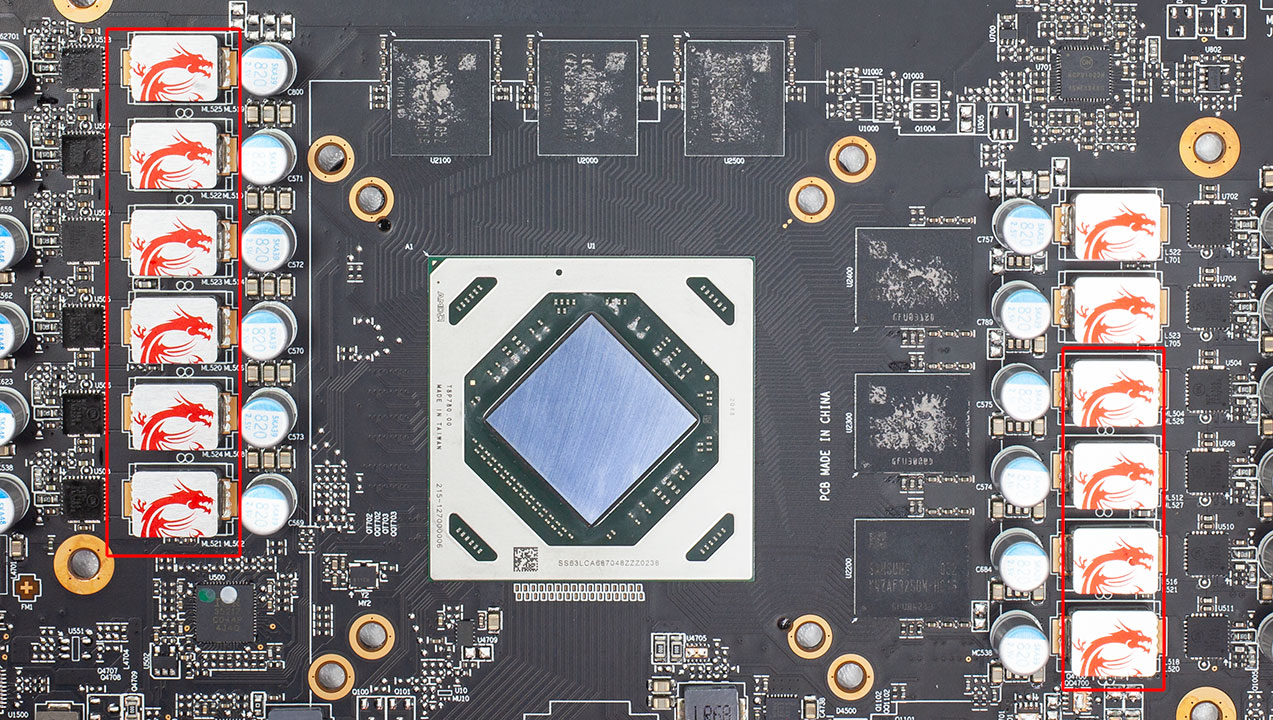

GPU voltage uses ten phases and is powered by an International Rectifier IR35217.

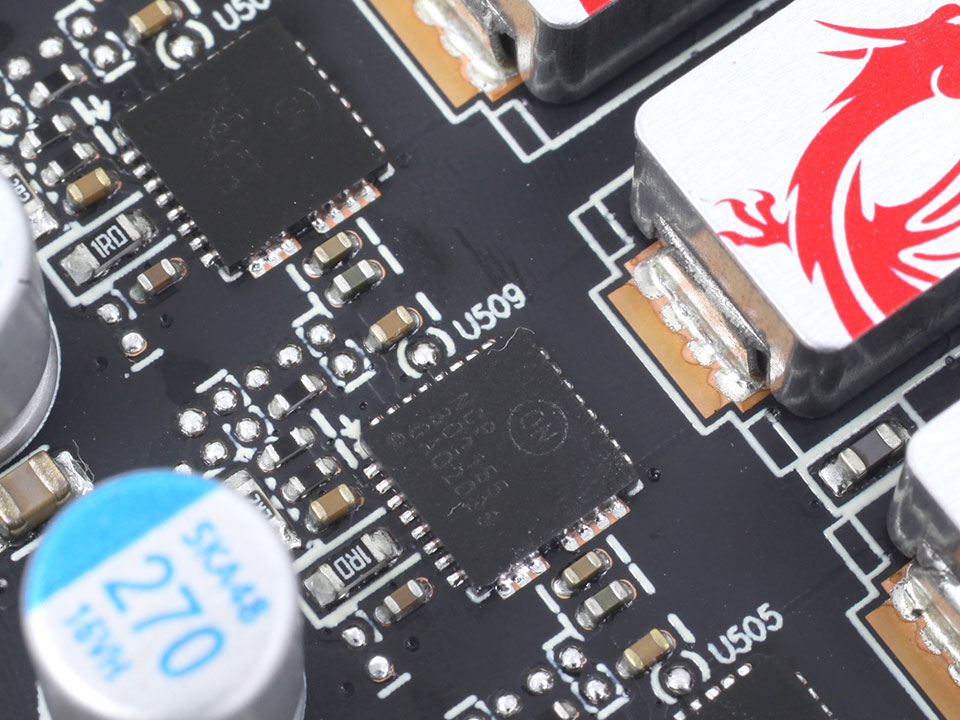

OnSemi NCP302155 DrMOS chips are used for GPU voltage.

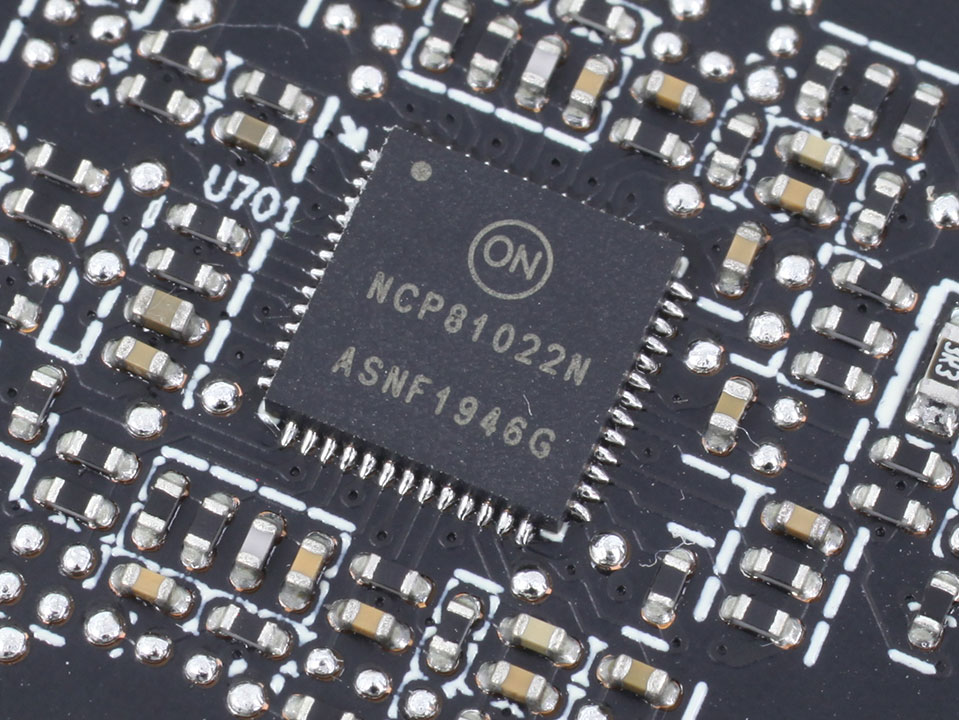

Memory voltage uses a two-phase design and is generated by an NCP81022N controller.

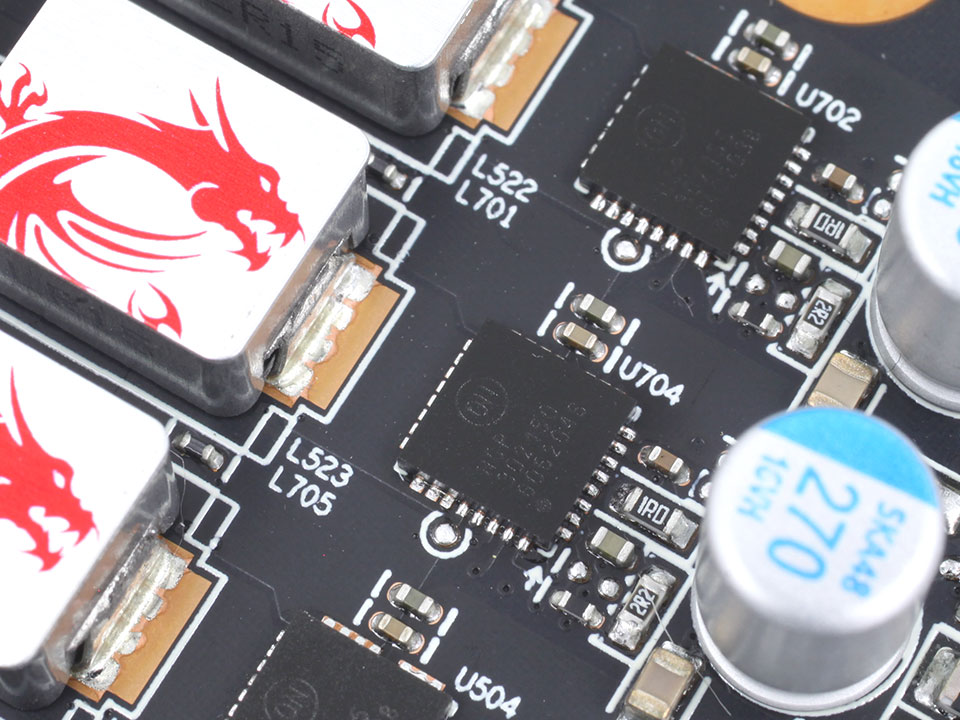

For memory, OnSemi NCP302155 DrMOS chips are used, too.

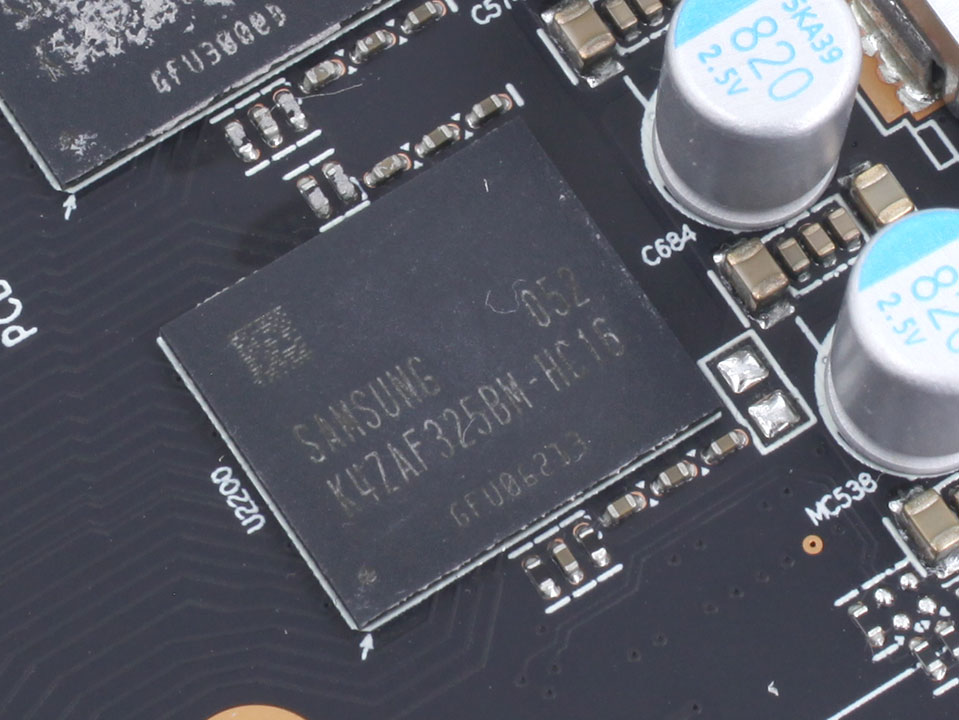

The GDDR6 chips are made by Samsung, carry the model number "K4ZAF325BM-HC16," and are rated to run at 16 Gbps.

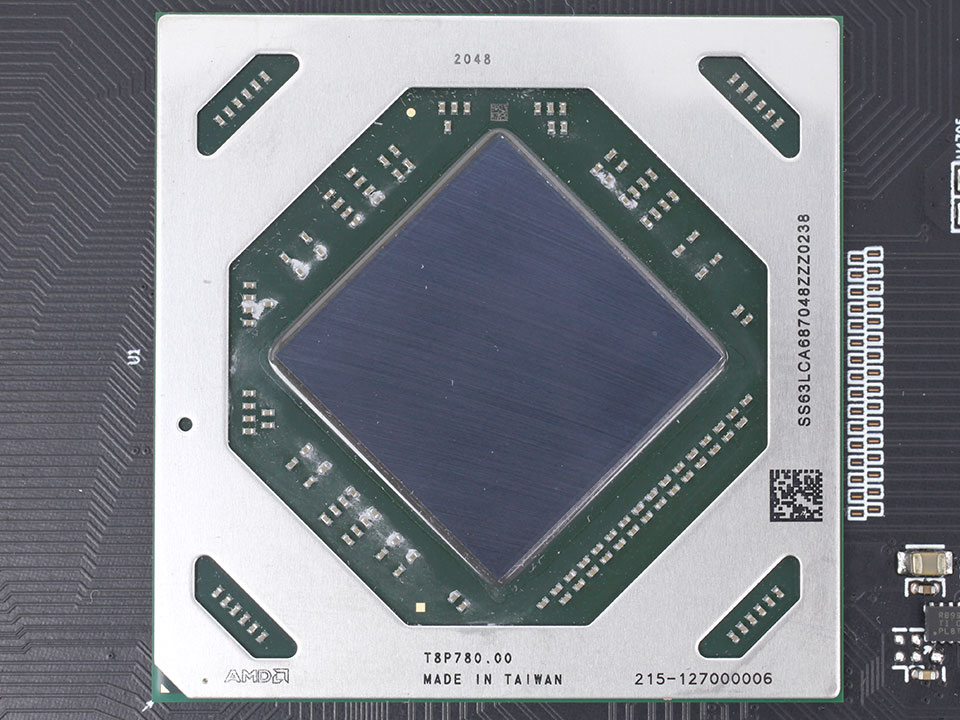

Built on the same TSMC N7 (7 nm) node as Navi 10, the Navi 22 silicon is spread across a 336 mm² die area and packs 17.2 billion transistors. The pinkish-red tinge we saw on Navi 10 is gone.
