Assembly

Installing a BTF motherboard takes up most of the motherboard area, with only the top edge exposed for cable routing. In the back, you will have to remove the HDD cage to have access to all connectors around the three edges of the board. We had to remove the three fans on the floor to secure the board at the bottom. The BTF cutouts in the Ocypus Iota C70 BK ARGB are perfectly aligned and have plenty of clearance around each connector. As expected, the wires of the three fans in the floor can barely make it past the board, as its bottom edge sits right against the floor of the case. So we left those there and worked with this. As you can see, we also managed the stock wiring and things look much better. It is beneficial that the controller is secured with screws, so we were able to actually route ARGB wires underneath of it, to keep as much cable mess as possible away from the reverse BTF connectors. On top of that, fortunately, Ocypus has not included fans with passthrough plugs, so we could just focus on bunching the wires up using lots of zip ties.


Installing the GPU is straightforward with plenty of room for long and powerful units. There is enough room towards the side fans to install a classic AIO with its fans as well. We had to route the GPU power wiring above the GPU because the only place to route this wire is out from behind the side of the motherboard tray and away from the fans in the floor. Adding a PSU also uses classic methods. There is a small lip for it to rest on so you can screw it in easier, but there isn't a lot of room left to cable manage at this point, so we tried our best to bunch wires up as needed.


In the ceiling, the 360 mm AIO fit easily with room to spare, so you can slide it back and forth a little bit to fit your needs. That comes in handy if you want to push the rear fan all the way up at the same time.


While installing the hard drive does not require you to remove the cage, we already had it detached to route power cables to the BTF board. Adding the pair of 3.5" and 2.5" drives with the provided screws was a breeze and a little highlight thanks to the nifty design. Once filled, it can be placed back into the chassis. This does block access to some BTF connectors, but won't be an issue if you stick with an ATX board instead.


Once everything is in place the interior is clean, which can be attributed to the BTF board for the most part. There is very little room between the GPU and the three fans, so it will be interesting to see how thermals are affected. As there is very little clearance underneath the case as well, airflow may be a bit restricted. If you are using a full size ATX board, you will have to route every single wire that connects to the bottom edge of the board through the same hole as the PCIe power cable, which will negatively affect the finished looks considerably. In the back you have the wires of 9 fans, six ARGB wires, the IO cables, separate case wiring as well as the modular PSU cables. This does not even include up to four SATA cables and associated SATA power (Editor's note: we do not connect these, as we end up routinely destroying the connectors of hard drives when reconnecting them over and over in all our case builds).

Finished Looks

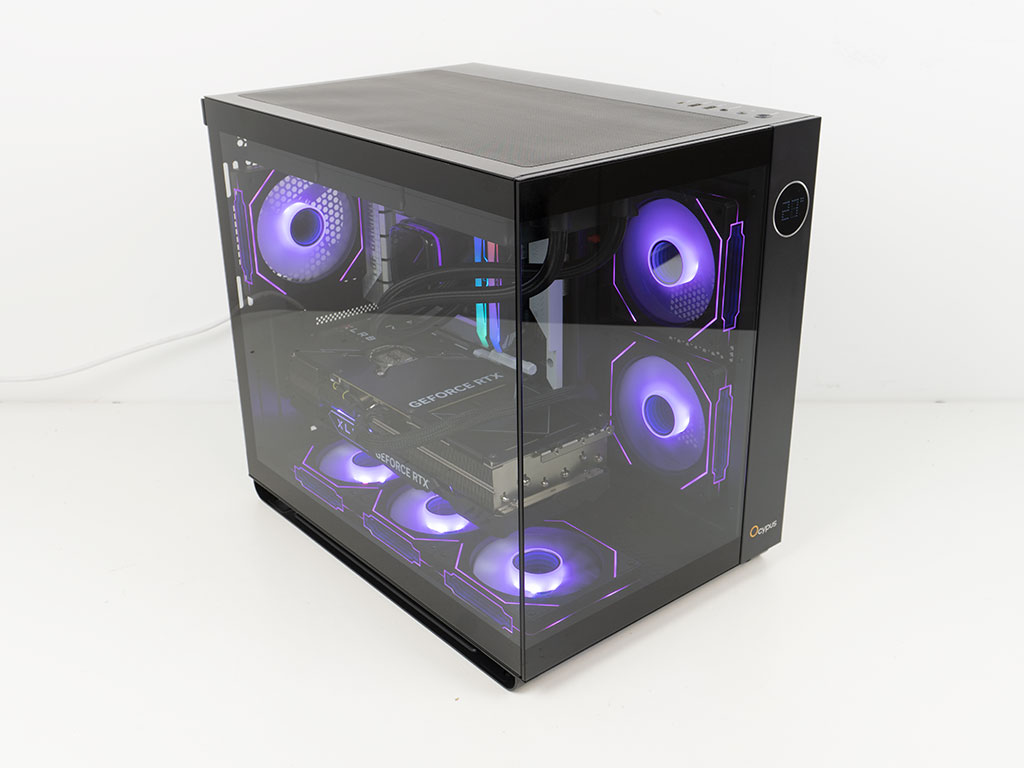

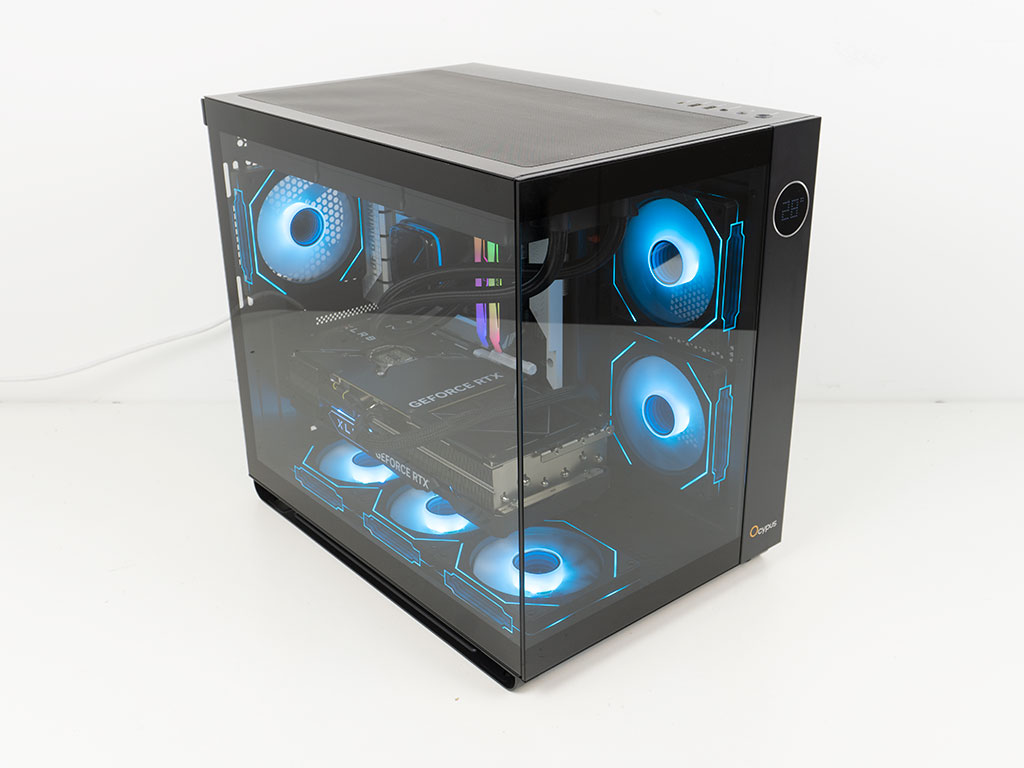

Turning the system on, all the ARGB elements of the fans light up, with the ones in the frames being a nice extra. The hub mounted ARGB elements are diffused well throughout the blades and while the lighting in the frames looks great too, you can see the individual LEDs a tad more. Looking at the system like this, you could be forgiven forgetting about the cable craziness that hides within. A small blue power LED will also let you know that the system is on.


While we would usually show you the application that is powering something like the display, the one that Ocypus uses is very simple. It is a widget that sits in the Windows menu bar, gives you the universal option to show Fahrenheit or Celsius, and lets you pick if all displays should show GPU or CPU information. The app should really allow you to set each display independently and could possibly offer a few more things, like the ability to show a load percentage for example. The display isn't a classic LCD, so you obviously are limited to showing two digits at any given time.


Looking at the front, you will be able to see into the backside of the motherboard tray, because there are no grommets on the openings, so those with ATX boards will also see wiring coming out of here more so than with a BTF board. Otherwise, the clear glass on the front and side allow you to feast your eyes on all your hardware in the glow of the fans, which is pretty nice. In the rear, Everything is where you would expect to see it, with the glow of the rear and floor fans shining through. You can also see the white sticker of the 3.5" drive through the vent in the top left corner of the chassis.


Taking a quick look at the pump of the Iota L36, there is a clean ARGB ring around the slightly tinted cap. It also shows the same information as the one which is embedded in the chassis itself. In our sample, the dot brightness felt a little bit inconsistent, which doesn't seem to be the same with the one of the Iota C70 BK ARGB.

Thanks to the included separate controller, you can cycle through a good number of cool ARGB animations. On top of that, there are seven different solid colors to pick from as shown below.
