Sensor and Performance

The Redragon M808 Storm Pro is equipped with the PixArt PAW3335. According to specifications, the 3335 is capable of up to 16,000 CPI, as well as a maximum tracking speed of 400 IPS, which equals 10.16 m/s. Out of the box, five pre-defined CPI steps are available: 1000, 2000, 4000, 8000, and 16,000.

CPI Accuracy

"CPI" (short for counts per inch) describes the number of counts registered by the mouse if it is moved exactly an inch. There are several factors (firmware, mounting height of the sensor not meeting specifications, mouse feet thickness, mousing surface, among others) which may contribute to nominal CPI not matching actual CPI. It is impossible to always achieve a perfect match, but ideally, nominal and actual CPI should differ as little as possible. In this test, I'm determining whether this is the case or not. However, please keep in mind that said variance will still differ from unit to unit, so your mileage may vary.


I've restricted my testing to the four most common CPI steps, which are 400, 800, 1600, and 3200. As you can see, deviation is inconsistent and rather significant, which is a below average result. In order to account for the measured deviation, adjusted steps of 400, 800, 1700, and 3300 CPI have been used for testing.

Motion Delay

"Motion delay" encompasses all kinds of sensor lag. Any further sources of input delay will not be recorded in this test. The main thing I'll be looking for in this test is sensor smoothing, which describes an averaging of motion data across several capture frames in order to reduce jitter at higher CPI values, increasing motion delay along with it. The goal here is to have as little smoothing as possible. As there is no way to accurately measure motion delay absolutely, it can only be done by comparison with a control subject that has been determined to have the lowest possible motion delay. In this case, the control subject is a G403, whose 3366 has no visible smoothing across the entire CPI range. Note that the G403 is moved first and thus receives a slight head start.

Wired Testing

First, I'm looking at two xCounts plots—generated at 1600 and 16,000 CPI—to quickly gauge whether there is any smoothing, which would be indicated by any visible "kinks." As you can see, such kinks are plainly on display in the second plot, which confirms that there is smoothing. We can also see that SPI timing jitter is quite low.

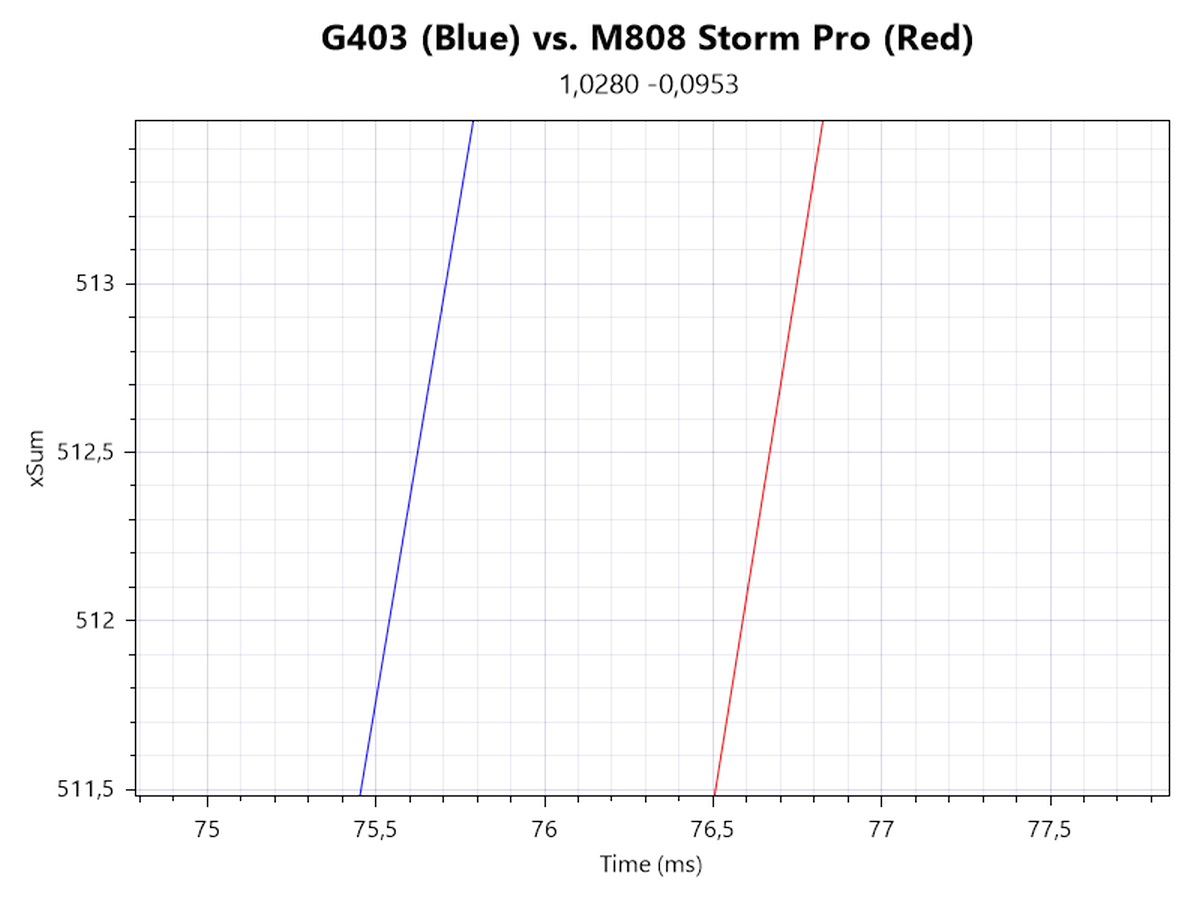

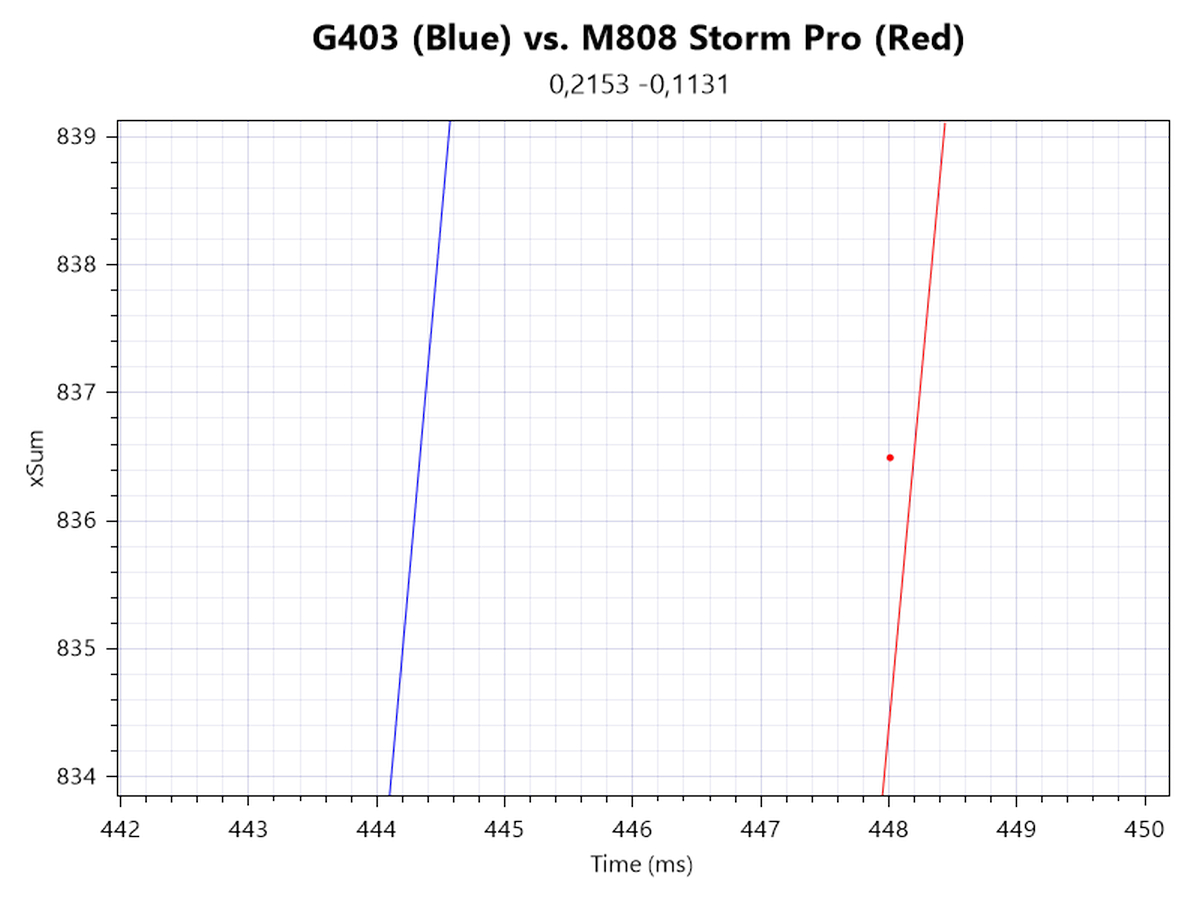

In order to determine motion delay, I'm looking at xSum plots generated at 1600 and 16,000 CPI. The line further to the left denotes the sensor with less motion delay. At 1600 CPI, there may be a minor motion delay differential, but it is too small to tell for sure and not introduced through smoothing. 16,000 CPI shows a motion delay differential of roughly 4 ms, which is due to added smoothing at that step.

Wireless Testing

Aside from occasional outliers, tracking still looks good in wireless mode.


I'm looking at plots generated at 1600, 5000, and 16,000 CPI. 1600 shows a motion delay differential of roughly 2–2.5 ms. The first level of smoothing is applied at 5000 CPI, which results in a motion delay differential of roughly 4 ms. At and above 11,700 CPI, the second level of smoothing is applied, resulting in a motion delay differential of roughly 10 ms, which holds true all the way up to 16,000 CPI. Keeping the wired motion delay established above in mind, I can measure an isolated wireless motion delay of around 1–1.5 ms.

Speed-related Accuracy Variance (SRAV)

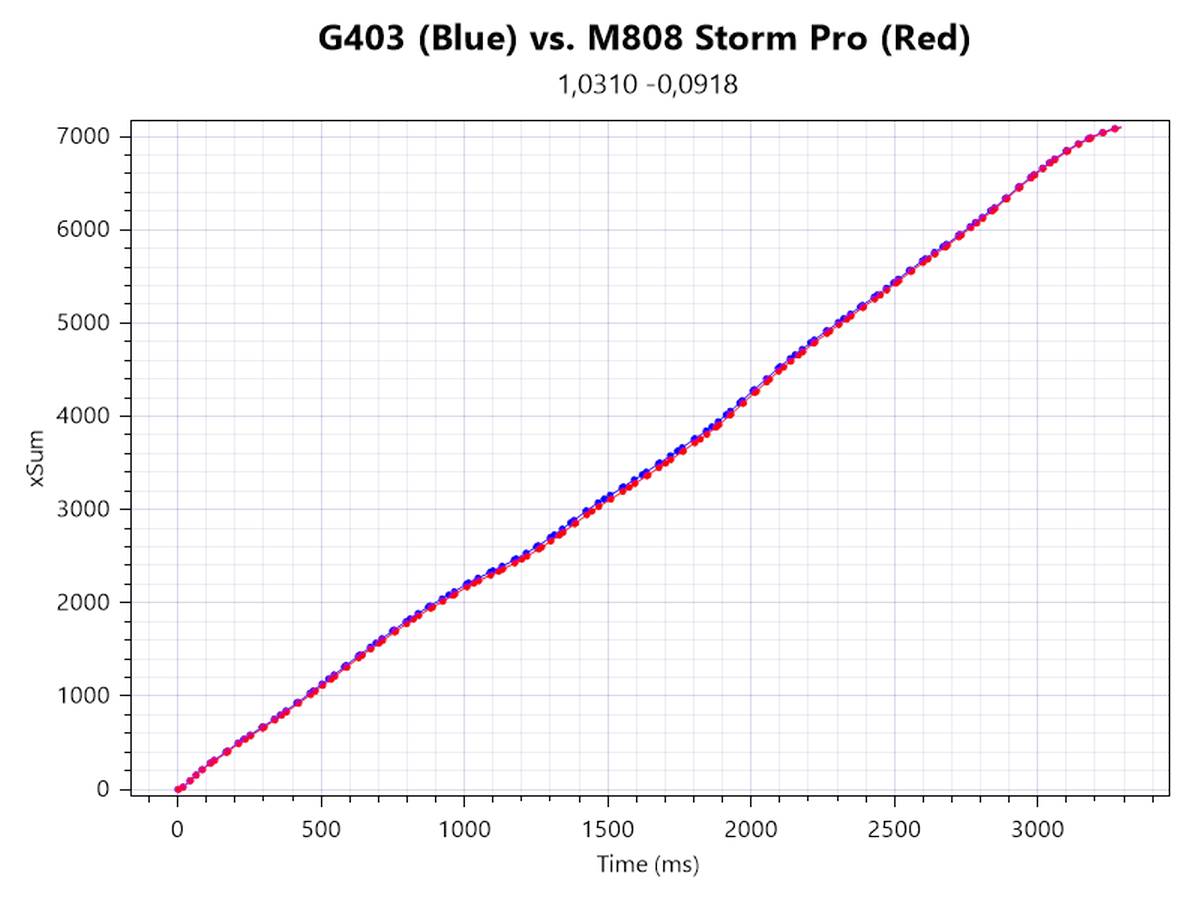

What people typically mean when they talk about "acceleration" is speed-related accuracy variance (or SRAV for short). It's not about the mouse having a set amount of inherent positive or negative acceleration, but about the cursor not traveling the same distance if the mouse is moved the same physical distance at different speeds. The easiest way to test this is by comparison with a control subject that is known to have very low SRAV, which in this case is the G403. As you can see from the plot, no displacement between the two cursor paths can be observed, which confirms that SRAV is very low.

Perfect Control Speed

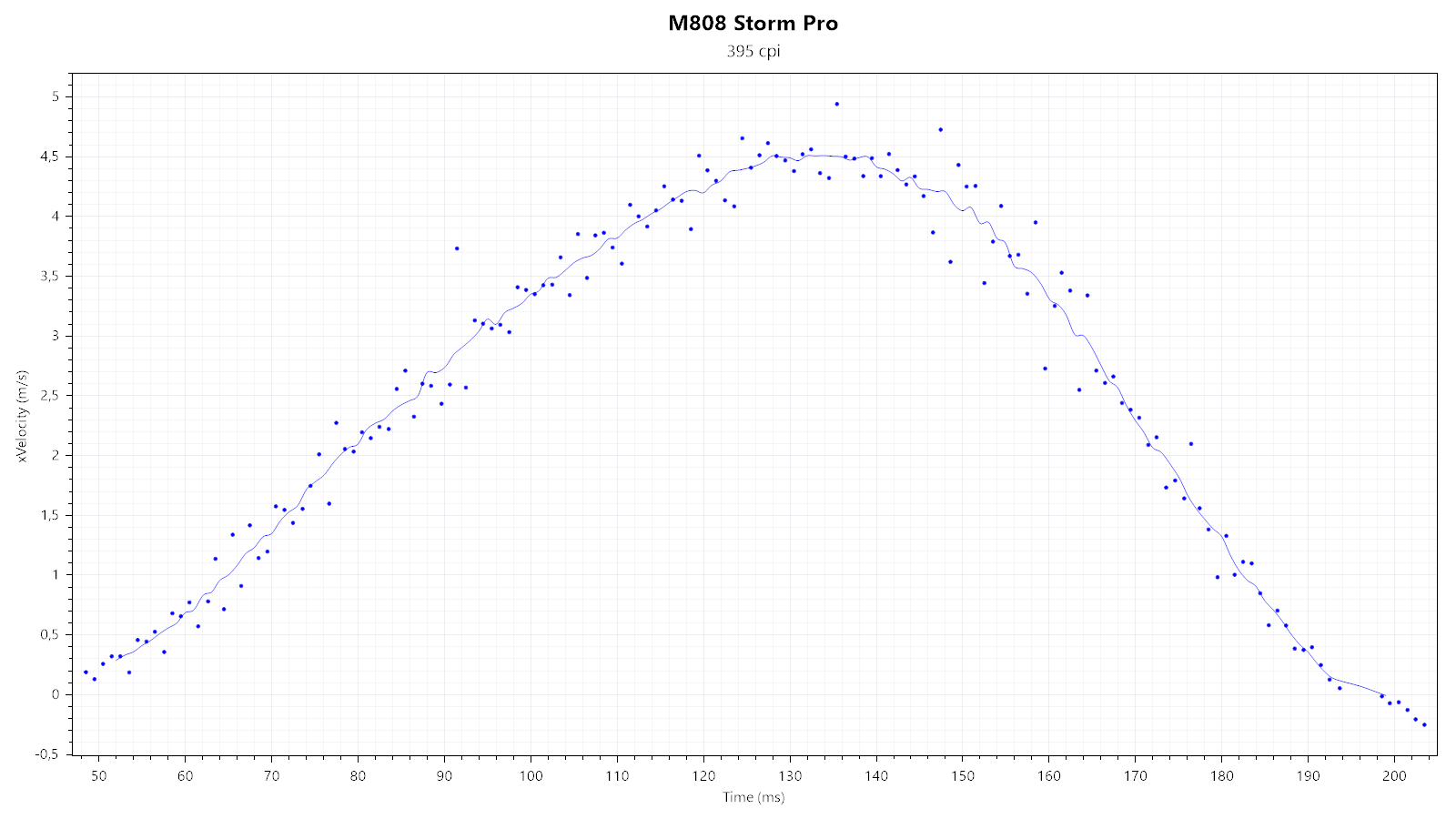

Perfect Control Speed (or PCS for short) is the maximum speed up to which the mouse and its sensor can be moved without the sensor malfunctioning in any way. I've only managed to hit a measly 4.5 m/s (which is within the proclaimed PCS range), at which no sign of the sensor malfunctioning can be observed.

Polling Rate Stability

Considering the M808 Storm Pro is usable as a regular wired mouse as well, I'll be testing polling rate stability for both wired and wireless use.

Wired Testing


All four of the available polling rates (125/250/500/1000 Hz) look nice and stable. Polling stability is unaffected by any of the available RGB lighting effects.

Wireless Testing
For wired mice, polling-rate stability merely concerns the wired connection between the mouse (SPI communication) and the USB. For wireless mice, another device that needs to be kept in sync between the first two is added to the mix: the wireless dongle/wireless receiver. I'm unable to measure all stages of the entire end-to-end signal chain individually, so testing polling-rate stability at the endpoint (the USB) has to suffice here.


First, I'm testing whether SPI, wireless, and USB communication are synchronized. Any of these being out of sync would be indicated by at least one 2 ms report, which would be the result of any desynchronization drift accumulated over time. As you can see, several off-period polls are visible, which suggests there is some degree of desynchronization present, but as evidenced below, these might as well be mere polling outliers.


Second, I'm testing the general polling-rate stability of the individual polling rates in wireless mode. Running the M808 Storm Pro at a lower polling rate can have the benefit of extending battery life. As you can see, all available polling rates are entirely broken.

Paint Test

This test is used to indicate any potential issues with angle snapping (non-native straightening of linear motion) and jitter, along with any sensor lens rattle. As you can see, no issues with angle snapping can be observed. No jitter is visible at 1600 CPI or 3200 CPI. 16,000 CPI has some smoothing, but still shows high jitter regardless. Lastly, there is minor sensor lens movement.

Lift-off Distance

The M808 Storm Pro does not support adjusting LOD. This is unfortunate as the 3335 would be fully capable of it. At the only available (default) setting, the sensor does not track at a height of 1 DVD (<1.2 mm). Keep in mind that LOD may vary slightly depending on the mousing surface (pad) it is being used on.

Click Latency

Since mechanical switches are being used for the buttons in most computer mice, debouncing is required in order to avoid unintended double clicks. Debouncing typically adds a delay (along with any potential processing delay), which shall be referred to as click latency. As there is no way to measure said delay directly, it has to be done by comparing it to a control subject, which in this case is the Logitech G203. In wired mode, click latency has been measured to be roughly +13.1 ms when compared to the SteelSeries Ikari, which is considered as the baseline with 0 ms, with standard deviation being 0.51 ms. Please keep in mind that the measured value is not the absolute click latency. Comparison data comes from this thread as well as my own testing, using qsxcv's program.

The main button switches were measured to be running at 3.29 V. Since the logic is running at 3.3 V, I believe these switches to be running within specifications.
