Thursday, September 12th 2024

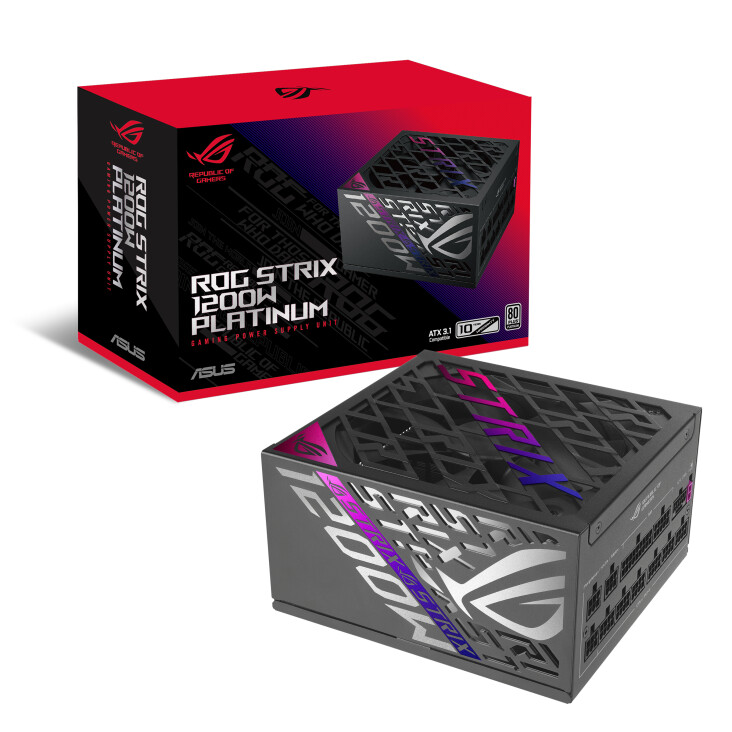

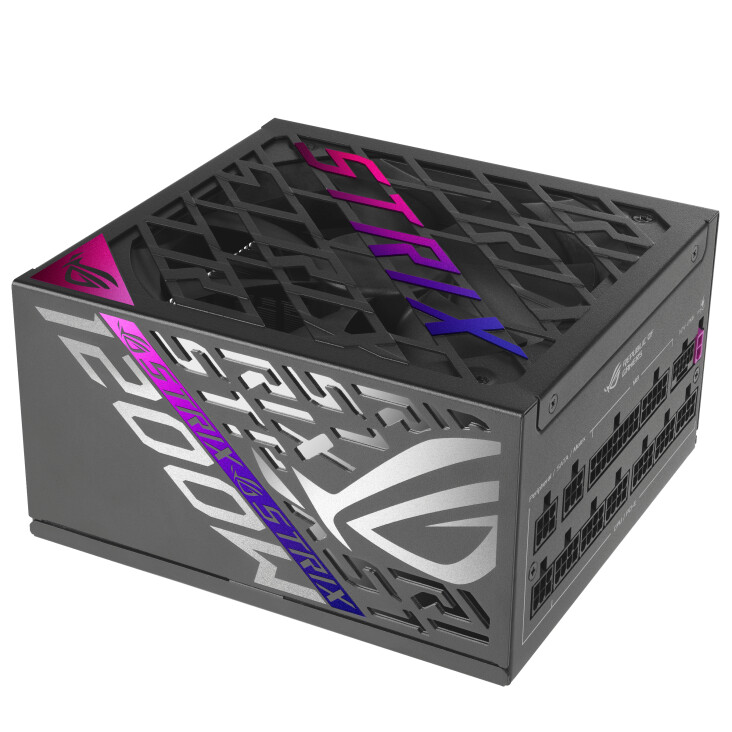

ASUS Announces ROG Strix Platinum Power Supply Series

ASUS Republic of Gamers (ROG) today announced the ROG Strix Platinum PSU series, the ideal power supplies for gaming PC setups. These high-efficiency units, available in 1200-watt, 1000-watt, and 850-watt versions, raise the bar with lower connection temperatures, intelligent wattage delivery, ATX 3.1 with Intel lab testing and a sizeable 10-year warranty.

Smart design, efficient operation
The ROG Strix Platinum PSU series is ready to power any rig a user can assemble, no matter what kind of graphics card they put under the hood. That's where the patented GPU-First intelligent voltage stabilizer (IVS) comes into play. It ensures that even an overclocked graphics card always has the stable power flow it needs to perform at peak capacity during intense gaming sessions, providing up to 45% more stable flow to the GPU than without the stabilizer. And if users prefer a conventional CPU-focused voltage sensor, they can disconnect the Strix Platinum IVS cable.
ROG Strix Platinum PSUs also feature a gallium nitride (GaN) MOSFET that pushes the envelope on power efficiency, reducing energy waste and boosting optimized power delivery by up to 30%, versus previous generations. Plus, the GaN MOSFET's small size enables a simplified internal layout that provides more space for better heat dissipation, heavy-duty heatsinks and superior airflow.

Dual ball bearings on the PSU fan feature a lifespan of up to 80,000 hours, helping to ensure this power supply will keep going no matter how much gaming a user engages in. And when the PSU load is at 40% or lower with 0dB mode enabled, the fan will intelligently deactivate after achieving safe temperatures, keeping a rig as quiet as possible. Even when not in 0dB mode, the ROG Strix 1000 W Platinum in particular emits less than 20 dB of noise - a low enough value to earn it an A+ Cybenetics Lambda certification, signifying an exceptionally quiet acoustic level.

This PSU series also packs 80 Plus Platinum certification and Intel lab testing. This certification means that whether it is a light load or a heavy one, users always get at least 89% efficiency, thanks in part to high-end Japanese capacitors that can last up to twice as long as standard capacitors. The Platinum rating means highly efficient energy usage and a low temperature range, which leads to quiet acoustics and savings on energy bills. And high-performance copper pins on the upgraded PCIe connectors increase thermal conductivity and reduce connector temperatures.

Power supply units built for DIY builders
Modular philosophy is a key part of what makes the ROG Strix Platinum series a next-generation power solution. Along with the impressive features of these PSUs, easy installation and organization are to be expected, thanks to flexible, etched modular cables - which operate at up to 50°C below the safety limit. These cables also feature UL758 certification and meet UL1581 flame test standards, meaning DIY gaming PC builders can trust that the Strix Platinum can fulfill their needs in a way that is safe and sustainable.

An innovative CPU power cable is another DIY PC builder perk that ASUS has integrated into the ROG Strix Platinum series. It features a unique color scheme and special clip that makes it easy to identify. This way, users will immediately know which cable is meant to go to the processor.

Each Platinum series PSU also includes ROG Strix stickers - so users can add a bit of custom flair to their PSU, choosing the vibe that best fits their aesthetic preferences. While these sleek, angular PSUs already pack ROG branding to make it clear that users are gaming with the best, a little extra color can go a long way toward illustrating a unique style.

ROG Strix Platinum PSUs set a new standard for gaming power supplies
Users want their brand-new powerful CPU or GPU to be in the hands of a reliable power supply. They should protect those investments with a PSU that is just as premium as the hardware it powers. Equipped for quiet noise levels, efficient operation and muscular power delivery, the ROG Strix Platinum PSU series gives users the options they need for their next-gen gaming build.
Source: ASUS ROG
Add your own comment

13 Comments on ASUS Announces ROG Strix Platinum Power Supply Series

#1
las
Which OEM are Asus using for their powersupplies?

"Gaming power supply" don't really lure me in
Posted on Reply
#2
ErikG
I think for TUF PSU line is company Great Wall, for platinum Seasonic.
Posted on Reply
#3
Kirederf
lasWhich OEM are Asus using for their powersupplies?

"Gaming power supply" don't really lure me in
The ROG Thor units are made by Seasonic. The "ROG Strix Gold Aura Edition" is made by CWT; you can look this up in the Cybenetics report. The OEM for these is "Great Wall" according to the report: Cybenetics Test - Asus ROG-STRIX-1000P-GAMING
Posted on Reply
#4
close
Looks like Asus used GaN MODFETS but then kept the rest of the design "classic" so a lot of the efficiency gains are left on the table. So the GaN part is probably just for differentiating themselves from competition in the marketing leaflets. But looks like a very good (top) PSU nonetheless.
Posted on Reply
#5
TomWeng
lasWhich OEM are Asus using for their powersupplies?

"Gaming power supply" don't really lure me in
Seasonic FOCUS GX ATX3
Posted on Reply
#6
phints
Platinum is nice, but the wattages are hilarious, 1kW power supply in a PC? :rockout:
Posted on Reply
#7
Onasi
@phints
You must have been not following the trends in TOTL enthusiast hardware. It’s not an uncommon PSU to use with high-end CPU and a 4090 or something. Add all other hardware, allow for overhead and yeah, that’s where you’d end up.
And, in any case, there is a 850W version for any moderate not-power hungry needs one might have.
Posted on Reply
#9
las
phintsPlatinum is nice, but the wattages are hilarious, 1kW power supply in a PC? :rockout:
Yeah pretty much needed if you use high-end parts.

A quality 850w is the lowest I would go myself.
Posted on Reply
#10
dirtyferret
lastcalaverasSo it's just a seasonic with extra bits
not even sure what that means but these ROG Strix platinum are made by Great Wall, Seasonic made the Asus ROG Thor series
Posted on Reply
#11
_roman_
I'm looking forward to see power efficiency curves for the output from 0.1 Watt DC to 100W Watt DC for this power supply unit in 5 Watt DC Steps or smaller.
Posted on Reply
#12
Andrej
OEM Great Wall, poor perfomance, Fake GAN-topology, PVC cables.
Posted on Reply
#13
TomWeng
AndrejOEM Great Wall, poor perfomance, Fake GAN-topology, PVC cables.
92.72%EFFICIENCY (50% Load), but at what a cost? :laugh:
dirtyferretnot even sure what that means but these ROG Strix platinum are made by Great Wall, Seasonic made the Asus ROG Thor series
I don't know why Seasonic Vertex PX didn't have Cybenetics ATX3.1 Pass.
Posted on Reply
