Ryzen Owners Zen Garden

Durvelle27 · Jan 10, 2021

Did a test bench to update BIOs for the 5800X. Going to do some OCing to see what I can get

biffzinker · Jan 10, 2021

Durvelle27 said:
Going to do some OCing to see what I can get

Are you going to try out ClockTuner 2.0 when it’s released?

ClockTuner for Ryzen to be Overhauled and Updated (CTR v2.0)

We've written a lot about this software, and it's been a popular tool ever since the beginning. Yuri emailed us this morning with a bit of a teaser presentation for the soon to be released CTR vers...

www.guru3d.com

Durvelle27 · Jan 10, 2021

biffzinker said:
Are you going to try out ClockTuner 2.0 when it’s released?

ClockTuner for Ryzen to be Overhauled and Updated (CTR v2.0)

We've written a lot about this software, and it's been a popular tool ever since the beginning. Yuri emailed us this morning with a bit of a teaser presentation for the soon to be released CTR vers...

www.guru3d.com

Never even heard of it. Haven’t had a PC in awhile. My last rig was a 3600X but that was over a year ago.

freeagent · Jan 10, 2021

kapone32 said:
I remember installing a CPU and I finished the build but for got to attach the CPU fan on the heatsink. I remember thinking the heatsink was garbage as my CPU temp was 77 C. As soon as I put a fan on it fell to 35 C.

Nice. I did that with my X5690 and True Spirit 140 Power. I ran it for a couple of hours with no fan on it. It was @ stock and was wondering why it was a little warmer.. whoops..

But with this setup it seems I can run @ stock + PBO or 4400 all core with no fan on it. On heavy stuff with no oc it would run at 4300 all core, and light stuff would boost to just over 4600 on 3 cores.. I did end up putting my fan back on.. but I will probably try again this summer out of curiosity.

I am a huge Thermalright fanboy.. I feel kind of bad about it but they make good stuff and no one knows about them.

biffzinker · Jan 10, 2021

freeagent said:
they make good stuff and no one knows about them.

Their pretty well known from the past with the all copper heatsinks. The 80mm Delta screamer I can do without though.

INSTG8R · Jan 10, 2021

biffzinker said:
No chance all cores are cruising along at 5.1 GHz loaded. I would expect short bursts to 5.1.

Nah it hit's around 4925-75 all core under regular loads I am definitely seeing higher temps than I'm used to compared to my 3700X but I'm also seeing higher voltages as well just using the Curve Optimizer. Actually my only real oddity is despite it having a 3700 base clock is actually idles at 3600(not complaining means it's very cool idle)

biffzinker · Jan 10, 2021

Windows 10 sees my 3800X with a idle clockspeed of 4275/4300 even though the cores drop into a deep sleep state in HWinfo.

INSTG8R · Jan 10, 2021

biffzinker said:
Windows 10 sees my 3800X with a idle clockspeed of 4275/4300 even though the cores drop into a deep sleep state in HWinfo.

well voltage wise it's under 1.0V so regardless it's definitely "idling" just lower than it's supposed too. Not complaining I'll take 100Mhz hit if it's "chilling"

Space Lynx · Jan 10, 2021

x570 tomahawk owner here and ryzen 5600x

for cpu I settled for PBO enhanced mode 3. I tried all 4 enhanced modes of PBO in cinebench and my best scores for multi and single were both in Enhanced Mode 3. temp were great never broke 62 celsius. 618 in r20 single core, and 4200ish in multi r20. i don't know why, but this new BIOS dropped temps across the board on my x570 tomhawk, this same enhanced mode was getting around 7 celsius higher, other oc's i tried similar. the latest bios reduced temps for me, not sure if just a weird fluke or what, but im happy about it. can't believe how cold this setup runs on a tiny little arctic e34 duo (to be fair i use a very very strong fan curve) lol

AusWolf · Jan 10, 2021

harm9963 said:
ppt 200 tdc 200 edc 130 / -30 use AMD OC menu , not PBO

So far I'm happy with PBO to be honest. 130 W and 65 C are values I can live with.

biffzinker said:
Windows 10 sees my 3800X with a idle clockspeed of 4275/4300 even though the cores drop into a deep sleep state in HWinfo.

That's because you use the Balanced, or High Performance power modes in Windows. Try Balanced with the Power Mode slider dragged down to Best Energy Savings.

You will still see a 3 GHz idle in Task Manager, but at least your power consumption will be in control.

Edit: With Ryzen 3000, it might be worth installing the latest chipset driver and choosing a Ryzen optimised power plan.

harm9963 · Jan 10, 2021

Got it down 195watts and 73c, 195 195 125 -30 , still work InProgress , only second day with new BIOS .

chevy350 · Jan 10, 2021

djisas said:
This might've been answered before, but here it goes.
People with Taichi X570, is the bios 3.8 worth it, I'm running 3.61.

no issues on 3.80 for me, tried 3.91 and had some memory issues so rolled back for now

djisas · Jan 10, 2021

chevy350 said:
no issues on 3.80 for me, tried 3.91 and had some memory issues so rolled back for now

3.61 finally let me run 3600 Cl16, need to work on the timings though...

Durvelle27 · Jan 10, 2021

It’s finally alive

harm9963 · Jan 11, 2021

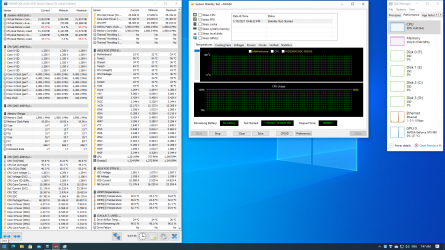

Ten min throttle test

biffzinker · Jan 11, 2021

harm9963 said:
Ten min throttle test

Temperatures were under 80C yet it still throttled? Is the VRM overheating?

harm9963 · Jan 11, 2021

biffzinker said:
Temperatures were under 80C yet it still throttled? Is the VRM overheating?

Under 40c ,G-SKILL TRIENT Z , B-die , have a G-SKILL fan on top RAM , once over 75c ,it pop up , need to try ,and raises thermal limit in BIOS.

Calmmo · Jan 11, 2021

Some... interesting numbers, easy to see how the 5900x is the least.. available of the entire 5000 lineup. (it was my experience too looking for one for several weeks)

freeagent · Jan 11, 2021

Has anyone used the memory test in Aida64?

What do you think?

Space Lynx · Jan 11, 2021

freeagent said:
Has anyone used the memory test in Aida64?

What do you think?

View attachment 183537

I only use the memory benchmark in aida64 to test ram latency.

freeagent · Jan 11, 2021

lynx29 said:
I only use the memory benchmark in aida64 to test ram latency.

Indeed, I like it for that. I haven't actually used it for testing memory. Not sure how good it works for that. I backed it down anyways.. I feel better feeding 1.45v instead of 1.5v. No need to get crazy

I did shoot for 2000 1:1:1 a few times.. it didn't appreciate that..

Durvelle27 · Jan 11, 2021

So I been playing with my 5800X and set PBO and Curve Optimizer. I'm now seeing 5GHz Boost across cores on my CPU

Anybody here have a 5800X i can compare test results too

Space Lynx · Jan 11, 2021

Durvelle27 said:
So I been playing with my 5800X and set PBO and Curve Optimizer. I'm now seeing 5GHz Boost across cores on my CPU

Anybody here have a 5800X i can compare test results too

whats your cinebench r20 single and multi scores?

Durvelle27 · Jan 11, 2021

lynx29 said:
whats your cinebench r20 single and multi scores?

I'll post them once i get back home

biffzinker · Jan 11, 2021

Durvelle27 said:
Anybody here have a 5800X i can compare test results too

@Mussels has one.
