Unlock the shaders - AMD Radeon RX 560D

Ravenoid

New Member
Joined
Apr 15, 2023
Messages
2 (0.00/day)
Thanks so much for the fast reply. It did not worked however. It is maybe just laser cut or there is nothing to be unlocked really. Attached is the screenshot for more details. Right is the original card bios the left is the modified one - no additional shaders unlocked unfortunately ...


Attachments

  • no_success.png
    313.8 KB · Views: 199

HitmanKB

New Member
Joined
May 22, 2023
Messages
1 (0.00/day)
I wonder if the HP EliteDesk 800 G4 mini PC's RX560 be unlocked? There isn't much listed about this GPU. I don't know if it's a mobile variant since it's in a mini PC.


eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
42,364 (6.65/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
I wonder if the HP EliteDesk 800 G4 mini PC's RX560 be unlocked? There isn't much listed about this GPU. I don't know if it's a mobile variant since it's in a mini PC.

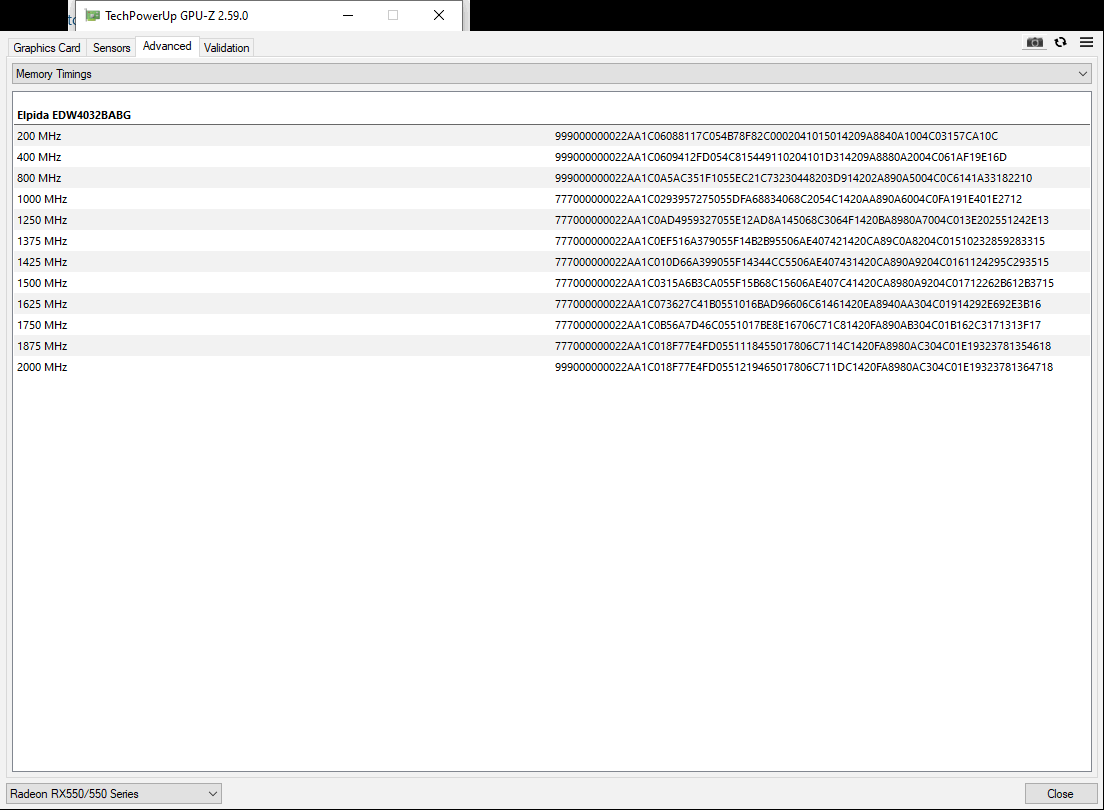

Gpu-z screenshot

Joined
Mar 5, 2012
Messages
4 (0.00/day)
I wonder if the HP EliteDesk 800 G4 mini PC's RX560 be unlocked? There isn't much listed about this GPU. I don't know if it's a mobile variant since it's in a mini PC.
yes it does work. i will attach the 1024 shader file... only hex edited and saved in PBE to fix the checksum.
EDIT: this is an HP Elitedesk 800 g4 mini/micro 1L with the rx560 dgpu.


Attachments

  • 1024.rom
    256 KB · Views: 88
Last edited:

Ruru

S.T.A.R.S.
Joined
Dec 16, 2012
Messages
12,842 (2.94/day)
Location
Jyväskylä, Finland
System Name 4K-gaming / media-PC
Processor AMD Ryzen 7 5800X / Intel Core i7-6700K
Motherboard Asus ROG Crosshair VII Hero / Asus Z170-A
Cooling Arctic Freezer 50 / Thermaltake Contac 21
Memory 32GB DDR4-3466 / 16GB DDR4-3000
Video Card(s) RTX 3080 10GB / RX 6700 XT
Storage 3.3TB of SSDs / several small SSDs
Display(s) Acer 27" 4K120 IPS + Lenovo 32" 4K60 IPS
Case Corsair 4000D AF White / DeepCool CC560 WH
Audio Device(s) Creative Omni BT speaker
Power Supply EVGA G2 750W / Fractal ION Gold 550W
Mouse Logitech MX518 / Logitech G400s
Keyboard Roccat Vulcan 121 AIMO / NOS C450 Mini Pro
VR HMD Oculus Rift CV1
Software Windows 11 Pro / Windows 11 Pro
Benchmark Scores They run Crysis
Can a RX 460 4GB be unlocked to 1024 shaders? I can upload its bios later today if it's possible (as it's not in a PC currently)


eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
42,364 (6.65/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
Can a RX 460 4GB be unlocked to 1024 shaders? I can upload its bios later today if it's possible (as it's not in a PC currently)

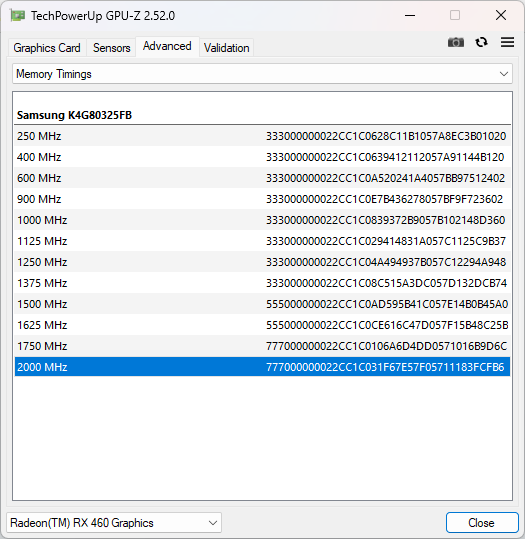

Start with gou-z screenshot and a screenshot of memory timings page, sometimes crossflashing works

Joined
Mar 5, 2012
Messages
4 (0.00/day)
yes it does work. i will attach the 1024 shader file... only hex edited and saved in PBE to fix the checksum.
EDIT: this is an HP Elitedesk 800 g4 mini/micro 1L with the rx560 dgpu.
This gpu runs at 1069mhz at a so called 35w limit, power spikes 45-50w. No matter what setting i try in PBE, adjusting core mem mhz, power watts amps... nothing will actually change even though PBE sees the modified saved bios settings. I think somewhere in the HP mainboard or bios is an external limiter to the funky proprietary 8x pcie connector that this gpu uses. Because of this, even unlocking the shaders will put up nearly the exact same benchmark results, except maybe slightly lower scores with slightly higher temps. I have tried undervolting but nothing changes its 0.900v core voltage, even at idle. there are some fluctuations like 0.863v or 0.913v or whatever, but the card is hard stuck.

Using MSI AB, open, settings, extend official overclock limits, close, restart (never open msi ab again)... this lets AMD Catalyst tuning allow you to play with core mhz and mem mhz. But MSI AB has no control, and further vbios editing via PBE doesn't change anything at all related to watts amps core mem mhz. The hex editor obviously works, but again no real change in performance.

Also this elitedesk is special because it is the official dgpu version with a 150w power brick, unlike other standard 800 g4 or 705 g4 models that only come with a 90w power brick. These dgpu models also only come equipped with an intel "t" 35w variant cpu. Replacing with a non "t" cpu, as i have with a locked i7-8700 will further power limit the dgpu by about 25%. The i7-8700 without gpu load will go to 88w even though technically it is turbo limited to 122w, but performance loss seems negligable. You can use Intel XTU to artificially power limit the cpu to mimick a "t" cpu of 35/45w limit and gain back all the gpu(rx560) performance that is lost (the actual power limit is about 50w/50w before the gpu starts to suffer performance loses. The mainboard(motherboard) clearly is shunted somewhere but i haven't found the interest to find it and it is probably for a good reason.

The only thing i cant figure out is how to undervolt this rx560 as it seems completely locked down to 0.900v. stock clocks, stock overclocked, 1024 unlocked stock, etc, it always hovers around 800-1100mhz under a power virus. Obviously, pulling the voltage down and finding core voltage frequency equilibrium would be the ideal situation.


Ruru

S.T.A.R.S.
Joined
Dec 16, 2012
Messages
12,842 (2.94/day)
Location
Jyväskylä, Finland
System Name 4K-gaming / media-PC
Processor AMD Ryzen 7 5800X / Intel Core i7-6700K
Motherboard Asus ROG Crosshair VII Hero / Asus Z170-A
Cooling Arctic Freezer 50 / Thermaltake Contac 21
Memory 32GB DDR4-3466 / 16GB DDR4-3000
Video Card(s) RTX 3080 10GB / RX 6700 XT
Storage 3.3TB of SSDs / several small SSDs
Display(s) Acer 27" 4K120 IPS + Lenovo 32" 4K60 IPS
Case Corsair 4000D AF White / DeepCool CC560 WH
Audio Device(s) Creative Omni BT speaker
Power Supply EVGA G2 750W / Fractal ION Gold 550W
Mouse Logitech MX518 / Logitech G400s
Keyboard Roccat Vulcan 121 AIMO / NOS C450 Mini Pro
VR HMD Oculus Rift CV1
Software Windows 11 Pro / Windows 11 Pro
Benchmark Scores They run Crysis
Start with gou-z screenshot and a screenshot of memory timings page, sometimes crossflashing works



The original VBIOS is also attached here


Attachments

  • RX460.rom
    256 KB · Views: 67
Joined
May 20, 2020
Messages
1,375 (0.83/day)
Here's your RX460 unlocked BIOS.


Attachments

  • RX460_unlocked.rom
    256 KB · Views: 64

eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
42,364 (6.65/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64

Ruru

S.T.A.R.S.
Joined
Dec 16, 2012
Messages
12,842 (2.94/day)
Location
Jyväskylä, Finland
System Name 4K-gaming / media-PC
Processor AMD Ryzen 7 5800X / Intel Core i7-6700K
Motherboard Asus ROG Crosshair VII Hero / Asus Z170-A
Cooling Arctic Freezer 50 / Thermaltake Contac 21
Memory 32GB DDR4-3466 / 16GB DDR4-3000
Video Card(s) RTX 3080 10GB / RX 6700 XT
Storage 3.3TB of SSDs / several small SSDs
Display(s) Acer 27" 4K120 IPS + Lenovo 32" 4K60 IPS
Case Corsair 4000D AF White / DeepCool CC560 WH
Audio Device(s) Creative Omni BT speaker
Power Supply EVGA G2 750W / Fractal ION Gold 550W
Mouse Logitech MX518 / Logitech G400s
Keyboard Roccat Vulcan 121 AIMO / NOS C450 Mini Pro
VR HMD Oculus Rift CV1
Software Windows 11 Pro / Windows 11 Pro
Benchmark Scores They run Crysis

eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
42,364 (6.65/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
Single fan
Ok unfortunately your bios would have to be modded as the 1 bios that is unlocked 1024SP 16 CU is for a Double Dissipation model. It would of been possible if your card was the Double Dissipation Model

The only bios for xfx 1024 SP

@Final_Fighter hasn't been around since 2022, maybe @siryoink might be able to?

Joined
Mar 5, 2012
Messages
4 (0.00/day)
This gpu runs at 1069mhz at a so called 35w limit, power spikes 45-50w. No matter what setting i try in PBE, adjusting core mem mhz, power watts amps... nothing will actually change even though PBE sees the modified saved bios settings. I think somewhere in the HP mainboard or bios is an external limiter to the funky proprietary 8x pcie connector that this gpu uses. Because of this, even unlocking the shaders will put up nearly the exact same benchmark results, except maybe slightly lower scores with slightly higher temps. I have tried undervolting but nothing changes its 0.900v core voltage, even at idle. there are some fluctuations like 0.863v or 0.913v or whatever, but the card is hard stuck.

Using MSI AB, open, settings, extend official overclock limits, close, restart (never open msi ab again)... this lets AMD Catalyst tuning allow you to play with core mhz and mem mhz. But MSI AB has no control, and further vbios editing via PBE doesn't change anything at all related to watts amps core mem mhz. The hex editor obviously works, but again no real change in performance.

Also this elitedesk is special because it is the official dgpu version with a 150w power brick, unlike other standard 800 g4 or 705 g4 models that only come with a 90w power brick. These dgpu models also only come equipped with an intel "t" 35w variant cpu. Replacing with a non "t" cpu, as i have with a locked i7-8700 will further power limit the dgpu by about 25%. The i7-8700 without gpu load will go to 88w even though technically it is turbo limited to 122w, but performance loss seems negligable. You can use Intel XTU to artificially power limit the cpu to mimick a "t" cpu of 35/45w limit and gain back all the gpu(rx560) performance that is lost (the actual power limit is about 50w/50w before the gpu starts to suffer performance loses. The mainboard(motherboard) clearly is shunted somewhere but i haven't found the interest to find it and it is probably for a good reason.

The only thing i cant figure out is how to undervolt this rx560 as it seems completely locked down to 0.900v. stock clocks, stock overclocked, 1024 unlocked stock, etc, it always hovers around 800-1100mhz under a power virus. Obviously, pulling the voltage down and finding core voltage frequency equilibrium would be the ideal situation.
I upgraded the hp bios on this machine to 2.23. It seems to have unlocked everything, so maybe the old bios i had was messing things up, or im an idiot. I unlocked 1024 cores, went into PBE and set the rx560 power limit to 50w, changed the memory to 1750mhz along with uber timings, and saved. Now im getting about 5900 graphics score (firestrike) compared to 4200 graphics score, which is perfect 42% linear scaling comparing 50w to 35w. I also have the upgraded (from i5 8500t) i7 8700 TPL (turbo power limits) limited to 50w as well using throttlestop and task scheduler. Quite a peppy little 1 liter machine i must say. Temps are still well within range usually hovering around 80c and peaking about 85c for both GPU and CPU. This has to be near the limit though as hwinfo64 shows 135w system power peaks and i dont know how much further would be safe to push the 150w power brick. Try at your own risk.

Last edited:

eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
42,364 (6.65/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
I upgraded the hp bios on this machine to 2.23. It seems to have unlocked everything, so maybe the old bios i had was messing things up, or im an idiot. I unlocked 1024 cores, went into PBE and set the rx560 power limit to 50w, changed the memory to 1750mhz along with uber timings, and saved. Now im getting about 5900 graphics score (firestrike) compared to 4200 graphics score, which is perfect 42% linear scaling comparing 50w to 35w. I also have my i7 8700 TPL limited to 50w as well using throttlestop and task scheduler. Quite a peppy little 1 liter machine i must say. Temps are still well within range usually hovering around 80c and peaking about 85c for both GPU and CPU. This has to be near the limit though as hwinfo64 shows 135w system power peaks and i dont know how much further would be safe to push the 150w power brick. Try at your own risk.
I have helped some crossflash a 896 card to 1024 with a comprable bios even. It takes alot of thought and time to do either method.


orangekittenrage

New Member
Joined
Jul 19, 2023
Messages
2 (0.00/day)
Hi y'all! I have a RX 460 with locked shaders and I was looking for an unlocked bios. Here's the screenshots:




And my BIOS:


Attachments

  • BackupBIOS.rom
    256 KB · Views: 47
  • gpu.gif
    25.3 KB · Views: 51

orangekittenrage

New Member
Joined
Jul 19, 2023
Messages
2 (0.00/day)
Hey hey! Here's the unlocked BIOS for your card.
Aw man thanks! First my resolution looked a little bit off, so I reinstalled the drivers and it still looked off. Then I used the Pixel Clock Patcher and now it looks good! Thanks again! :clap:




fezinyah

New Member
Joined
Jan 6, 2024
Messages
1 (0.00/day)
my contribution. Only the unlock shaders, nothing besides was changed.



Attachments

  • Captura de tela 2024-01-06 203912.png
    Captura de tela 2024-01-06 203912.png
    51.9 KB · Views: 52
  • RX560D-Orig.rom
    256 KB · Views: 35
  • RX560D-Unlocked.rom
    256 KB · Views: 40

GerogeGreece

New Member
Joined
Apr 13, 2024
Messages
6 (0.03/day)
Hi i flash this card some years ago . Can someone please upload the original file ?
i have tried to flash some rom files using the amdvbflashwin but i get the "Subsystem Id mismatch" error code.
I need the subsystem 0531

The program work because i test it in another rx card.
Thank s in advance


Attachments

  • my rx 560 4gb.gif
    my rx 560 4gb.gif
    73.6 KB · Views: 40
Last edited:
Joined
Apr 22, 2021
Messages
1,891 (1.43/day)
Location
Romania
System Name Gaming1 / Office 2
Processor Intel i7 7700k@4.8ghz / Ryzen 7 5700G
Motherboard MSI 270 SLI PLUS / MSI MAG X570S - TOMAHAWK MAX WIFI
Cooling ID-Cooling Frostflow X 120 - Liquid / ID-Cooling SE-903 V2
Memory 2x16GB Corsair Vengeance LPX 3600 Black / 2x16GB Corsair Vengeance RGB Pro SL - 3600Mhz
Video Card(s) XFX RX 6600XT 8GB / XFX RX 5700XT THICC III Ultra 8GB
Storage 1st : 1x SSD Samsung 980 Pro 1Tb + 4x SAS HDD in RAID / 2nd : 1 Tb SSD Nvme Samsung 980 Pro 1Tb
Display(s) 2x Dell 3008 WFP
Case CoolerMaster HAF 932 / GENESIS IRID 300
Audio Device(s) Soundblaster XFI / Onboard
Power Supply Seasonic Focus 850 W / Seasonic Focus 850 W
Mouse Logitech G502 HERO / Logitech G5
Keyboard Dell SmartCard Reader SK 3205 / Dell SmartCard Reader SK 3205
Software 1st - Win 10 Pro X64 / Win 7 X86 / Ubuntu / 2nd - Windows 11 Pro x64
Hello. Please make a new thread. Here we are talking about unlocking shaders.
In the new thread please be so kind and make some pictures:
- PCB with bar codes and serials
- Serial from the shroud
- Open the card and make a closeup picture with good light source to memory chips and GPU - we need to identify them.


GerogeGreece

New Member
Joined
Apr 13, 2024
Messages
6 (0.03/day)
Hello. Please make a new thread. Here we are talking about unlocking shaders.
In the new thread please be so kind and make some pictures:
- PCB with bar codes and serials
- Serial from the shroud
- Open the card and make a closeup picture with good light source to memory chips and GPU - we need to identify them.
I make the new thead as you suggested.
I post in this thread because i read all 13 pages and i see that the most of the people here use GPU z
and is very easy to someone to check if they have the same device ID as my video card.

I did not mean to disterb or anythink in this thread.


79luca79

New Member
Joined
Apr 23, 2024
Messages
2 (0.01/day)
Hey :)
Could someone please unlock my Amd Sapphire Rx 550 Pulse 2GB Single Fan (i bought it with 640SP)?
Do i then use the unlocked Bios file with SRBPolaris or amdvbflash?
Thank you, sorry i dont understand these things that well. (Yes i know it could brick the Card but that seems recoverable if i follow the guide in another forum post, im tired of so few fps, its only 80€ and old.)

Is it possible to get 1024 shaders or only 896?
Also it says Polaris 21 instead of Baffin, is this a 560/560X?

Thank you in advance :)



Attachments

  • Polaris 21.rom
    256 KB · Views: 30
Last edited:
Top
