A Closer Look

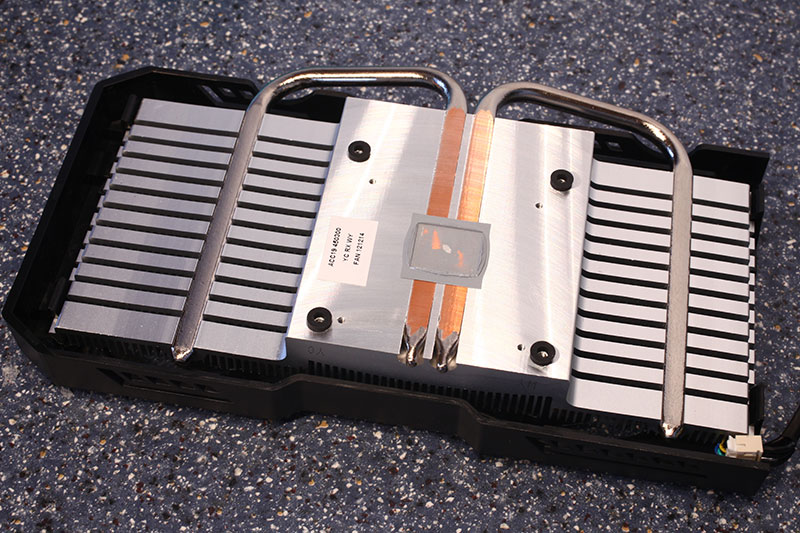

The ASUS DC II cooler uses two heatpipes to distribute heat generated by the GPU.


The card requires a single 6-pin PCI-Express power cable for operation. This power configuration is good for up to 150 W of power draw.

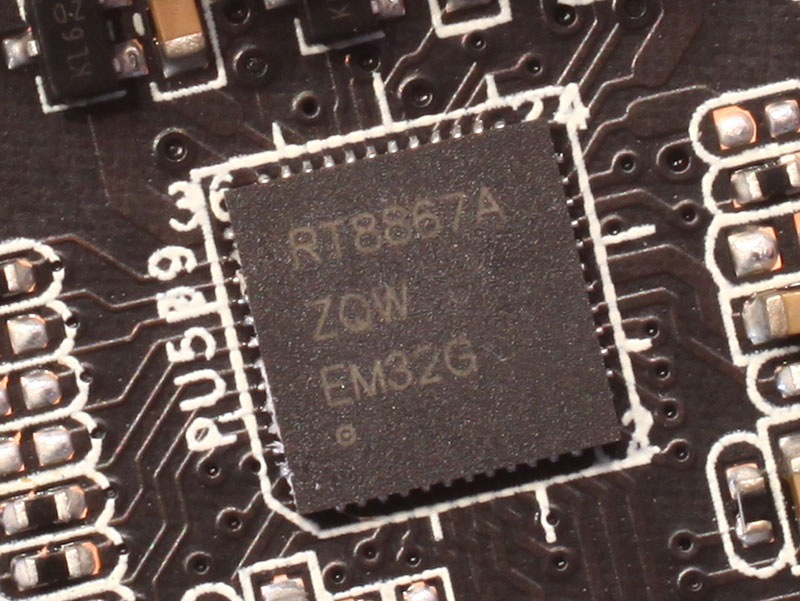

Unlike the NVIDIA reference design, ASUS uses a Richtek RT8867A voltage controller on their card. It is functionally very similar to the OnSemi NCP5395 on the reference design—both do not offer I2C voltage control or advanced monitoring and are cost effective solutions.

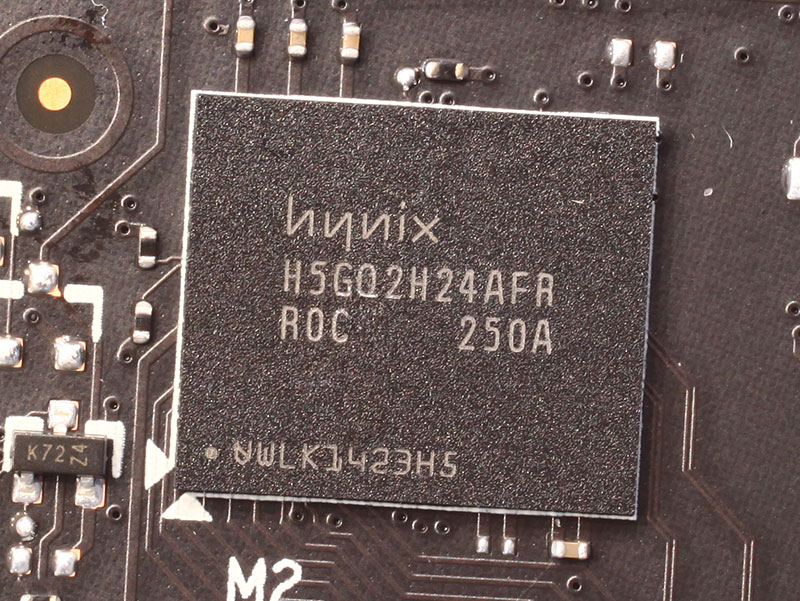

The GDDR5 memory chips are made by Hynix and carry the model number H5GQ2H24AFR-R0C. They are specified to run at 1500 MHz (6000 MHz GDDR5 effective).

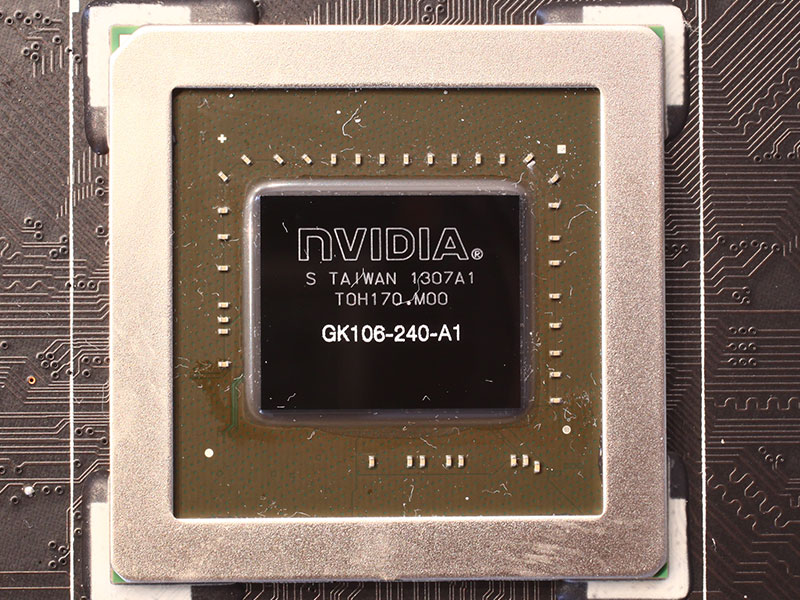

NVIDIA's GK106 processor is produced on a 28 nm at TSMC, Taiwan. The transistor count is 2.54 billion.
