Corsair GS800 V2 800 W Review

Name: Corsair GS800 V2 800 W
Brand: Corsair

crmaris

on Jul 9th, 2012,

in Power Supplies.

Manufacturer: Corsair

Performance Rating & Performance per Dollar »

Ripple Measurements

In the following table you will find the ripple levels that we measured on the main rails of GS800. According to ATX specification the limits are 120 mV (+12V) and 50 mV (5V, 3.3V and 5VSB).

Ripple Measurements Corsair GS800
Test	12 V	5 V	3.3 V	5VSB	Pass/Fail
20% Load	16.0 mV	21.5 mV	19.4 mV	6.8 mV	Pass
40% Load	21.7 mV	22.7 mV	20.2 mV	7.4 mV	Pass
50% Load	22.2 mV	23.3 mV	20.3 mV	8.1 mV	Pass
60% Load	23.8 mV	23.8 mV	20.9 mV	8.4 mV	Pass
80% Load	31.4 mV	24.2 mV	22.3 mV	10.7 mV	Pass
100% Load	45.7 mV	24.5 mV	26.5 mV	14.0 mV	Pass
Crossload 1	26.4 mV	25.2 mV	18.2 mV	10.3 mV	Pass
Crossload 2	38.9 mV	24.1 mV	24.9 mV	11.6 mV	Pass

Ripple suppression is fairly good although we have seen units registering much better performance here. The 5VSB rail is the exception, it exhibited very low ripple even at full load. This unit outputs good quality DC power which won't stress the components of a contemporary system.

Ripple at Full Load

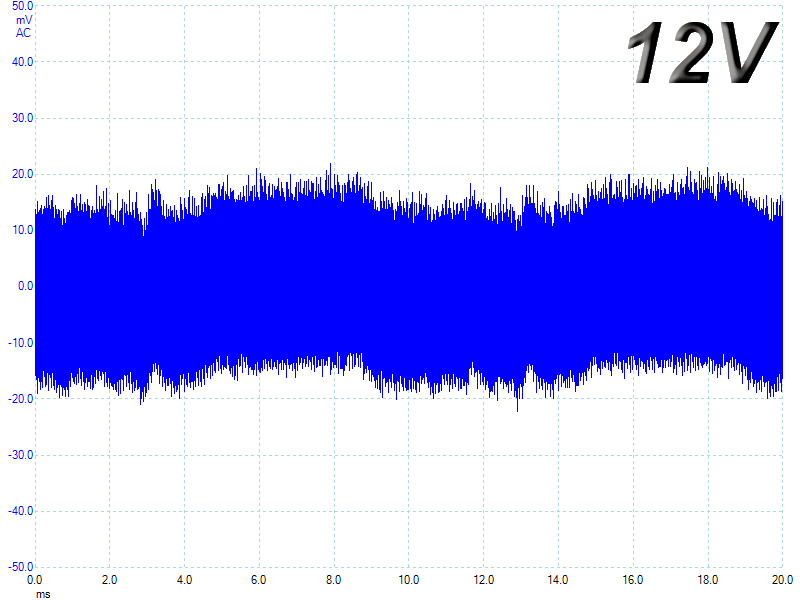

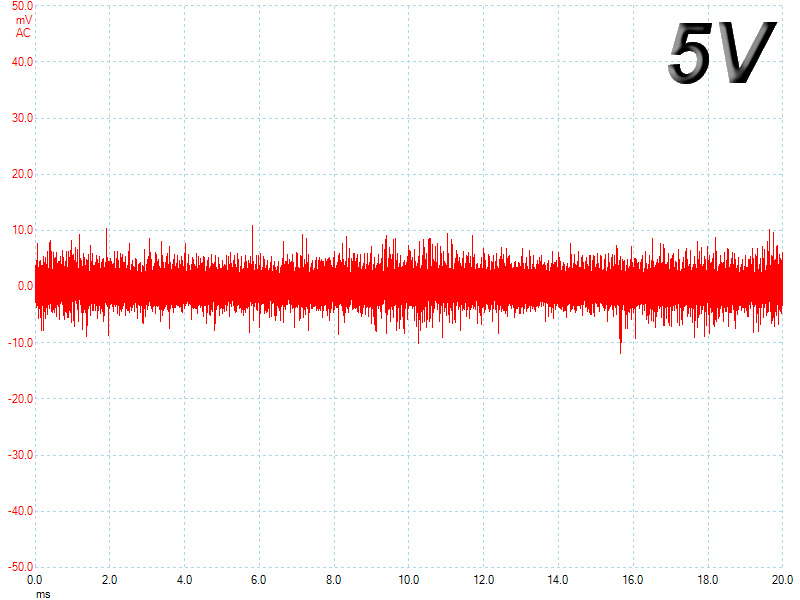

In the following oscilloscope screenshots you can see the AC ripple and noise that the main rails registered (+12V, 5V, 3.3V and 5VSB). The bigger the fluctuations on the oscilloscope's screen the bigger the ripple/noise. For all measurements we set 0.01 V/Div (each vertical division/box equals to 0.01V) as standard.
