ECS GANK MACHINE Z87H3-A2X EXTREME (Intel LGA 1150) Review

Name: ECS GANK MACHINE Z87H3-A2X EXTREME (Intel LGA 1150)
Brand: ECS

cadaveca

on Dec 18th, 2013,

in Motherboards.

Manufacturer: ECS

Board Software »

BIOS Walkthrough

BIOS Options
Clocks	Range	Step Size
CPU BCLK:	80.0 MHz ... 300.0 MHz	Varies
Memory Dividers:	x8 (800 MHz), x10.67 (1067 MHz), x13.33 (1333 MHz), x14 (1400 MHz), x16 (1600 MHz ), x18 (1800 MHz), x18.66 (1866 MHz), x20 (2000 MHz ), x21.33 (2133 MHz), x22 (2200 MHz), x24 (2400 MHz), x26 (2600 MHz), x26.66 (2666 MHz), x28 (2800 MHz), x29.33 (2933 MHz), x30 (3000 MHz), x32 (3200 MHz)
Voltages	Range	Step Size
CPU Vcore:	1.050 V... 2.200 V	0.003125 V
CPU Ring Voltage:	1.050 V... 2.200 V	0.003125 V
DRAM Voltage:	1.200 V... 2.390 V	0.005 V

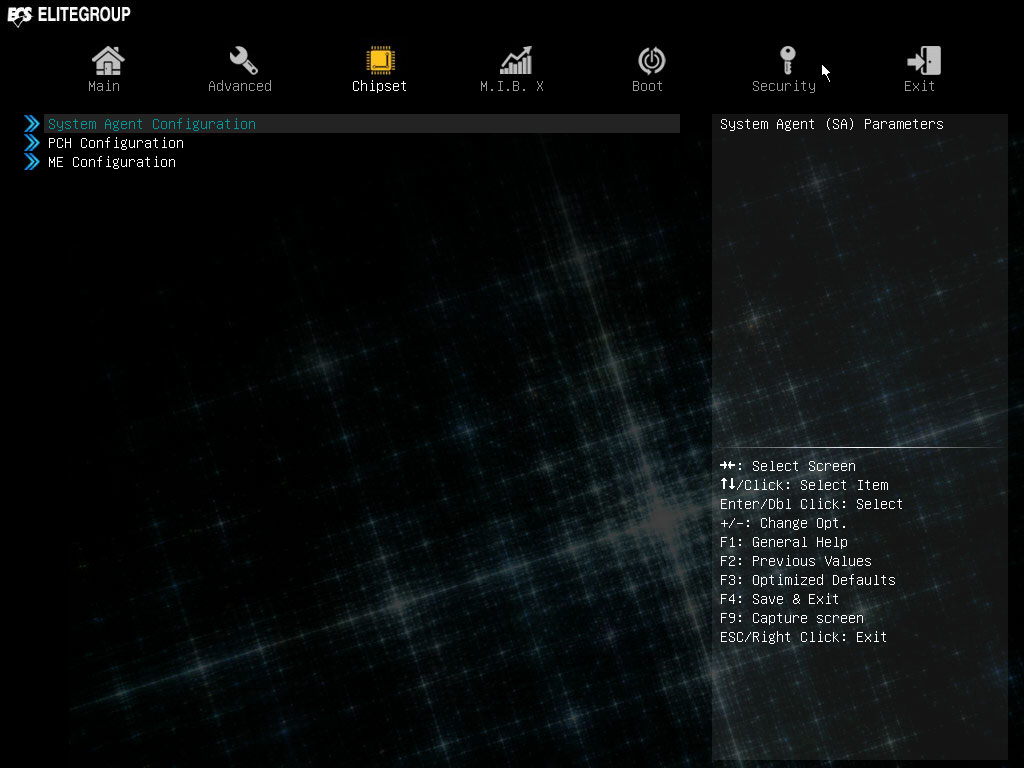

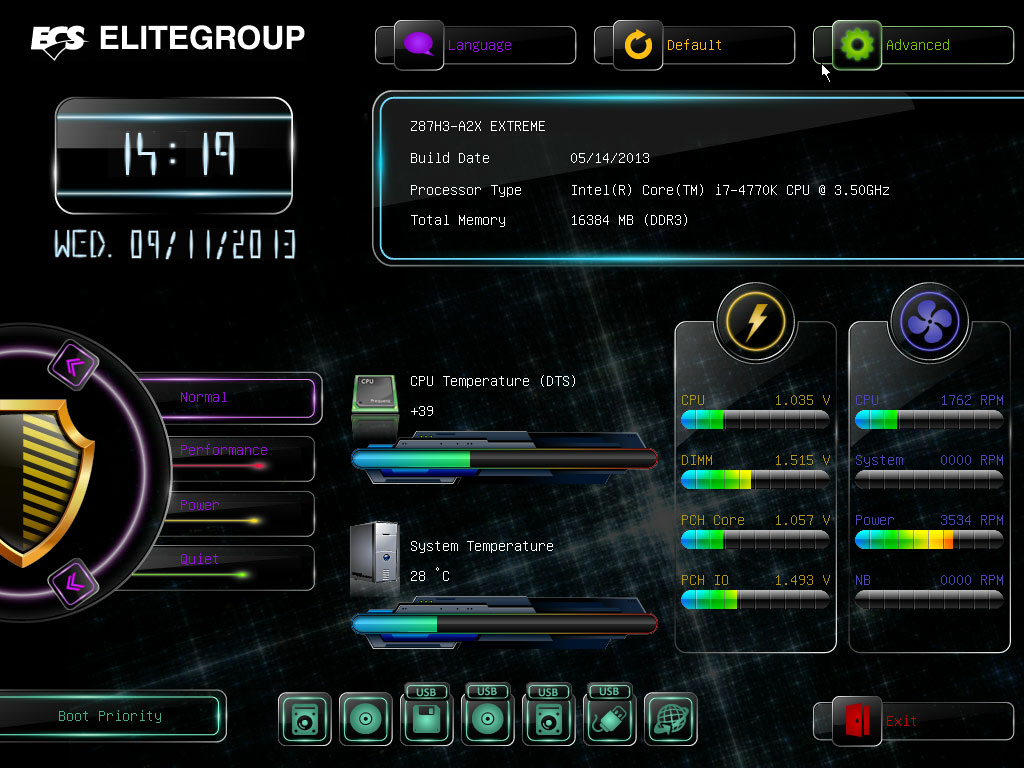

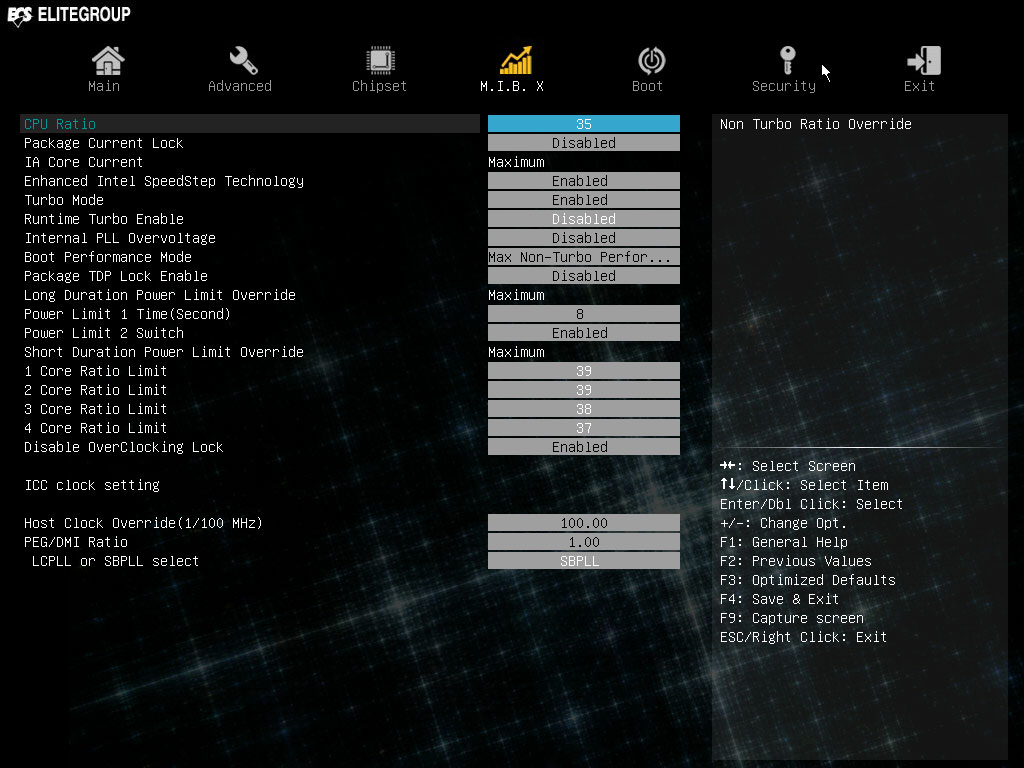

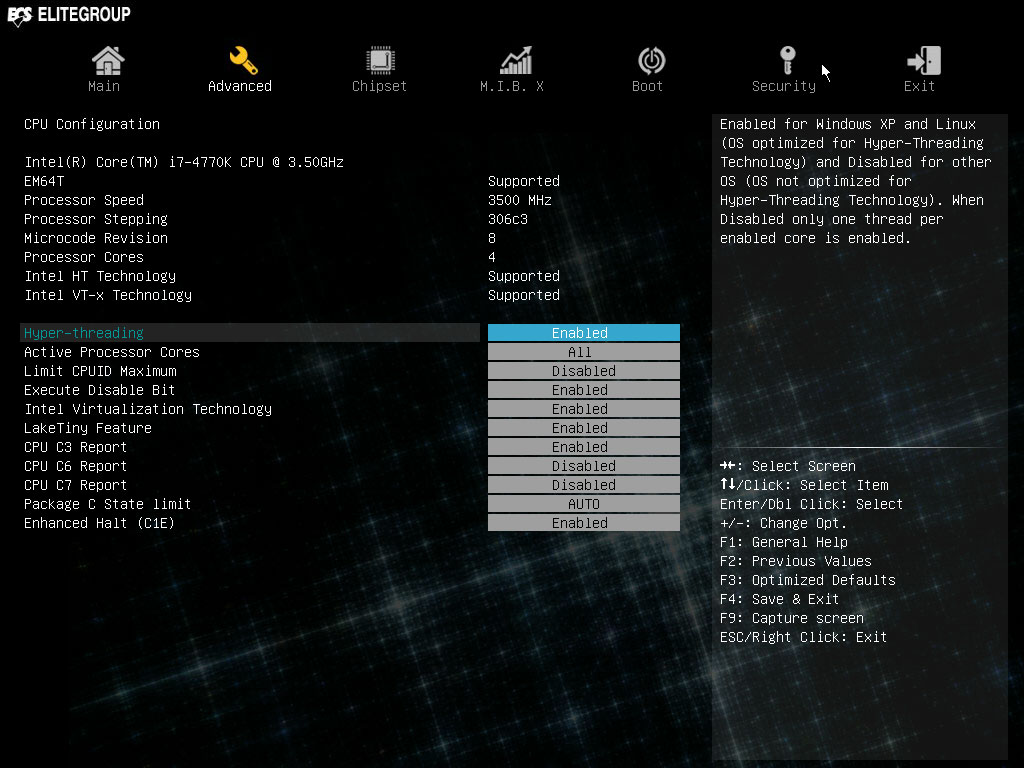

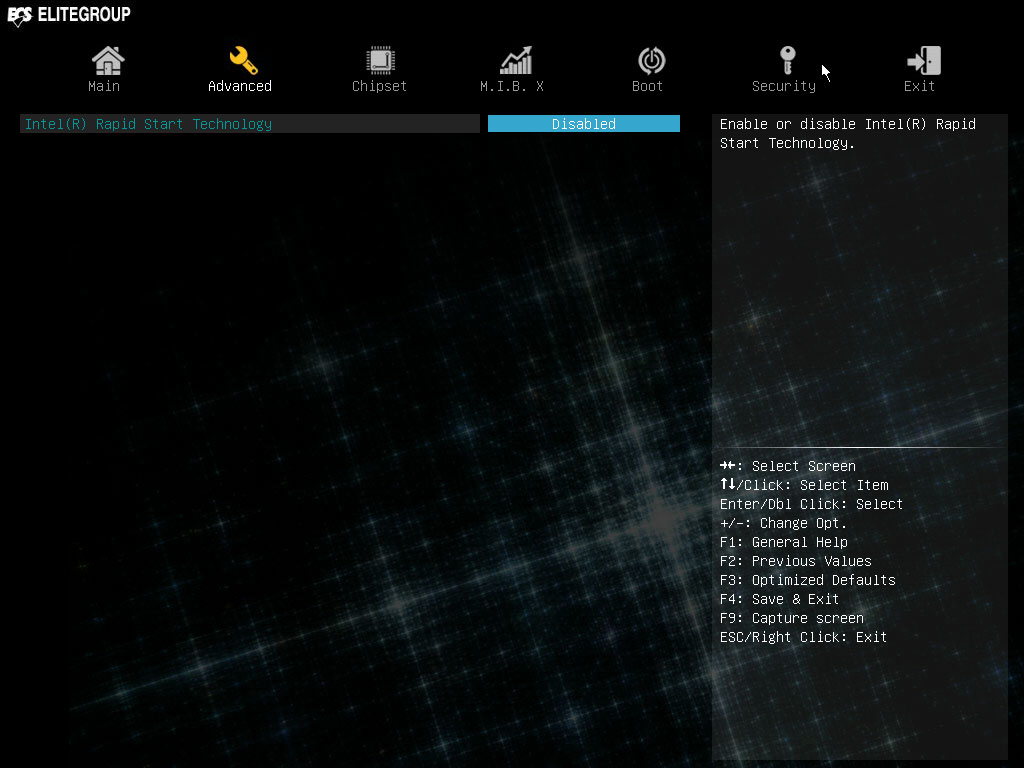

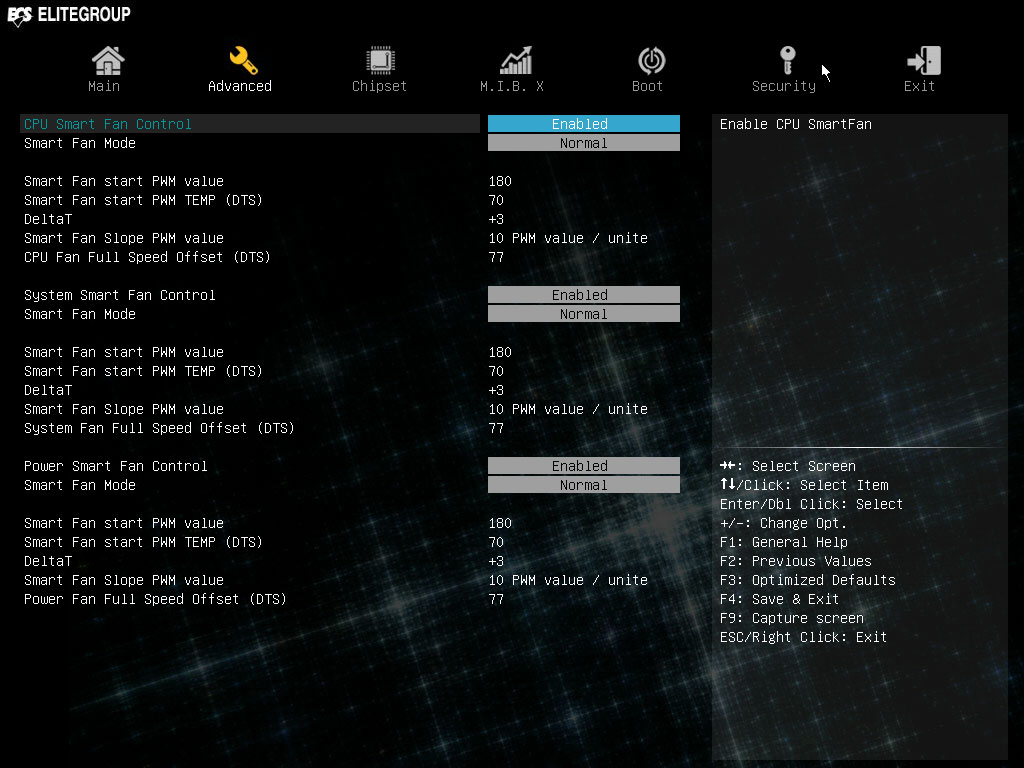

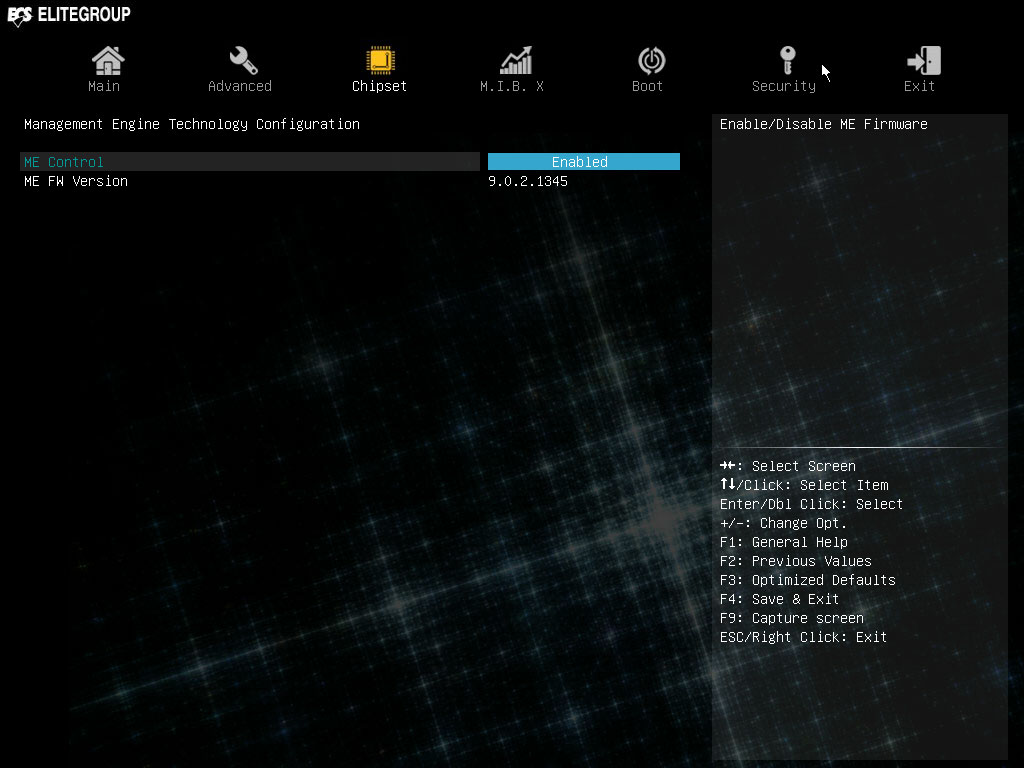

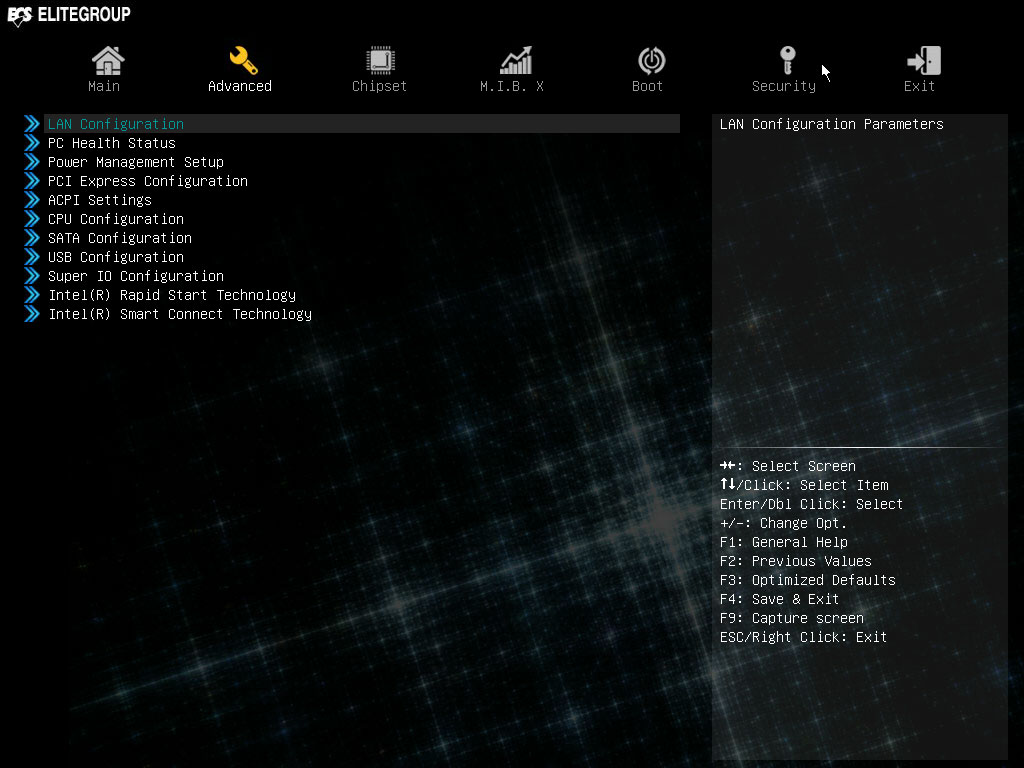

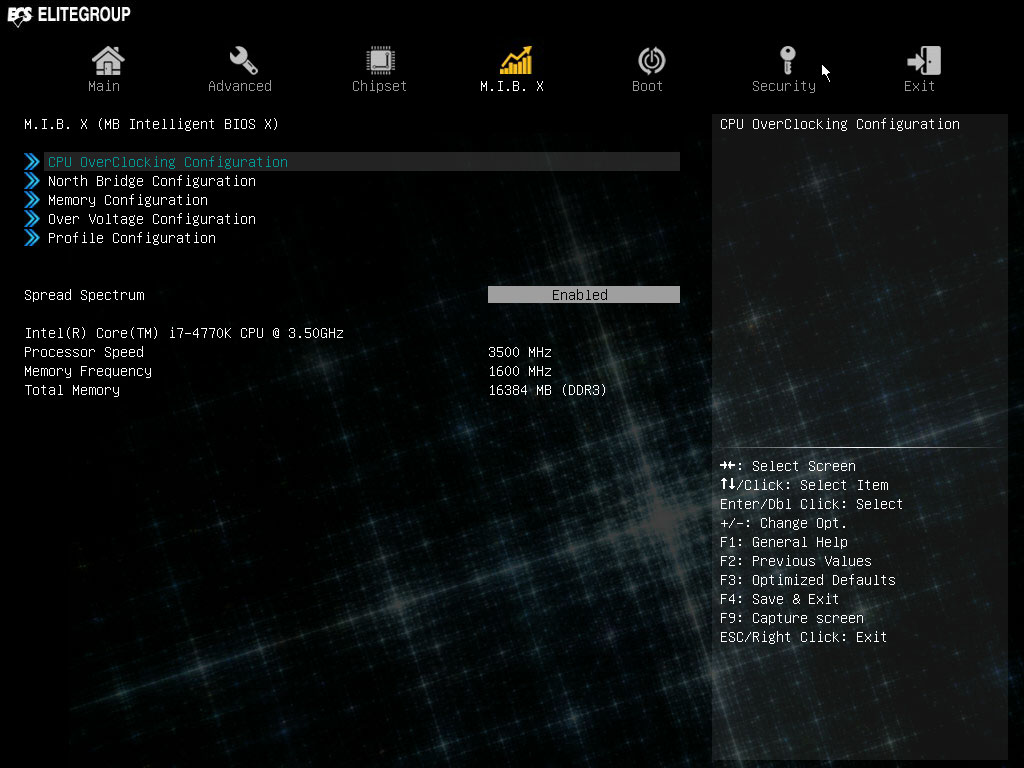

The BIOS ECS has provided the ECS GANK MACHINE with is a whole new design for Haswell and now finally includes screenshot capabilities. I spent a couple weeks playing with this BIOS and was left feeling very confident about what ECS offers here, as everything I needed to get the most out of my system and then some is present. Consider that for many ECS has a reputation of not having the most complete or functional BIOSes and this is a large departure from what they have offered in the past, which bodes well for the future. I have attached screenshots of all the BIOS pages here for you to peruse at your leisure.
