Gigabyte GTX 980 Ti XtremeGaming 6GB Review

Name: Gigabyte GTX 980 Ti XtremeGaming 6GB
Brand: GIGABYTE

W1zzard

on Mar 31st, 2016,

in Graphics Cards.

Manufacturer: GIGABYTE

(39 Comments) »

Introduction

NVIDIA's GeForce GTX 980 Ti was released in June last year. Built on the same GM200 GPU as the GeForce Titan X, it has fewer shaders (2816 vs 3072). While the GTX 980 Ti's GPU is still produced on a 28 nanometer process at TSMC in Taiwan, it comes with the fantastic power efficiency optimizations of the NVIDIA Maxwell architecture, which promises lower power draw, higher performance, and reduced fan noise all at the same time.

Our review of the reference design GTX 980 Ti revealed that it is barely slower than the Titan X, which means custom designs could surpass Titan X performance at a much lower price point.

Today, we are reviewing the Gigabyte GTX 980 Ti Xtreme Gaming, which is Gigabyte's most recent variant of the GTX 980 Ti it released just a few weeks ago. The card is part of Gigabyte's new Xtreme Gaming lineup set to cater to the needs of gamers and overclockers alike. Gigabyte installed a large triple-fan, triple-slot heatsink to ensure the card stays cool at all times. In terms of PCB design, the card is identical to the Gigabyte GTX 980 Ti WaterForce, just with an air cooler instead. Out of the box, the card comes overclocked to a base clock of 1216 MHz, and memory has also been overclocked to 1801 MHz. With a price of $690, the card is remarkably cheaper than the ASUS GTX 980 Ti Matrix or MSI GTX 980 Ti Lightning.

GeForce GTX 980 Ti Market Segment Analysis
	GeForce GTX 970	Radeon R9 290X	Radeon R9 390X	GeForce GTX 780 Ti	GeForce GTX 980	Radeon R9 Fury	Radeon R9 Fury X	GeForce GTX 980 Ti	Gigabyte GTX 980 Xtreme Gaming	GeForce GTX Titan X	Radeon R9 295X2
Shader Units	1664	2816	2816	2880	2048	3584	4096	2816	2816	3072	2x 2816
ROPs	56	64	64	48	64	64	64	96	96	96	2x 64
Graphics Processor	GM204	Hawaii	Hawaii	GK110	GM204	Fiji	Fiji	GM200	GM200	GM200	2x Hawaii
Transistors	5200M	6200M	6200M	7100M	5200M	8900M	8900M	8000M	8000M	8000M	2x 6200M
Memory Size	4 GB	4 GB	8 GB	3 GB	4 GB	4 GB	4 GB	6 GB	6 GB	12 GB	2x 4 GB
Memory Bus Width	256 bit	512 bit	512 bit	384 bit	256 bit	4096 bit	4096 bit	384 bit	384 bit	384 bit	2x 512 bit
Core Clock	1051 MHz+	1000 MHz	1050 MHz	876 MHz+	1126 MHz+	1000 MHz	1050 MHz	1000 MHz+	1216 MHz+	1000 MHz+	1018 MHz
Memory Clock	1750 MHz	1250 MHz	1500 MHz	1750 MHz	1750 MHz	500 MHz	500 MHz	1750 MHz	1801 MHz	1750 MHz	1250 MHz
Price	$290	$300	$400	$390	$470	$520	$630	$620	$690	$1000	$620

Packaging

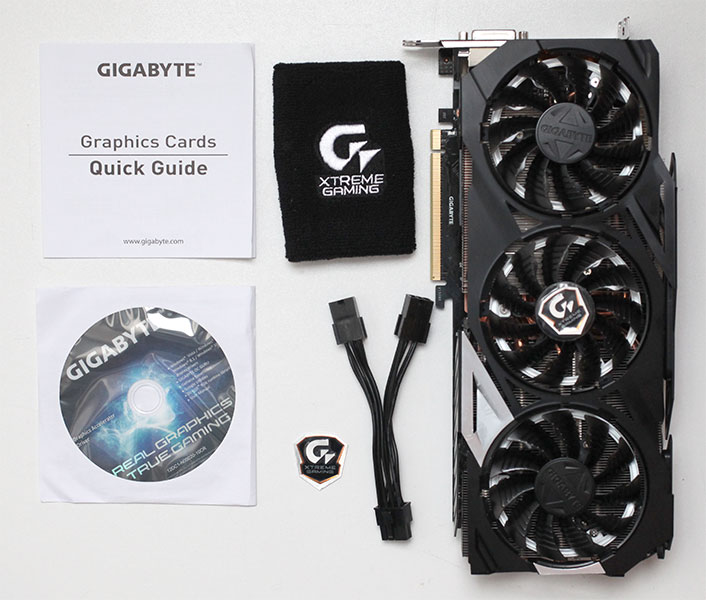

You will receive:

Graphics card + driver CD
Documentation
PCIe power cable
Gigabyte wrist band
Gigabyte case badge

The Card

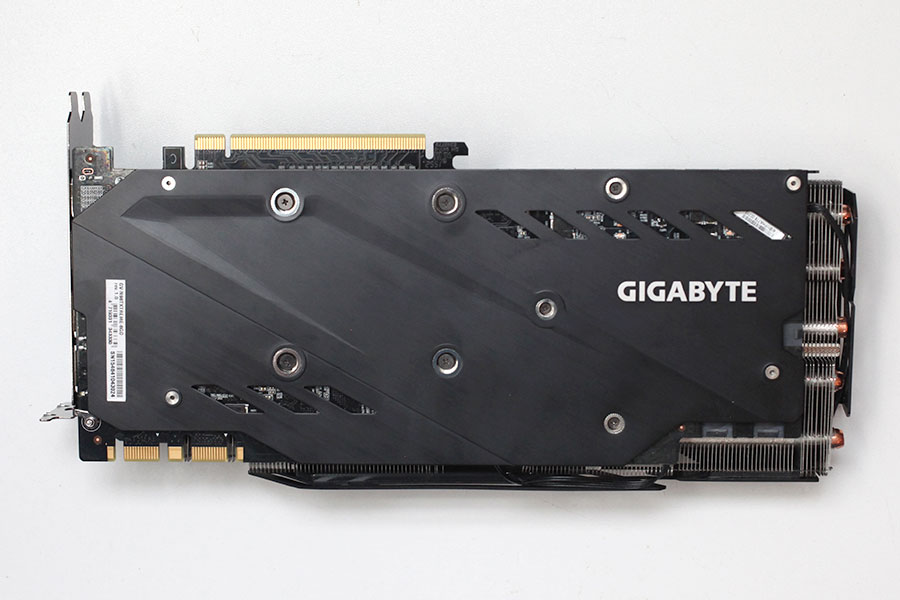

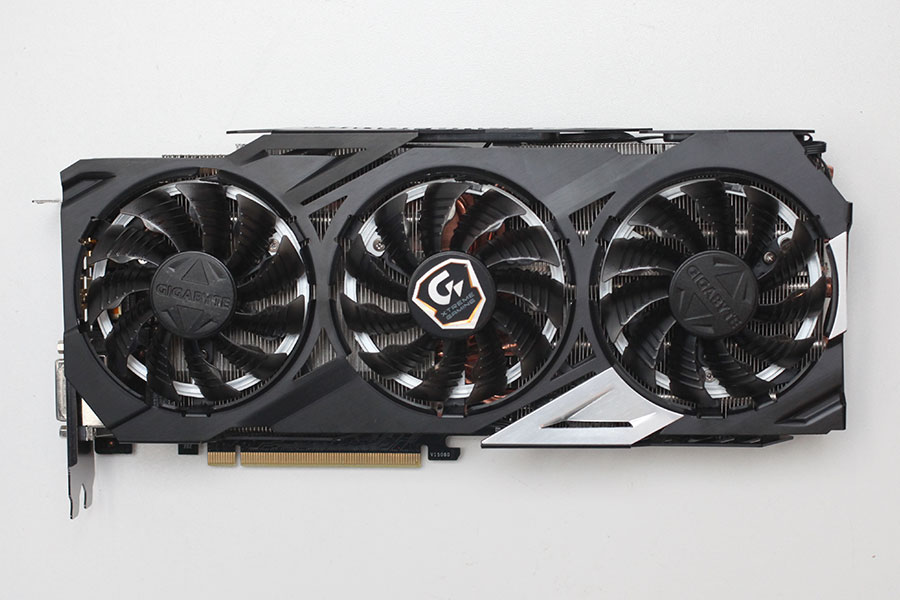

Gigabyte's card uses the company's new edgy, industrial cooler design with a heatsink out of nothing but metal for that extra high quality feel and durability. On the back is a sturdy backplate. Dimensions of the card are 29.0 cm x 13.5 cm.

Each fan is equipped with its own set of RGB LEDs which provide a breathtaking color theme that changes color over time. You can adjust the colors using Gigabyte's OC Guru software.

Installation requires three slots in your system.

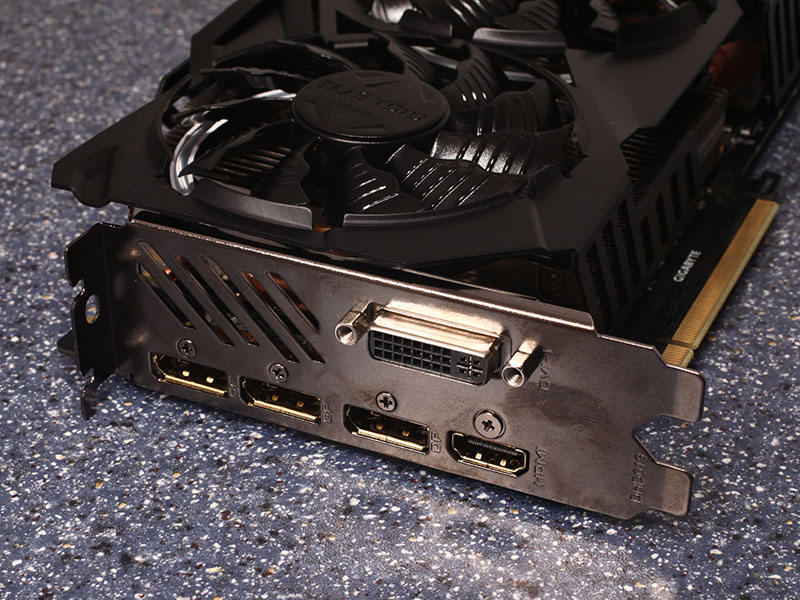

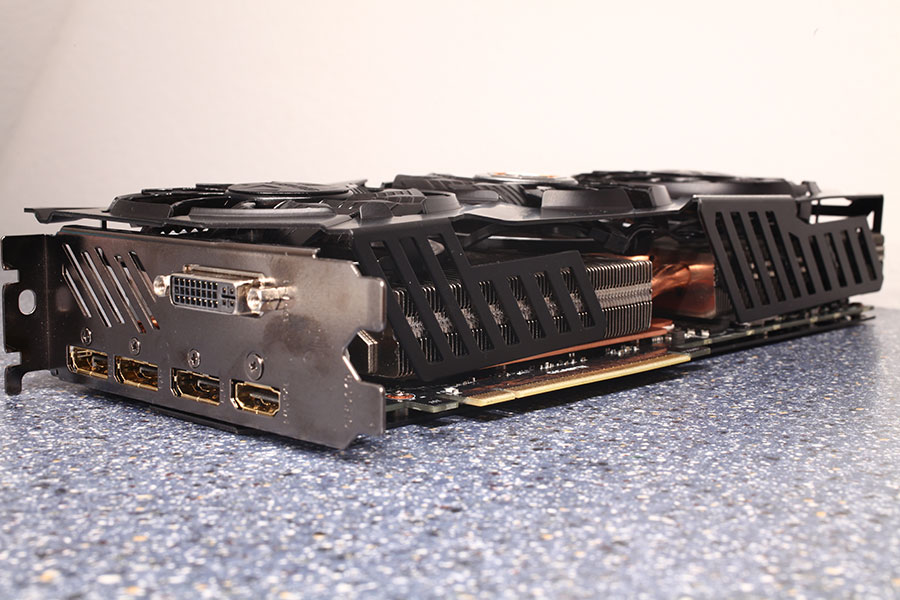

Display connectivity options include one DVI port, one HDMI port, and three DisplayPorts.

The GPU also comes with an HDMI sound device. It is HDMI 2.0 compatible, which supports HD audio and Blu-ray 3D movies.
