Advanced Transient Response Tests

In these tests we monitor the response of the PSU in two different scenarios. First a transient load (11A at +12V, 5A at 5V, 6A at 3.3V and 0.5A at 5VSB) is applied for 50 ms to the PSU, while the latter is working at a 20% load state. In the second scenario the PSU, while working with 50% load, is hit by the same transient load. In both tests, we measure the voltage drops that the transient load causes, using our oscilloscope. In any case voltages should remain within the regulation limits specified by the ATX specification. We must stress here, that the above tests are crucial, since they simulate transient loads that a PSU is very likely to handle (e.g. starting of a RAID array, an instant 100% load of CPU/VGAs etc.) We call these tests “Advanced Transient Response Tests” and they are designed to be very tough to master, especially for PSUs with capacities lower than 500W.





The high initial voltage values on all rails once more pose a big advantage in these tests. The weakest chain in above tests definitely is the 3.3V rail, which however doesn't drop below 3.2V even in the worst case (test 2). Finally we noticed some unwanted high voltage spikes on the 5V and 3.3V rails while applying the transient loads.

Below you will find the oscilloscope screenshots that we took during Advanced Transient Response Testing.

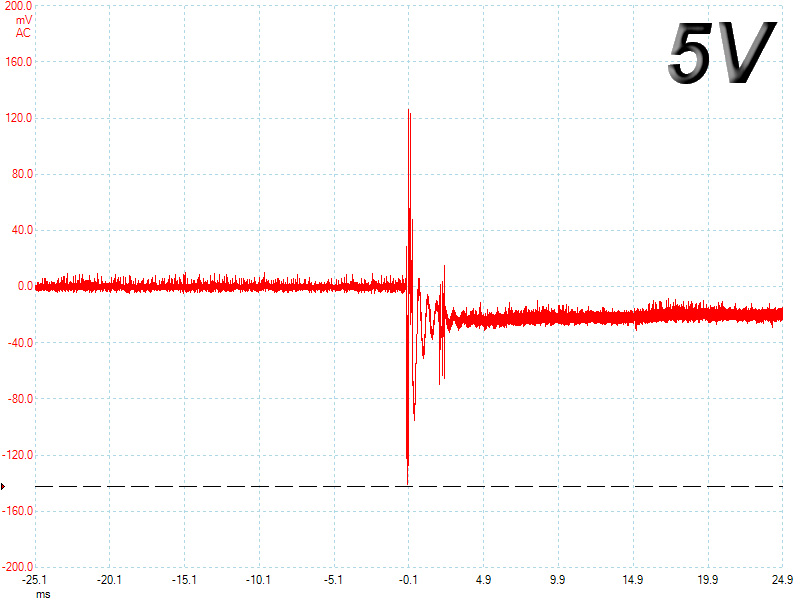

Transient Response at 20% Load

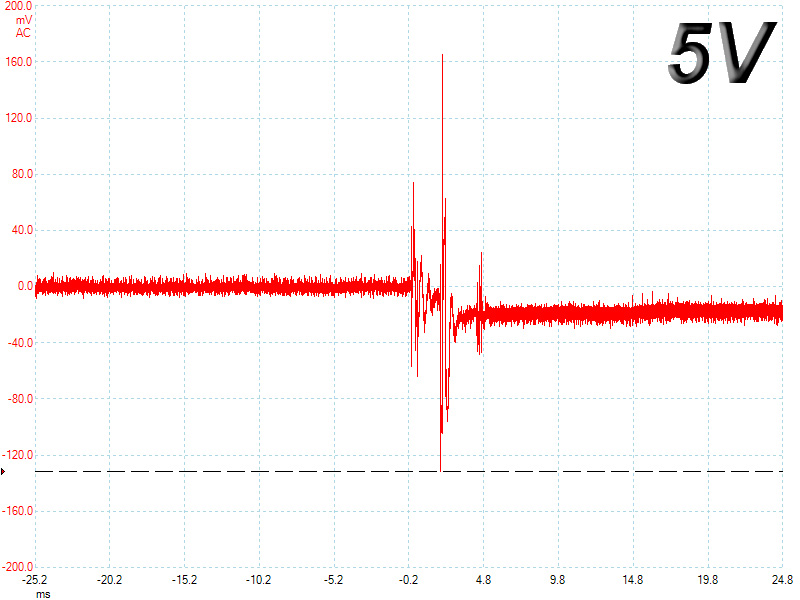

Transient Response at 50% Load

Turn-On Transient Tests

In the next set of tests we measure the response of the PSU in simpler scenarios of transient loads, during the turn on phase of the PSU. In the first test we turn off the PSU, dial 2A load at 5VSB and then switch on the PSU. In the second test, while the PSU is in standby, we dial the maximum load that +12V can handle and we start the PSU. In the last test, while the PSU is completely switched off (we cut off power or switch off the PSU's On/Off switch), we dial the maximum load that +12V can handle and then we switch on the PSU from the loader and we restore power. The ATX specification states that recorded spikes on all rails should not exceed 10% of their nominal values (e.g. +10% for 12V is 13.2V and for 5V is 5.5V).

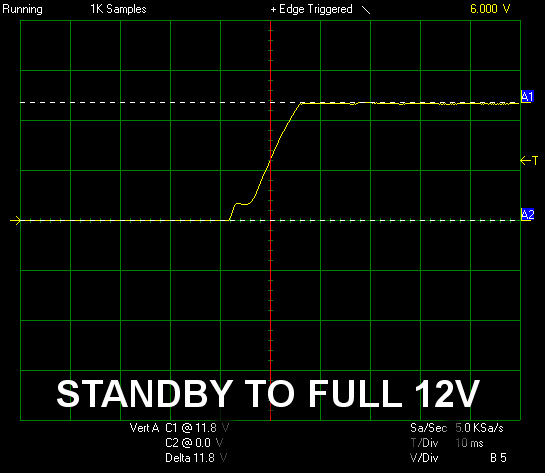

In general there are no voltage overshoots. However the +12V rail waveform does not ramp up smoothly and on top of that from off state to full load +12V drop very low reaching 10.3V. This is not good at all as you can imagine since 10.3V is way below the lower voltage regulation limit of +12V (11.4V).
