Advanced Transient Response Tests

In these tests we monitor the response of the PSU in two different scenarios. First a transient load (11A at +12V, 5A at 5V, 6A at 3.3V and 0.5A at 5VSB) is applied for 50 ms to the PSU, while the latter is working at a 20% load state. In the second scenario the PSU, while working with 50% load, is hit by the same transient load. In both tests, we measure the voltage drops that the transient load causes, using our oscilloscope. In any case voltages should remain within the regulation limits specified by the ATX specification. We must stress here, that the above tests are crucial, since they simulate transient loads that a PSU is very likely to handle (e.g. starting of a RAID array, an instant 100% load of CPU/VGAs etc.) We call these tests “Advanced Transient Response Tests” and they are designed to be very tough to master, especially for PSUs with capacities lower than 500W.





The high initial values on all rails are a big advantage on these tests, so even at worst case, voltages were far away from the lower voltage regulation limits. The 3.3V rail registered the highest voltage drops and strangely enough in the second test voltage drops on all rails.

Below you will find the oscilloscope screenshots that we took during Advanced Transient Response Testing.

Transient Response at 20% Load

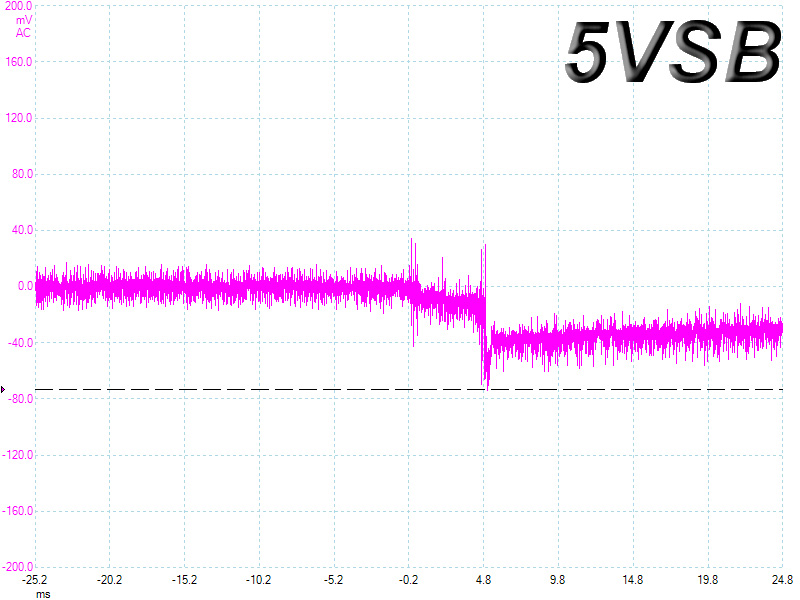

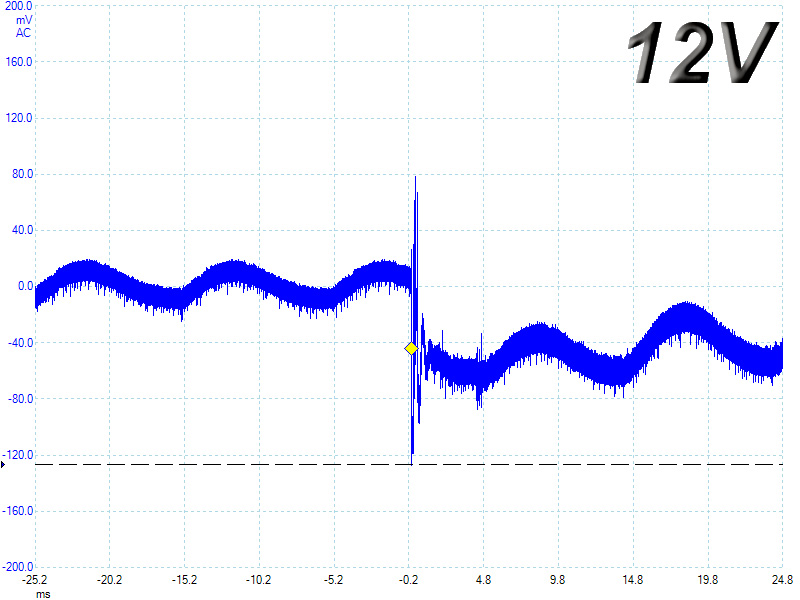

Transient Response at 50% Load

Turn-On Transient Tests

In the next set of tests we measure the response of the PSU in simpler scenarios of transient loads, during the turn on phase of the PSU. In the first test we turn off the PSU, dial 2A load at 5VSB and then switch on the PSU. In the second test, while the PSU is in standby, we dial the maximum load that +12V can handle and we start the PSU. In the last test, while the PSU is completely switched off (we cut off power or switch off the PSU's On/Off switch), we dial the maximum load that +12V can handle and then we switch on the PSU from the loader and we restore power. The ATX specification states that recorded spikes on all rails should not exceed 10% of their nominal values (e.g. +10% for 12V is 13.2V and for 5V is 5.5V).



The 5VSB rail did not register any voltage overshoots. In the second turn on test, at full load from standby, we did not measure any voltage spikes at +12V but the waveform does not ramp up smoothly. The third turn on test yielded the worst results since besides the step on the waveform +12V dropped dangerously low to 10.6V, then registered a small voltage overshoot and finally stabilized. As it seems hard switch on to full load isn't the ideal case for ZS 750W but thankfully this is an unlikely to happen scenario.
