ROCCAT Burst Pro Review 10

ROCCAT Burst Pro Review

Sensor & Performance »

Build Quality

Overall build quality is very solid. There is no rattle when shaking the mouse. When applying lateral pressure, very minor creaking and flexing of the shell can be observed. It's impossible to activate the side buttons by squeezing the sides. Lastly, no accidental clicks occur when slamming the mouse down. What I did notice was a rather faint high-pitched noise ("coil whine") coming from the mouse. This only occurred infrequently and changed depending on which portion of the mousepad the mouse was sitting on.

Buttons


Main buttons on the Burst Pro are very good. Compared to regular mechanical switches, the click feel is rather dull and muted, but pre and post-travel are exceptionally low, resulting in a snappy click response. While the buttons are visually (but not mechanically) separated from the shell, lateral button movement is as low as physically possible. Button stiffness is light. ROCCAT-branded optical switches are used here.

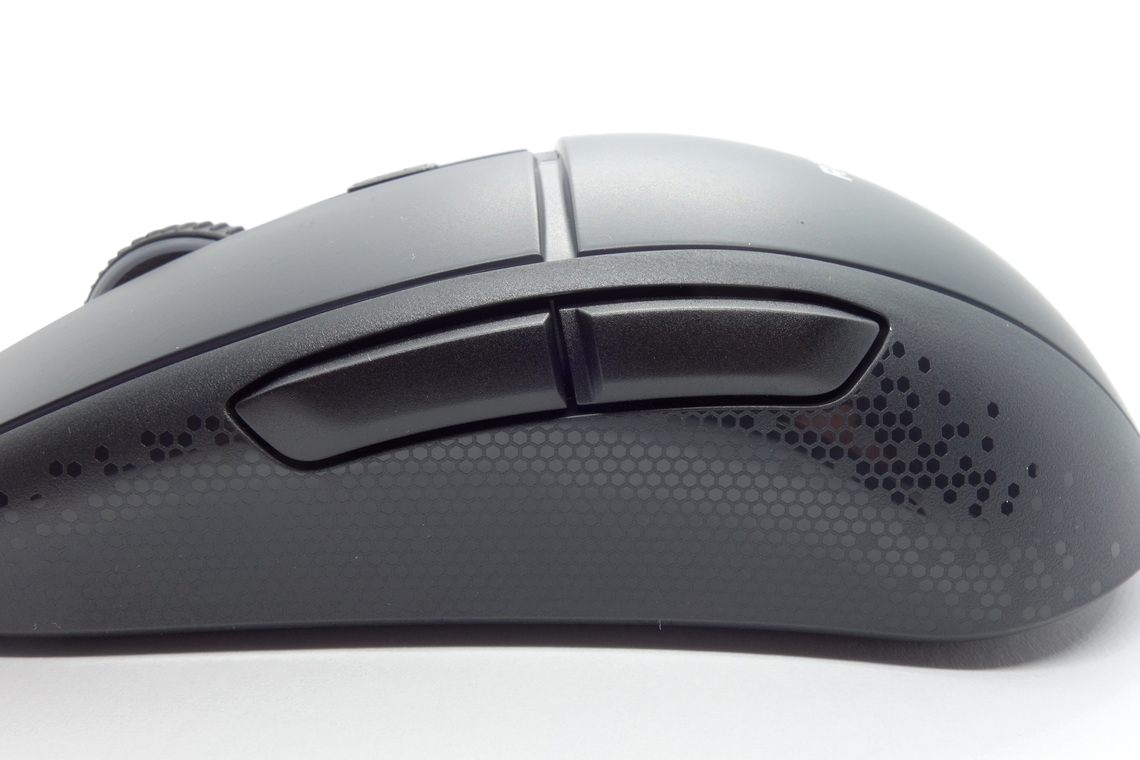

Side buttons are excellent. Both pre and post-travel are very low, and the pressure point is even across the entire buttons. Button placement is great as actuation is possible very easily by rolling one's thumb over these. They might be a tad too big, however, as I did accidentally hit them during play several times. TTC switches (red plunger) are used for these.

At the top of the mouse is a single button for cycling through the set CPI levels. Its click feel is good. Another TTC switch (white plunger) is used for this one.

Scroll Wheel

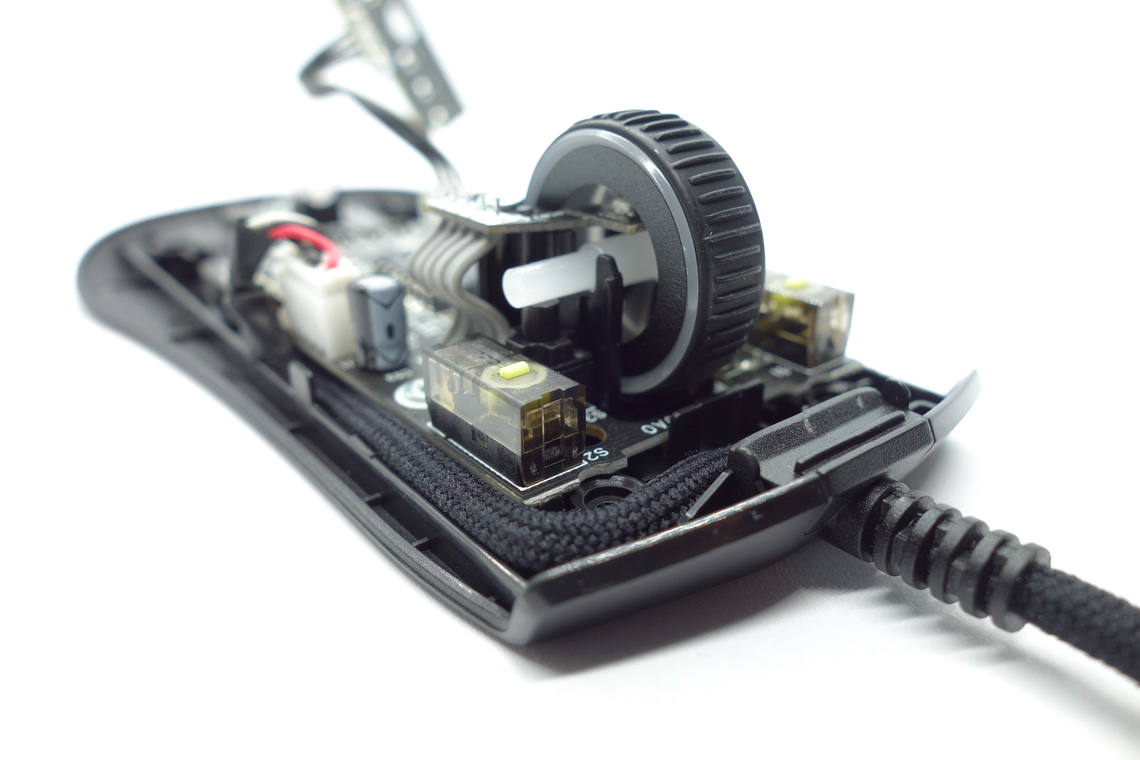

The scroll wheel is very good. Scrolling up or down barely produces any noise, and the individual steps are quite nicely separated, resulting in above average tactility. Having said that, I do think that the scroll wheel on the Burst Pro isn't as nice as on the Kone Pure Ultra or Kain series. The encoder comes from Alps. The middle (scroll wheel) click requires medium force for actuation. A tactile switch from TTC is used here.

Coating

The Burst Pro has a smooth matte surface. It doesn't attract fingerprints, dirt, or the likes too much. It's easy to clean, and there are no signs of wear left after doing so. All in all, an excellent coating.

Button Sound Test


Disassembly

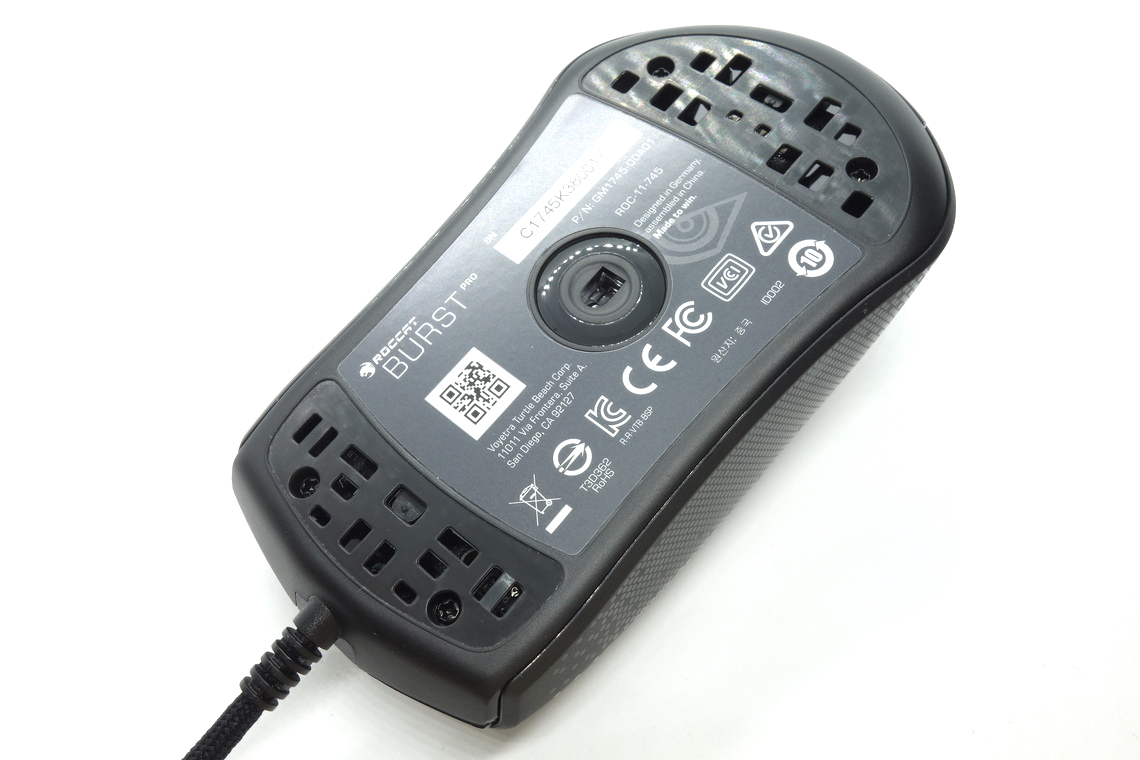

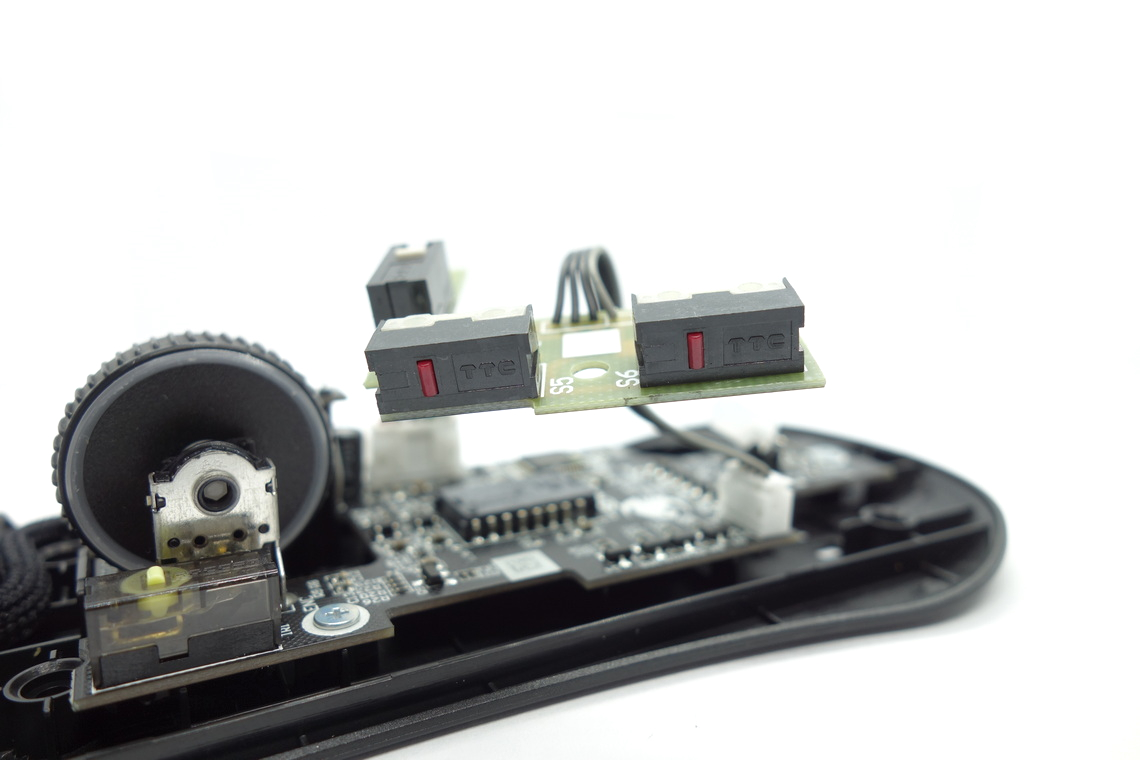

Disassembling the Burst Pro is easy. Remove the two big skates and unscrew the four screws—top and bottom shells will now be easy to separate. The internal design is equally simple. Nearly everything sits on a single PCB. The side and CPI button PCB is screwed to the top shell and connected to the main PCB through a 4-pin JST connector. An auxiliary PCB next to the scroll wheel provides scroll illumination. The main PCB is affixed to the bottom shell with four screws. All PCBs are very thin in order to save as much weight as possible. The MCU is a Holtek HT32F52352, whose datasheet can be found here. Production date for all PCBs is the 30th week of 2020.


As for the soldering and general quality of the PCBs, I'm unable to find any noteworthy flaws.
