Advanced Transient Response Tests

In these tests, we monitor the response of the PSU in two different scenarios. First, a transient load (10 A at +12V, 5 A at 5V, 5 A at 3.3V, and 0.5 A at 5VSB) is applied to the PSU for 200 ms while the latter is working at a 20% load state. In the second scenario, the PSU, while working at 50% load, is hit by the same transient load. In both tests, we measure the voltage drops that the transient load causes using our oscilloscope. The voltages should remain within the regulation limits defined by the ATX specification. We must stress here that the above tests are crucial since they simulate transient loads that a PSU is very likely to handle (e.g., booting a RAID array, an instant 100% load of CPU/VGAs, etc.) We call these tests "Advanced Transient Response Tests", and they are designed to be very tough to master, especially for PSUs with capacities lower than 500 W.





The deviations of the +12V rail were kept at low levels on both tests. The 5V and 5VSB rails also registered low voltage drops, while the 3.3V rail managed to keep its voltage above 3.2 V. The overall performance of the SS-460FL on these tests was very good, although its low capacity is a significant handicap on these tests.

Below, you will see the oscilloscope screenshots we took during Advanced Transient Response Testing.

Transient Response at 20% Load

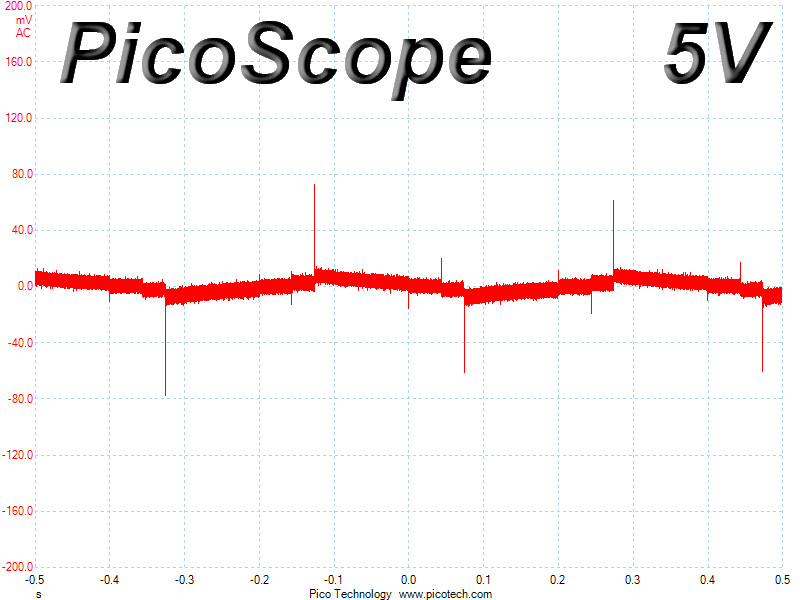

Transient Response at 50% Load

Turn-On Transient Tests

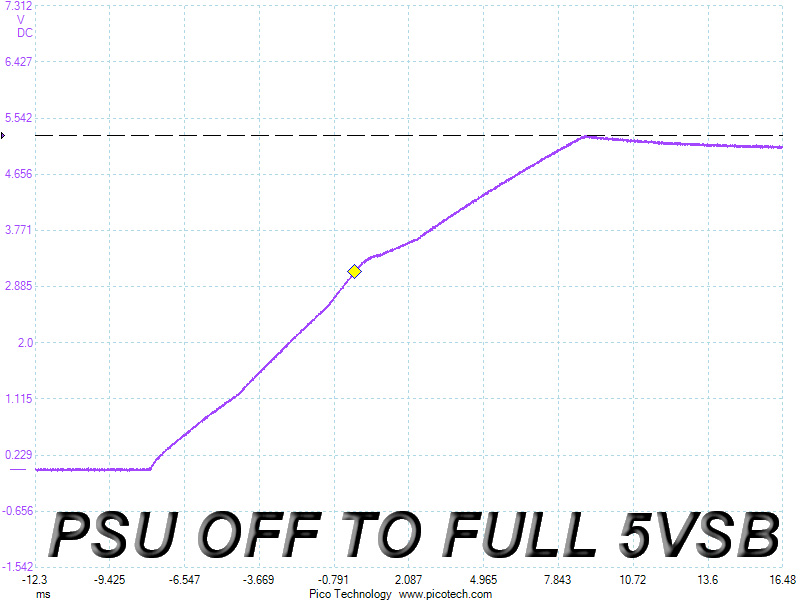

We measure the response of the PSU in simpler scenarios of transient loads - during the power-on phase of the PSU - in the next set of tests. In the first test, we turn the PSU off, dial the maximum current that the 5VSB can output, and then switch on the PSU. In the second test, we dial the maximum load that +12V can handle and we start the PSU while the PSU is in standby mode. In the last test, while the PSU is completely switched off (we cut off power or switch off the PSU's on/off switch), we dial the maximum load that the +12V rail can handle before switching the PSU on from the loader and restoring power. The ATX specification states that recorded spikes on all rails should not exceed 10% of their nominal values (e.g., +10% for 12V is 13.2V and for 5.5V for 5V).


We measured a small voltage overshoot at 5VSB, but the slope didn't register any voltage overshoots on the other two tests. Only after the +12V rail had stabilized did we notice a strange spike, but it was very small and will pass by completely unnoticed in a real-life situation.
