Ripple Measurements
In the following table you will find the ripple levels that we measured on the main rails of TP-1500M. According to ATX specification the limits are 120 mV (+12V) and 50 mV (5V, 3.3V and 5VSB).
Ripple Measurements Thermaltake TP-1500M |
---|
Test | 12 V | 5 V | 3.3 V | 5VSB | Pass/Fail |
20% Load | 6.3 mV | 6.1 mV | 11.2 mV | 8.1 mV | Pass |
40% Load | 9.1 mV | 8.3 mV | 12.0 mV | 9.2 mV | Pass |
50% Load | 11.4 mV | 10.2 mV | 13.4 mV | 10.0 mV | Pass |
60% Load | 11.9 mV | 11.7 mV | 15.3 mV | 11.1 mV | Pass |
80% Load | 15.0 mV | 14.4 mV | 22.1 mV | 15.4 mV | Pass |
100% Load | 23.5 mV | 17.6 mV | 28.2 mV | 21.0 mV | Pass |
Crossload 1 | 8.2 mV | 9.8 mV | 11.6 mV | 11.6 mV | Pass |
Crossload 2 | 21.0 mV | 15.9 mV | 25.4 mV | 18.2 mV | Pass |
Ripple at +12V is outstandingly low. It's very impressive, to say the least, to draw 1500W from a unit and the measured ripple on the most important rail does not to exceed 24 mV. Enhance did an excellent job here. Regarding the minor rails, ripple suppression at 5V is very good while 3.3V registers a little higher ripple, below 30mV though. Finally, 5VSB perform excellent since even with 6A load, ripple barely exceeds 20mV.
Ripple at Full Load
In the following oscilloscope screenshots you can see the AC ripple and noise that the main rails registered (+12V, 5V, 3.3V and 5VSB). The bigger the fluctuations on the oscilloscope's screen the bigger the ripple/noise. For all measurements we set 0.01 V/Div (each vertical division/box equals to 0.01V) as standard.

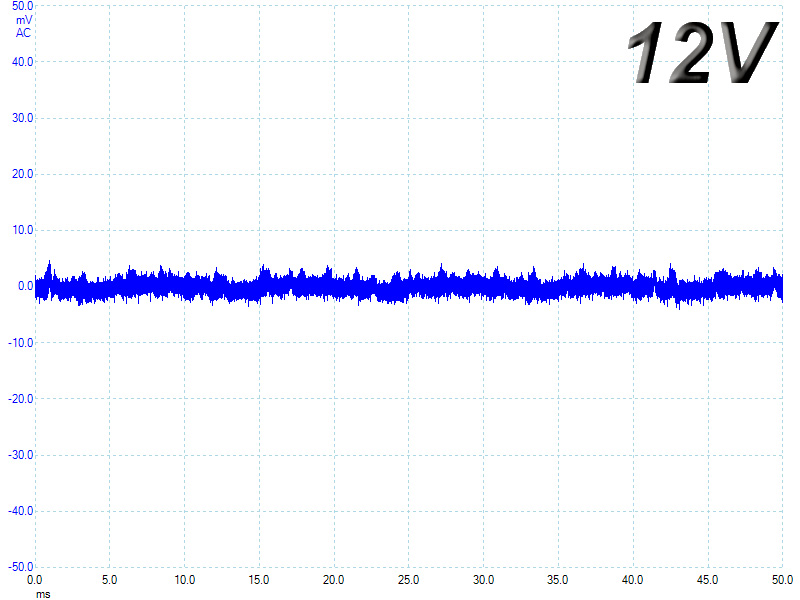

Ripple at Crossload 1

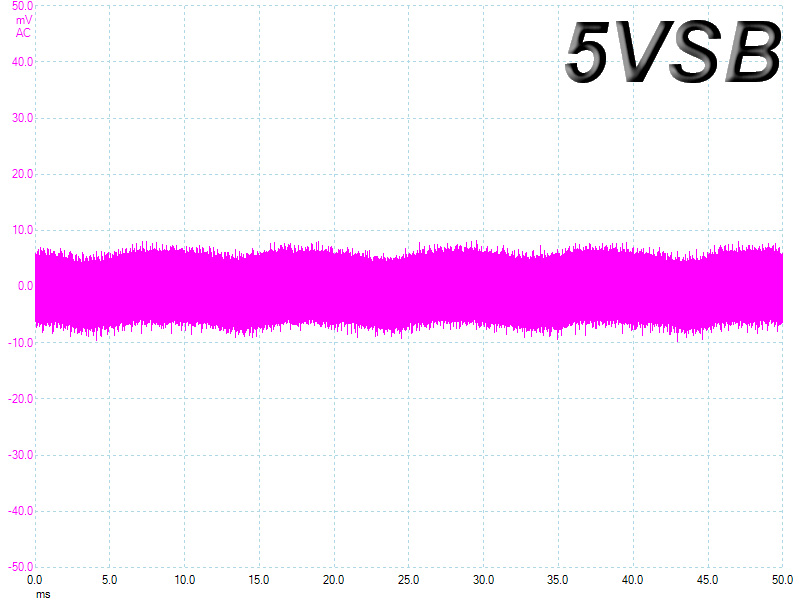

Ripple at Crossload 2
