The Card

Zotac is using a large dual fan cooler on their new design, the large dark grey parts made of metal, which definitely adds to the quality. The checkerboard textured pieces are out of well-made plastic. On the back, you find a sturdy metal backplate. Dimensions of the card are 29 cm x 14 cm.


Installation requires two slots in your system.


Display connectivity options include a DVI port, an HDMI port, and three DisplayPorts. Unlike previous NVIDIA cards, the DVI port no longer includes the analog signal, so you'll have to use an active adapter. NVIDIA also updated DisplayPort to be 1.2 certified and 1.3/1.4 ready, which enables support for 4K @ 120 Hz and 5K @ 60 Hz, or 8K @ 60 Hz with two cables.

The GPU also comes with an HDMI sound device. It is HDMI 2.0b compatible, which supports HD audio and Blu-ray 3D movies. The GPU video encoding unit has been updated to support HEVC at 10-bit and 12-bit.


NVIDIA made some changes to SLI. Two-way SLI is now the only officially supported configuration for gaming. Three-way or Quad SLI can no longer be enabled in games; however, both do work in a few benchmarks. Also, for 4K at 60 Hz and above, NVIDIA recommends a new high-bandwidth SLI bridge called "SLI HB," which occupies both SLI fingers. The old bridges will work fine at lower resolutions.

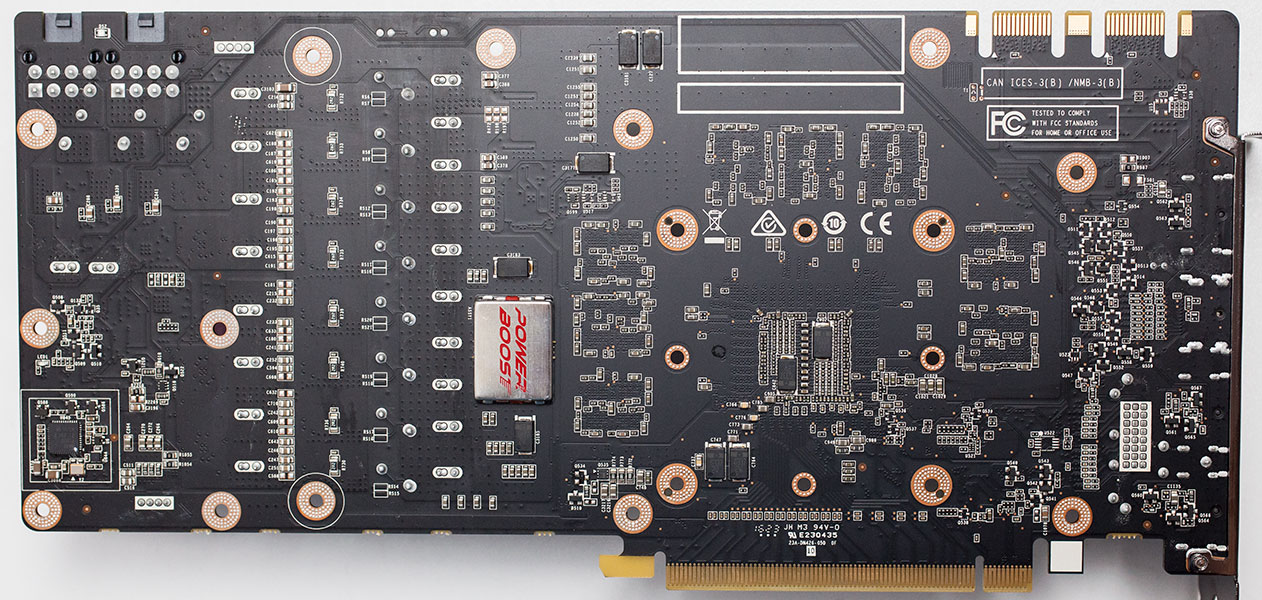

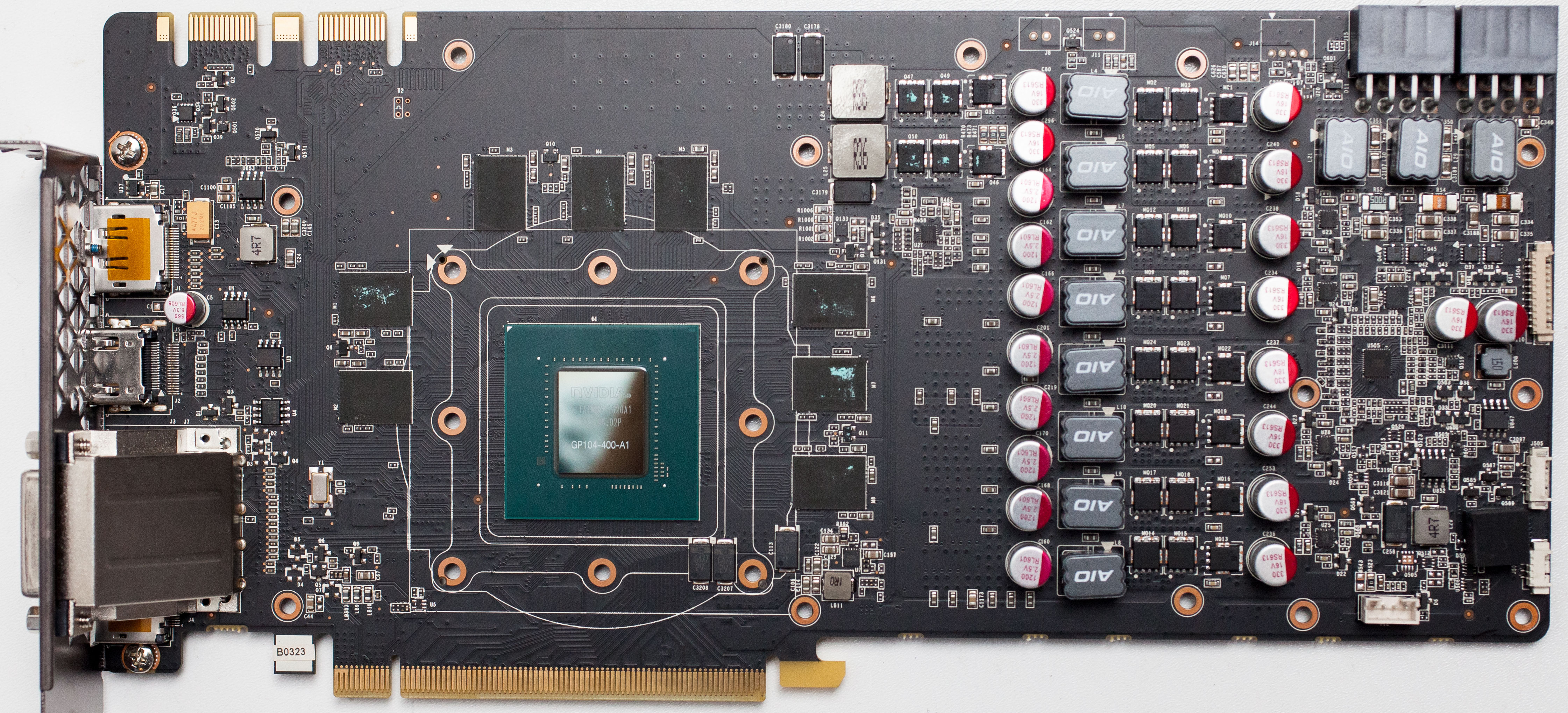

Pictured above are the front and back, showing the disassembled board. High-res versions are also available (front, back).
